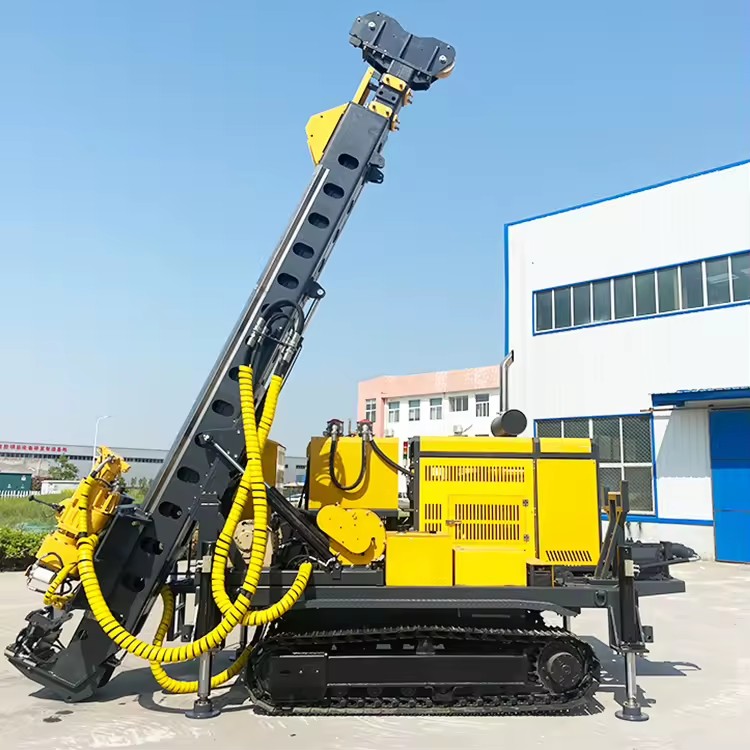

Hydraulic Diamond Mine Drilling Rig Machine Low Loss Core Rock Drilling with Diesel Engine Geotechnical Rig Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 1,640.00 1640.0 USD $ 1,640.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Drilling capacity (B/N/H)
  • Diesel power
  • Feed stroke
  • Max. Torque
  • Upgrading power
  • Max. Drill Pipe Diameter
  • Length of drill pipe
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
underground pipe and cable laying
Type
Other
Drilling Depth
1.5 m
Drilling Diameter
117 mm
Power Type
Gasoline
Voltage
standard
Product description
Technical ParameterUX300UX600UX800UX1000
Rig typeFully hydraulic pit drilling rig
Drilling capacity (B/N/H)400 / 300 / 150 m600 / 500 / 220 m1000 /800 / 520 m1200 / 1000 / 620 m
Engine power (electric)37KW55 KW75 KW90 KW
Feed stroke1.1 m1.8 m1.8 m1.8 m
Max. torque650 Nm1800 Nm2000 Nm2250 Nm
upgrading power38 KN65 KN75 KN89 KN
Max. Drill Pipe Diameter90 mm90 mm90 mm90 mm
Suitable length of drill pipe1.5m1.5m / 3 m1.5m / 3 m1.5m / 3 m
Weight1550Kg3150Kg3350Kg3500 Kg
Forms of transportTowing/manual labor for carrying

Fully hydraulic rock core drilling rig

Technical ParameterCX600CX800CX1200CX1600
Rig typeFully hydraulic rock core drilling rig
Drilling capacity (B/N/H)650 / 550 / 300 m850 / 650 / 350 m1200 / 1000 /680（P300 m）1600 / 1250 / 880 (P570 m)
Diesel power95 KW120 KW140 KW153 KW
Feed stroke1.8 m1.8 m3.5 m3.5 m
Max. torque15 KN25 KN40 KN60 KN
upgrading power105 KN105 KN118 KN138 KN
Max. Drill Pipe Diameter117 mm117 mm117 mm117 mm
Length of drill pipe1.5 m1.5 m3 m3/6 m
Weight6500 Kg7500 Kg9000 Kg12000 Kg
Technical ParameterF300F600F800F1000F16-MP
Rig typeFully hydraulic light weight drilling rig
Drilling capacity (B/N/H)300 / 220 / 120 m600 / 400 /180 m800 / 600 /350 m1000 / 800 /400 m1200 / 1000 /600 m
Engine power1 x 33 KW3 x 24KW3 x 33 KW4 x 33 KW4 x 33 KW
Feed stroke1.2/1.8 m1.8 m1.8 m1.8 m1.8 m
Max.torque (normal speed)300 Nm600 Nm800 Nm1000 Nm1600 Nm
Max. lifting power56 KN100 KN120 KN125 KN138 KN
Max. Drill Pipe Diameter114 mm114 mm114 mm114 mm114 mm
Length of drill pipe1.0m /1.5m1.5m1.5m1.5m1.5m
Max. module weight180 Kg160 Kg180 Kg180 Kg180 Kg
Forms of transportmanual labor for carrying/small machinery
Description images

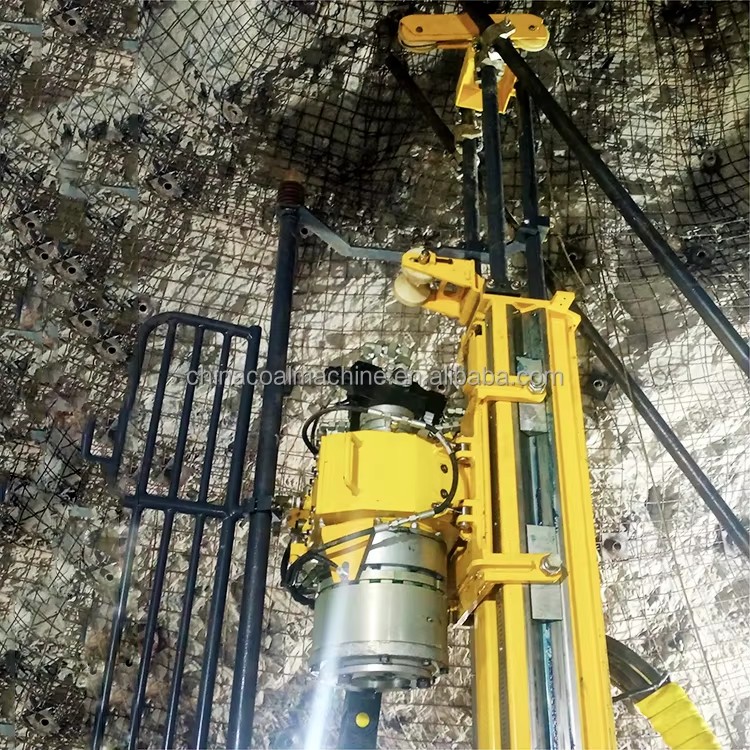

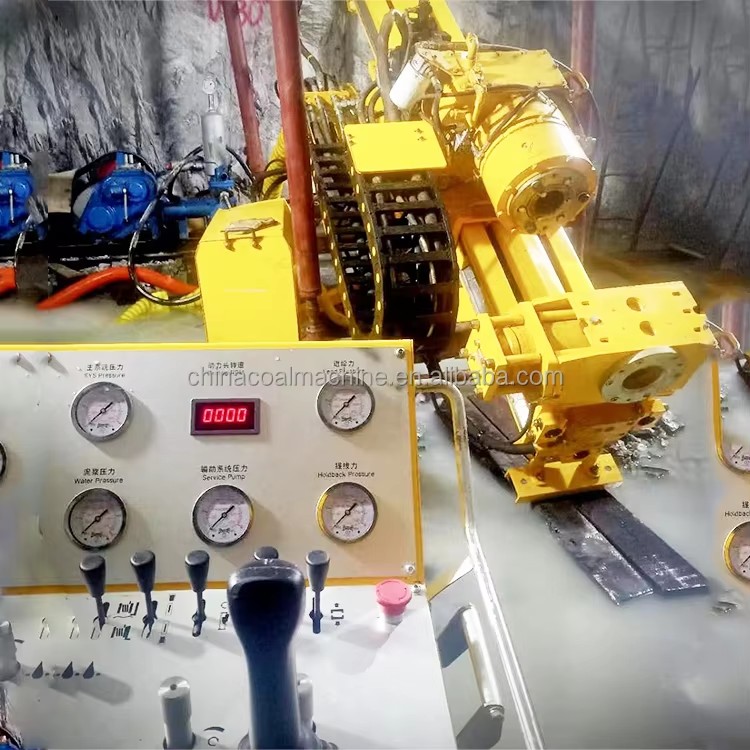

Product detail

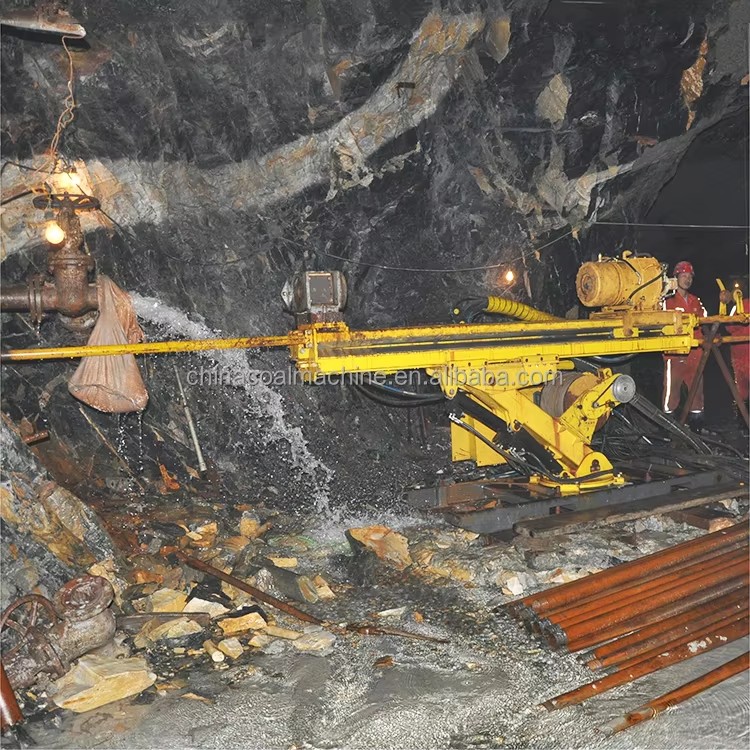

Product detail

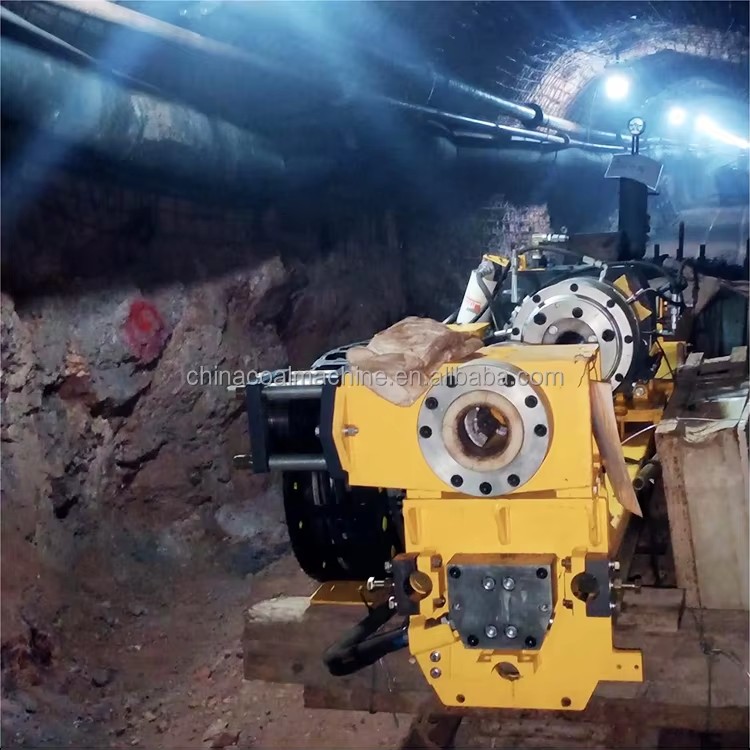

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
underground pipe and cable laying
Type
Other
Drilling Depth
1.5 m
Drilling Diameter
117 mm
Power Type
Gasoline
Voltage
standard
Core components
Engine, Other
Warranty
2 Years
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
High Safety Level
Place of origin
China, Shandong
Weight
6500 kg
Dimension (L*W*H)
1200 / 1000 / 620 m
Mobility
track
Drilling capacity (B/N/H)
650 / 550 / 300 m
Diesel power
95 KW
Feed stroke
1.8 m
Max. Torque
15 KN
Upgrading power
105 KN
Max. Drill Pipe Diameter
117 mm
Length of drill pipe
1.5 m
Selling Units
Single item
Single package size
70X70X70 cm
Single gross weight
59.0 kg
Model number
ZM Series Fully hydraulic rock core drilling rig
Power (W) (Product option)
37kw, 75 kW, 120 KW, 90 KW, 55 kW, 153 KW, 140 KW, 95 KW
