Name: Hydraulic Core Drilling Rig Air Reverse Circulation Drilling Rig Mining Rock Powder Collection Mining Exploration
SKU: B2B-39321
Price: 1800.0 USD
Availability: PreOrder

Product description

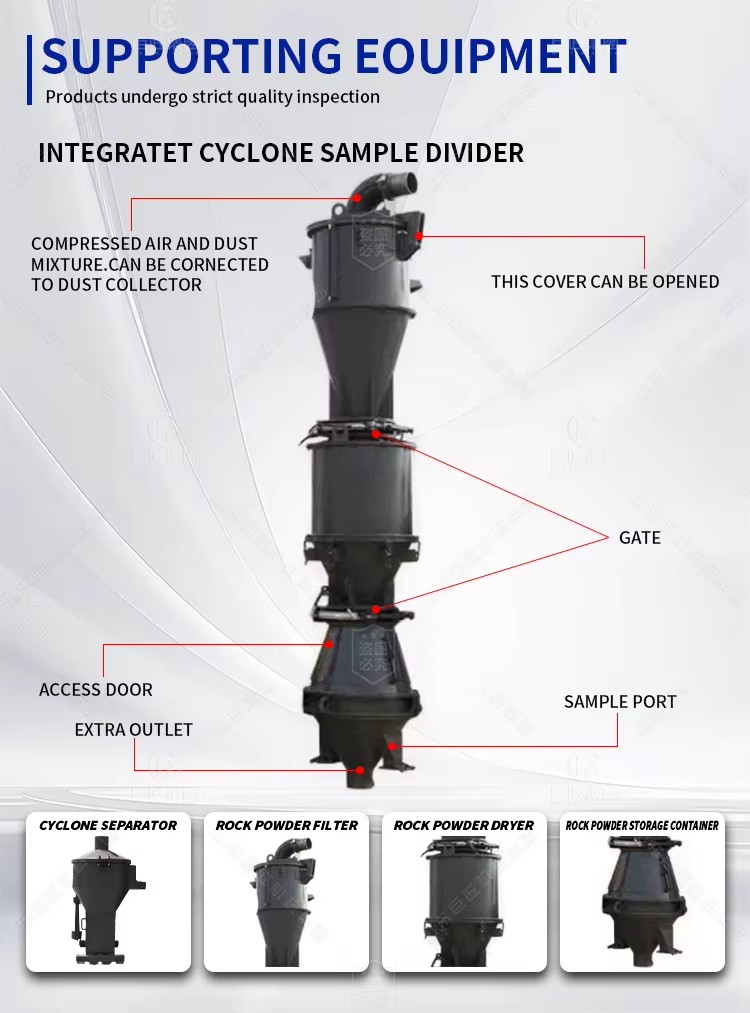

Three layer dust collection filter

These advantages save you a lot of drilling rig construction and operation costs

Inventory and customized services

Drilling rig model	ARC-200	ARC-300	ARC-500	ARC-800	ARC-1200
Overall machine parameters	Vehicle weight	6T	7.5T	9.5T	17T	23T
Track ground length	2150mm	2500mm	2500mm	7000mm	8000mm
Drilling diameter	95-254mm	95-350mm	95-350mm	105-550mm	105-800mm
Drilling depth	200m	300m	500m	800m	1200m
Drill pipe length	1.5/2/3m	1.5/2/3m	1.5/2/3m	3/6m	6m
One-time advancement length	3.6m	4m	4m	6m	6m
Winch lifting force	1T	2T	2T	2.5T	2.5T

Ans:Yes, we are a factory specializing in drilling equipment.

Ans:T/T30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Ans: EXW, FOB, CFR, CIF.

Ans: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Ans:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.

Ans: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Ans: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Ans: Yes, we have records for your clients, and will prefer providing accessories to clients.

Ans: 1.We keep good quality and competitive price to ensure

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Usage

Ore, Core Exploration Deep Core Drilling Rig

Type

Core Drilling Rig

Drilling Depth

Max.1200m

Drilling Diameter

800 mm, 105mm

Power Type

Diesel

Core components

Motor, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

High Productivity

Place of origin

China, Shandong

Weight

5700 KG

Dimension (L*W*H)

11500*2250*3400mm

Application

Gelogical Prospecting

Feature

Efficient

Drilling method

Percussive Rotating

Engine type

220kW

Max Drilling Depth

1200m

Drill rod length

1.5m/2m/3m/6m

Drill pipe diameter

89-146 Mm

Torque

12000-24000N.m

Power head lifting force

5.7T

Selling Units

Single item

Single package size

850X225X340 cm

Single gross weight

5200.0 kg

Model number

ARC-200, ARC-300, ARC-500, ARC-800, ARC-1200

Power (W) (Product option)

132kw, 110kw, 77.3KW, 176kW, 220kW

Certifications & Compliance

Lead time

7 days

Minimum order

1 Units
