Two-Layer Braided Steel Wire SAE 100 R2 EN853 2SN Industrial Hydraulic Hose Synthetic Rubber High Pressure Custom Cutting

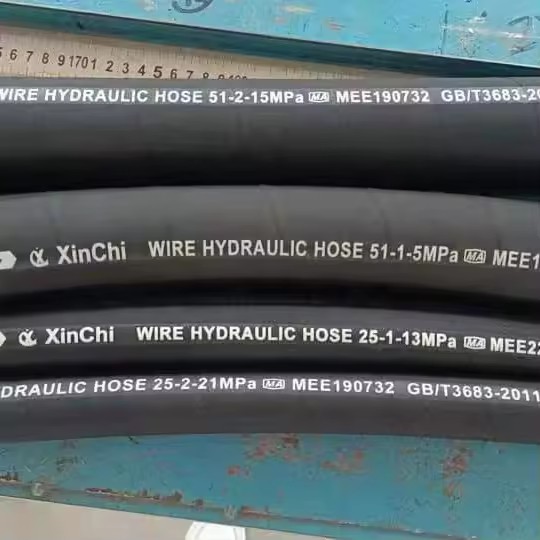

Product Importer Gallery 01 · 52eab56806

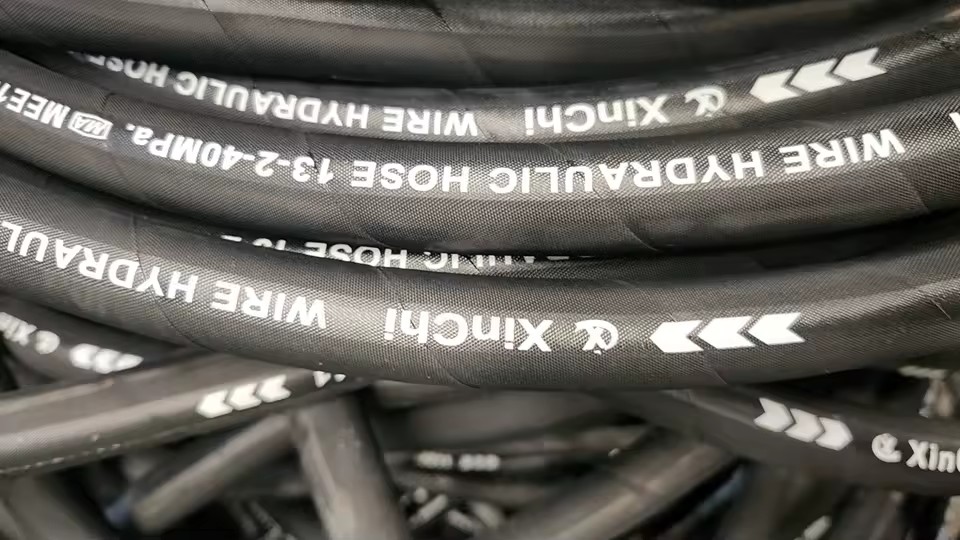

Product Importer Gallery 02 · 14eabc14de

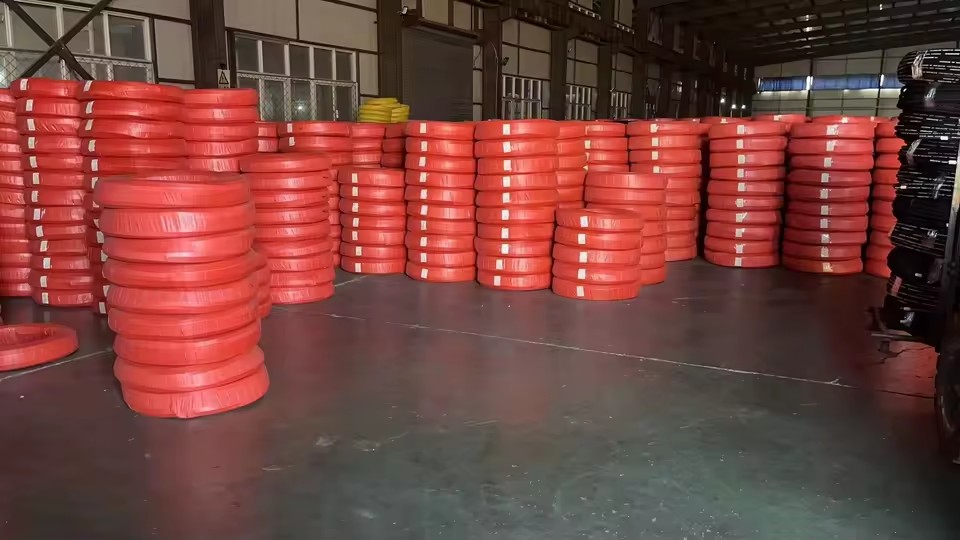

Product Importer Gallery 03 · 3e49fd4890

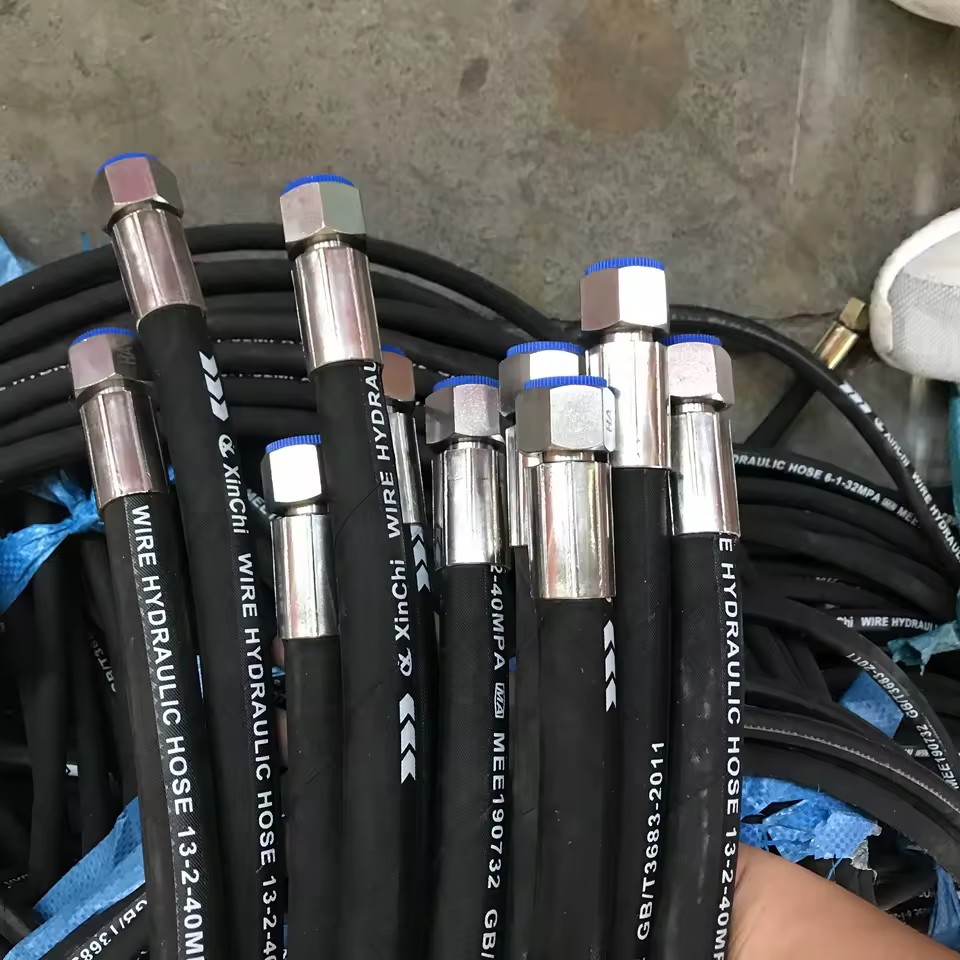

Product Importer Gallery 04 · fb668b1295

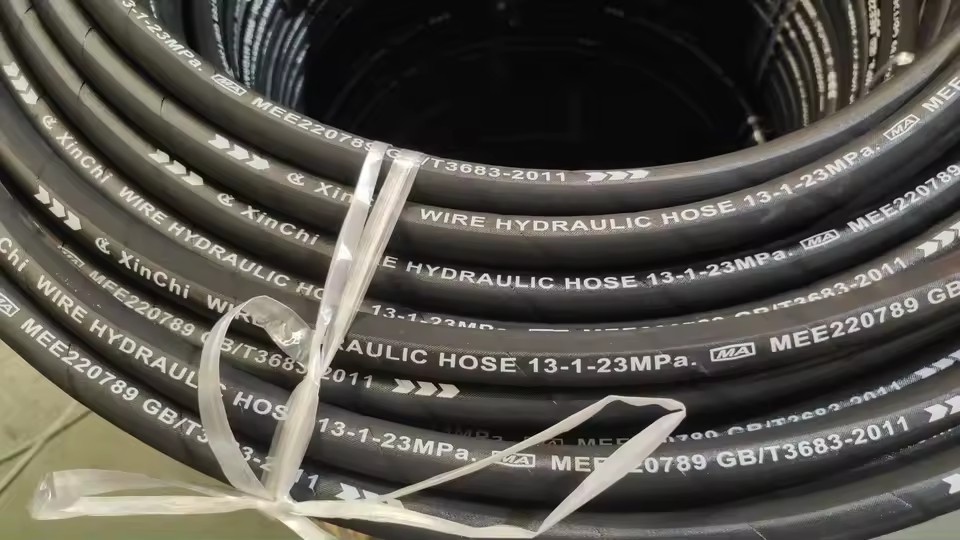

Product Importer Gallery 05 · 441098c7dd

Product video

Certifications CCC

Two-Layer Braided Steel Wire SAE 100 R2 EN853 2SN Industrial Hydraulic Hose Synthetic Rubber High Pressure Custom Cutting

Name: Two-Layer Braided Steel Wire SAE 100 R2 EN853 2SN Industrial Hydraulic Hose Synthetic Rubber High Pressure Custom Cutting
SKU: HV6D-HA32-3D7N
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews 158 sold

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 15 Units

Key attributes

View all

Outer Diameter (Specification)

1 in

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Material

Synthetic Rubber

Application

Industrial

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Approx. shipping fee: $ 5.97 for 15 meters · Estimated delivery: Sep 29–Oct 16 (28–45 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

item	value
Place of Origin
Hebei
Brand Name	XINCHI
Model Number	din
Processing Service	Moulding, Cutting
Material	Synthetic Rubber
Application	Industrial
Color	Black
Size	Customized Size
Reinforcement	Steel Wire Braided
Length	Customized Length
MOQ	1 Meter
Standard	SAE100RAT/DIN EN853
Sample	Free(Customer Pays Freight)
Quality	100% Product Testing

High Pressure Rubber Hose

Reinforcement	Number
One steel wire braided	SAE R1AT/DIN 1SN. SAE R1AT/DIN 1ST, DIN 1SNK DIN/EN 1SN WG, DIN 1SC, SAE R5, SAE 100R17
Two steel wire braided	SAE R2AT/DIN 2SN, SAE R2AT/DIN 2ST, DIN 2SNK, DIN 2SC
One/two wire braided	SAE R16
Four steel wire spiral	SAE R9AT, SAE R10, SAE R12, DIN 4SP, DIN 4SH
High flexibility nylon or thermoplastic	SAE R7, SAE R8

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	9	10	11.1	13	25	50	100	85
6.3	1/4	10.6	11.6	12.7	14	22.5	45	90	100
8	5/16	12.1	13.3	14.3	16	21.5	43	86	115
10	3/8	14.5	15.7	16.7	18	18	36	72	130
12.5	1/2	17.5	19.1	19.8	21	16	32	64	180
16	5/8	20.6	22.2	22.9	25	13	26	52	200
19	3/4	24.6	26.2	26.9	29	10.5	21	42	240
25	1	32.5	34.1	34.6	37	8.8	17.6	35.2	300
31.5	1-1/4	39.3	41.7	42.2	45	6.3	12.6	25.2	420
38	1-1/2	45.6	48	49.1	52	5	10	20	500
51	2	58.7	61.7	62.5	66	4	8	16	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	10.6	11.6	12.7	14	41.5	83	166	90
6.3	1/4	12.1	13.3	14.3	16	40	80	160	100
8	5/16	13.7	14.9	15.9	17	35	70	140	115
10	3/8	16.1	17.3	18.3	20	33	66	132	130
12.5	1/2	19	20.6	21.4	23	27.5	55	110	180
16	5/8	22.2	23.8	24.6	26	25	50	100	200
19	3/4	26.2	27.8	28.5	30	21.5	43	86	240
25	1	34.1	35.7	37.3	39	16.5	33	66	300
31.5	1-1/4	43.3	45.7	47.1	50	12.5	25	50	420
38	1-1/2	49.6	52	53.3	56	9	18	36	500
51	2	62.3	64.7	66	69	8	16	32	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
10	3/8	16.9	18.1	20.6	22.2	44.5	89	178	180
12.5	1/2	19.4	21	23.8	25.4	41.5	83	166	230
16	5/8	23	24.6	27.4	29	35	70	140	250
19	3/4	27.4	29	31.4	33	35	70	140	300
25	1	34.5	36.1	38.5	40.9	28	56	112	340
31.5	1-1/4	45	47	49.2	52.4	21	42	84	460
38	1-1/2	51.4	53.4	55.6	58.8	18.5	37	74	560
51	2	64.3	66.3	68.2	71.4	16.5	33	66	660
64	2-1/2	76	78	83.1	85.5	35	70	140	990
76	3	100	103	105.1	108	35	70	140	1200
89	3-1/2	114	115.5	118	122	35	70	140	1300
102	4	126	128	131	134.2	35	70	140	1400

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
19	3/4	27.6	29.2	31.4	33	42	84	168	280
25	1	34.4	36	37.5	39.9	38	76	152	340
31.5	1-1/4	40.9	42.9	43.9	47.1	32.5	65	130	460
38	1-1/2	47.8	49.8	51.9	55.1	29	58	116	560
51	2	62.2	64.2	66.5	69.7	25	50	100	700

Certifications & compliance

CCC

Flame Retardant Material

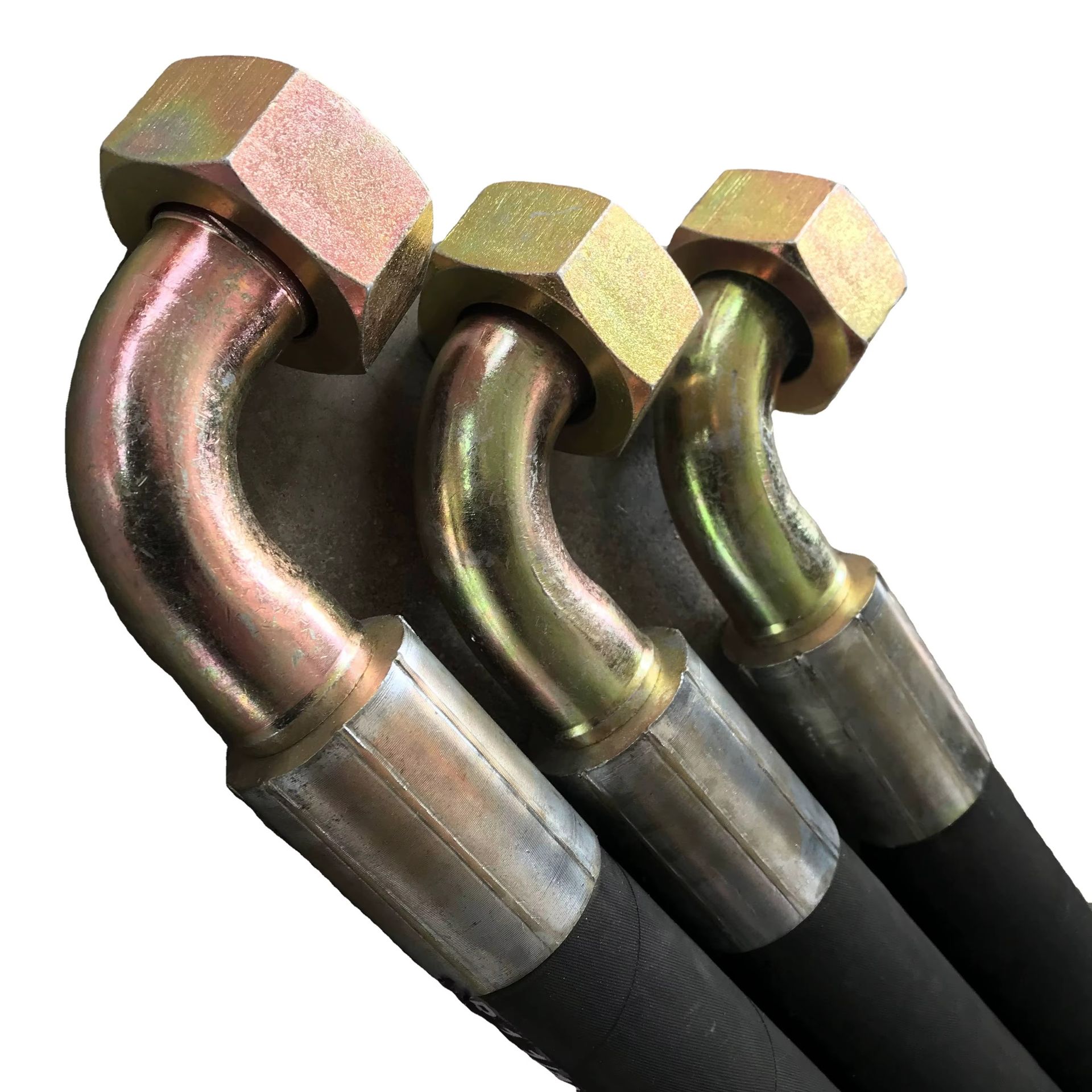

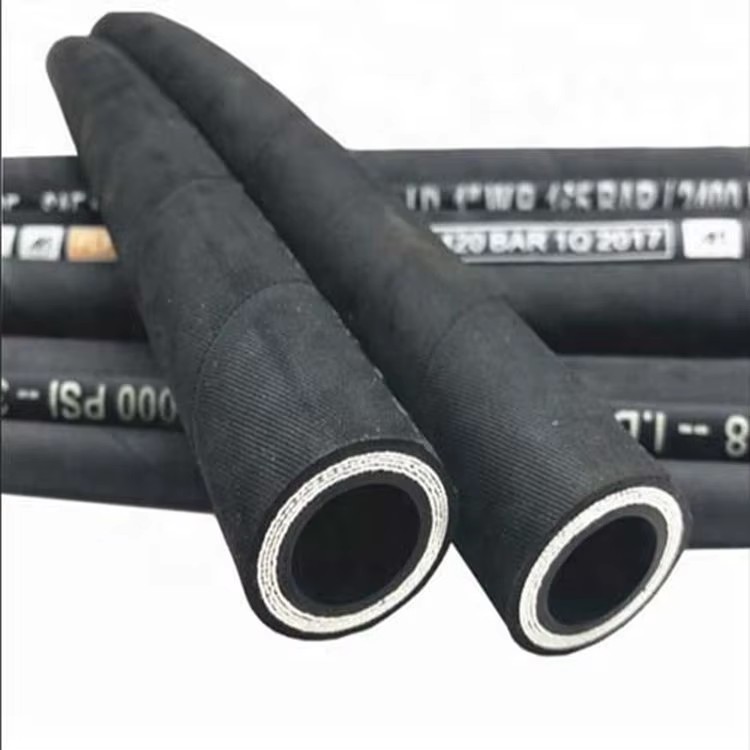

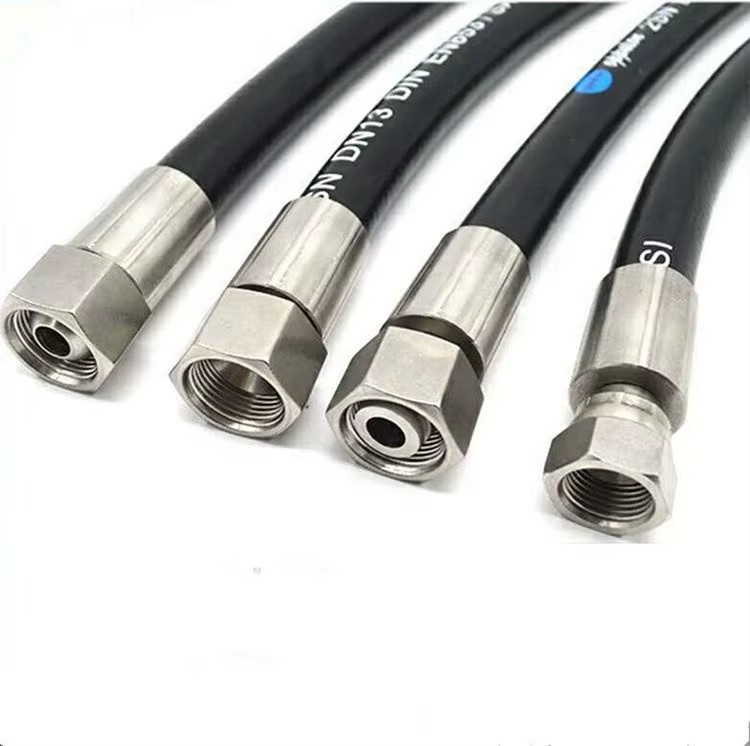

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 15 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 5.97 for 15 meters · Estimated delivery: Sep 29–Oct 16 (28–45 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 18 fields

Outer Diameter (Specification)

1 in

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Material

Synthetic Rubber

Application

Industrial

Size

Customized Size

Reinforcement

Steel Wire Braided

Length

Customized Length

MOQ

1 Meter

Standard

SAE100RAT/DIN EN853

Sample

Free(Customer Pays Freight)

Quality

100% Product Testing

Selling Units

Single item

Single package size

0.5X0.5X0.5 cm

Single gross weight

1.0 kg

Color (Product option)

Black

Certifications & Compliance

CCC

Minimum order

15 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

Two-Layer Braided Steel Wire SAE 100 R2 EN853 2SN Industrial Hydraulic Hose Synthetic Rubber High Pressure Custom Cutting

Open URL

Price

$ 20.00

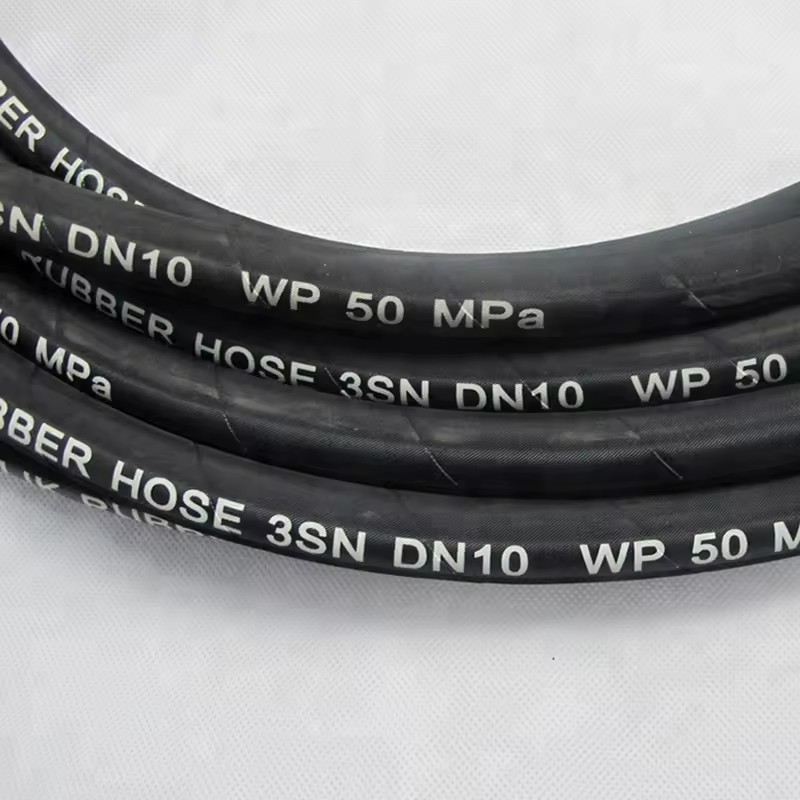

Two-Layer Braided Steel Wire SAE 100 R2 EN853 2SN Industrial Hydraulic Hose Synthetic Rubber High Pressure Custom Cutting product image
