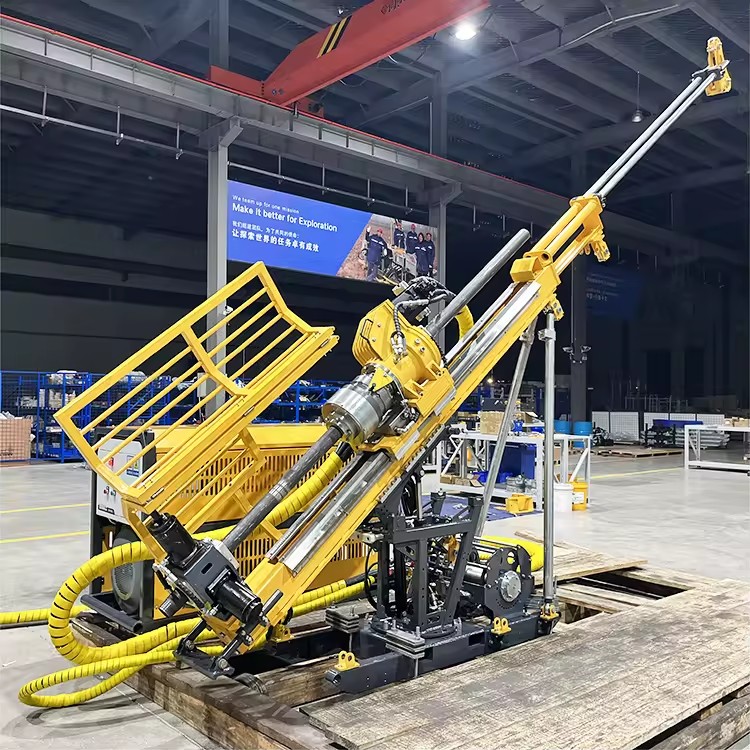

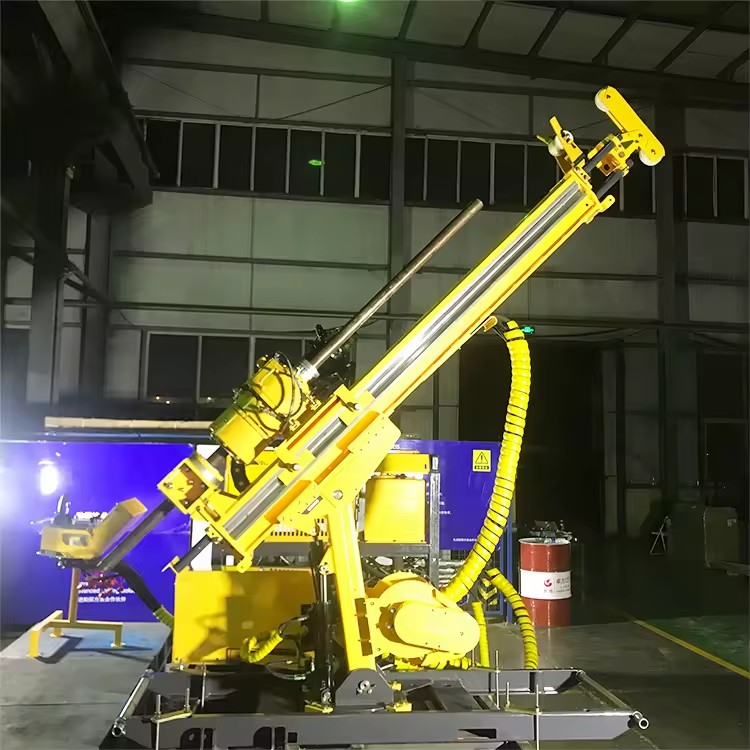

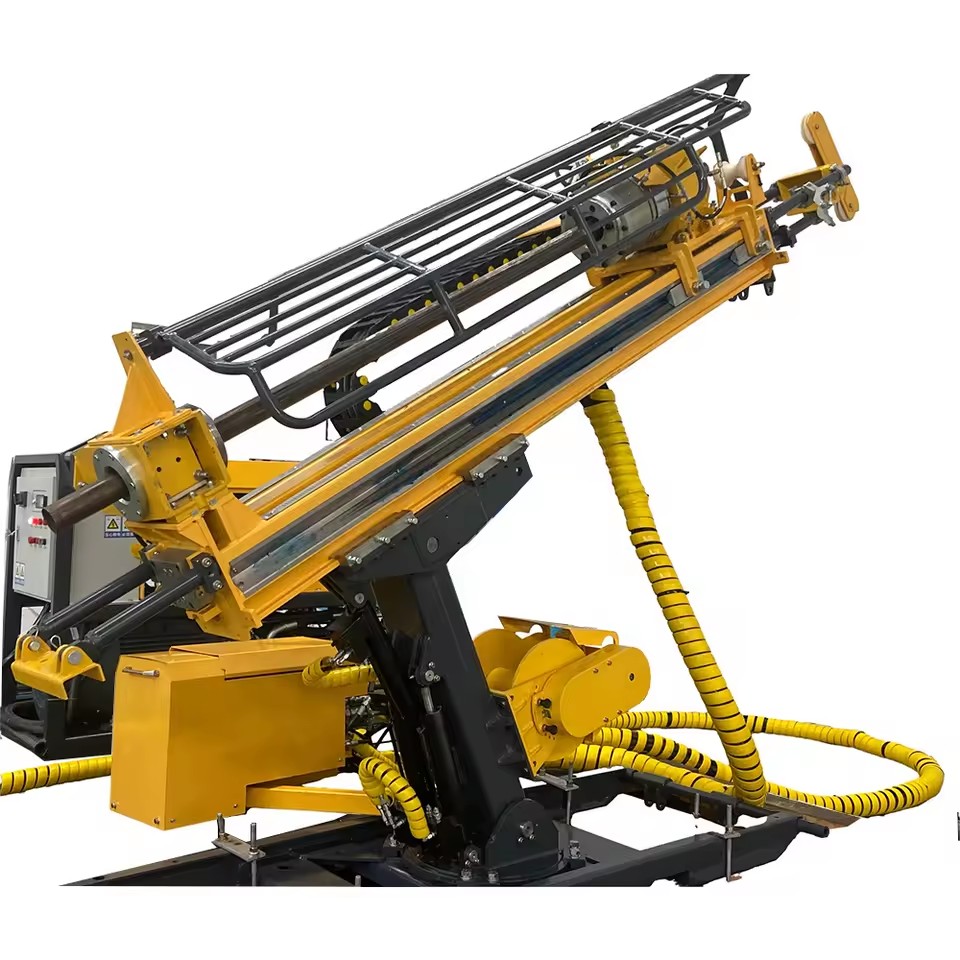

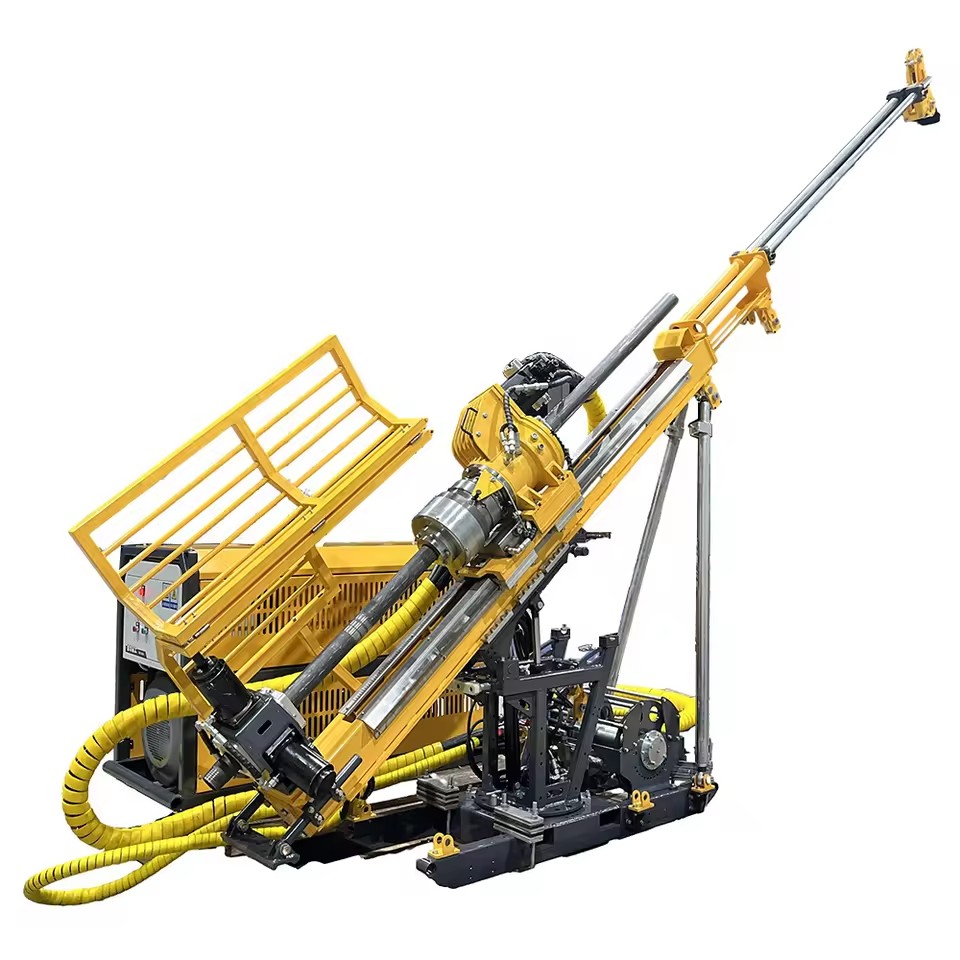

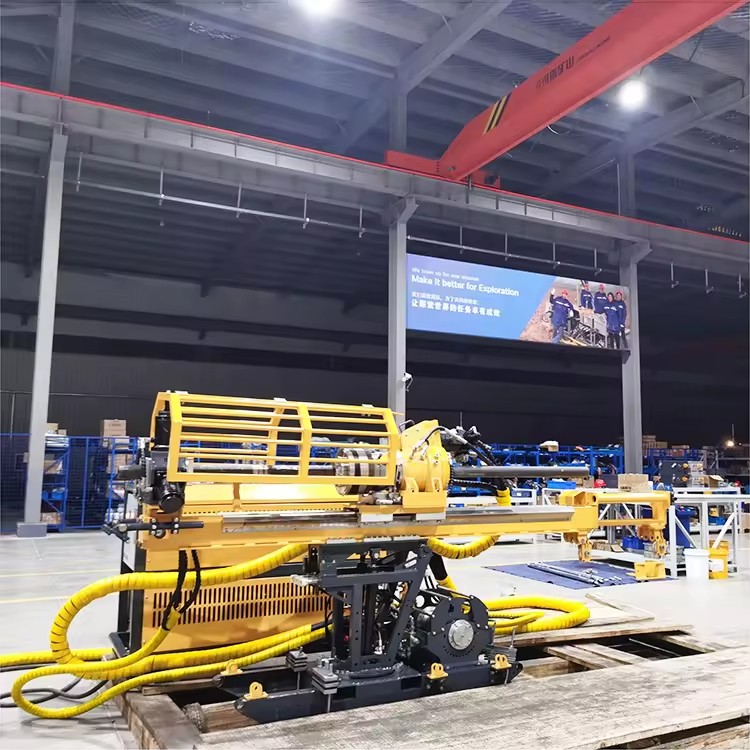

Latest Tunnel Drilling Rig Manufacturer Hydraulic Mining Drill Rigs Bore Hole Mine Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 6,260.00 6260.0 USD $ 6,260.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
mine
Type
Standard
Drilling Depth
Max.100m, 150/100m
Drilling Diameter
42mm
Power Type
Electric
Voltage
standard
Product description

Parameters of Latest Tunnel Drilling Rig Manufacturer Hydraulic Mining Drill Rigs Bore Hole Mine Drilling Rig

ItemZDY660ZDY1250SZDY1900SZDY3200SZDY4000S
Rated torque660N.m1250N.m1900N.m3200N.m4000N.m
Drilling depth150/100M300/200/100M300/200/100M300/200/100M350/200/100M
Drill pipe diameter42/50mm42/50/63.5mm63.5/73mm63.5/73mm63.5/73mm
Drilling angle±90°0～±90°0～±90°0～±90°0～±90°
Rated Rotating speed50-300r/min50-250r/min50~270r/min50~210r/min50~280r/min
Pushing ability27KN36KN77KN77KN100KN
Pulling ability40KN52KN112KN112KN150KN
Push/Pull stroke650mm600mm600mm800mm800mm
Min. working height1000mm1000mm1000mm1000mm1100mm
Max. working height2100mm2100mm2100mm2100mm2100mm
Power15KW22KW37KW37KW|45KW55KW
Whole machinery weight1100kg1350kg2100kg2200kg2500kg
Drill machine weight600kg800kg1250kg1200KG1500kg

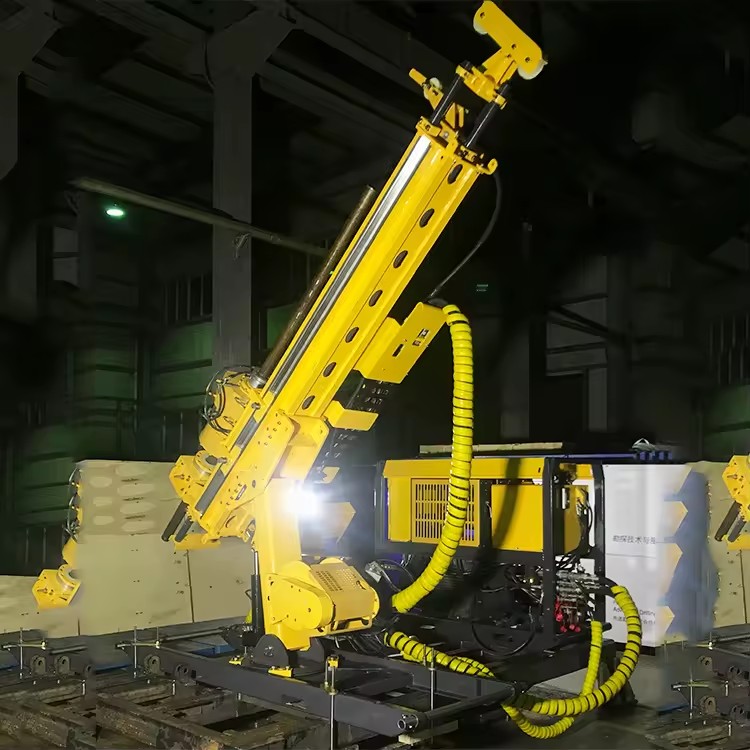

Photos of Latest Tunnel Drilling Rig Manufacturer Hydraulic Mining Drill Rigs Bore Hole Mine Drilling Rig

Description images

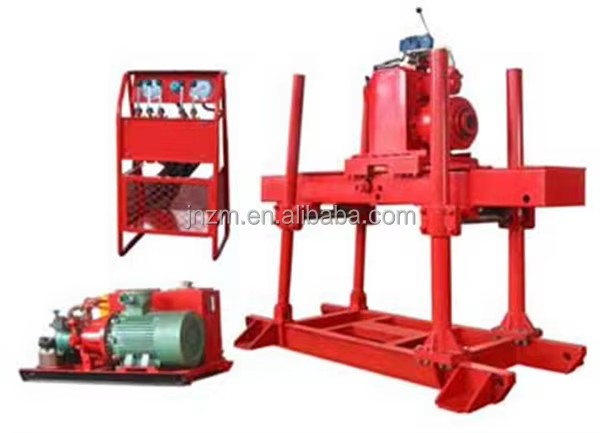

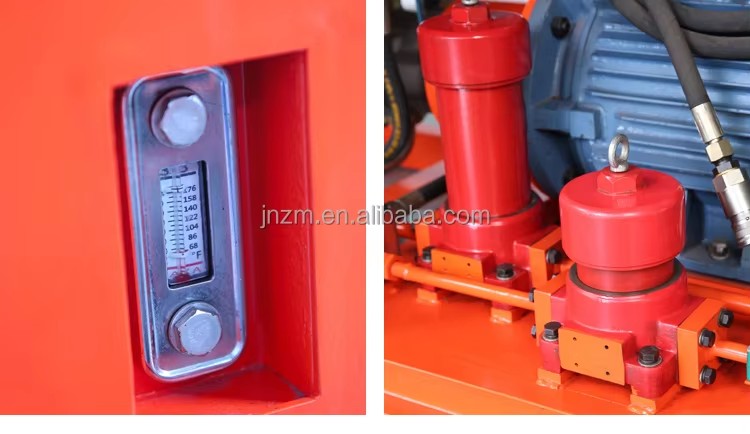

Product detail

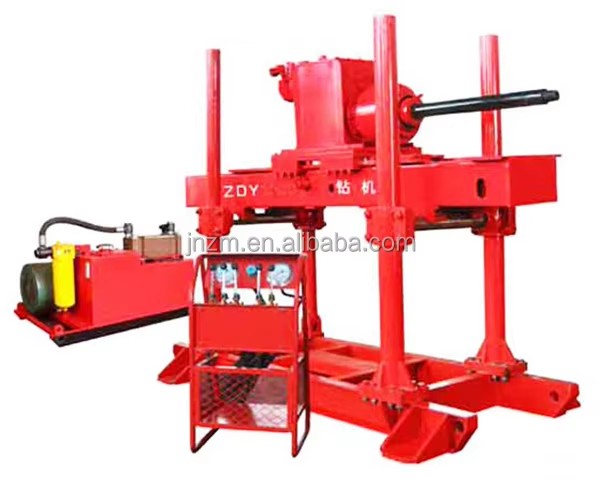

Product detail

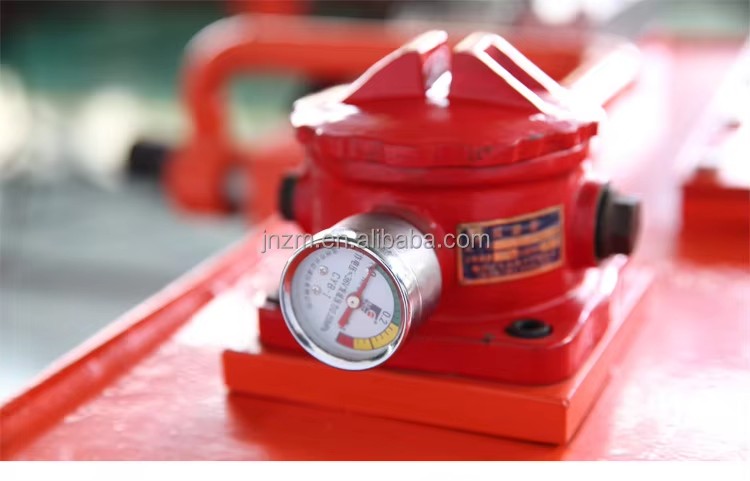

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Multimodal transport · Approx. shipping fee: $ 358.06 for 1 unit · Estimated delivery in 38-48 business days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Usage
mine
Type
Standard
Drilling Depth
Max.100m, 150/100m
Drilling Diameter
42mm
Power Type
Electric
Voltage
standard
Core components
Bearing, Pressure Vessel, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
600 KG
Dimension (L*W*H)
standard
Mobility
standard
Keyword
Tunnel Drill Machine
Drill pipe diameter
42/50mm
Drilling Angle
±90°
Rated Rotating speed
50-300r/min
Pushing ability
27KN
Pulling ability
40KN
Power
15kw
Max. working height (Specification)
2100mm
Selling Units
Single item
Single package size
100X100X100 cm
Single gross weight
59.0 kg
Model number
ZDY660 Tunnel Drill Machine
Power (W) (Product option)
Standard
Lead time
7 days
Minimum order
1 Units
