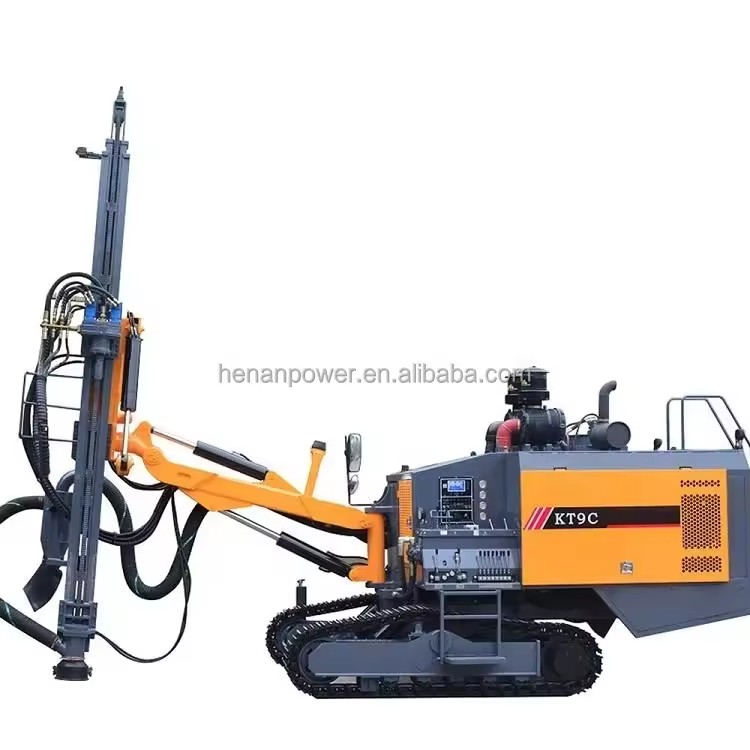

KT9C High Quality Cheap Price Down the Hole Drill Rig Mine Drilling Rig Quarry Drilling Machine

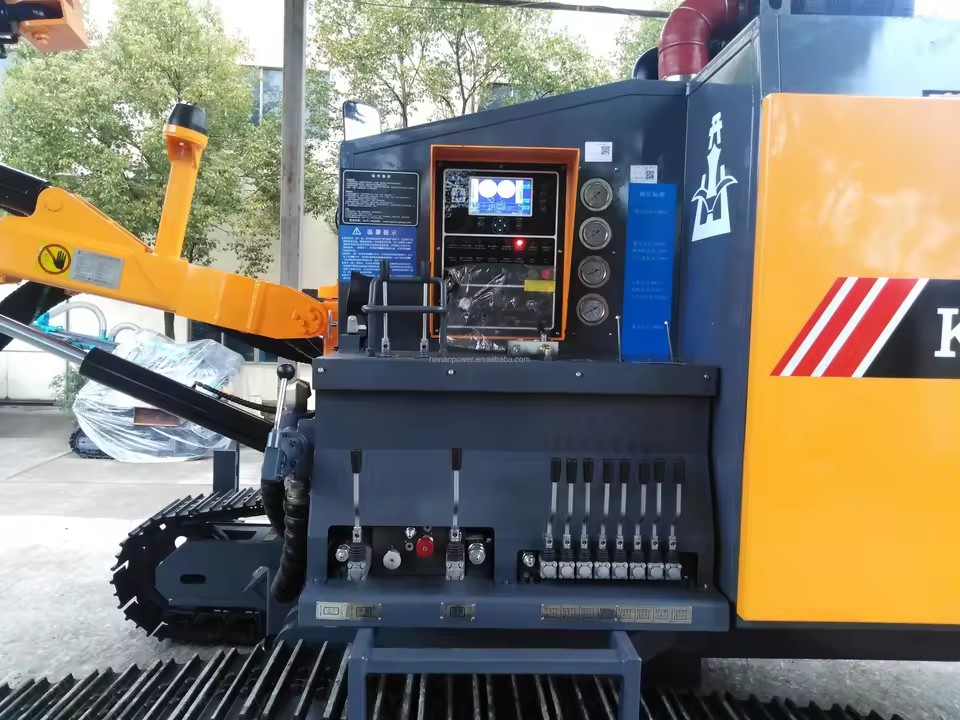

Product Importer Gallery 01 · 2d4366fbf5

Product Importer Gallery 02 · de04a74715

Product Importer Gallery 03 · a8e81ecc01

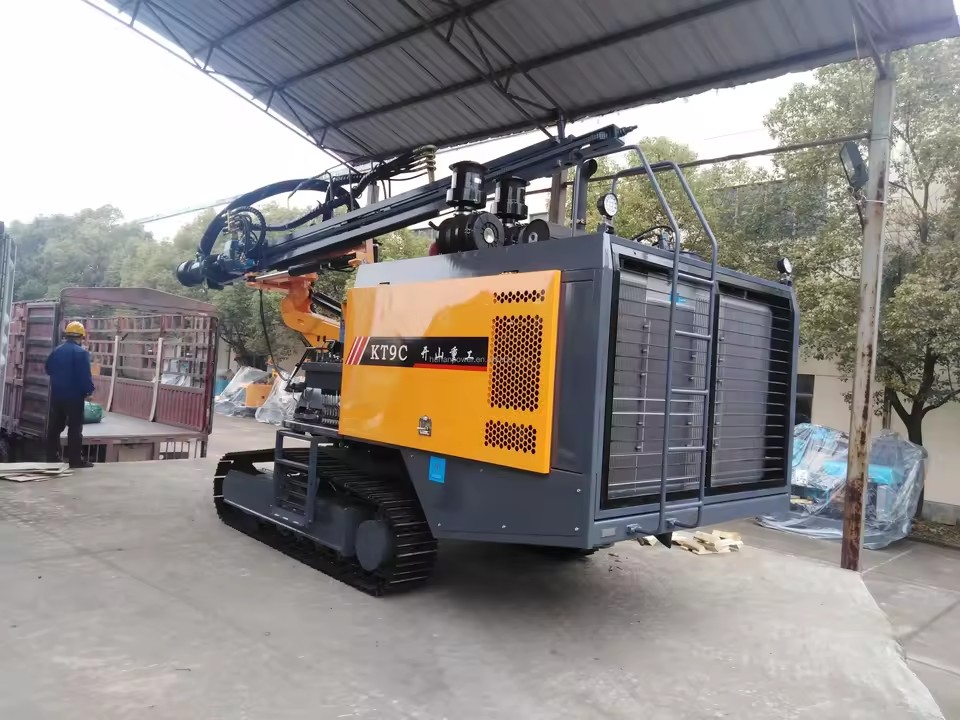

Product Importer Gallery 04 · bb68281046

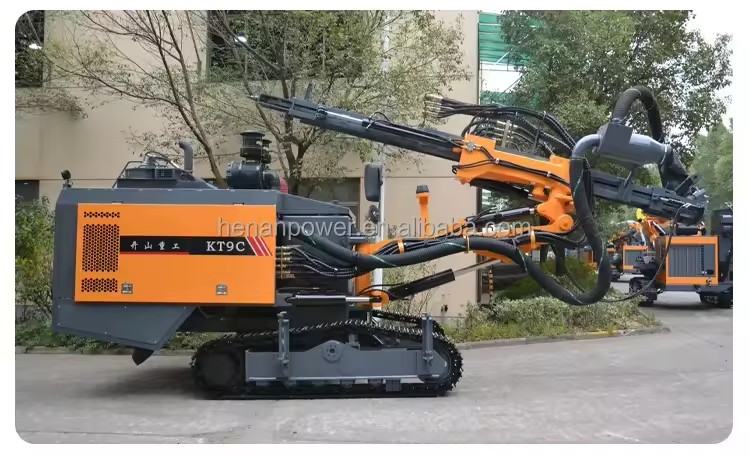

Product Importer Gallery 05 · 7d761151fc

Product video

KT9C High Quality Cheap Price Down the Hole Drill Rig Mine Drilling Rig Quarry Drilling Machine

Name: KT9C High Quality Cheap Price Down the Hole Drill Rig Mine Drilling Rig Quarry Drilling Machine
SKU: HMYN-BC3M-EHRT
Price: 90110.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 90,110.00 90110.0 USD $ 90,110.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Ore

Type

Mine drilling rig

Drilling Depth

25m(82.02ft)

Drilling Diameter

115-165mm(4.53-6.50in)

Power Type

Diesel

Voltage

24 V

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Model	KT9C
Dimension(LWH)	825023003200mm
Weight	12000kg
Power of complete machine	295kw/1900r/min
Drilling diameter	φ115-165mm
Depth of economical drilling	25m
Rotary torque(Max)	4000N.m
Travelling speed	0-3.5km/h
Diesel engine	Yuchai YCK09400-T300
Capacity of screw compressor	20m3/min
Discharge pressure of screw compressor	22bar
Climbing ability	≤25°
Ground clearance	430mm
Rotation speed of gyrator	0-100r/min
Maximum push-pull force	25KN
Tilt angle of beam	120°
Leveling angle of frame	±10°
One-time advance length	3590mm
Compensation length	900mm
Lifting angle of drill boom	Up 50°，Down 20°
Swing angle of drill boom	Right 38°，Left 34°
Swing angle of carriage	Right 50°，Left 50°
DTH hammer	K5
Drilling rod	φ76x3000mm
Method of dust collecting	Dry type(hydraulic cyclonic laminar flow)

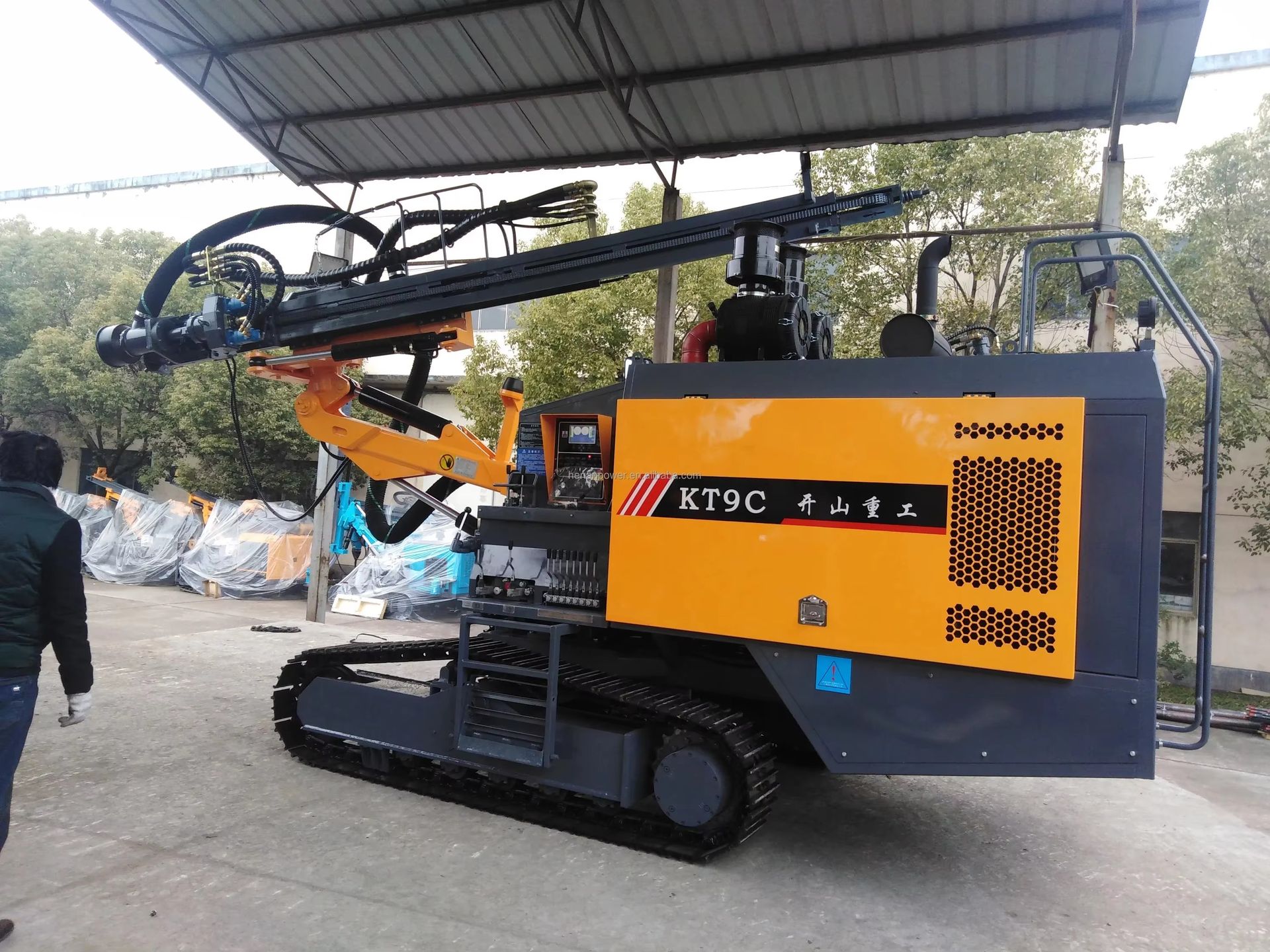

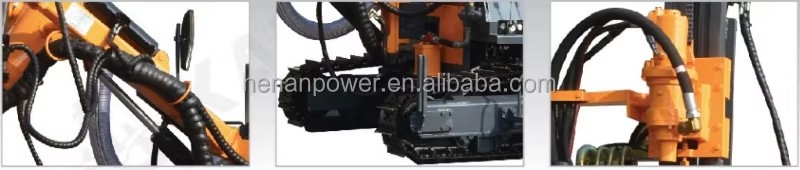

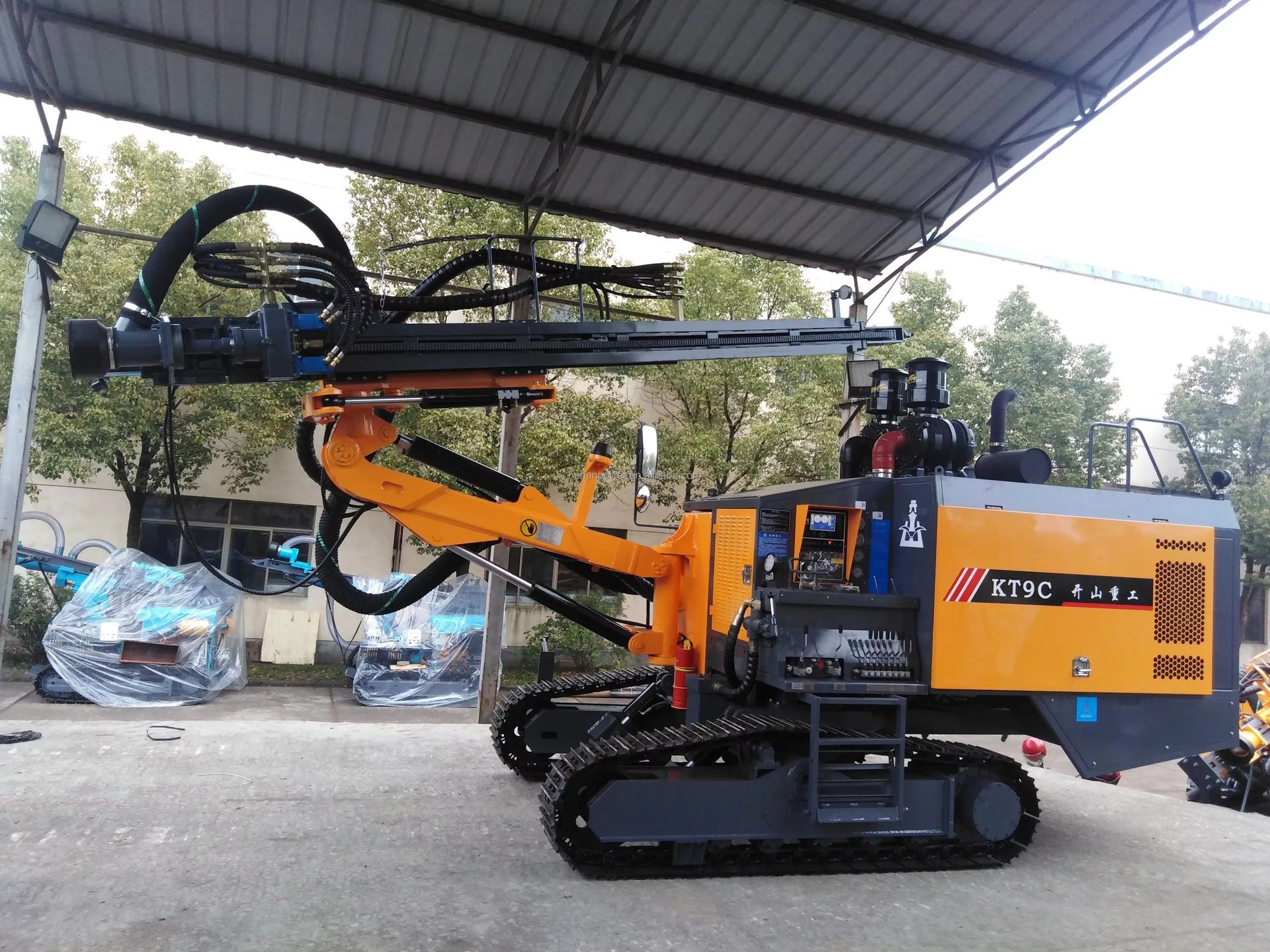

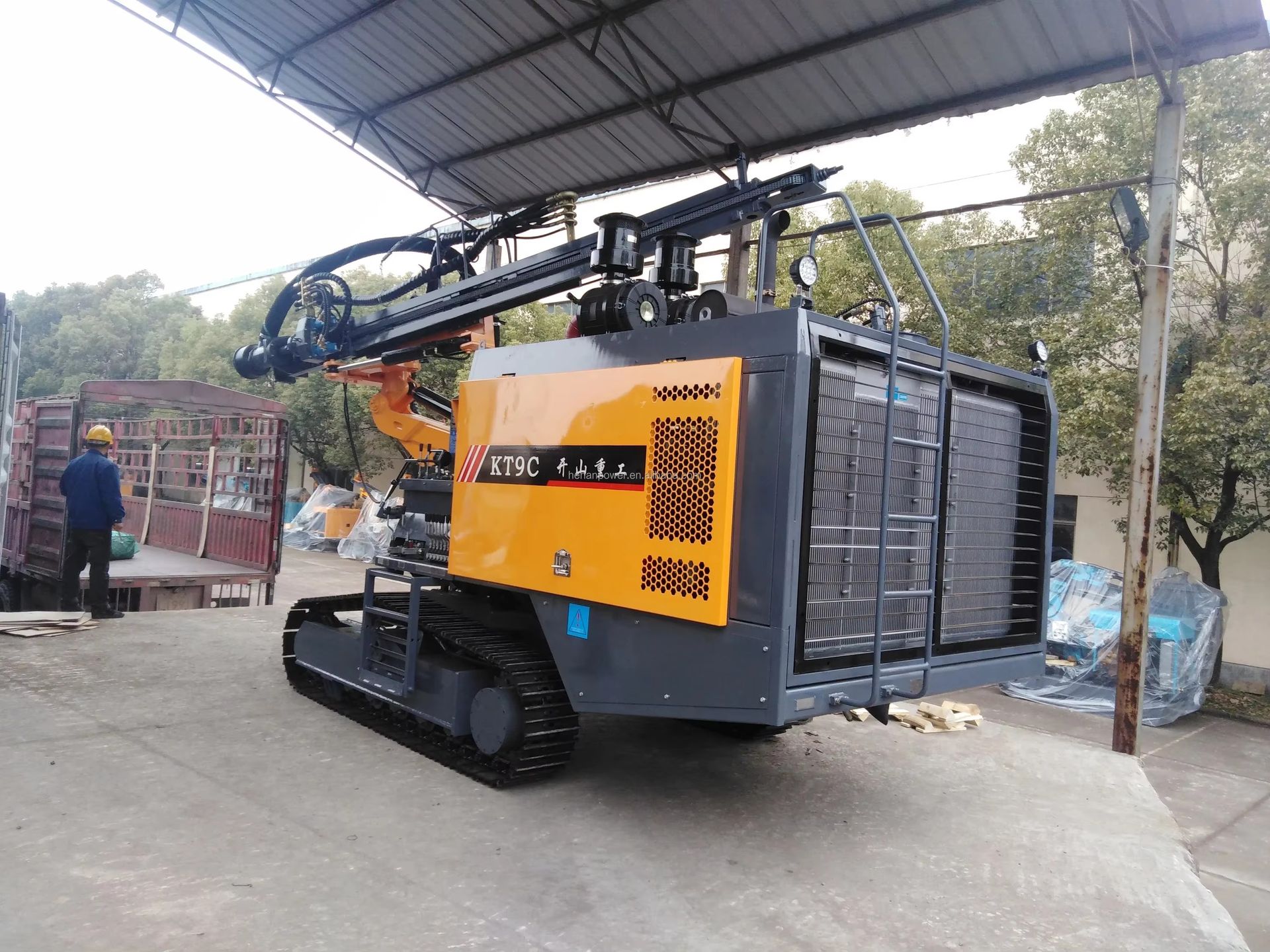

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Usage

Ore

Type

Mine drilling rig

Drilling Depth

25m(82.02ft)

Drilling Diameter

115-165mm(4.53-6.50in)

Power Type

Diesel

Voltage

24 V

Core components

Bearing, Motor, Engine, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

Zhejiang, China

Weight

12000 kg(26455.47lb)

Dimension (L*W*H)

8250*2300*3200mm(324.80*90.55*125.98in)

Mobility

YES

Drill pipe diameter

76mm*3000mm

Hole Diameter

115-165mm

Hole depth

25m

Rotation Torque(Max.)

2800N.m

Traveling speed

2.5-4km/h

Climbing capacity

25°

Diesel engine

Yuchai YCA08280-T300

Capacity of screw compressor

20 m3/min

Discharge pressure of compressor

22 bar

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

KT9C

Power (W) (Product option)

194/205KW

Lead time

7 days

Minimum order

1 Units
