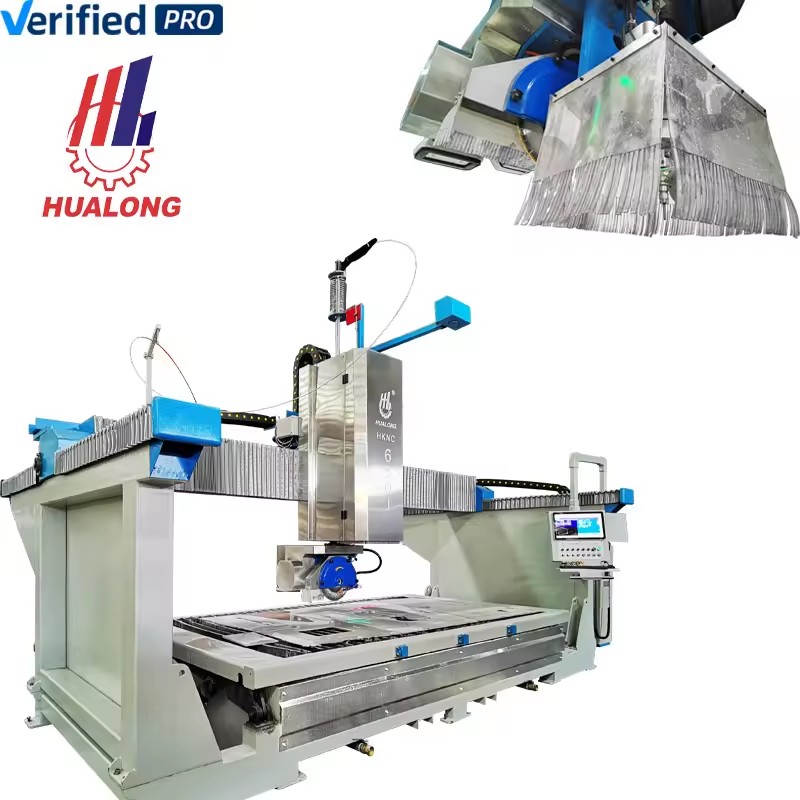

Name: HKNC-650J 2024 Italian System Sawjet 5 Axis Bridge Saw Stone Cnc Granite Cutting Machine with Water Jet Cutter
SKU: B2B-2567
Price: 128720.0 USD
Availability: PreOrder

Product description

5 Axis Stone CNC Sawjet HKNC-650J

TECHNICAL DATA FOR HKNC-650J

Diameter of saw blade

ø350-ø650

Dimension of working platform

4100x2200

X axis stroke

3500

Y axis stroke

2000

Z axis stroke

500

Max. cutting thickness

190

Power of saw blade motor

Power for abrasive waterjet

Max. operating water pressure

60,000

psi

Water pressure required

Water consumption

11.4-16.7

l/min

Gross weight

10000

Dimensions (L x W x H)

6200x3900x3400

with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts, limestone and the rising new ceramic material.

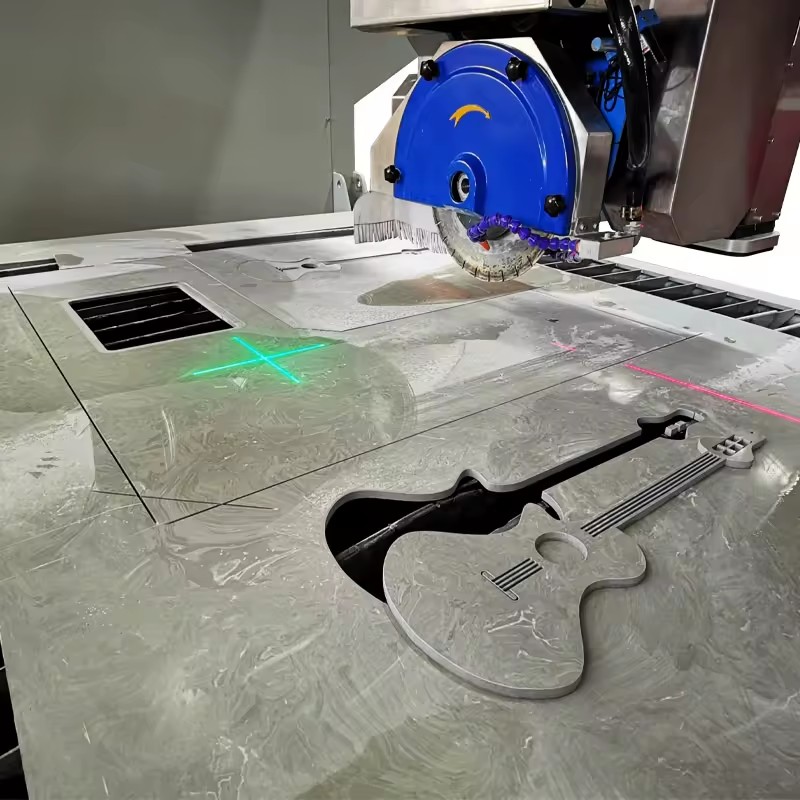

CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, and more.

The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.

Main Features

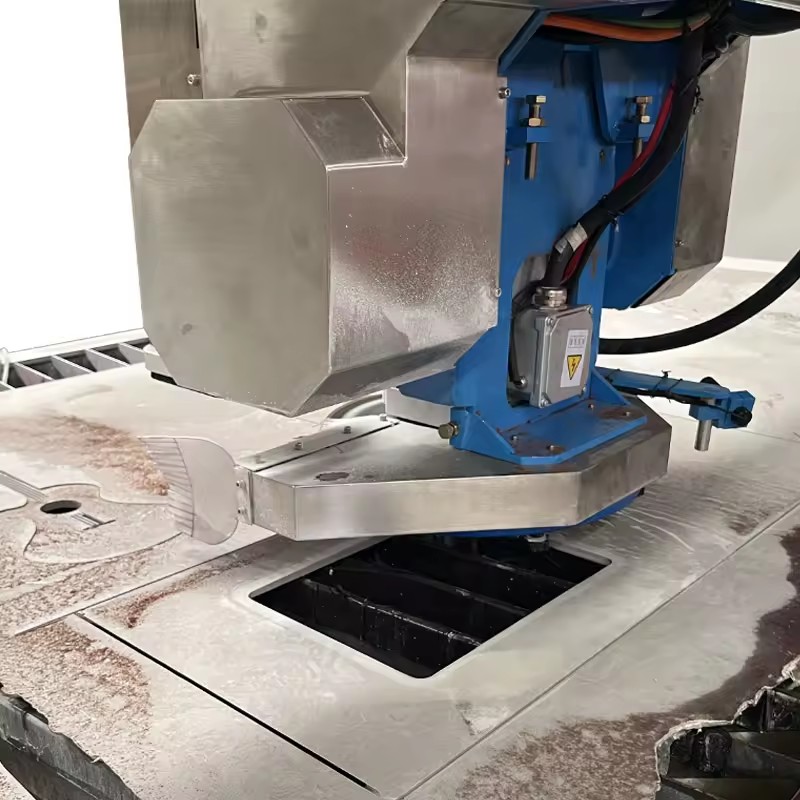

5-axis Saw · this machine is a fully interpolated 5 axis bridge saw

Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.

It can implement different complex curved surface processing and combines

the cutting and optional functions of drilling, milling, engraving into an oganic whole.

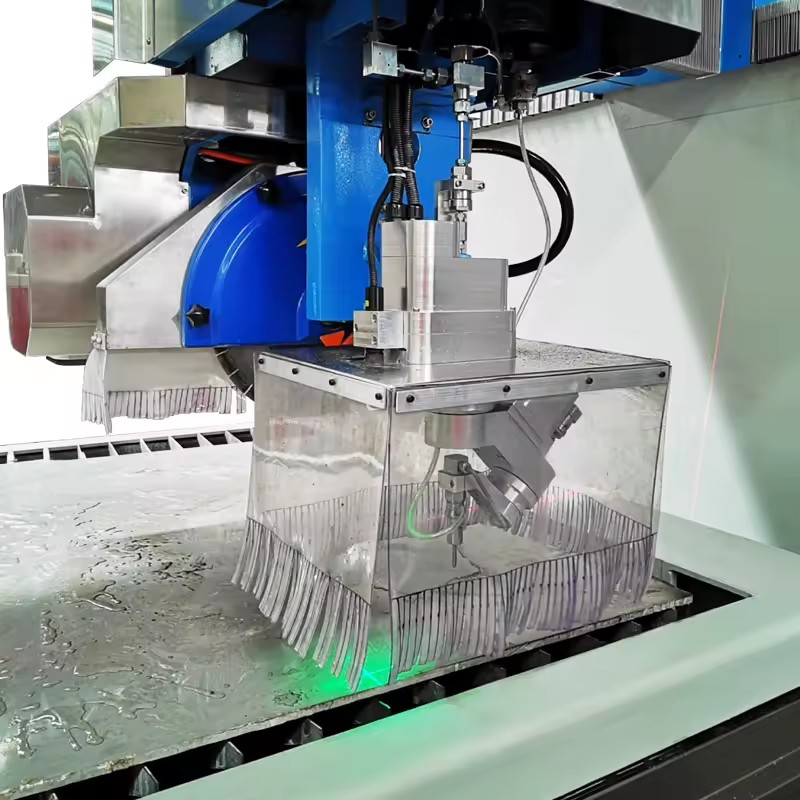

5-axis Waterjet · this machine is a fully interpolated 5 axis waterjet either

Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise

inside-corner fabrication for mitered edge.

1) 5 axis linkage control with Italian CNC Esa system.

2) Easy to use interface with 19" color touch-screen.

3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge

4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.

CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files

6) Working platform can tilt 85 degrees, easy for slabs loading.

7) Photo slab for nesting and avoiding defects.

8) Nesting manual / automatic to optimize slab surface usage

9) RTCP tool point tracking function ensure precision machining easy.

10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.

Control system

CNC

Brand

Esa

Original

Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job

easy, perfect and high efficient.

Software - Pegasus CAD/CAM

Brand: Pegasus

Original

* Easy to Use · Very user-friendly, it does not require any advanced computer skill.

* Reliable · Frequent updates and high-quality support.

* Powerful · Different modules and tools for plenty of technologies and machinings.

Slab Image Capture

(Optional)

The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the

acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to

be machined; it is also possible to qualify the slab edge geometrically.

Slab Thickness Detector (optional)

System to automatically detect the thickness of the slab.

Blade Presetting Unit (optional)

Origin

Fixing Bar (optional)

Keep the working piece not moving during processing.

Vacuum Manipulator (Optional)

The manipulator for workpiece handling, material saving and nesting.

It has two vacuum cups, enableing a lift capacity of 200kgs.

Digital Servomotor

Original

A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs

creates a reliable controlling power for X, Y, Z and C axises

Electric Cabinet

Branded electric companets such ESA, Schneider, Yaskawa, Sanch are adopted to ensure stable performance.

Electro-spindles

of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so

granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.

Internal water passage

Linear Guide

Brand: Hiwin Original

Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.

Recommended by seller

$78,000-90,000

set

$31,500-33,500

$85,000-115,000

$43,000-46,000

$25,002-26,854

$35,500-38,500

$50,000-61,500

$22,000-25,000

$13,200-14,300

$52,000-132,000

$253,500-260,000

piece

$78,000-81,000

Q:What is the MOQ?

A: 1 set.

Q: When will you ship my order?

A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.

Q: What’s the warranty time?

A: One year.

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

45 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Type

CNC machine

Use

Stone processing

Cutting thickness (max)

190mm(7.48in)

Power(w)

52.85KW(70.87hp)

Core components

Bearing, Motor, Gear, Gearbox, CNC system, Computer, Touch screen, Servo driver, Worm reducer, Linear guide, Helical gear rack, Hydraulic pump

Key selling points

Multifunctional

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Production Capacity

high

Place of origin

China, Fujian

Weight

10000 kg(22046.23lb)

Dimension(L*W*H)

620x390x340cm(244.09x153.54x133.86in)

Control system

CNC from Italy

Software

Italy Pegasus

Head rotation

0-360°

Blade tilt

0-90°

Waterjet cutting head rotation

0-360°

Waterjet cutting head tilt

0-60°

Worktable tilting degree

85°

Guide Rail

Hiwin Linear Guide

Nesting

manual or automatic

Lubrication

manual or automatic

Selling Units

Single item

Single package size

620X400X350 cm

Single gross weight

10000.0 kg

Working Area

3500*2000mm(137.80*78.74in)

Model number

HKNC-450J, HKNC-650J

Certifications & Compliance

Lead time

45 days

Minimum order

1 Units
