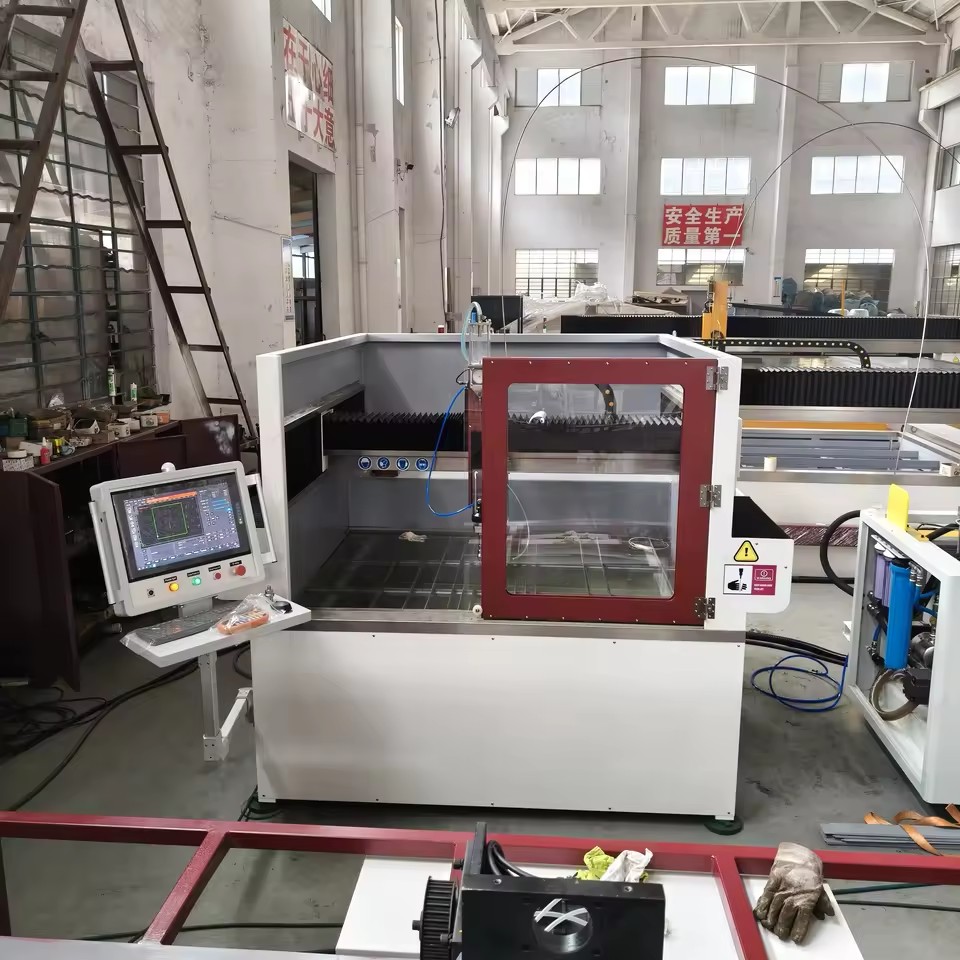

Waterjet Cutting Machine Small Size Industrial CNC Water Jet Cutter for Thick Steel Plate Metal Cutting CE Certified
Price
$
78670.00
Product information
Attributes
Voltage
220V/380V/420V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.025
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
One year
Video outgoing-inspection
Provided
Dimension(L*W*H)
according to machine model
Key selling points
Long Service Life
Rated power
37KW/50HP, 30KW/40HP
Place of origin
China, Jiangsu
Weight (kg)
6000
Table travel (z) (mm)
200
Cutting accuracy(mm)
0.1
After-sales Service Provided
Engineers available to service machinery overseas
Cutting materials
stone, plastic, Stainless steel, brass, aluminum, glass.etc
Max. pressure
380MPa-420MPa
Cutting accuracy
+/-0.1mm
Max.flowrate
3.7 L/Min
Max. Orifice diameter
0.33mm(0.013'')
AC servo control system
MITSUBISHI
Ball screw
HIWIN
Intensifier assembly
(Accustream), (H2OJET)
Selling Units
Single item
Single package size
1000X800X600 cm
Single gross weight
6000.0 kg
Model number
YCWJ-L4080
Effective cutting range (mm)
4000*8000
Fulfilment
Delivery
Lead time
35 days
Shipping and estimated delivery
Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days
