Product video
Certifications IATF16949,ISO9001

DIN2391 Spray Paint Precision Hydraulic Carbon Steel Tube for Oil Pipe with Bending Cutting Welding Services

Available for enquiry 0.0 · 0 reviews
USD

$ 20.00 20.0 USD $ 20.00

Not Available For Sale

Minimum order quantity: 500 Units

Key attributes

View all
Application

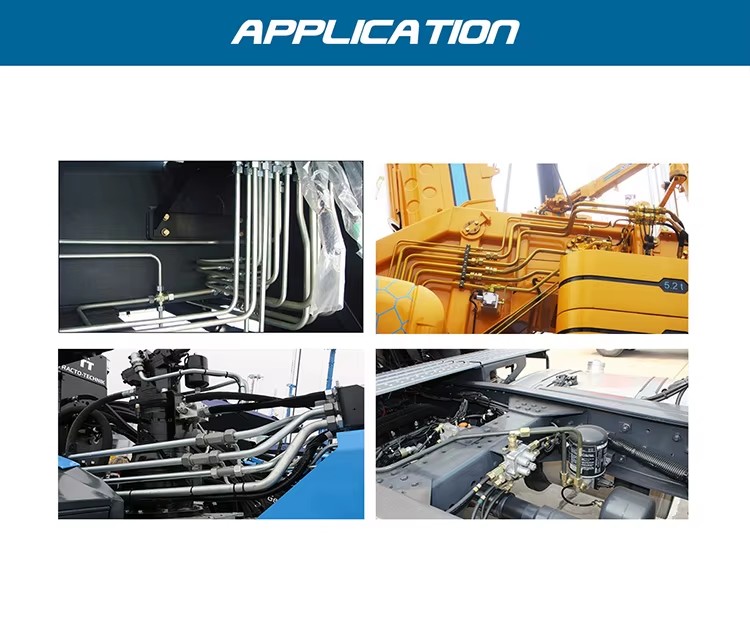

Fluid Pipe, Hydraulic Pipe, Oil Pipe
Grade
E235 ST37.4 ST35 E255
Standard
DIN
Section Shape
Round
Length
6 m, 6M or Customized
Certificate
ISO 9001
Product description

DIN2391 Spray Paint Hydraulic Carbon Steel Tube

Specification

Chemical Composition

Steel gradeC max.Si max.Mn max.P max.S max.Al tot min.
NameNumber
E2151.02120.100.050.70.0250.0150.025
E2351.03080.170.351.20.0250.015
E3551.05800.220.551.60.0250.015

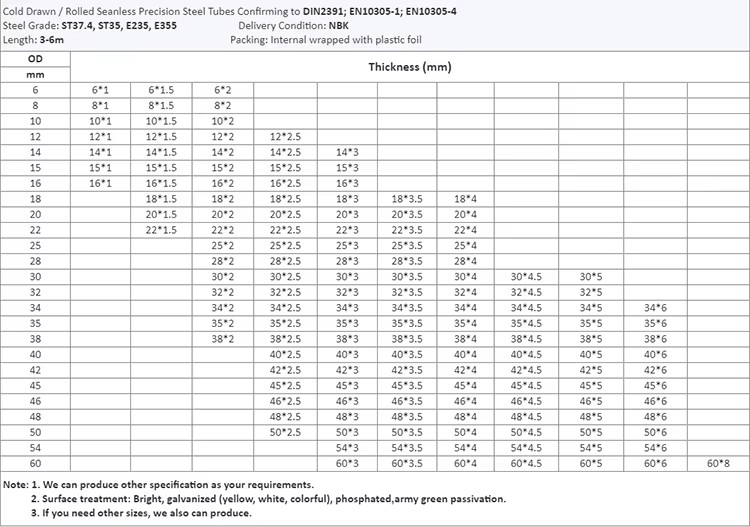

Tolerance

Outer DiameterAllowable tolerancespecial tolerance
GB/T3639DIN2391ODWT
4mm-20mm±0.10mm±0.08mm±0.05mm±0.05mm
20mm-30mm±0.10mm±0.08mm±0.08mm±0.08mm
31mm-40mm±0.15mm±0.15mm±0.10mm±0.08mm
41mm-60mm±0.20mm±0.20mm±0.15mm±0.15mm
61mm-80mm±0.30mm±0.30mm±0.20mm±0.20mm
81mm-120mm±0.45mm±0.45mm±0.30mm±0.30mm

Mechanical Properties

Steel gradeYield strength aTensile strengthElongation
NameNumberR eHR mA
min.min.min.
MPaMPa%
E2151.0212215290 to 43030
E2351.0308235340 to 48025
E3551.0580355490 to 63022

Delivery Condition

DesignationSymbolDescription
Cold finished (hard)BK ( +C )Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation
Cold finished (Soft)BKW ( +LC )The final heat treatment is followed by cold drawing involving deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)
Cold finished and stress-relievedBKS ( +SR )Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
AnnealedGBK ( +A )The last Cold forming process is followed by annealing in a controlled atmosphere.
NormalizedNBK ( +N )The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.

Quality assurance 1.Strictly according to DIN2391/EN10305 2. Sample: Sample is free for test. 3.Test:salt spray test/tensile test / Eddy current / chemical composition test according to customers' request 4.Certificate:IATF16949,ISO9001,SGS etc Our services 1. MOQ: if the size is Metric, it's no MOQ, if the size is Inch, the MOQ is 1 ton per size 2. OEM: we can produce the tubes as client's demand 3. Good Quality: we strictly control every production process to ensure the high quality 4. After-sales service: we not only guarantee the precision tubes' quality but also provide technical support 5. Fast delivery: if we have precision tubes in stock, will deliver the tubes after 5-15 days. If we don't have the raw material, will deliver the tubes after 30-40 days according to the quantity. FAQ Q

A: We are professional steel tube manufacture since 2003

Q:What certificates do you have?

A:IATF16949,ISO9001,SGS

Q: How long is your delivery time?

A: According to quantity.Generally 50days after receive deposit

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Description images
DIN2391 Spray Paint Precision Hydraulic Carbon Steel Tube for Oil Pipe with Bending Cutting Welding Services
DIN2391 Spray Paint Precision Hydraulic Carbon Steel Tube for Oil Pipe with Bending Cutting Welding Services
DIN2391 Spray Paint Precision Hydraulic Carbon Steel Tube for Oil Pipe with Bending Cutting Welding Services
DIN2391 Spray Paint Precision Hydraulic Carbon Steel Tube for Oil Pipe with Bending Cutting Welding Services
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 500 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    35 days

  • Step 3

    Packaging and dispatch

    Ocean + Express via FLY Logistics · Approx. shipping fee: $ 130.00 for 500 kilograms · Transit time: Est. 16-23 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Application
Fluid Pipe, Hydraulic Pipe, Oil Pipe
Grade
E235 ST37.4 ST35 E255
Standard
DIN
Section Shape
Round
Length
6 m, 6M or Customized
Certificate
ISO 9001
Surface Treatment
Spray paint
Special Pipe
Precision Pipe
Alloy Or Not
Non-Alloy
Oiled or Non-oiled
Non-oiled
Processing Service
Cutting, Bending, Welding
Delivery Time
15days
Place of origin
China, Jiangsu
Thickness (Specification)
0.5 - 10 mm
Salt spray test
120 hours
Delivery condition
NBK
Zinc coating thickness
8-12μm

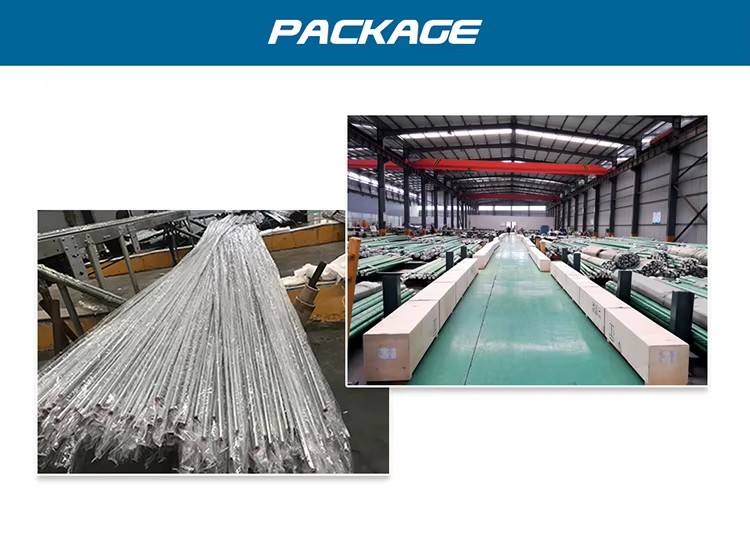

Packing
bundling with plastic film and woven bag package
Certification
IATF16949,ISO9001
Keyword
spray hydraulic steel tube
Type
Seamless Round Steel Pipe
Production Process
Cold Rolled
Selling Units
Single item
Single package size
20X2X2 cm
Single gross weight
0.2 kg
Lead time
35 days
Minimum order
500 Units
