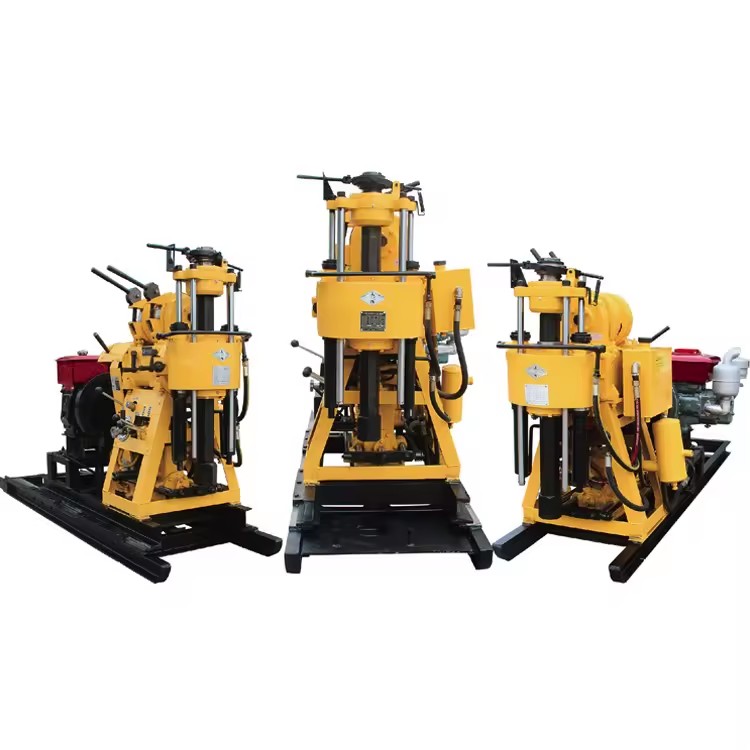

Name: HiYoung Industrial Rock Core Drilling Machine Geotechnical Mine Drilling Rig
SKU: B2B-38448
Price: 5300.0 USD
Availability: PreOrder

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Tech parameter	Model of drilling machine	HY-130YY	HY-180YY	HY-200YY
Drilling machine overall dimension(mm)	24007001400	24008001300	27009001300
Drilling depth(m)	130	180	250
Drill rod diameter (mm)	42-60	50	50
Open hole dia(m)	220	220	320
Drill angle(°)	90-75	90-75	90-75
Matching power(kw)	13.2	13.2	14.7
Spindle	Speed(r/min)	142/285/570	130/300/480/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Winch	Max pull force(kg)	1600kg	2100kg	2100kg
Pull speed(m/s)	0.41-1.64	0.35-0.23	0.12-0.95
Roll capacity(m)	27	27	35
Hosting height(mm)	2100	2100	2500
Drill mast	Rated load(ton)	2	18	18
Height(m)	6	6.5	6.5
Mud pump	Flow(L/min)	95	95	95
Max pressure(MPa)	2	1.2	1.2
Inlet hose dia(mm)	51	51	51
Outlet hose dia(mm)	35	32	32

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

5 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 33 fields

Usage

Water Well

Type

Rotary Drilling Rig

Drilling Depth

Max.250m

Drilling Diameter

220-320mm(8.66-12.60in)

Power Type

Diesel

Voltage

220/380v,50/60HZ

Core components

Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China, Henan

Weight

960 KG(2116.44lb)

Dimension (L*W*H)

2700*900*1300mm(106.30*35.43*51.18in)

Mobility

Can move

Keyword

Borehole Core Drilling Machines

Drilling method

Rotating mine drilling rig

Drill rod diameter

40-60mm mine drilling rig

Drilling Angle

90-75 Degree water well drilling rig

Motor power

13.2kw, 14.7kw

Max Drilling Depth

130, 180, 250m

Mud Pump

95L/Min mine drilling rig

Function

etc., Road and construction prospecting and blasting holes

Max pressure of mud pump

1.2-2Mpa mine drilling rig

Packaging Details

Export standard packaging

Port of dispatch

Shanghai Port

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

1000 sets per Month wells drilling machine

Model number

HY-130YY, HY-180YY, HY-200YY

Power (W) (Product option)

13.2kw(17.70hp), 14.7kw(19.71hp)

Certifications & Compliance

Lead time

5 days

Minimum order

1 Units
