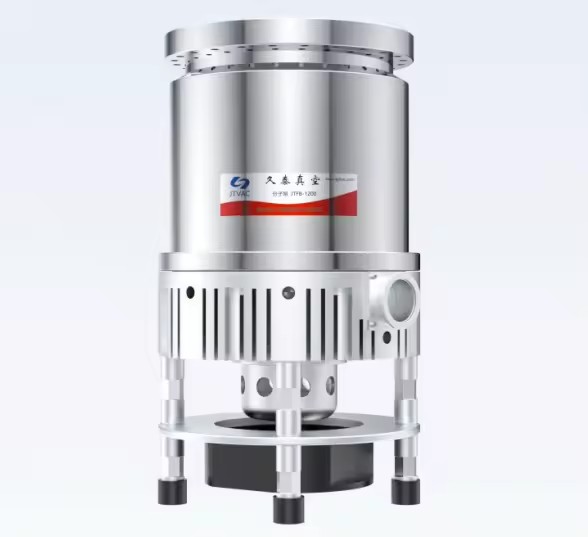

High Speed Turbomolecular Vacuum Pump Model JTFB-1200 for lab&Automotive Industry Ultra High Pressure 24000rpm Air-Cooled

Available for enquiry 0.0 · 0 reviews
USD

$ 8,750.00 8750.0 USD $ 8,750.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Application
  • Structure
  • Max flow rate
  • Max pressure
  • Power source
  • Chemical Compatibility
  • Applicable temperature
  • Import Size
  • Connection Type
  • Outlet Type
  • Discharge Pipe Size
  • Displacement
  • Material
  • Control Method
  • Motor
  • Warranty
  • Customized support
  • Cable length
  • Horsepower
  • Pressure
  • Outlet Water Oil Content
  • Model number (Specification)
  • Place of origin
  • Selling Units
  • Single package size
  • Single gross weight
  • Flow Rate (Product option)
  • Voltage (Product option)
  • Maximum head
  • Type (Product option)

This combination is unavailable.

Key attributes

View all
Application
Chemical, marine, metallurgy, Electronics
Structure
Vacuum Pump
Max flow rate
72000L/min
Max pressure
CF: <1.2*10^-7pa, ISO-K: <5.0*10^-7pa
Power source
Electric
Chemical Compatibility
non-corrosive gas
Product description

Highlights at a glance

  • JTFB-compound molecular pumps are composed of turbomolecular pumps and disc traction pumps. They have the characteristics of high pumping speed and high compression ratio when the turbomolecular pump is in molecular flow, and high pumping speed and high compression ratio when the traction pump is in high pressure, which expands the application range of molecular pumps. The compound molecular pump has no selectivity and no memory effect on the pumped gas. Because it has a high compression ratio for gases with large molecular weight, the pump does not need a cold trap and an oil baffle to obtain clean high vacuum and ultra-high vacuum. It is widely used in various fields of electronics, metallurgy, chemical industry, scientific research and vacuum technology.
  • This molecular pump has no selectivity and no memory effect on the pumped gas. Because it has a high compression ratio for gases with large molecular weight, the pump does not need a cold trap and an oil baffle to obtain clean high vacuum and ultra-high vacuum. It is widely used in various fields of electronics, metallurgy, chemical industry, scientific research and vacuum technology. JT compound molecular pump adopts imported precision bearing support, and the cooling method is water cooling or air cooling.
  • The working environment temperature of air-cooled pump must be lower than 28℃. The rotor is dynamically balanced after the whole unit, and the operation is stable and reliable. The motor is a squirrel cage three-phase motor, and the bearing lubrication adopts tapered hole shaft self-priming oil lubrication, which is simple and reliable, but it also determines that the molecular pump can only be installed vertically.
    • Frequently asked questions

    We are a vacuum pump manufacturer. Our main products include vacuum turbo molecular pumps, vacuum mechanical pumps, oil diffusion vacuum pumps, vacuum valves, vacuum pump oil, and other accessories. We provide system design services and customized vacuum solutions.

    As a factory with a large warehouse, most products are in stock. After receiving your deposit, we can ship within 7 days. For out-of-stock or customized products, delivery takes 15-30 days.

    We implement rigorous quality control throughout production, starting from raw material inspection to final product testing.

    We can customize products to client specifications, offering personalized solutions through our robust engineering department.

    Accepted Delivery Terms: FOB,CFR,EXW,CIF; Accepted Payment Currency: USD,CNY; Accepted Payment Type: T/T, L/C,D/P, Western Union, Money Gram, Credit Card Language Spoken: English, Chinese
    Description images
    Product detail
    Product detail
    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      20 days

    • Step 3

      Packaging and dispatch

      Ocean + Express via FLY Logistics · Approx. shipping fee: $ 113.52 for 1 piece · Transit time: Est. 16-23 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

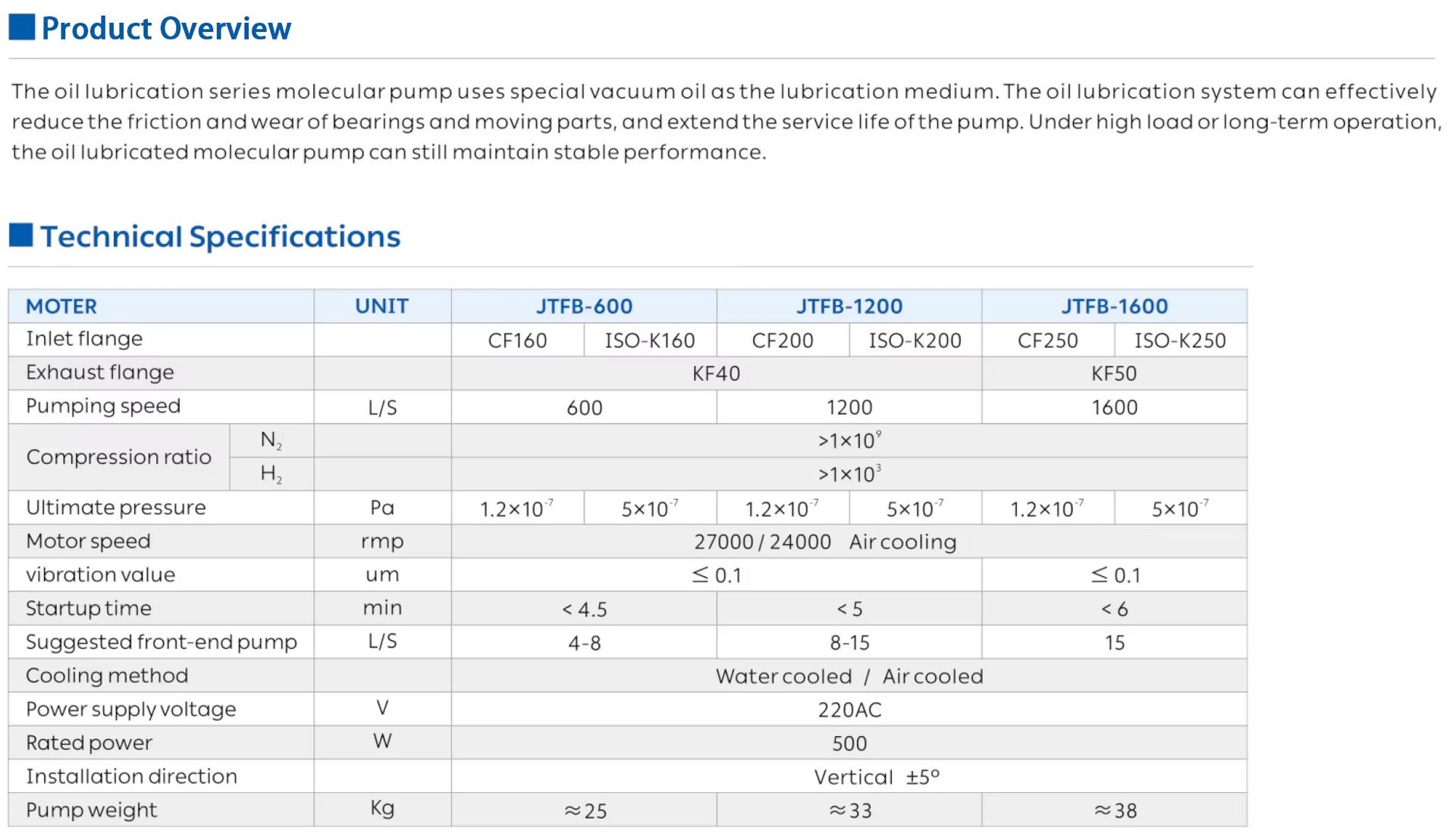

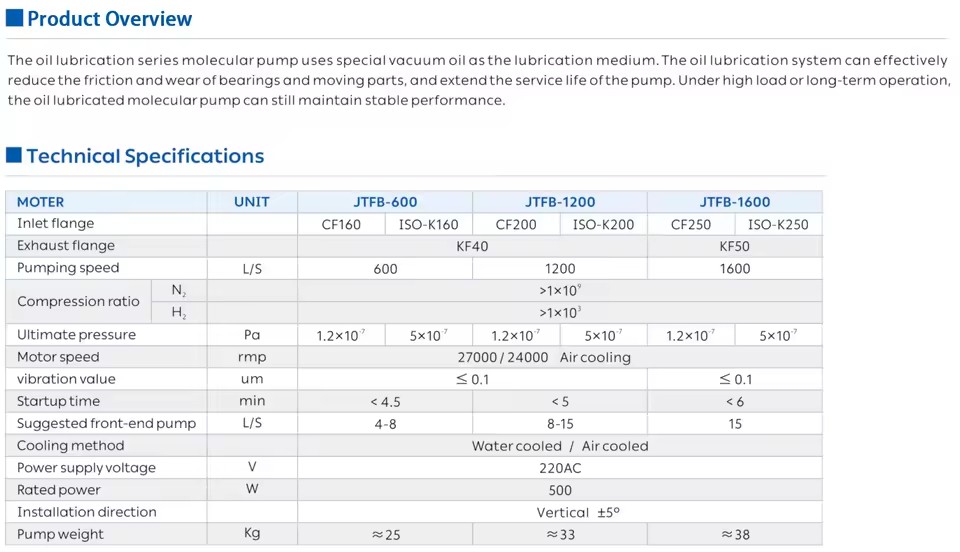

    Technical specifications
    Other details 30 fields
    Application
    Chemical, marine, metallurgy, Electronics
    Structure
    Vacuum Pump
    Max flow rate
    72000L/min
    Max pressure
    CF: <1.2*10^-7pa, ISO-K: <5.0*10^-7pa
    Power source
    Electric
    Chemical Compatibility
    non-corrosive gas
    Applicable temperature
    5-40°c
    Import Size
    200mm
    Connection Type
    Flange Connection
    Outlet Type
    Universal Style
    Discharge Pipe Size
    40mm
    Displacement
    72000L/min
    Material
    Aluminum, Iron
    Control Method
    Fully Automatic Control, Manual Control, Semi-Automatic Control
    Motor
    Three-Phase Motor
    Warranty
    1 Year
    Customized support
    OEM, ODM, OBM
    Cable length
    customized
    Horsepower
    0.68ps
    Pressure
    Ultra High Pressure
    Outlet Water Oil Content
    none
    Model number (Specification)
    JTFB-1200
    Place of origin
    China
    Selling Units
    Single item
    Single package size
    63X50X61 cm
    Single gross weight
    65.42 kg
    Flow Rate (Product option)
    72000L/min, 1200L/S
    Voltage (Product option)
    220 V, 380 V
    Maximum head
    none
    Type (Product option)
    Vacuum Pump
    Lead time
    20 days
    Minimum order
    1 Units
