Name: High Quality Water Jet Cutter Pump;Water Pump Jet Cutting
SKU: B2B-1538
Price: 3580.0 USD
Availability: PreOrder

Product description

1. Professional water jet equipment supplier engaged in ultra-high pressure water jet equipment research, production, sales, services.

3.We set up a research center focused on ultra high pressure. We hired technical personals as researchers from foreign and domestic water jet companies. Also we employed researchers in famous colleges and universities to give us technical support.

We set up a research center focused on ultra high pressure. We hired technical personals as researchers from foreign and domestic water jet companies. Also we employed researchers in famous colleges and universities to give us technical support.

Cutting table

Model

1313

2015

3020

4020

6020

Customized

Structure

Gantry water cutting platform/cantiler series cutting platform

Travel

X Axis

1300mm

2000mm

3000mm

4000mm

6000mm

Y Axis

Cutting head

3 axis / 5 axis

Movement: Linear motion/Rotary motion

CNC Controller

The key function Forward & Backward processing function Even pace control function Small arcs speed auto processing function Circle processing function

The key function

Forward & Backward processing function

Even pace control function

Small arcs speed auto processing function

Circle processing function

Partial and smooth processing modes

Abrasive Feeder

Max. inlet air pressure: 0.2-0.4 Mpa Min. inlet air flow:0.028m3/min Abrasive capacity:170 L

Max. inlet air pressure: 0.2-0.4 Mpa

Min. inlet air flow:0.028m3/min

Abrasive capacity:170 L

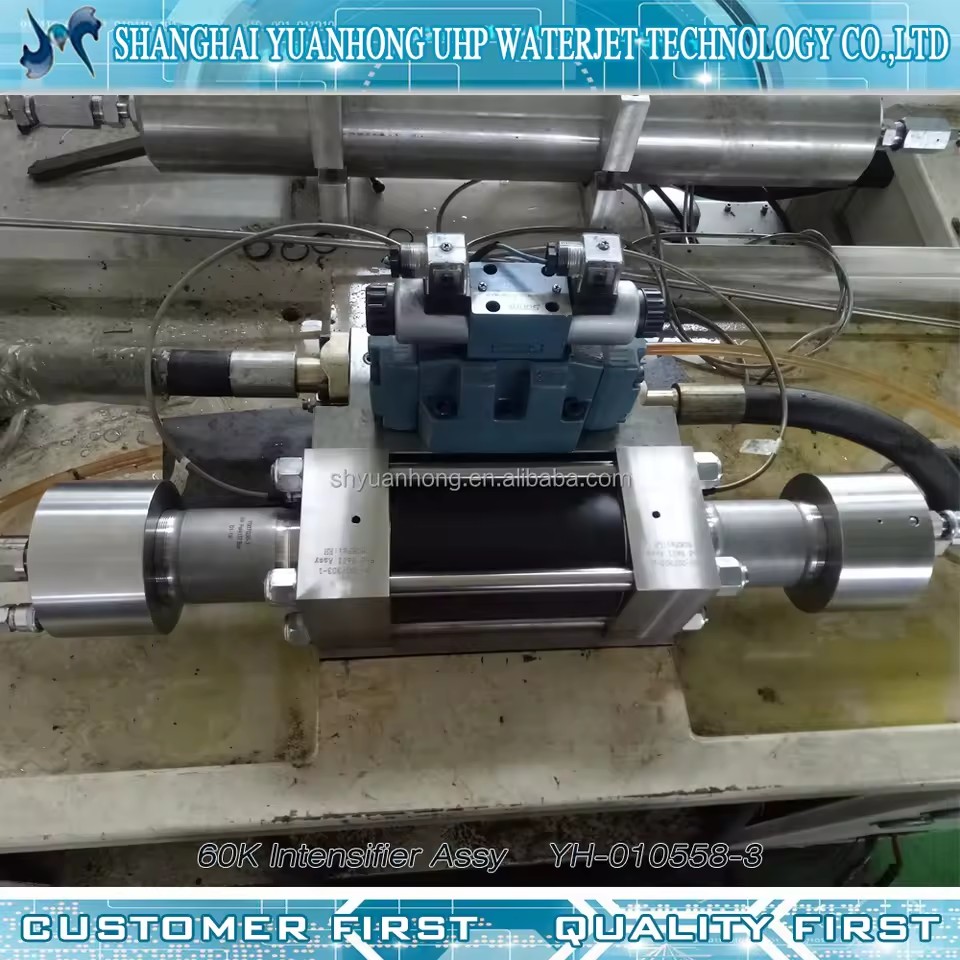

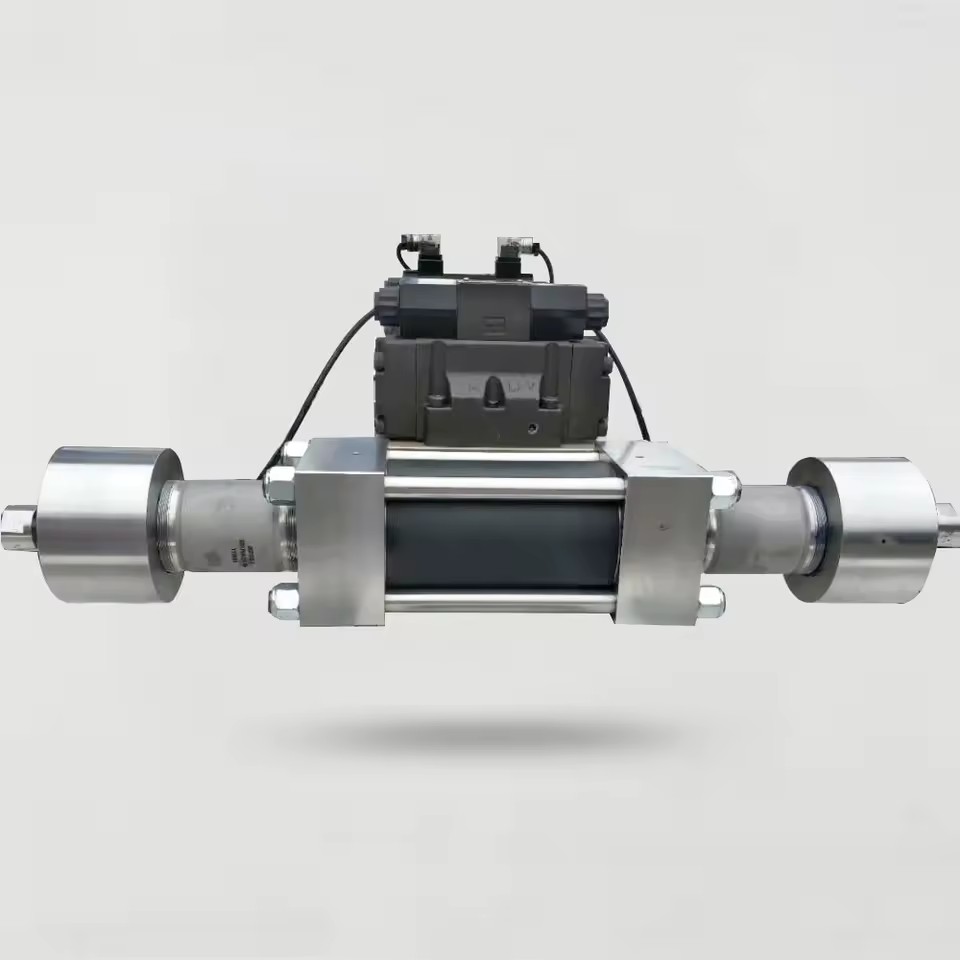

Intensifier pump

Reted power

Max.pressure

Control voltage and cuttent

Ambient temperature

Fuel tank capacity

Attenuation

Cooling flow

50HP (37 KW)

60000psi (4137 bar)

24DC,10AMPS

5-40 ℃

114L

11.4L/MIN

Direct drive pump

Output pressure

Operating voltage and power

let water

Pump speed

30HP (22KW)

55000psi

210-240/360-420V 50HZ

60psi 1 gallon/min.

720 rmp

2.6 L

1. Creamics and stones and glass spell flower

9. Foodry industry

2. High speed railway

10. Cleaning scope

3. Automobile spare parts

11. Jewelry industry

4. Airpalne manufacture

12. Manufacture paper industry

5. Aviation aerospace

13. Children diaper industry

6. Nuclear power

14. Women sanitary towel

7. Army industry

15. Electron industry

8. Foundry industry

and so on

Delivery time: 10-15 days after payment or as your requirement.

1. If you buy water jet spare parts, we will provide a soft package for your products.

2. If you buy the large water jet cutting machine equipment, we will provide you the wooden box for your products.

Send an inquiry now, you will have more discount & more detail about price, packing, shipping, ect.

COMPANY INTRODUCTION

Professional water jet equipment supplier engaged in ultra-high pressure water jet equipment research, production, sales, services.

WORKSHOP

PRODUCT

APPLICATION

CERTIFICATION

PACKAGE

Delivery time

10-15 days after payment or as your requirement.

Send an inquiry now

you will have

more discount

more detail

about price, packing, shipping, ect.

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.70 for 1 unit · Transit time: Est. 24-31 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Voltage

220V/380V 50HZ

Core components

Intensifier

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

Actual Model

Key selling points

Competitive Price

Rated power

37w

Place of origin

China, Shanghai

Weight (kg)

60 KG

After-sales Service Provided

Engineers available to service machinery overseas

Application

Metal, Glass, stone and so on

Function

Water cutting/water jet cutting

Control system

CNC Controller

Packing

Soft package/wooden box

Item

Waterjet Cutting/Laser cutting

Material

Metal

Size

Standard size/Customized

Weight

Standard

Certification

CE ISO

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

YH-010558-3

Effective cutting range (mm)

1000×1000, Other

Lead time

7 days

Minimum order

1 Units
