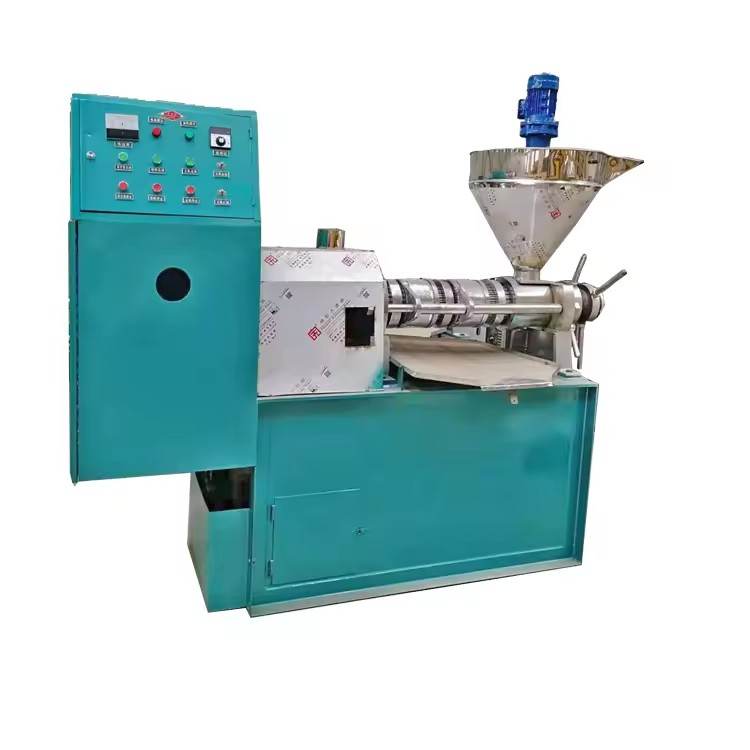

Name: High Quality Home Cold Press Olive Oil Press Machine Production Line Price
SKU: B2B-12118
Price: 1560.0 USD
Availability: PreOrder

Product description

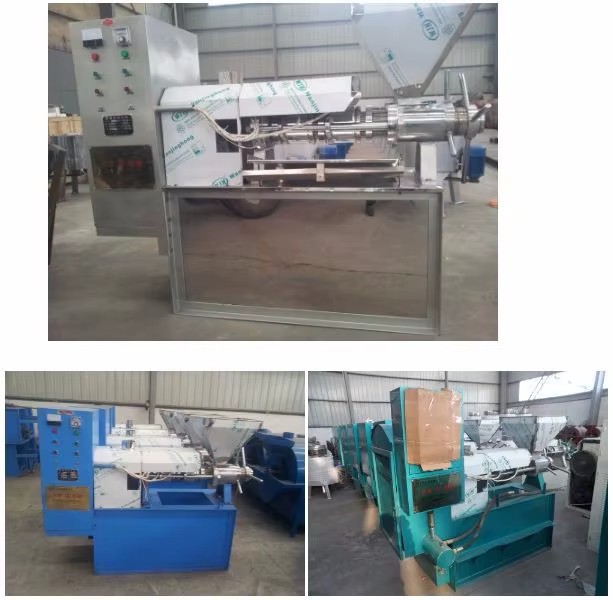

High Quality Plant Seeds Cold Pressed Olive Oil Press Machine

Multi-function oil press equipment is my company’s new products that introduce foreign technology and independent research. The machine has a high degree of automation and adopt automatic temperature control pressing process and high pressure vacuum filtration system. It is currently on the market more advanced oil extraction machinery.

Multi-function automatic spiral oil press machine adopt a squeeze net, save time and labor, the oil rate is high, with a small power, pure oil, machine with multiple functions. Many kinds of oil plants can be pressed by Multi-function oil presses, including mainly: Peanut, rapeseed, sesame seeds, sunflower seeds, soybeans, peppers, flax seed, camellia seeds, pepper seeds, olives, palm fruits, coconuts, etc.

Raw Material	Weight (kg)	Oil Rate (%)	Oil Capacity (kg)	Cake Capacity (kg)
Peanut	200	42~53	96	102
Soybean	200	12~18	30	168
Rapeseed	200	32~43	76	122
Sunflower seed	200	36~42	76	122
Sesame	200	45~54	96	102

Easy operate

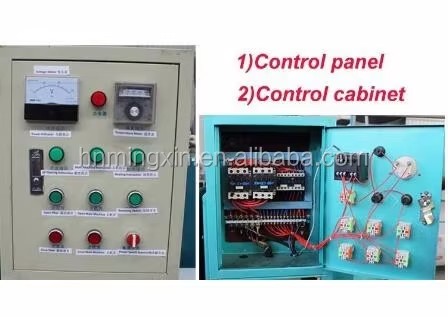

This oil press machine is matched with one controlling cabinet box to control all working process of the machines.

Low oil residual in the cake

The oil left in cake is less than 6%. The cake thickness can be adjusted once the machine stops running.

Press out the cage to increase the automatic constant temperature heating device in winter low temperature time saves mill preheating time, oil start at the optimal temperature, normal work after reaching the preset temperature to stop working.

If in the press heavy machinery buy heavy machinery products

Different types and parameter information

Parameters	MX-80	MX-100	MX-125	MX-150
Screw diameter	Φ80mm	Φ100mm	Φ123mm	Φ150mm
Screw speed	63r/min	43r/min	36r/min	33-42r/min
Screw inner diameter	Φ82mm	Φ102mm	Φ125mm	Φ152mm
Power	Main machine	Y112M-6 5.5KW	Y132M-6 7.5KW	Y160M-4 11KW	Y160S-4 15KW
Vacuum pump	0.55KW	0.75KW	0.75KW	4KW
Heater	3KW	3.5KW	4KW	Y801-41.1KW
Handling capacity	80-150kg/h	150-250kg/h	250-350kg/h	300-450kg/h
Machine weight	830kg	1100kg	1500kg	1950kg
Dimension	1650×1440×1700mm	1960×1630×1900mm	2100×1680×1900mm	2380×1850×2000mm

Oil Press

For example, following is peanut oil

Sheller Machine

After the peanut sheller machine is operated normally, the peanut is put into the hopper quantitatively, evenly and continuously, and the peanut shell is broken under the repeated impact, friction and impact of the rotor. Peanut and peanut shell broken in the rotating rotor under pressure and blow, screen through certain pore size peanut shell, grain by blow force rotating fan, peanut shell weight the light was blown out of the machine body, through the screening of peanut shaker to cleaning purpose.

Cylinder Roaster

This machine is of advanced one-piece infrared accelerating burner which consists of the computer controlled pulse igniting system, the flame and temperature monitoring system and the rolling drums. The machine having advantages as automatic thermostat control, safety and hygiene and easy operation etc, is an ideal new generation replacing the old traditional generation of baking machines.

Automatic Spiral Feeding Machine

Automatic Spiral feeding machine is mainly used to transport the fried material to the Auxiliary machine of oil press machine,Spiral material grade stainless steel manufacturing, clean and sanitary, easy to clean and so on.

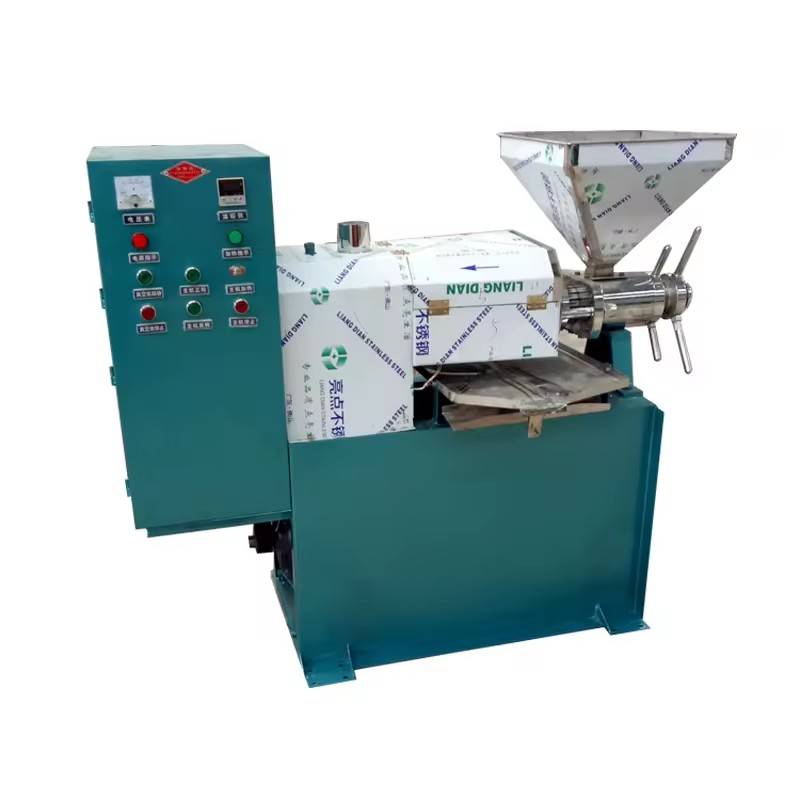

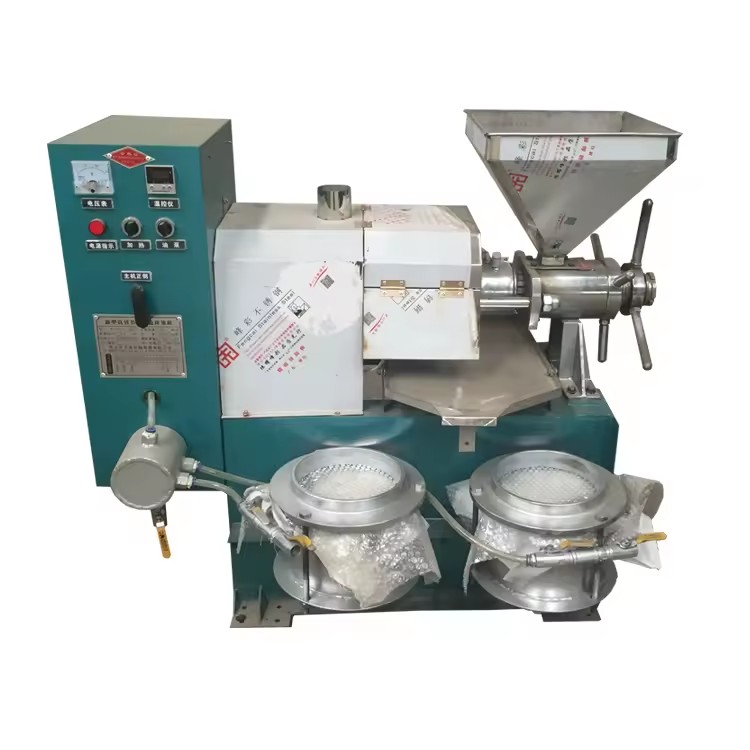

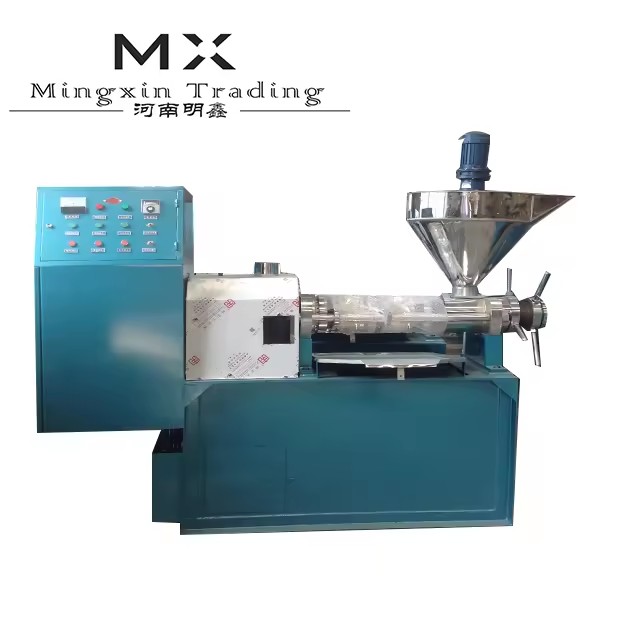

Oil Press Machine

cold pressing machine is suitable for all kinds of oil pressing process, no need to be steamed, no press, direct press. Cancel the cooking process, save manpower and electricity consumption. The cake is well formed, the residual oil is low, the permeability is good, the leaching is no longer difficult, the color of the hair oil is shallow, the peroxide value is low, and the refining rate is improved.

Centrifugal Oil Filter Machine

This machine separates sediment and oil with centrifugal force produced by high-speed drum to achieve Liquid solid separation. Absolute oil slide from drum when the drum stops rotating. Then pure oil can experienced on the fire, can not afford to foam and overflow pan.

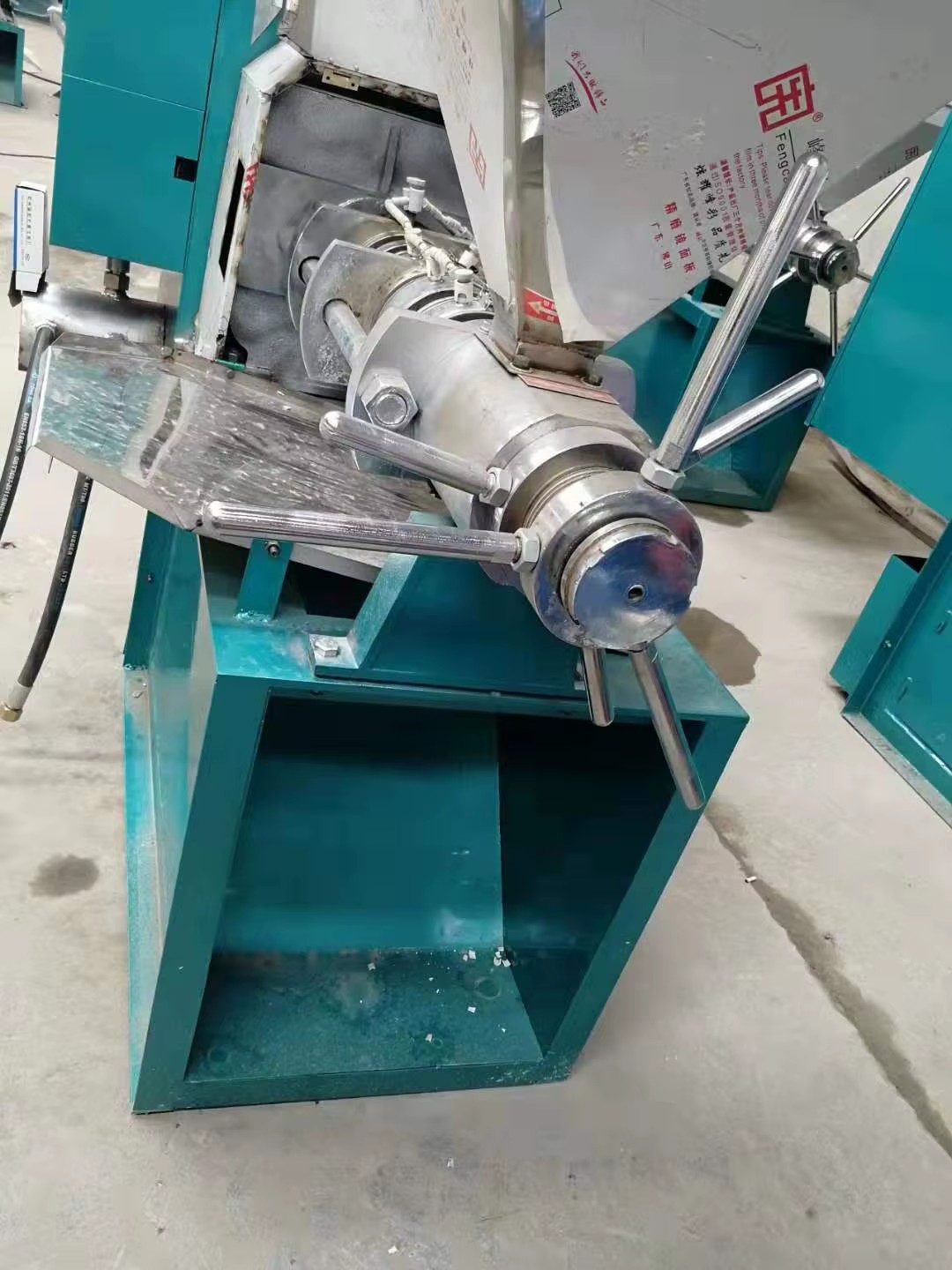

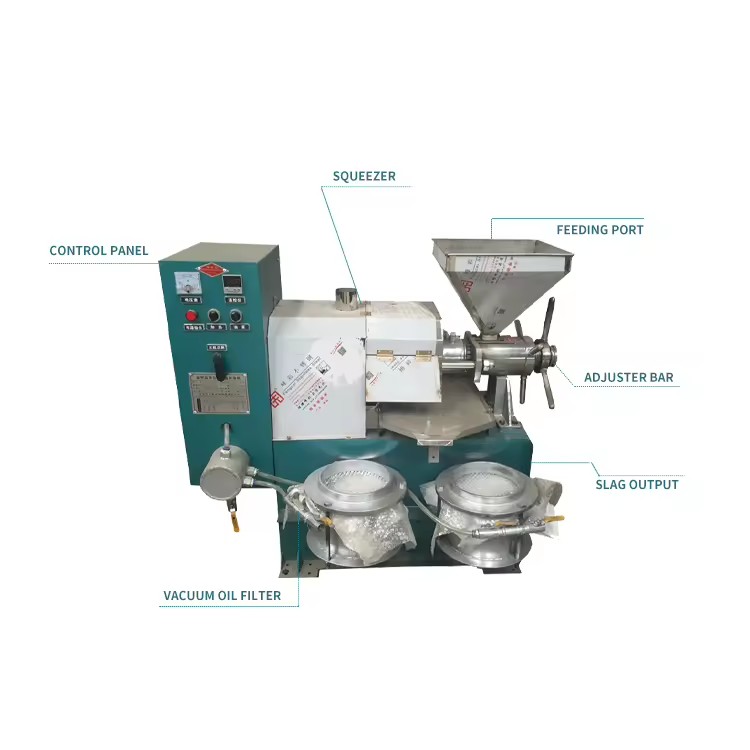

This machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand, etc. The detail drawing are seen as below

The screw oil press utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Owing to the spiral helical pitch of screws becomes shorter and the spiral depth of screw. Becomes shallower, in the chamber the volumes between screws and pressing ring inner is smaller, pressure produced from curve saw -tooth of pressing ring inner, which oil is separated out. Oil releases from the gaps between bars and oil slots between pressing rings. Cookie release from the cookie release state.

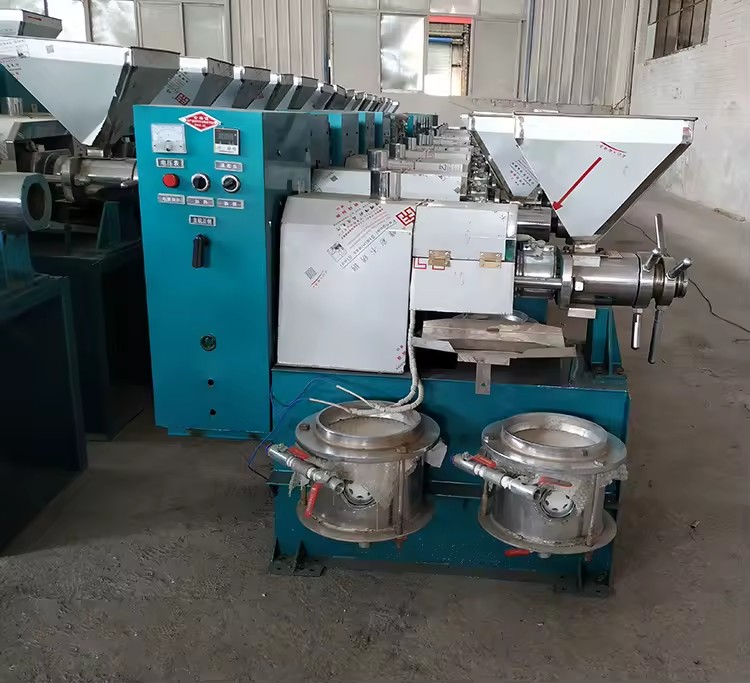

Delivery of oil press machine

Import and Export Trading Company is a company that integrates science, industry and trade. The company mainly sells mechanical equipment and accessories, pipeline equipment, refractory materials, abrasive materials, water purification equipment, wire and cable.

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 762.60 for 1 set · Estimated delivery: Sep 28–Nov 4 (28–65 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 27 fields

Oil type

Flax Seed Oil, Soybean Oil, Rap Seed Oil, Tea Seed Oil, Basil Oil, Sesame Oil, Pinenut Oil, Sunflower Seed Oil, Almond Oil, Walnut Oil, Peanut Oil, Coconut Oil, Olive Oil, Palm Oil

Max Capacity

500 kg/h

Automatic grade

Automatic

Type

Cold & Hot Pressing Machine, Screw Oil Press

Usage

Olive Oil

Key selling points

Energy Saving

Warranty

1 Year

Condition

New

Production Capacity

200kg/h

Place of origin

China, Henan

Weight

760 KG

Dimension(L*W*H)

2000*900*1720mm

Voltage

380V

Raw material

Olive Seeds

Name

Oil Press Machine

Material

Stainless Steel

Function

Press Plant Seeds

After Warranty Service

Video technical support

After-sales Service Provided

Online Support

Application

Edible Oil Production

Packaging Details

Inner packing of High Quality Home Cold Press Olive Oil Press Machine Price: plastic packing Outer packing of High Quality Home Cold Press Olive Oil Press Machine Price: wooden case packing

Selling Units

Single item

Single package size

120X78X110 cm

Single gross weight

220.0 kg

Model number

50, 100, 40, 150, 70, 80, 60, 125

Power(W) (Product option)

7.5 KW, 18.5 kw, 1.5 kw, 2.2 kw, 3 kw, 5.5 kw, 15 kw, 30 kw
