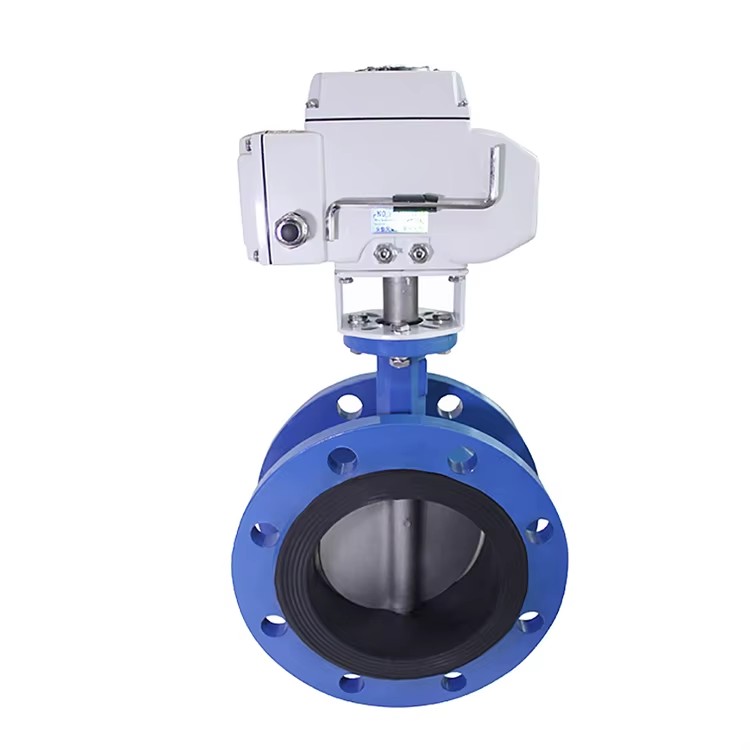

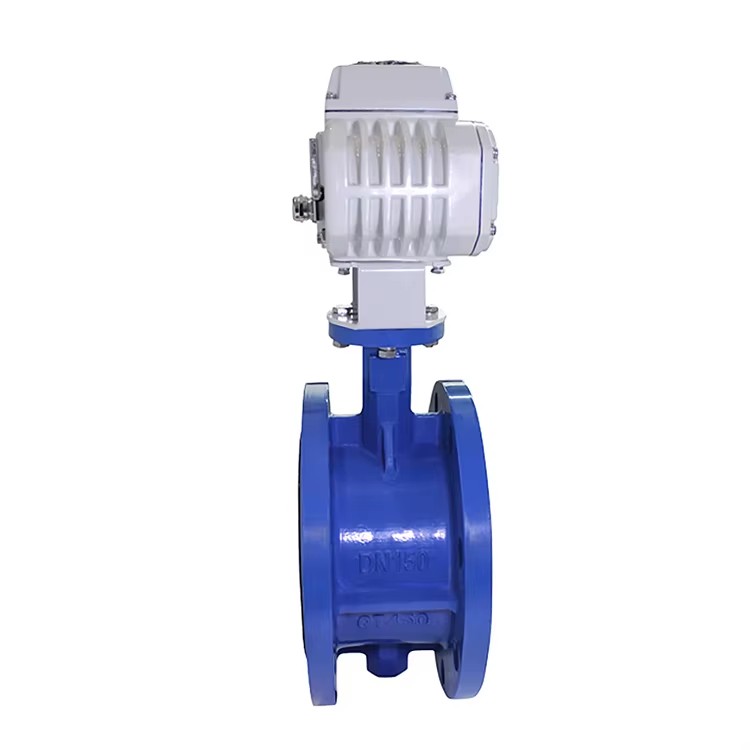

High quality flange type butterfly 12v electric water valve
Advantages
• aims to provide
• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.
• OEM / ODM service available.
The electric flange butterfly valve is characterized by simple structure, small volume, light weight. The butterfly valve is full open or closed when the disc is rotated a quarter turn with good flow control characteristic. It’s very small pressure from the disc when the butterfly valve is in full open position. They are widely used in water supply, fire protection, air condition, environmental protection, food, light industry, electrical, petroleum, papermaking and so on.
Technical Parameters
| Size Range | 2"~12", DN50~DN300 |
| Operating Pressure | 1.6MPa |
| Control Mode | On Off Type / Modulating Type |
| Optional Voltage | DC12~24V (±10%), AC110-220V, 50/60Hz |
| Body Material | Cast Iron, Ductile Iron |
| Disc Material | Stainless Steel |
| Sealing Material | EPDM, PTFE |
| Threaded Connection | Flanged |
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam |
| Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke |
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
Product Features
1. Design reasonable, unique structure, light weight, open and close quikly.
2. Operation torque small, easy operation.
3. Mounted in any position, and easy maintenance.
4. The seal part can be replaced, zero leakage of reliable seal performance.
5. The seal material anti-aging, corrosion resistance, long life and other characteristics.

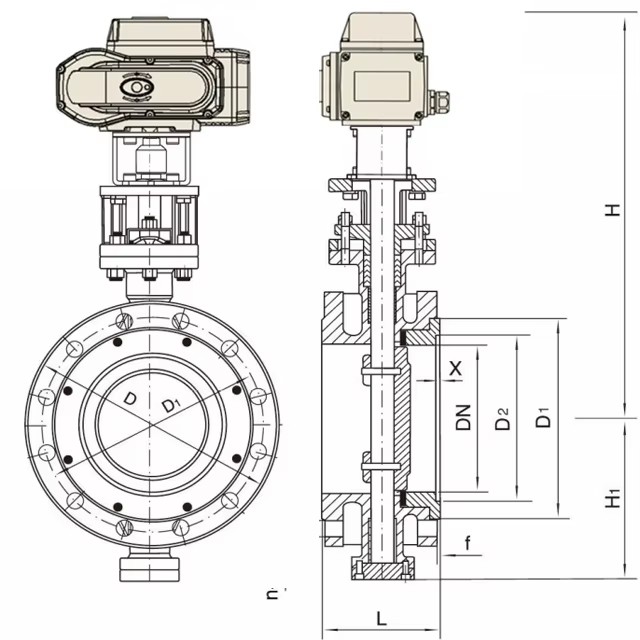

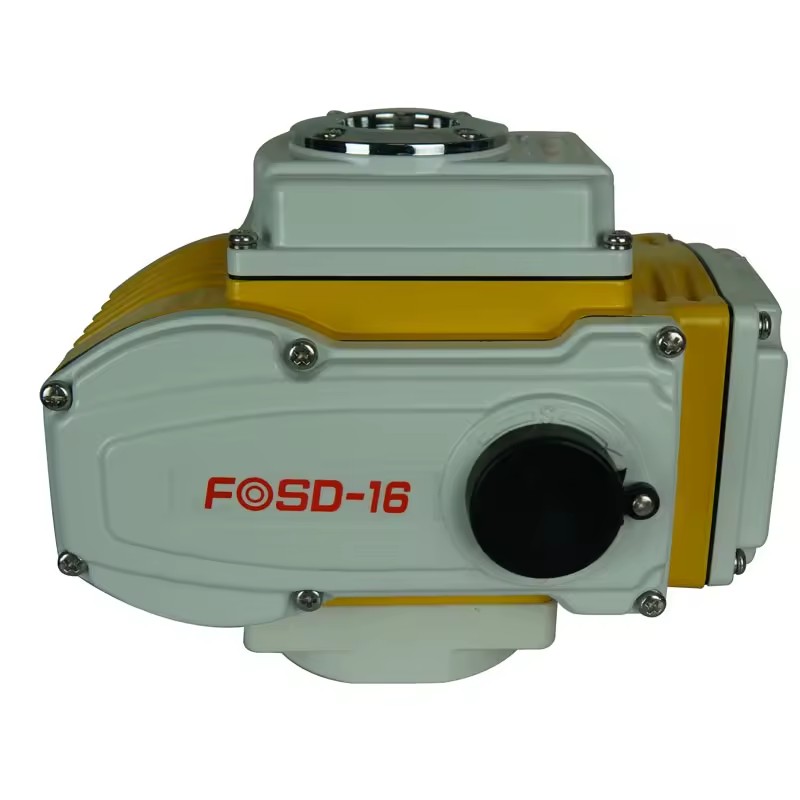

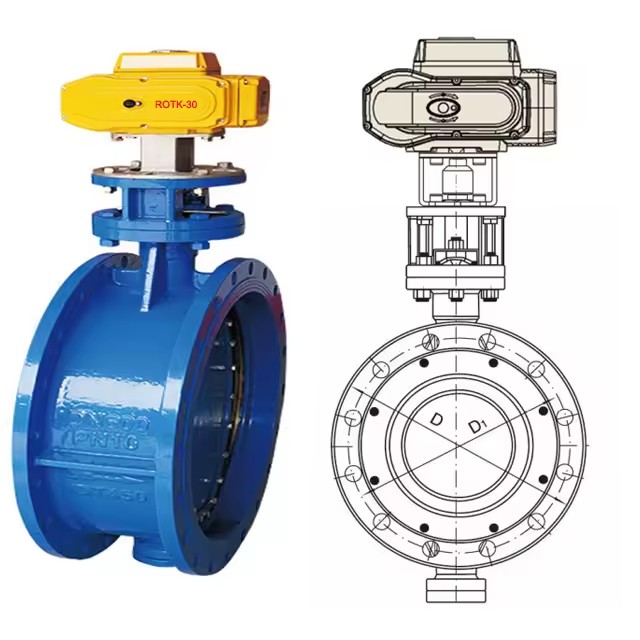

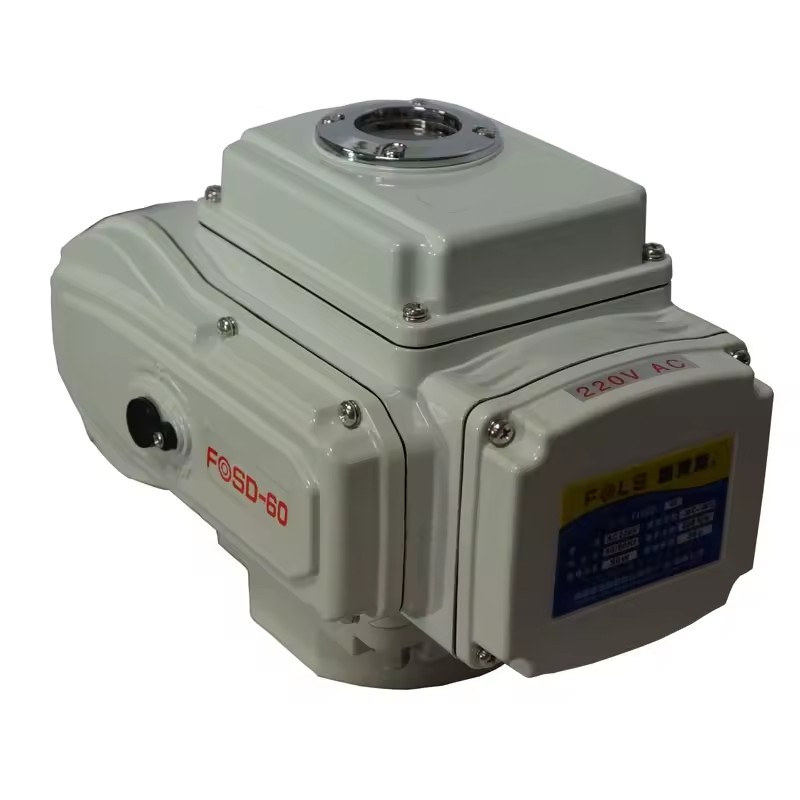

Electric actuator ( Optional)
| Specification of Electric Actuator |
| Items Parameter | FOSD-05 | FOSD-10 | FOSD-16 | FOSD-30 | FOSD-60 | FOSD-125 | FOSD-250 | FOSD-400 |
| Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Rated travel time | 10S/20S | 15S/30S | 30S/60S | 100S | 100S | 100S |
| Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Power | AC220V, AC24V, AC110V, AC220, AC380, DC24V (choose options) |
| Input signal | 4-20mA (Modulating type) |
| Output signal | 4-20mA (Modulating type) |
| Insulation resistance | 100M/500VDC |
| Pressure withstanding | 1500 VAC, one minutes |
| Inbreaking protection | IP65/IP67 |
| Installation angle | 360° any angle |
| Electrical Interperation | one G1/2 CNCO,one Power cord connection port,one signal wire connection port |
| Ambient humidity | 30°C to +60°C |

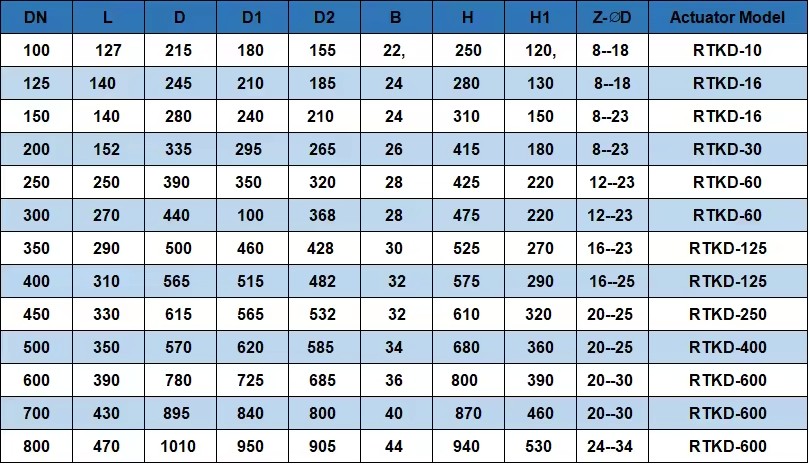

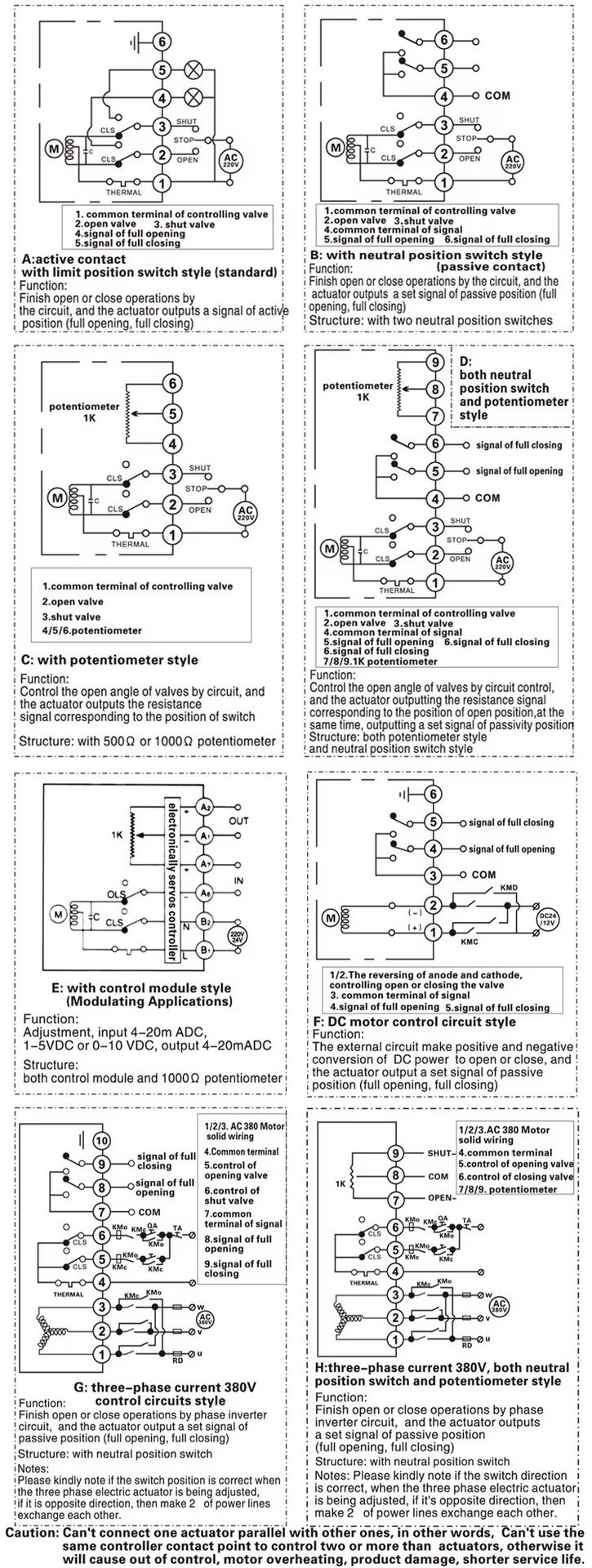

| Pilot circuit options | A:with limit position switch style (standard) |
| B: with neutral position switch style ( passive contact) |
| C:with potentiometer style |
| D: both potentiometer and neutral position switch style |
| E: with control module style ( Modulating Applications) |
| F: DC motor control circuit style |
| G:Three-phase current 380V control circuits style |
| H:Three-phase current 380V, both neutral position switch and potentiometer style |
| More type of electric actuator |

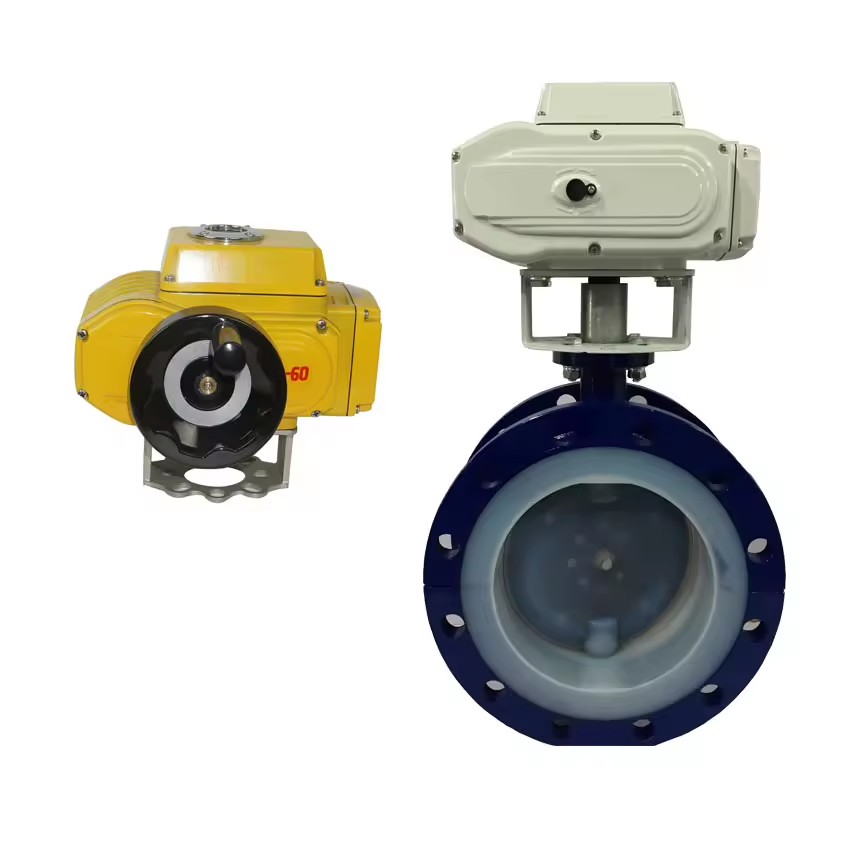

Explosion-proof type With handwheel type Multiturn type Small type
ISO 5211 Mounting
