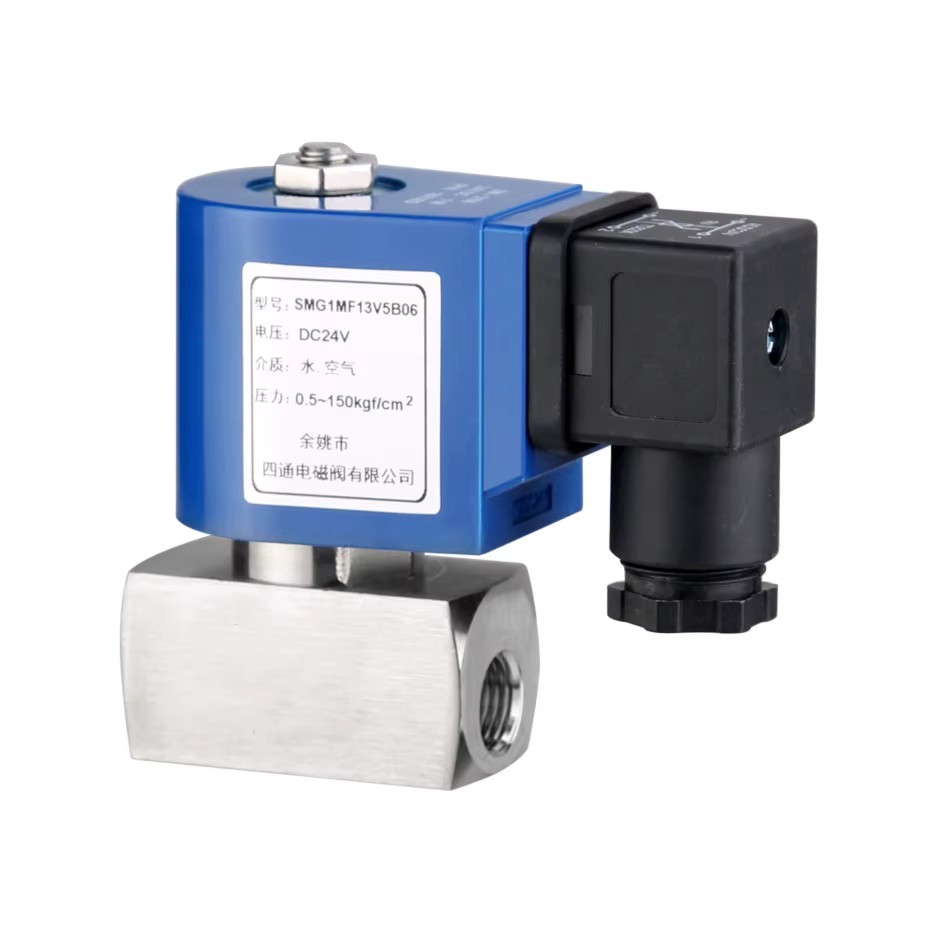

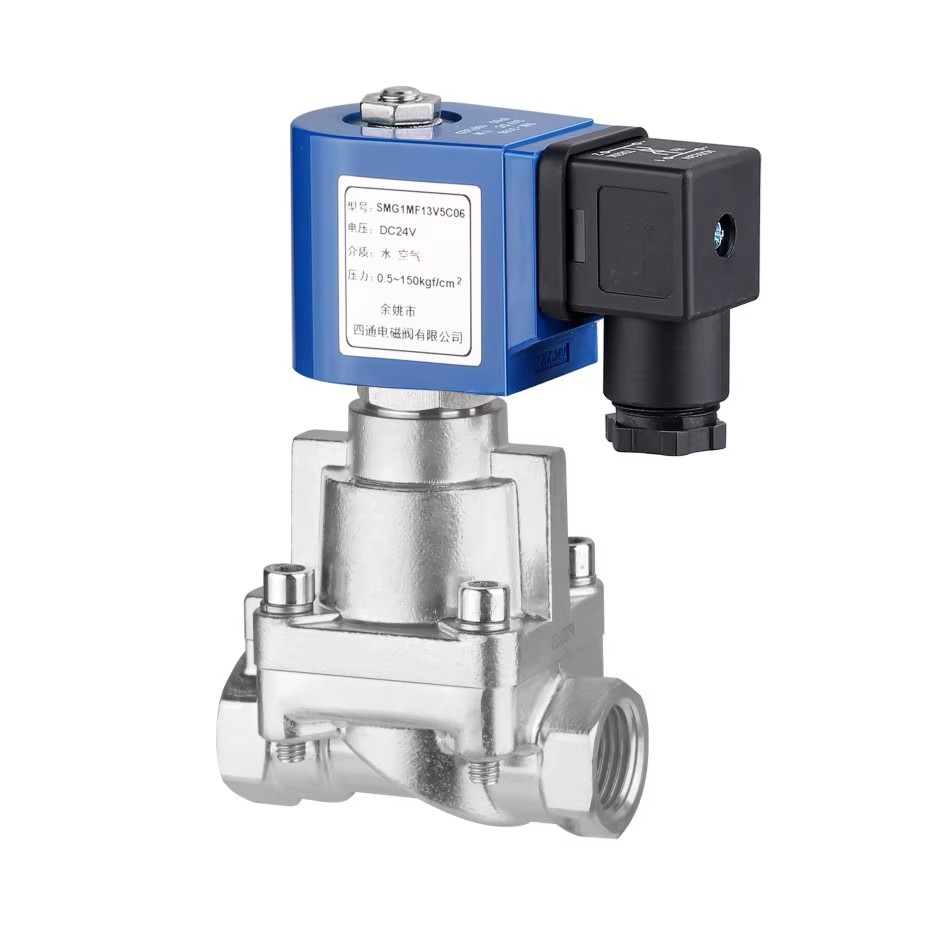

High Quality DC 24V Solenoid Valve Solenoid Control Valve Brass Solenoid Valve

• Type
  • high Pressure Solenoid Valve Normally Closed
• Media
  • Air /water
• Port Size
  • 1/8" 1/4" 3/8" 1/2" 3/8" 1/2"
• Application
  • General
• Power
  • electric
• Structure
  • Other
• Customized support
  • ODM
• Place of origin
  • China
• Model number (Specification)
  • SMG
• Body Material
  • SS316
  • Forged Brass
• Service Voltage
  • AC 220V/230V/110V/24V DC24V DC12V
• Viscosity
  • (Below)20CST
• Working pressure
  • (water
  • air):0-1MPa (oil):0~0.7MPa
• Orifice Size
  • '15 20 25
• Fluid temp
  • '0-110°C
• Material of seal
  • NBR(or)VITON
• Selling Units
  • Single item
• Single package size
  • 5.75X4.72X0.75 cm
• Single gross weight
  • 0.1 kg
• Material (Product option)
  • SS316
  • forged brass
• Size (Product option)
  • 1/2 in
  • 1 1/4 in
  • 1 1/2 in
  • 1/4 in
  • 3/8 in
  • 1/8in
