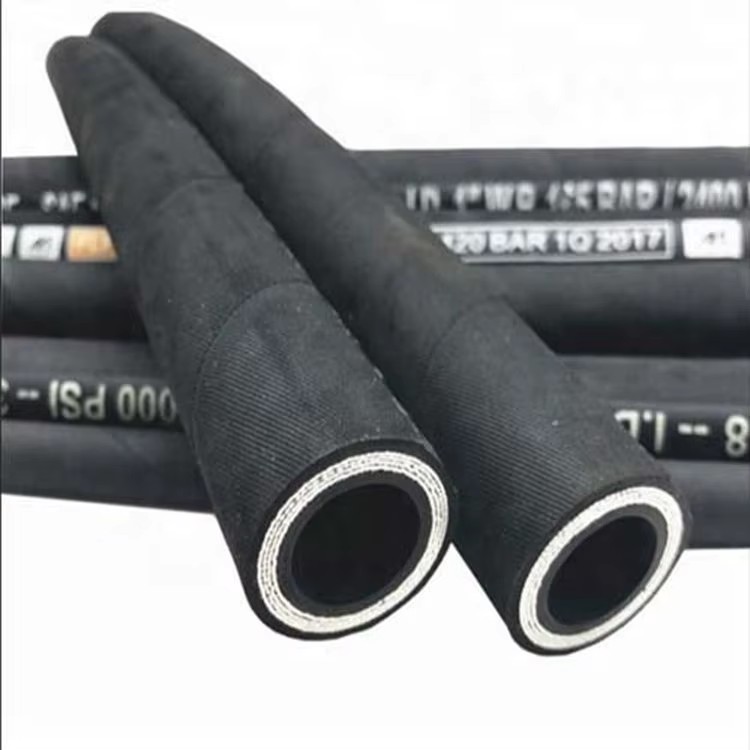

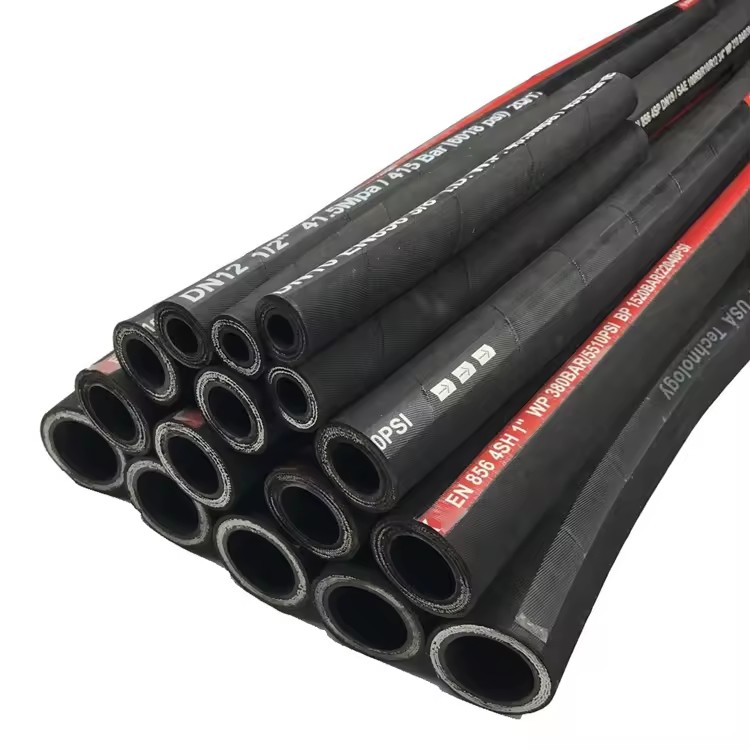

Name: High Pressure SAE100 R1at R2at DIN En853 En856 1sn 2sn 4sh 4sp Steel Wire Braided Spiral Hydraulic Rubber Hose
SKU: B2B-23858
Price: 20.0 USD
Availability: PreOrder

Product description

item	value
Place of Origin
Hebei
Brand Name	xinchi
Model Number	xc
Processing Service	Moulding, Cutting
Material	NBR
Application	Petroleum Base Hydraulic Fluids
Color	Black
Size	1/4"~2"
Length	Customized Length
Cover	Weather Resistant Synthetic Rubber
MOQ	1 Meter
Quality	100% Professional Test
Sample	Availiable
Reinforcement layer	1/2/3/4/5/6 Ply

High Pressure Rubber Hose

Reinforcement	Number
One steel wire braided	SAE R1AT/DIN 1SN. SAE R1AT/DIN 1ST, DIN 1SNK DIN/EN 1SN WG, DIN 1SC, SAE R5, SAE 100R17
Two steel wire braided	SAE R2AT/DIN 2SN, SAE R2AT/DIN 2ST, DIN 2SNK, DIN 2SC
One/two wire braided	SAE R16
Four steel wire spiral	SAE R9AT, SAE R10, SAE R12, DIN 4SP, DIN 4SH
High flexibility nylon or thermoplastic	SAE R7, SAE R8

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	9	10	11.1	13	25	50	100	85
6.3	1/4	10.6	11.6	12.7	14	22.5	45	90	100
8	5/16	12.1	13.3	14.3	16	21.5	43	86	115
10	3/8	14.5	15.7	16.7	18	18	36	72	130
12.5	1/2	17.5	19.1	19.8	21	16	32	64	180
16	5/8	20.6	22.2	22.9	25	13	26	52	200
19	3/4	24.6	26.2	26.9	29	10.5	21	42	240
25	1	32.5	34.1	34.6	37	8.8	17.6	35.2	300
31.5	1-1/4	39.3	41.7	42.2	45	6.3	12.6	25.2	420
38	1-1/2	45.6	48	49.1	52	5	10	20	500
51	2	58.7	61.7	62.5	66	4	8	16	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	10.6	11.6	12.7	14	41.5	83	166	90
6.3	1/4	12.1	13.3	14.3	16	40	80	160	100
8	5/16	13.7	14.9	15.9	17	35	70	140	115
10	3/8	16.1	17.3	18.3	20	33	66	132	130
12.5	1/2	19	20.6	21.4	23	27.5	55	110	180
16	5/8	22.2	23.8	24.6	26	25	50	100	200
19	3/4	26.2	27.8	28.5	30	21.5	43	86	240
25	1	34.1	35.7	37.3	39	16.5	33	66	300
31.5	1-1/4	43.3	45.7	47.1	50	12.5	25	50	420
38	1-1/2	49.6	52	53.3	56	9	18	36	500
51	2	62.3	64.7	66	69	8	16	32	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
10	3/8	16.9	18.1	20.6	22.2	44.5	89	178	180
12.5	1/2	19.4	21	23.8	25.4	41.5	83	166	230
16	5/8	23	24.6	27.4	29	35	70	140	250
19	3/4	27.4	29	31.4	33	35	70	140	300
25	1	34.5	36.1	38.5	40.9	28	56	112	340
31.5	1-1/4	45	47	49.2	52.4	21	42	84	460
38	1-1/2	51.4	53.4	55.6	58.8	18.5	37	74	560
51	2	64.3	66.3	68.2	71.4	16.5	33	66	660
64	2-1/2	76	78	83.1	85.5	35	70	140	990
76	3	100	103	105.1	108	35	70	140	1200
89	3-1/2	114	115.5	118	122	35	70	140	1300
102	4	126	128	131	134.2	35	70	140	1400

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
19	3/4	27.6	29.2	31.4	33	42	84	168	280
25	1	34.4	36	37.5	39.9	38	76	152	340
31.5	1-1/4	40.9	42.9	43.9	47.1	32.5	65	130	460
38	1-1/2	47.8	49.8	51.9	55.1	29	58	116	560
51	2	62.2	64.2	66.5	69.7	25	50	100	700

Certifications & compliance

CCC

Flame Retardant Material

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1000 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean + Truck via Maersk · Approx. shipping fee: $ 194.48 for 1000 meters · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Working temperature

40°c to +100°c

Processing Service

Moulding, Cutting

Wall Thickness

4.5

Place of origin

China, Hebei

Model number (Specification)

Application

Petroleum Base Hydraulic Fluids

Size

1/4"~2"

Length

Customized Length

Cover

Weather Resistant Synthetic Rubber

MOQ

1 Meter

Quality

100% Professional Test

Sample

Availiable

Reinforcement layer

1/2/3/4/5/6 Ply

Selling Units

Single item

Single package size

1X1X1 cm

Single gross weight

0.5 kg

Color (Product option)

Red, Blue, Black

Hose Length

50 meters, 30m, 6m, 12 m, 100m

Product Subtype

Hydraulic Hose, Fuel Delivery Hose, Hydraulic Hose Assembly, Garden Water Hose

Material (Product option)

NBR, Rubber

Hose Inner Diameter

6 mm

Outer Diameter

Certifications & Compliance

CCC

Lead time

7 days

Minimum order

1000 Units
