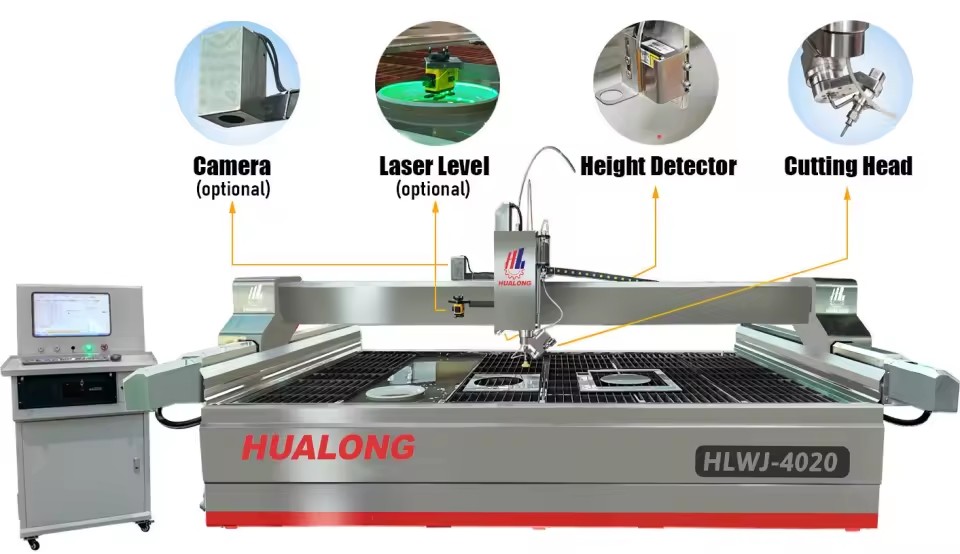

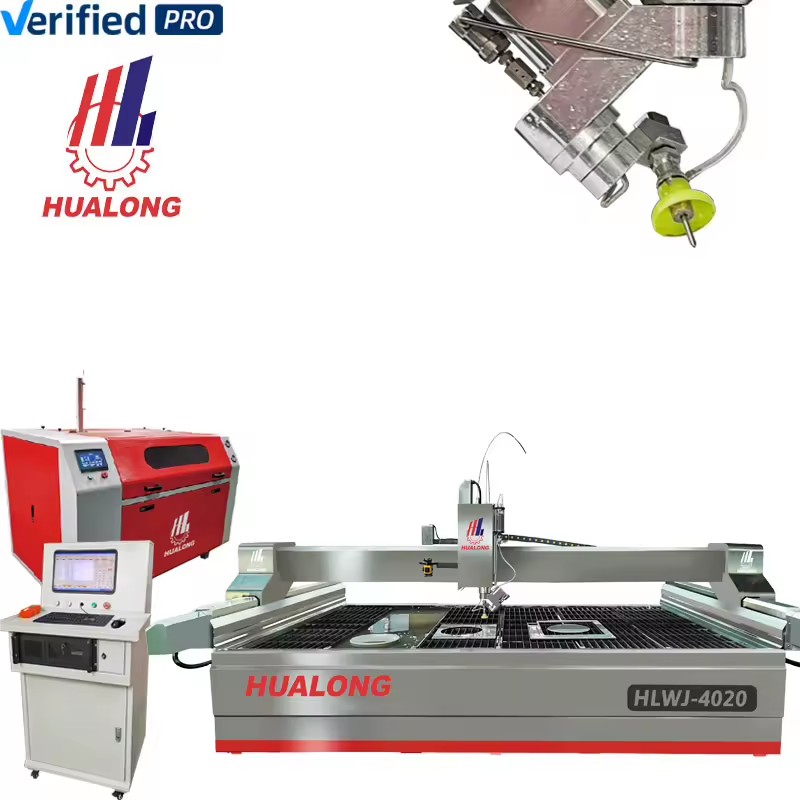

CNC Waterjet Cutting Machine
TECHNICAL DATA
Model No.
HLRC-3020
HLRC-4020
Working area
cm
330*210
410*210
X-axis stroke
mm
3200
4000
Y-axis stroke
2000
Z-axis stroke
80-130
Max. angle of C axis rotation
°
+/- 360
Max. anglel of A axis swing
+/- 60
Cutting accuracy
+/- 0.1
Repeatablbe accuracy
+/- 0.05
Traverse speed
mm/min
5000/15000
Main motor power
kw
37
Dimensions (L x W x H)
443x278x220
494x280x222
which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision.

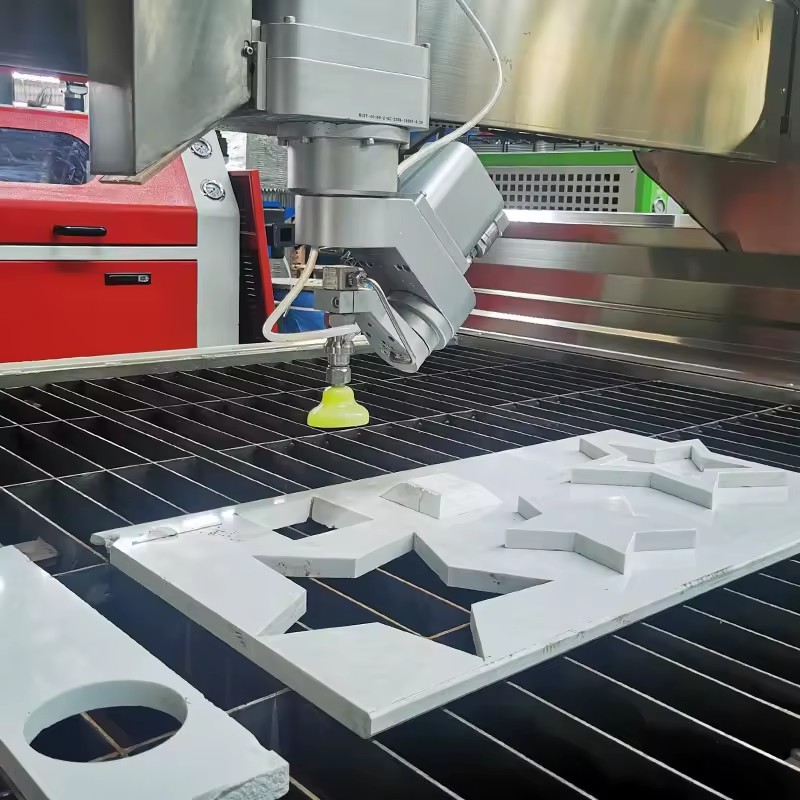

This 5 axis waterjet cutter can cut any angle within +60°, it solves the traditional problem of water cutting inclination, and achieves 2D/3D cutting easily.
The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface.

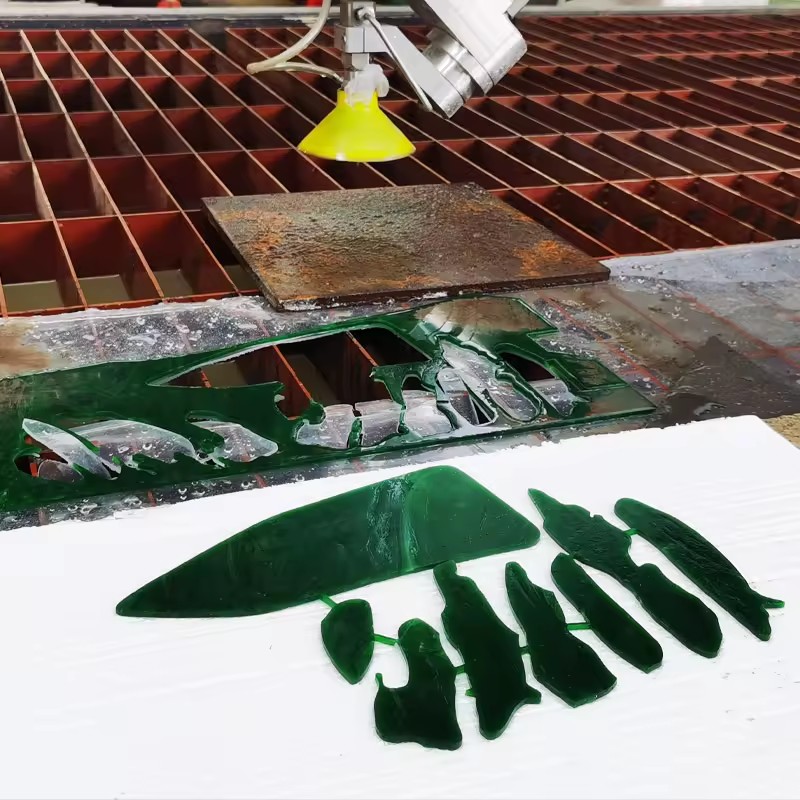

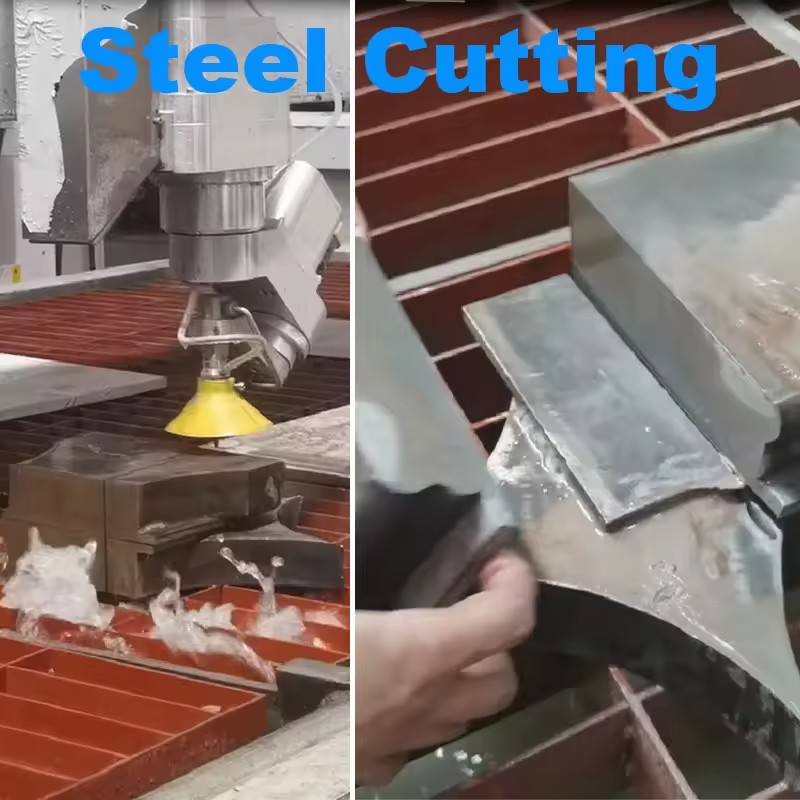

It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.
Main Features
1) Processable any curve cutting, flexible
convenient
and versatile.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.
Tension-free processed parts due to minimal cutting force.
3) Narrow kerf – The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.
4)
Cut Recovery - Pick back up where Jet stopped.
5)
Programmable Z axis height. Z axis retracts between pierces.
6)
Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7)
High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.
*

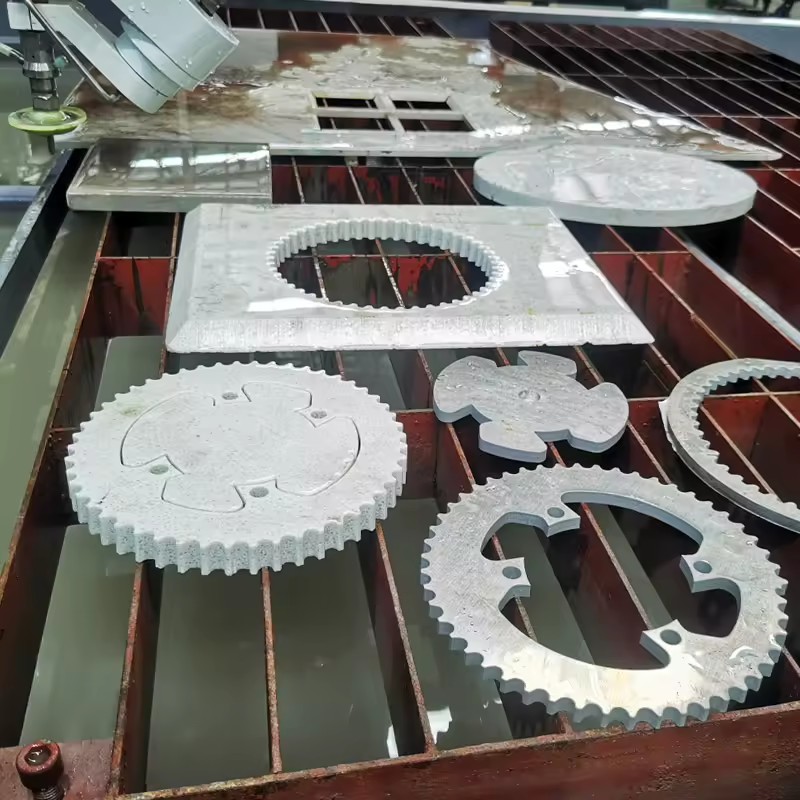

Stone/Ceramic industries such as used for countertops, art puzzles, flooring
Inlays and mosaics.
* G
lass industry, such as bathroom glass, shop window glass, automotive glass and appliance glass.
Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.
Gasket Cutting
Foam Product Cutting
Adopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head.
Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.
Transfers the abrasive to the abrasive regulator.
Air valve to prevent jams and breakages
Auto control with CNC auxiliary function
Self sealing
Slightly adjust the flow
A less mantained, more stable and better working chiller.
It cool and guarantee the hydraulic system can be used in a stable
circular manner at 42-45°C，while at 55-57°C if by water chiller.
Movable Operator Station
The station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.
Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.
Remote Control (optional)
For operating the movement of 5 axises conviniently.
Water Jet Software
Brand: Weihong
Original
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize perfect
dynamic five-axis cutting
Easy to operate and to learn.
Produced
by
Siemens
Original
Power: 37 kw
Efficiency: 92.7%
To generate motion energy throught electtical energy for high pressure pump
Intensifier
To produce high pressure water continuously.
Main parts come from Ashcroft,.
Stable performance and operation
Elec-magnet Valve
Brand: Yuanhong
Origin
Indicate and change advantage
Servo Motor
Nr of revolutions: 0-1500 rpm
Drive X axis moving accuracy and reposefully.
Laser Sensor
Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant
