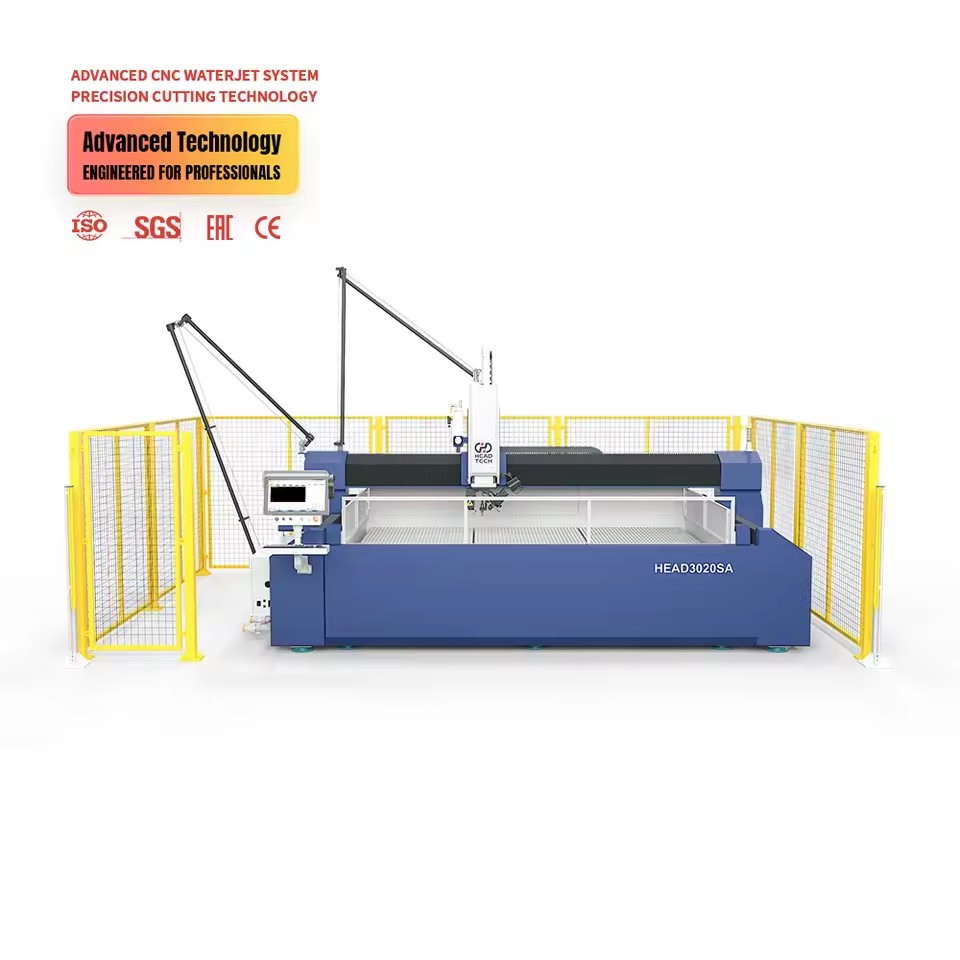

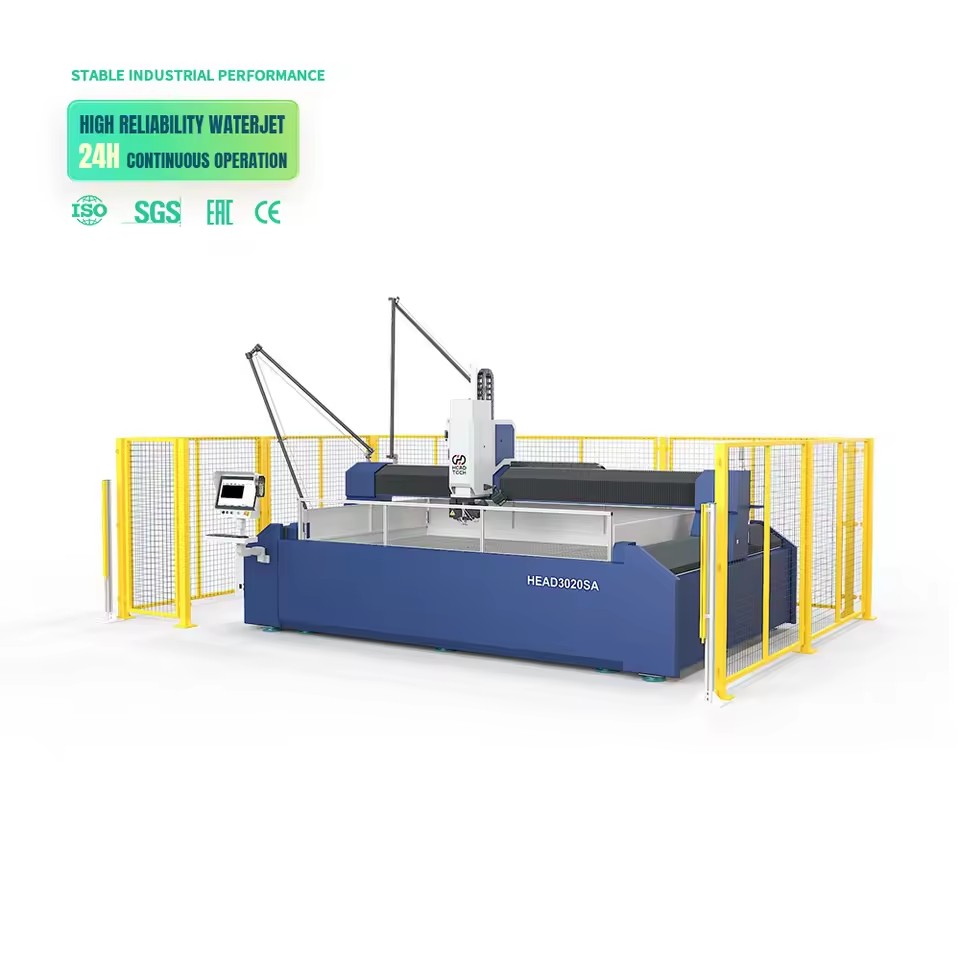

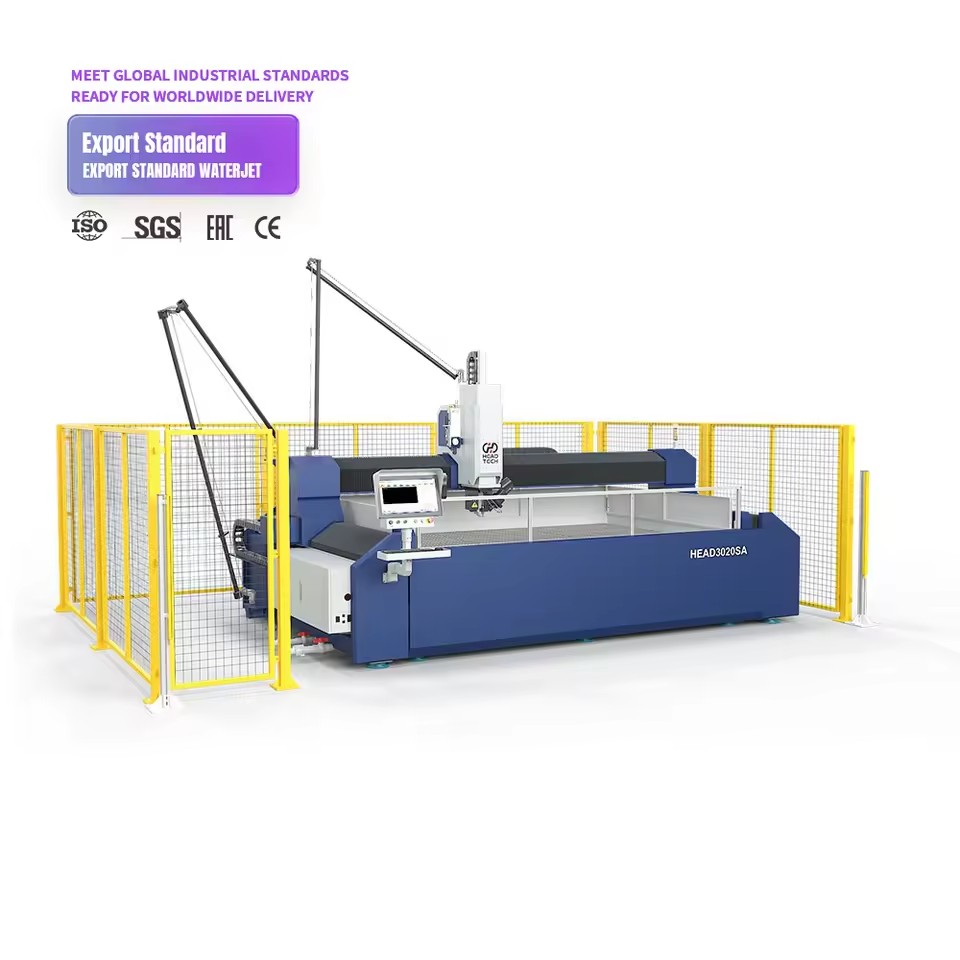

Name: High Precision CNC Water Jet Cutter for Stainless Steel Aluminum Copper and General Fabrication Waterjet Cutting Machine
SKU: B2B-4152
Price: 49350.0 USD
Availability: PreOrder

Product description

Highlights at a glance

Precise Collaboration of Gear Transmission + Magnetic Grid Scale
Shear-type High-pressure Pipe Structure Design
High-strength Welded Beam Technology
Safety Protection & Fault Alarm Display

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

Fourth-Generation Aircraft-Grade Aluminum Alloy Crossbeam Processed using T6 heat treatment technology, this crossbeam is highly resistant to deformation and has excellent strength. The solution treatment enhances the strength and plasticity, optimizing and reducing weight, which increases movement speed.

Intelligent Control Software Ncstudio software is a deeply customized cutting software specifically designed for the water cutting industry. It is simple to operate, easy to use, and suitable for various processing environments.

Wireless Control Handle Optional wireless remote control handle for a more flexible and free operation experience, eliminating the constraints of cables. It allows real-time display of movement values, providing greater control over the equipment.

Guaranteed Cutting Perpendicularity To ensure the vertical accuracy of cutting surfaces, 's self-developed five-axis dynamic cutting works in tandem with a taper compensation system to actively and precisely offset the divergence of the waterjet. This enables high-precision cutting while maintaining excellent perpendicularity of the cut surface. Additionally, the system supports angle cutting within 10', offering greater flexibility for diverse applications.

Certifications & compliance

Complies with EU standards

Frequently asked questions

Yes, this machine is certified to meet European CE safety standards.

The cutting thickness ranges are as follows: Marble: 0-120 mm, Granite: 0-110 mm, Tiles: 0-40 mm, Glass and mosaic: 0-80 mm, Steel, stainless steel, copper: 0-60 mm, Aluminum: 0-80 mm, Plastics, acrylic, foam: 0-200 mm. With our dual-pressure system, it can also cut: Steel plate: 0-160 mm, Stone: 0-200 mm. This provides an advantage for customers needing to cut thicker materials.

Absolutely.

Waterjets are incredibly versatile, cutting nearly any material. Soft materials like foam and rubber are cut with water only. Hard materials, including titanium, steel, stone, and glass, are cut with an abrasive-mixed stream.

Key factors are the material type and thickness you need to cut, your required precision, and your workspace size. Our expert team is available to help you select the perfect model for your needs and budget.

Yes, specialized training is required. We offer comprehensive programs covering machine operation, software, and safety protocols to ensure optimal performance and safe use.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Voltage

380 V, 220 V, 110 V

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

3000*2000*250

Key selling points

Long Service Life

Rated power

37kw(49.62hp)

Place of origin

China, Liaoning

Weight (kg)

3000

Table travel (x) (mm)

3000

Table travel (y) (mm)

2000

Table travel (z) (mm)

250

Cutting accuracy(mm)

0.1

Code

WATEJET

Type

High pressure Water jet cutting

Application

WATERJET CUTTING MACHINE

Name

Water Jet Cutting Table

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

HEAD3020SA-XX-MP-S

Effective cutting range (mm)

2500×1500, 1000×1000, 1300x2500, 1200×1200, 1300×1300, 1500×1500, 2000×1500, 3000×1500, 3000×2000, 1300x1300, 2500×1200, 2600×1600, 1500*2000

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
