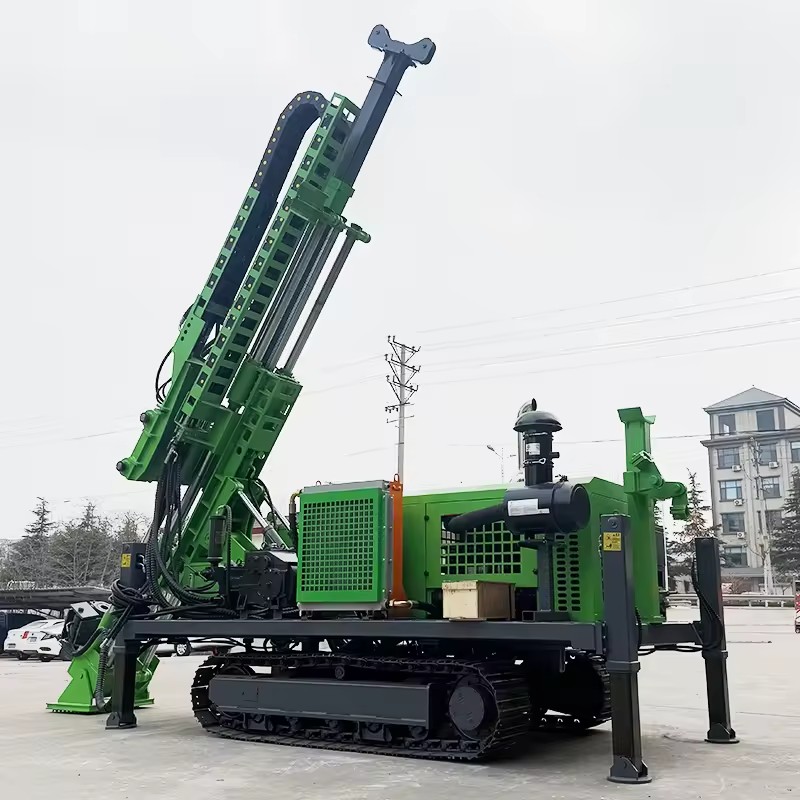

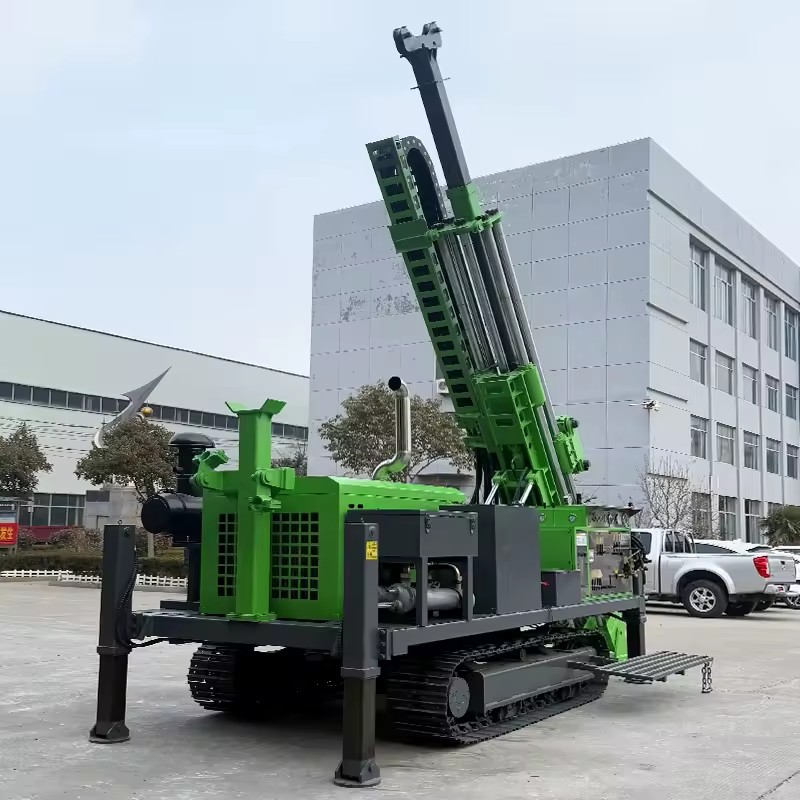

Name: High Power Drilling Rig 800m Mining Gold Drill Full Hydraulic Crawler Mounted Surface Core Drilling Rig
SKU: B2B-39250
Price: 13470.0 USD
Availability: PreOrder

Product description

Model	YD-600	YD-800	YD-1000A	YD-1000B	YD-1600A	YD-1600B
Drilling ability	BTW (m)	650	1200	1400	1400	1800	1800
NTW (m)	600	1000	1200	1200	1600	1600
HTW (m)	300	800	1000	1000	1200	1200
PQ (m)	600	800	800	1000	1000
Hydraulic system	Rated pressure(Mpa)	Main pump 95ml/r.32MPa Auxiliary pump 80ml/r.25MPa	Main pump 95ml/r.32MPa Auxiliary pump 80ml/r.25MPa	Main pump 115ml/r.32MPa Auxiliary pump 80ml/r.25MPa	Main pump 115ml/r.32MPa Auxiliary pump 80ml/r.25MPa	Main pump 145ml/r.32MPa Auxiliary pump 80ml/r.25MPa	Main pump 145ml/r.32MPa Auxiliary pump 80ml/r.25MPa
Cooling method	Water cooling	Air+Water	Air+Water	Air+Water	Air+Water	Air+Water
Engine	Model	Yuchai 4-cylinder 92kW	Yuchai 6-cylinder 92kW	Weichai 6-cylinder 129kW	Weichai 6-cylinder 129kW	Weichai 6-cylinder 147kW	Cummins 6-cylinder 154kW
Rated power(Kw)	92	92	129	129	147	154
Rated speed(rpm)	2200	2200	2200	2300	2300	2300
Power head parameters	Maximum torque(N.m)	1400	1800	1800	2600	3500	3500
Maximum speed(rpm)	1400	1400	1400	1400	1400	1400
Feed stroke(m)	1.8	1.8	1.8	3.5	3.5	3.5
Lifting force(kN)	240	300	360	360	400	400
Thrust force(kN)	120	150	180	180	200	200
Rope coring winch parameters	Rope capacity(m)	800	1000	1200	1200	1600	1600
Lifting force(kN)	15	20	24	24	31	31
Lifting speed(m/min)	110	110	110	110	110	1100
Wire rope diameter(mm)	6	6	8	8	8	8
Mast parameters	Overall height(m)	6.1	6.1	6.6	8.5	8.5	8.5
Drilling angle°	45-90	45-90	45-90	10-90	10-90	10-90
Drill rod clamp parameters	BQ/NQ/HQ/PQ	Drill rod clamp through hole 146mm
Track parameters	Max. load-bearing ability(t) Climbing angle°	6/20	6/20	8/20	9/20	10/20	10/20
Max. travel speed (km/h)	2	2	2	2	2	2
Mud pump (Daxiang)	BW100	BW100	BW100	BW160	BW160	BW160
Transport dimensions LWH (mm)	450019002300	460019002650	590021002800	590022003000	610022003050	610022003050
Machine weight (t)	4.6	7.5	7.8	8.8	10	10
The engine, mud pump, generator, agitator, mast, fuel tank, winch, track, etc. of the full hydraulic drilling rig can be customized to meet your different needs.

Certifications & compliance

Complies with EU standards

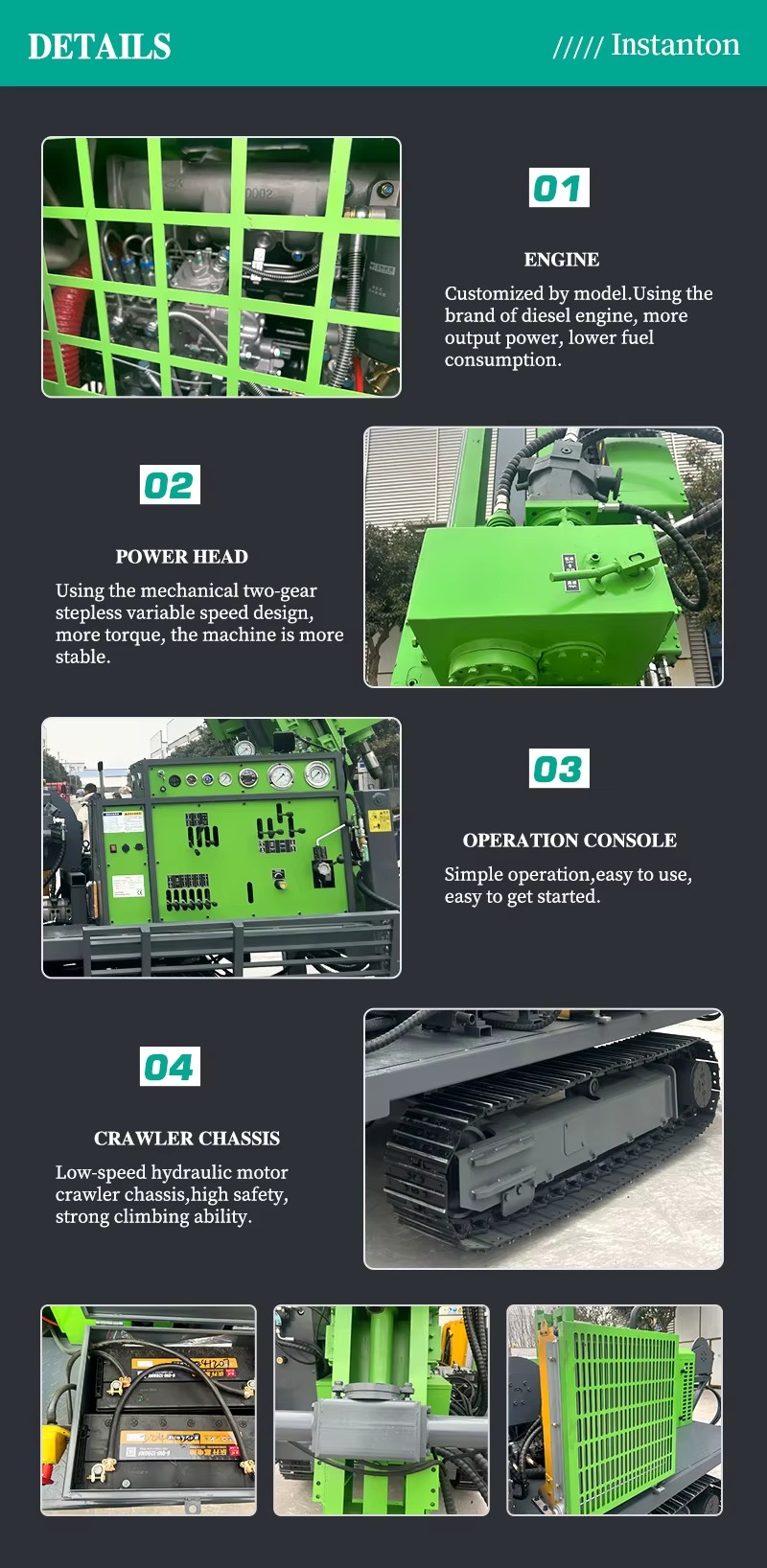

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Usage

Core sample

Type

Drilling Rig

Drilling Depth

600~1000m(1968.50~3280.84ft)

Drilling Diameter

300/600/650

Power Type

Diesel

Voltage

none

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China, Shandong

Weight

46000 KG(101412.64lb)

Dimension (L*W*H)

2950*1900*2300(mm)

Mobility

YES

Model

YD600/YD800/YD1000A/YD1000B/YD1600A/YD1600B/Customized

Engine

Yuchai /Weichai/Cummins(Optional)

Maximum torque(N.m)

1400/1800/2600/3500(depend on model)

Feed stroke(m)

1.8/3.5(depend on model)

Drilling angle°

45-90(depend on model)

Mud pump (Daxiang)

BW100/BW160(depend on model)

Cooling Method

Water cooling/Air+Water(depend on model)

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

YD-600, YD-800, YD-1000A, YD-1000B, YD-1600A, YD-1600B

Power (W) (Product option)

125HP, 175HP, 200HP, 209.5HP

Certifications & Compliance

Lead time

7 days

Minimum order

1 Units
