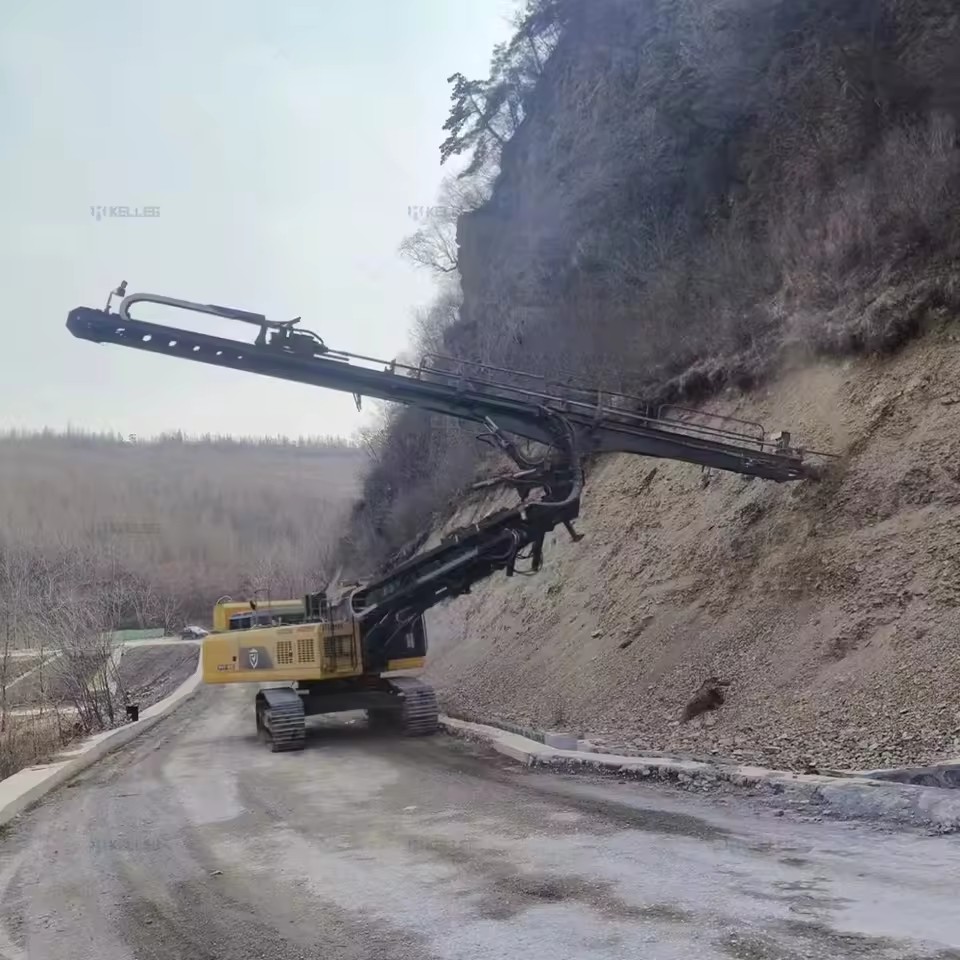

High-Lift Mine Drilling Rig for High Slope Support Engineering Urban Deep Foundation Pit Versatile Rig for Critical Situations

Available for enquiry 0.0 · 0 reviews
USD

$ 127,290.00 127290.0 USD $ 127,290.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Drilling Depth
  • Drilling Diameter
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Application
  • Feature
  • Keyword
  • After-sales Service Provided
  • Key words
  • Drilling Diameter Range
  • Rotation speed(r/min)
  • Thread Specification
  • Selling Units
  • Single package size
  • Single gross weight
  • Power (W) (Product option)
  • Model number

This combination is unavailable.

Key attributes

View all
Usage
Water Well, High Slope Support Engineering, Urban Deep Foundation Pit Support
Drilling Depth
Max.20m
Drilling Diameter
42mm-180mm(1.65in-7.09in)
Voltage
220 V
Core components

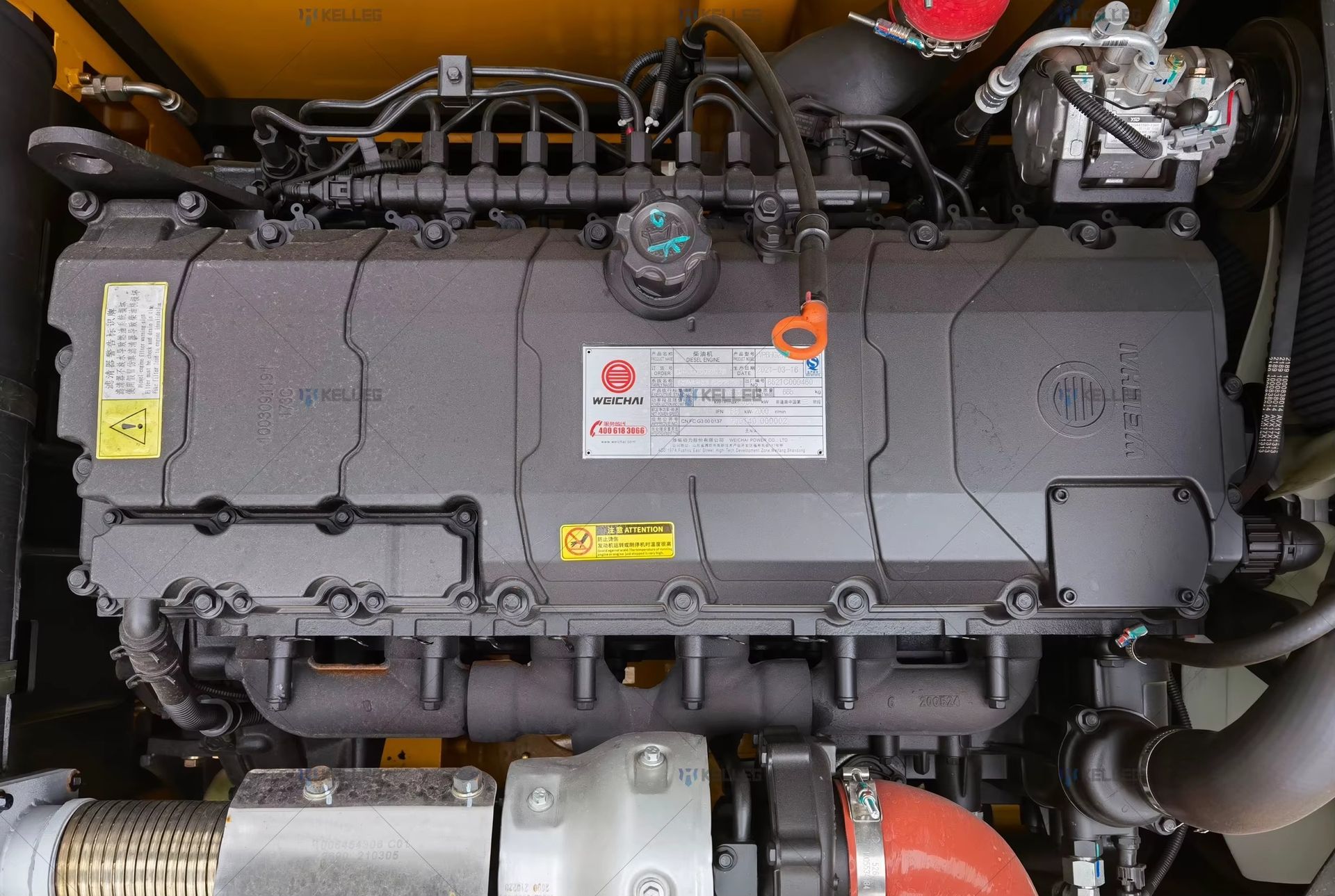

Engine
Warranty
1 Year
Product description
Parameter CategoryHGJ-D-15-9000HGJ-H-15-10000HGJ-D-20-9000HGJ-H-20-10000HGJ-D-24-9000HGJ-H-24-10000
Max Horizontal Lifting Height /m15m20m24m
Total Weight/Kg318004000046000
Engine Power KW/rpm190/2000228/2000280/2000
Emission StandardIVIVIV
Hydraulic Flow（L/min)2×2482×3052×340
Hydraulic Pressure（Mpa)3334.335.3
Hydraulic Tank Capacity（L)190300300
Fuel Tank Capacity(L)480630630
Track Total Width（mm）319032003280
Track Length (mm)466048305095
Bore Diameter Range(mm)φ42-φ89Ф76-180φ42-φ102Ф76-180φ42-φ102Ф76-180
Single-pass Drilling Depth（mm）0-90000-100000-90000-100000-90000-10000
Rotation Speed（r/min）0-2050-2400-2050-2400-2050-240
Output Torque（N.m）0-7500-39000-7500-39000-7500-3900
Thread SpecificationT38/T452-3/8regT38/T452-3/8regT38/T452-3/8reg
Impact Energy（J)370470470
Feed/Pull Force（kN）0-690-690-69
Side Swing Angle/°0-900-900-90
Air Compressor TypeScrewScrewScrew
Air Flow(m³/min)111313
Air Pressure(bar)151515
Cabin SafetySafety mesh + H-frame ROPS cabinSafety mesh + H-frame ROPS cabinSafety mesh + H-frame ROPS cabin
Travel Speed(km/h)3.5/5.13.3/5.53.0/4.9
Transport Dimensions (mm) L×W×H14920×3190×335016380×3200×358017300×3300×3550

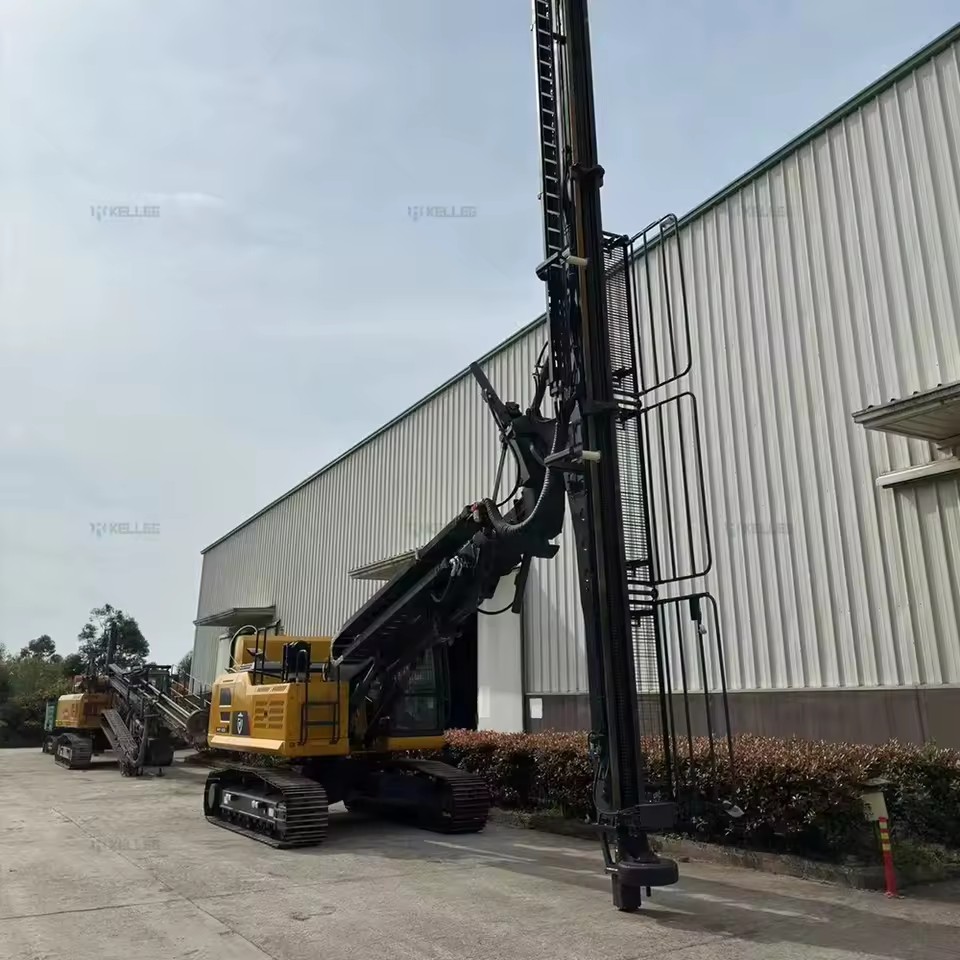

Description images

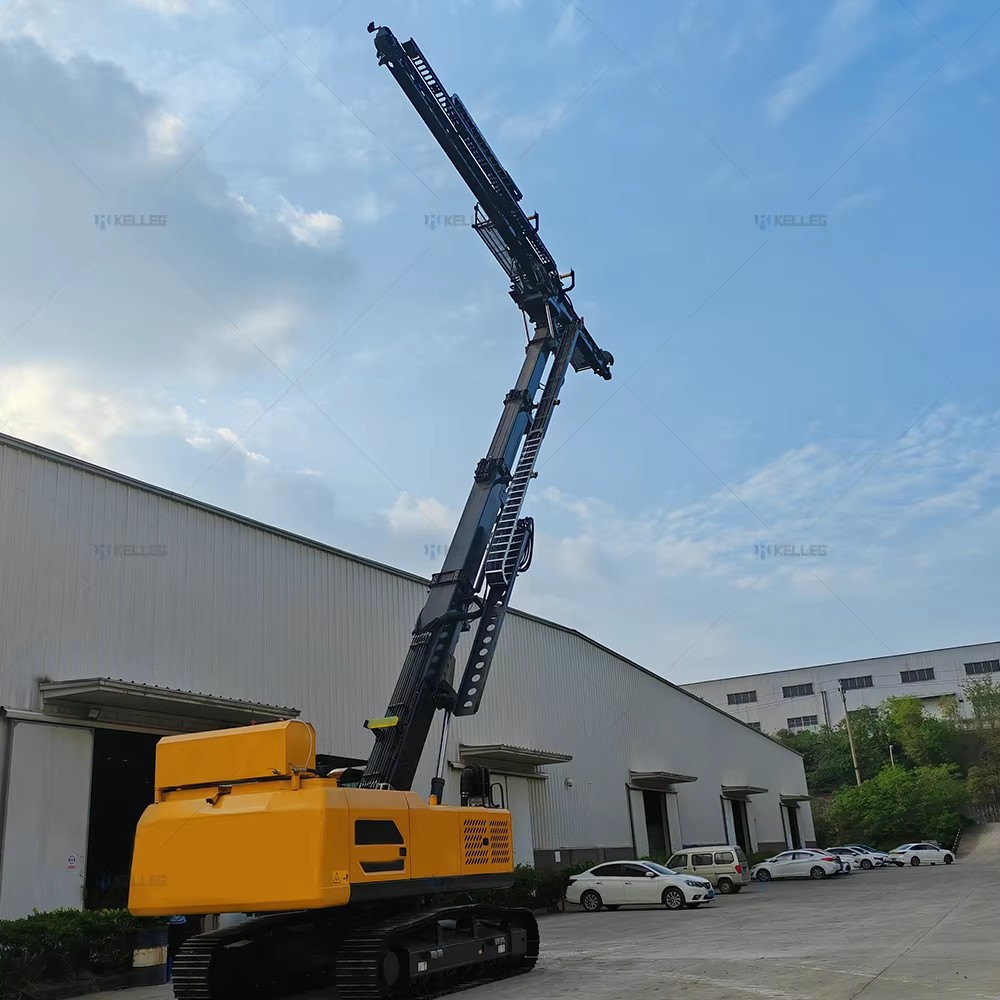

Product detail

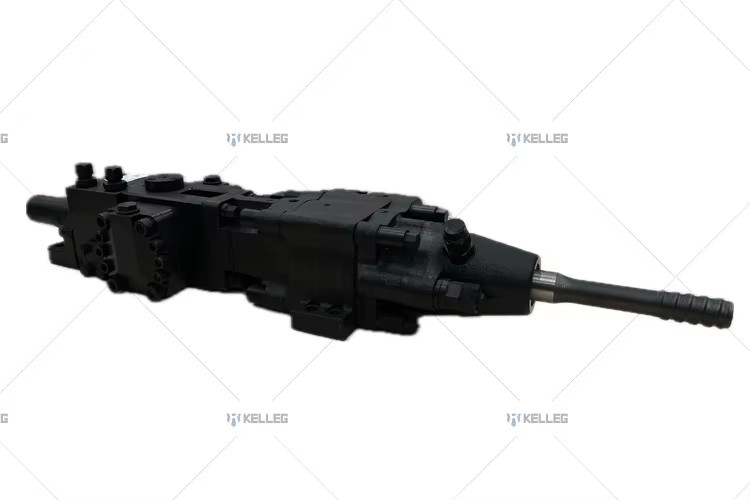

Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 24 fields
Usage
Water Well, High Slope Support Engineering, Urban Deep Foundation Pit Support
Drilling Depth
Max.20m
Drilling Diameter
42mm-180mm(1.65in-7.09in)
Voltage
220 V
Core components
Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Henan
Weight
4600 KG(10141.26lb)
Application
Highway, Railway, Hydropower Station, Anti-floating Anchor Works.
Feature
Low drilling efficiency & frequent rod changes resolved
Keyword
Drilling Machine
After-sales Service Provided
1 Year
Key words
Holds the Anchor Rig High
Drilling Diameter Range
42MM~180mm
Rotation speed(r/min)
0~240
Thread Specification
T38/T45,2-3/8reg
Selling Units
Single item
Single package size
17300X3300X3580 cm
Single gross weight
46000.0 kg
Power (W) (Product option)
2000
Model number
HGJ-D-15-9000, HGJ-H-15-10000, HGJ-D-20-9000, HGJ-H-20-10000, HGJ-D-24-9000, HGJ-H-24-10000
