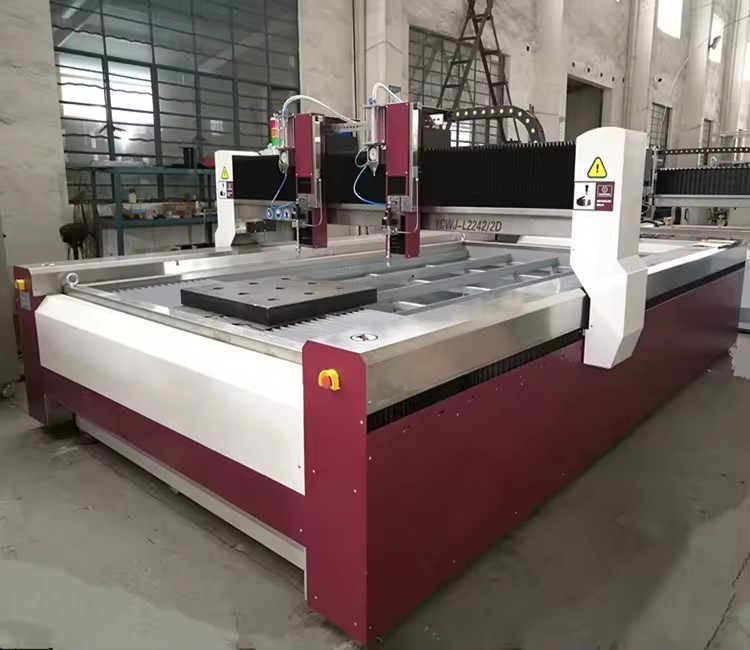

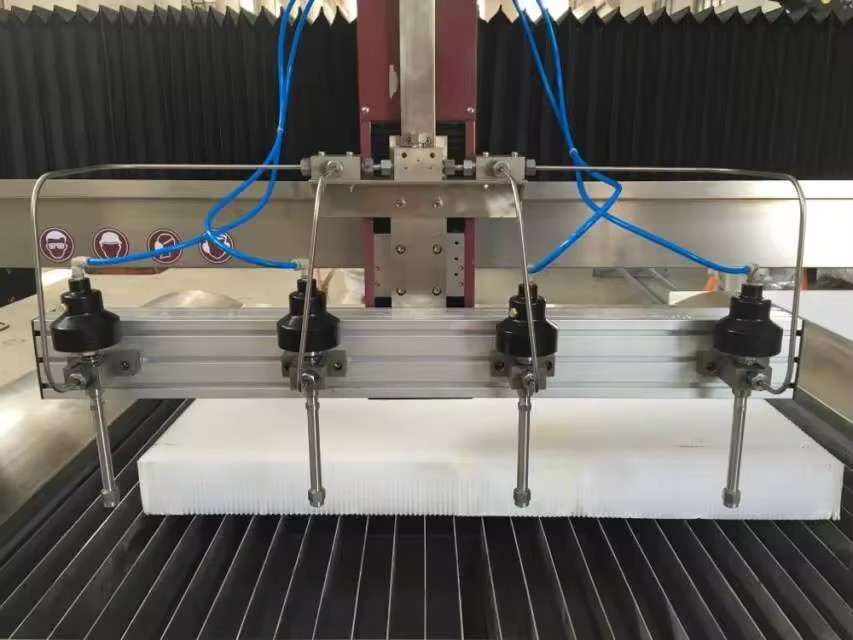

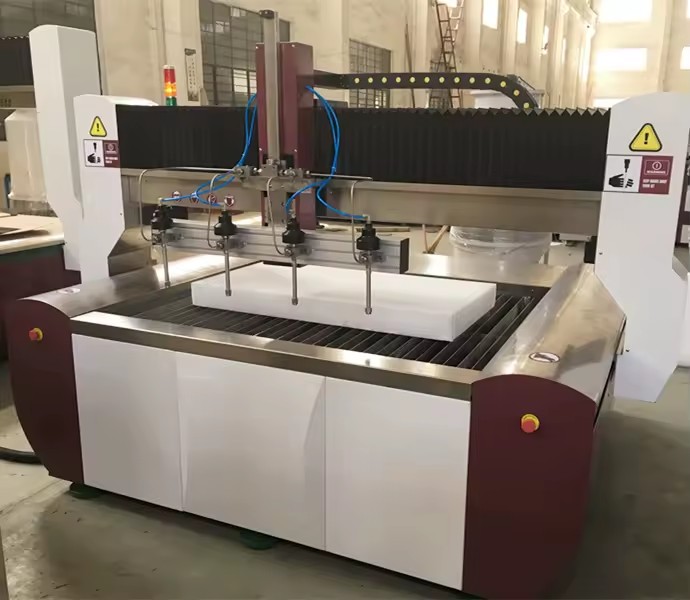

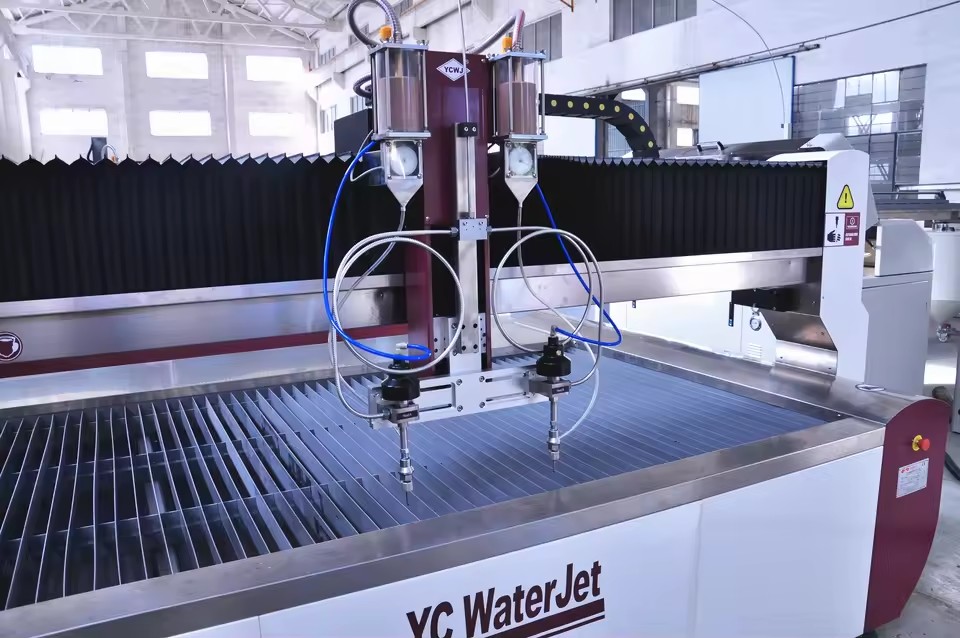

High-efficiency Multi-head Cutting CNC Water Jet Cutter Manufacturers

Available for enquiry 0.0 · 0 reviews
USD

$ 44,870.00 44870.0 USD $ 44,870.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Voltage
  • Number of axes
  • Repeatability (x/y/z) (mm)
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Dimension(L*W*H)
  • Key selling points
  • Rated power
  • Place of origin
  • Weight (kg)
  • Table travel (x) (mm)
  • Table travel (y) (mm)
  • Table travel (z) (mm)
  • Cutting accuracy(mm)
  • Cutting materials
  • Power
  • High pressure
  • Cutting accuracy
  • Max.flowrate
  • Abrasive name
  • Accumulator ca.
  • Drive system
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Effective cutting range (mm)

This combination is unavailable.

Key attributes

View all
Voltage
220/380/400V,3ph,50/60HZ
Number of axes
3
Repeatability (x/y/z) (mm)
0.025
Core components
Motor, Pressure Vessel, Pump
Machinery test report
Provided
Warranty
1 Year
Product description

Water Jet High Pressure Pump

CNC Water Jet Cutting Machine P arameter (L=Gantry type)

Parameters

Unit

YCWJ-L1010

YCWJ-L2015

YCWJ-L3015

YCWJ-L3020

YCWJ-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.02

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

High Pressure Pump

Model

YCG-3038

YCG-3742S

YCG-7542S

Max Pressure

3800Bar/55,000Psi

4137Bar/60,000Psi

Max Water Flow

3.7L/min

7.4L/min

Max Orifice/Nozzle

0.011/0.03

0.013/0.04

0.016/0.05

Power

30KW/40HP

37KW/50HP

75KW/100HP

Product Details

CNC Water Jet Cutting Machine P

arameter

(L=Gantry type)

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa

Main Feature

Control: PLC

Shifting: electro-hydraulic

Control Cooling: cooler/oil heat exchanger

Inlet water filter accuracy: ≤0.45μm

Oil-return filter accuracy: 20 μm

Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

Unique design of this water jet pump makes the installation and the maintenance easier. Stable working pressure to ensure the working efficiency.

We cooperate with Accsutream/Hypertherm since 2008,most water jet parts of the high pressure pumps are imported directly.

Hypertherm high pressure pumps are all available.

Core compoenent options

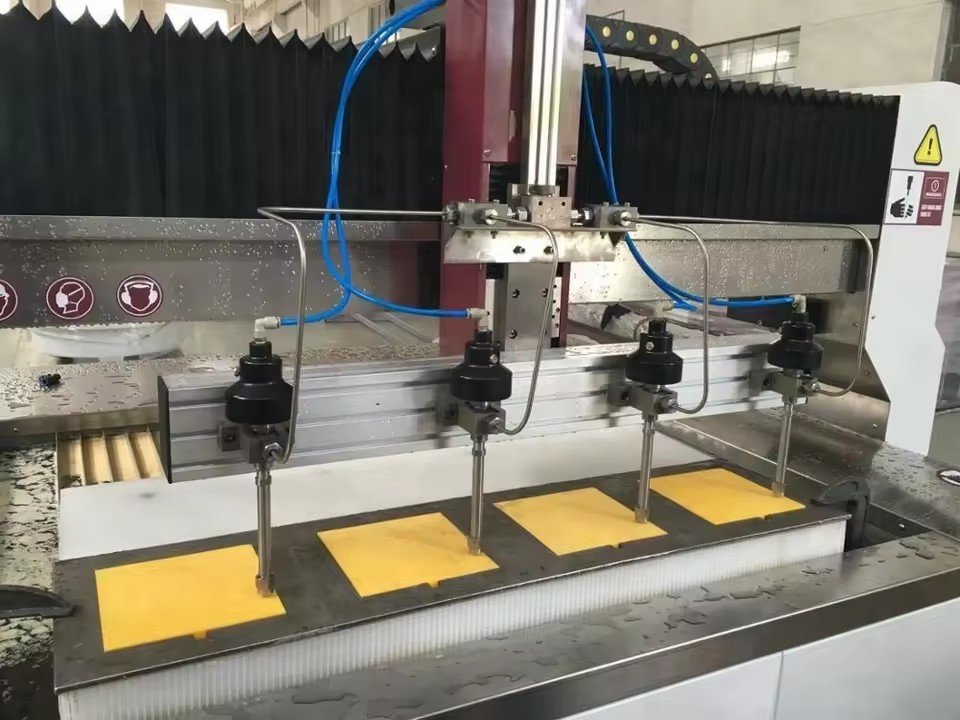

Cutting Samples

Packing&Delivery

Company Profile

00:00

Straight to do the most professional water jet cutting machine, for different customers in different industries we will provide a variety of solutions.

Why Choose Us

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat deformation; Strong cutting ability, it can cut almost any material; pure water jet can cut soft materials, abrasive waterjet can cut hard materials, evenit can cut flammable and explosive objects; cutting accuracy is high, edge is neat. Waterjet also has the title of universal cutting machine.

Q: How to choose a standard cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision bevel problem by 3 axis water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle

compensation in the software.

Q:Is the equipment easy to operate?

A:Based on the good waterjet software, opertaor can learn it easily. and if customer order new machine, our technician will

provide training for the machine’s running and maintenance.

Customer reviews

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    35 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Voltage
220/380/400V,3ph,50/60HZ
Number of axes
3
Repeatability (x/y/z) (mm)
0.025
Core components
Motor, Pressure Vessel, Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
as to model
Key selling points
High Safety Level
Rated power
30/37KW
Place of origin
China, Jiangsu
Weight (kg)
2000
Table travel (x) (mm)
1600
Table travel (y) (mm)
1600
Table travel (z) (mm)
180
Cutting accuracy(mm)
0.1
Cutting materials
stone, plastic, Stainless steel, brass, aluminum, glass.etc
Power
30KW/37KW,40/50HP
High pressure
300-400mpa
Cutting accuracy
+/-0.1mm
Max.flowrate
3.7 L/Min
Abrasive name
garnet
Accumulator ca.
1Liters
Drive system
AC servo and screw, guideway
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Model number
YCWJ
Effective cutting range (mm)
4000×2000, 1300x2500, 1200×1200, 1500×1500, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 3000×2000, 6000×2000, 1300x1300, 1500×2500, 2000×8000, 2600×1600, 3000×8000
Lead time
35 days
Minimum order
1 Units
