High Efficiency CE Certified Ceramic Lined Spiral Separator WearResistant Patented Hengtuo Mineral Processing Ore Classification

Available for enquiry 0.0 · 0 reviews
USD

$ 670.00 670.0 USD $ 670.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Type
  • Voltage
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Selling Units
  • Single volume
  • Single gross weight
  • Power (W) (Product option)
  • Model number

This combination is unavailable.

Key attributes

View all
Type
spiral separator
Voltage
0
Core components
Main body of cyclone separator
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Product description

Product details

OSuperior Wear Resistance - 99% Alumina Ceramic Lining Lined with high-purity 99% alumina ceramic, offering 8-10 times longer service life compared to standard polyurethane or rubber lined cyclones, significantly reducing replacement frequency and downtime costs.

Exceptional Classification Accuracy Precision-engineered geometry (inlet, vortex finder, apex) ensures sharp particle size separation with cut points ranging from 10-150 microns, delivering consistent overflow and underflow product quality.

Wide Application Range Suitable for gold, copper, iron, coal, phosphate, and other mineral processing circuits including grinding classification, desliming, dewatering, and dense medium recovery.

Full Size Range Available Available in diameter from 100mm to 660mm (FX100 to FX660), accommodating feed flow rates from 1 m³/h to 400+ m³/h, suitable for both small pilot plants and large-scale mine operations.

Modular & Easy Maintenance Design Flanged sectional assembly allows individual worn components (apex, vortex finder, cylinder, cone) to be replaced independently without dismantling the entire unit, minimizing maintenance time and cost.

High Pressure & High Density Feed Tolerance Engineered to handle feed slurry with solid content up to 60-70% by weight and operating pressure up to 0.25 MPa, ideal for high-throughput mining processing plants.

Corrosion & Chemical Resistant Ceramic lining combined with corrosion-resistant outer casing withstands highly acidic and alkaline slurry environments, ensuring stable performance in aggressive process conditions.

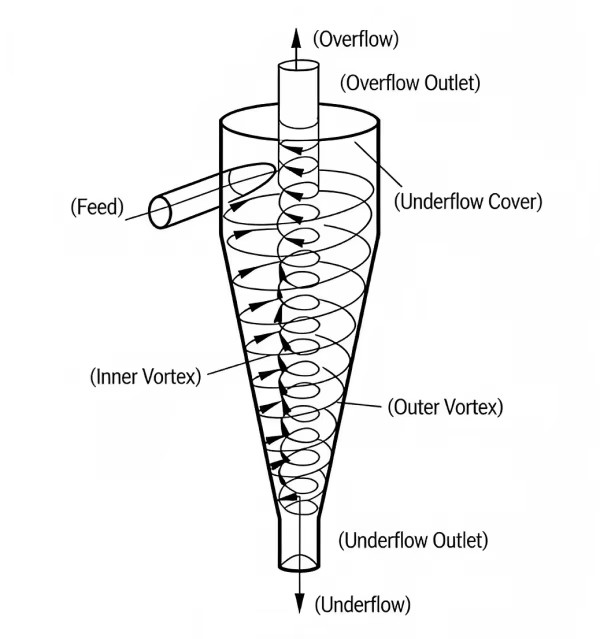

Energy Efficient No Moving Parts Gravity and pressure-driven separation with zero rotating components means ultra-low energy consumption, no lubrication required, and virtually maintenance-free operation.

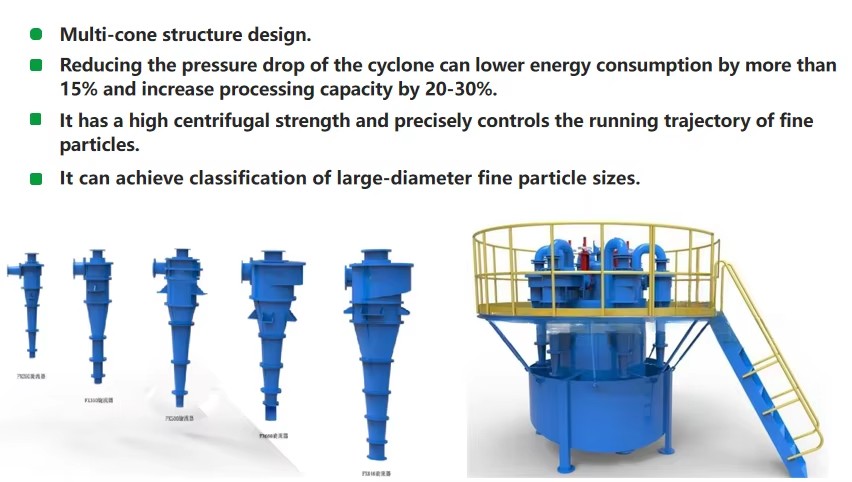

Cyclone Cluster / Battery Configuration Supported Multiple units can be assembled into cyclone clusters or batteries to match any required capacity, with manifold feed distributors available

Frequently asked questions

Ceramic lining offers much higher wear resistance than rubber or polyurethane, especially when handling high-abrasion slurry and fine particles. It significantly extends service life and reduces maintenance frequency in mining applications.

Under normal working conditions, the service life is 5 times longer than traditional metal or rubber-lined hydrocyclones, depending on slurry concentration and abrasiveness.

Our cyclones can be equipped with a variety of wear-resistant liners to suit different applications and slurry conditions. Available materials include rubber, polyurethane, high-chrome steel, and other specialized wear-resistant alloys, providing excellent abrasion resistance, corrosion resistance, and long service life. Customers can choose the material based on slurry abrasiveness, particle size, and operating pressure to achieve optimal performance and extended equipment life.

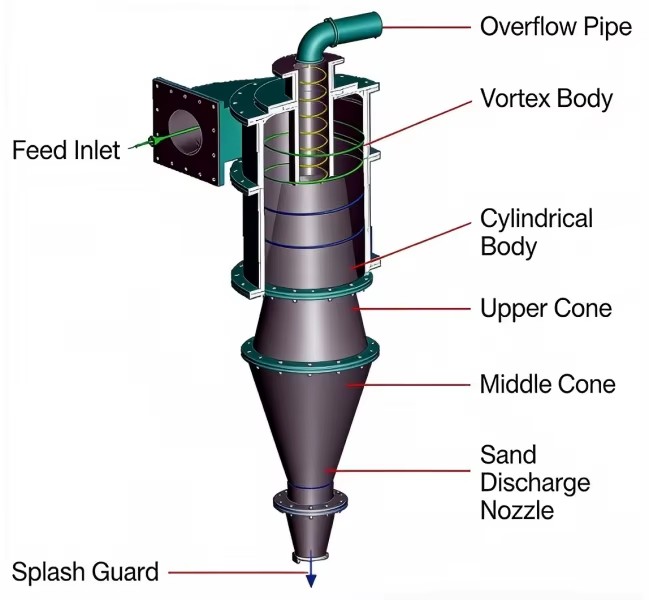

Yes. Our hydrocyclone adopts a modular flanged design, allowing individual components including the apex (spigot), vortex finder, cylindrical section, and cone section to be replaced independently without dismantling the entire unit, greatly reducing maintenance cost and downtime.

Our hydrocyclones are widely used in: Mining: Gold, copper, iron ore, silver, zinc, lead, phosphate, coal Industrial: Sand & gravel classification, ceramic slurry, paper & pulp Environmental: Tailings treatment, water clarification, desanding
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    3 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 15 fields
Type
spiral separator
Voltage
0
Core components
Main body of cyclone separator
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Key selling points
Patented Product
Place of origin
China, Shandong
Weight
25 KG(55.12lb)
Dimension (L*W*H)
Custmoized
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Power (W) (Product option)
0
Model number
FX840GT, FX710GT, FX660GT, FX610GT, FX500GT, FX400GT, FX.350GT, FX300GT, FX250GT, FX200GT, FX150GT, FX125GT
Lead time
3 days
Minimum order
1 Units
