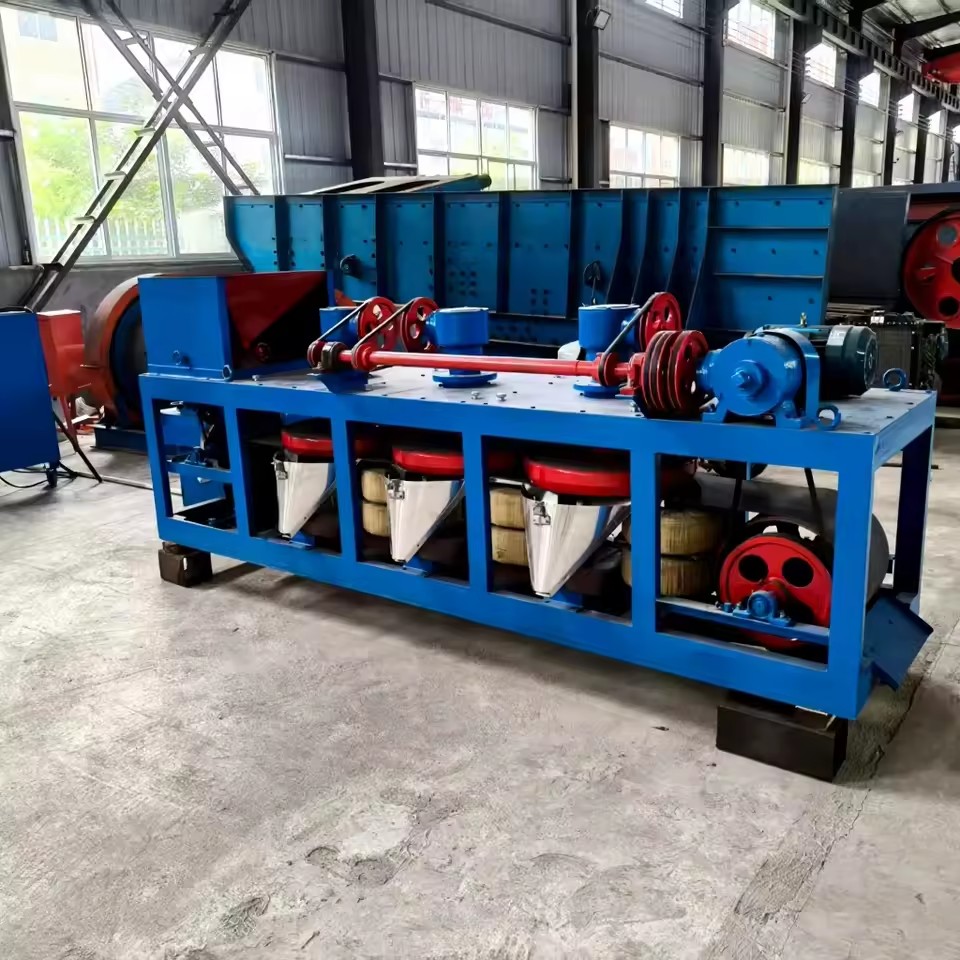

Hengzhong CM3-600 High Intensity Three Disc Magnetic Separator Dry Separation Tin Tantalum Mineral Processing Plant 380V 1-2.8

Available for enquiry 0.0 · 0 reviews
USD

$ 22,140.00 22140.0 USD $ 22,140.00

Not Available For Sale

Minimum order quantity: 2 Units
  • Type
  • Voltage
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Key selling points
  • Production Capacity
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Model
  • Magnetic Separator Capacity
  • Magnetic Separator disk quantity
  • Magnetic Separator application
  • Magnetic Separator gauss
  • Usage
  • Feature
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Type
Magnetic Separator, Dry Separation
Voltage
380V
Core components
Motor, Other
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Product description

Three disk dry magnetic separator

ModelCM3-500 Belt typeCM3-600 Belt typeCM3-500 rare earth
Magnetic Intensity2 mm from the ground tooth plate 1700 mSv2 mm from the ground tooth plate 1800 mSv2 mm from the ground tooth plate 2000 mSv
Disc Qty.3pcs3pcs3pcs
Disk Dia.500mm600mm600mm
Speed25-40r./min22-38r./min22-38r./min
Power380v/3 phase/4 wires380v/3 phase/4 wires380v/3 phase/4 wires
Exciting coil4sets4sets4sets
Motor PowerY112M-6 1.1KWY112M-6 2.2KWY112M-6 1.5KW
Exciting power1.1KW2.2KW1.5KW
coil temperature65°c65°c65°c
rated coil current1.2-1.9A1.2-1.9A1.2-1.9A
Duty-ratingContinuousContinuousContinuous
Feeding width210mm300mm300mm
Feeding size＜2mm＜2mm＜2mm
Dimension3100×800×1220mm3150×900×1250mm3150×900×1250mm
Capacity100-500kg/h120-800kg/h80-800kg/h
Gross weight1900kg2200kg2300kg
Description images

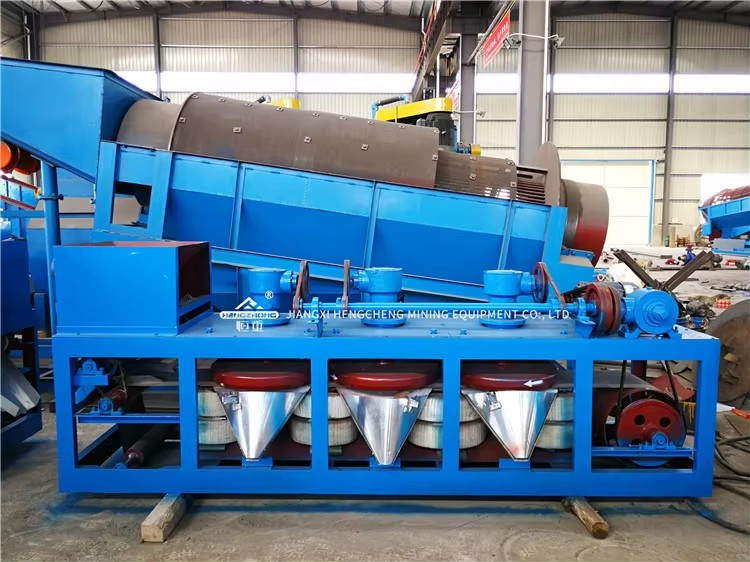

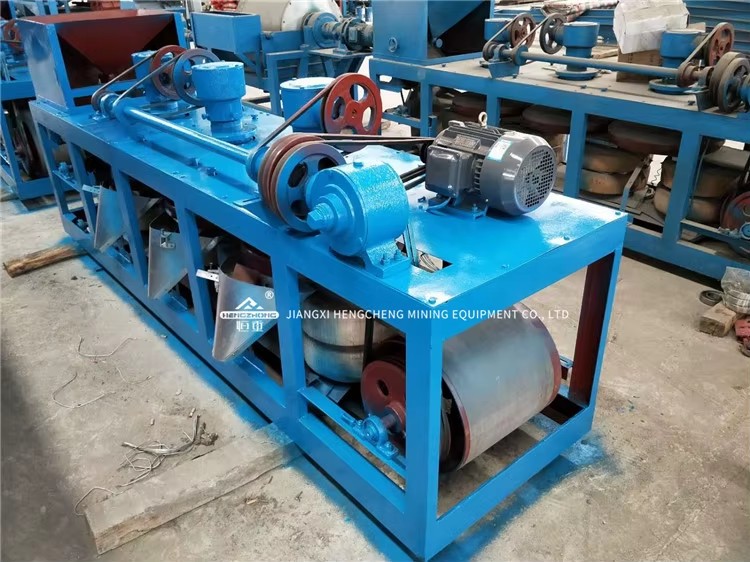

Product detail

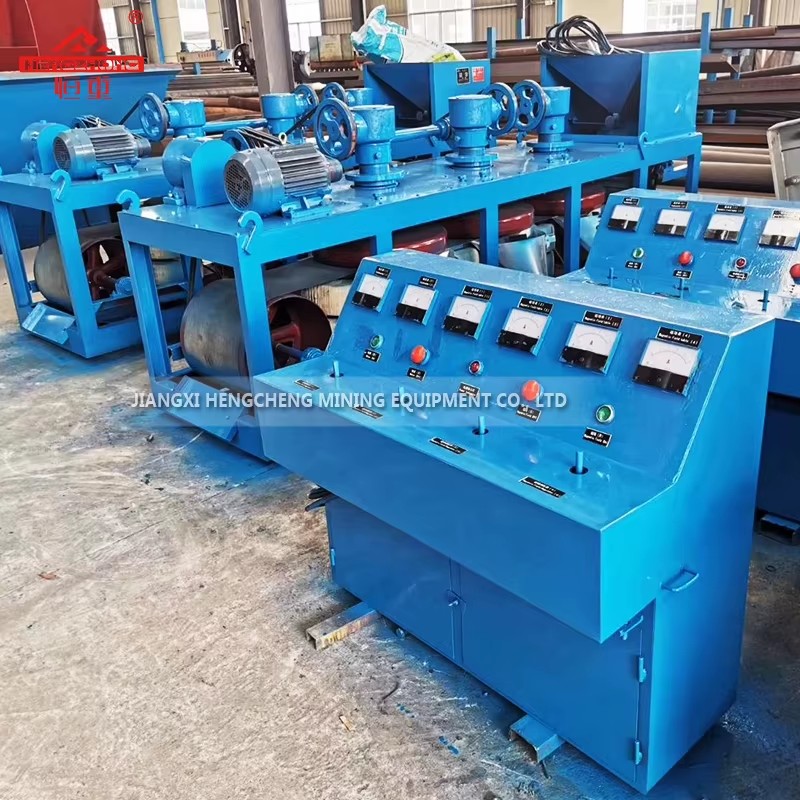

Product detail

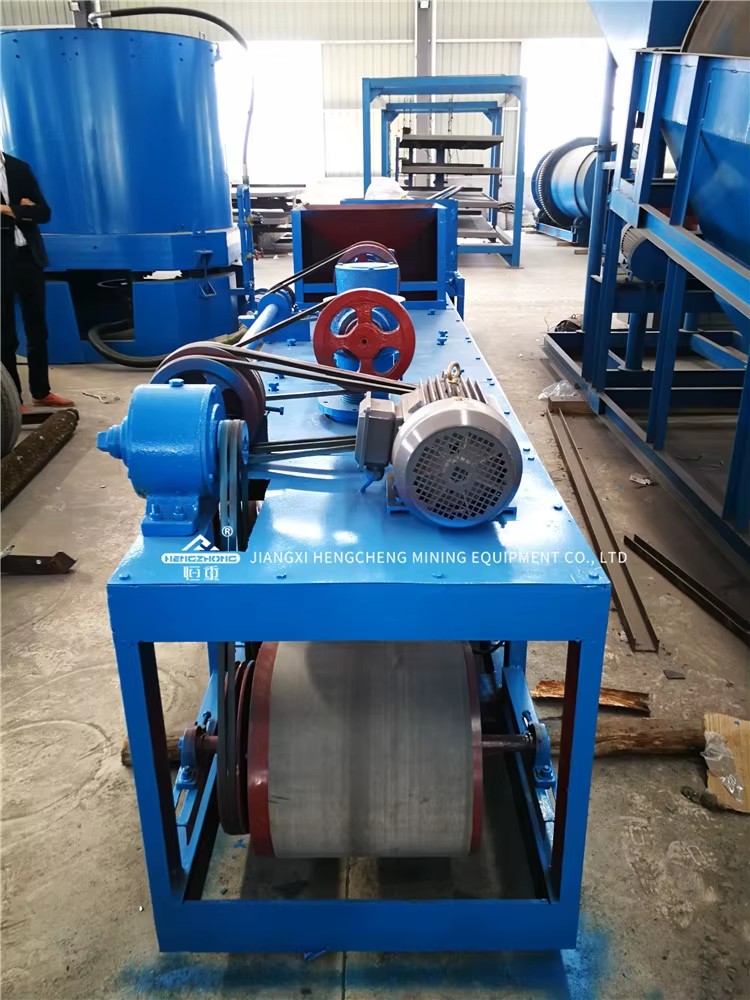

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 2 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Type
Magnetic Separator, Dry Separation
Voltage
380V
Core components
Motor, Other
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Key selling points
Multifunctional
Production Capacity
98%, 1-2.8 tons per hour
Place of origin
Jiangxi
Weight
1200 kg(2645.55lb)
Dimension (L*W*H)
depends
Model
CM3-600
Magnetic Separator Capacity
Capacity: 120-800kg/h
Magnetic Separator disk quantity
3 disks
Magnetic Separator application
coltan/tin/ilmenite/iron separation
Magnetic Separator gauss
0-20000 gauss adjustable
Usage
Fine Material separation
Feature
High Separation effect
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
CM3-600, CM3-500
Power (W) (Product option)
2.2kw(2.95hp), 1.1 KW(1.48hp)
Lead time
15 days
Minimum order
2 Units
