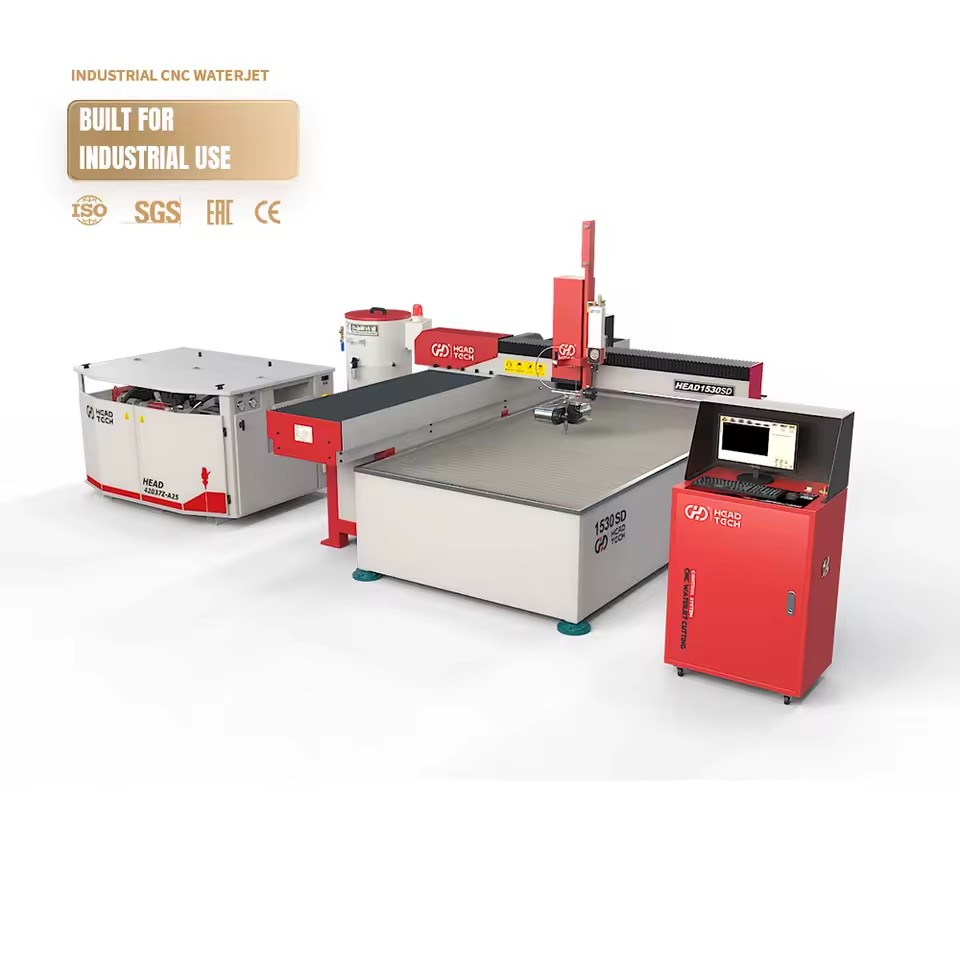

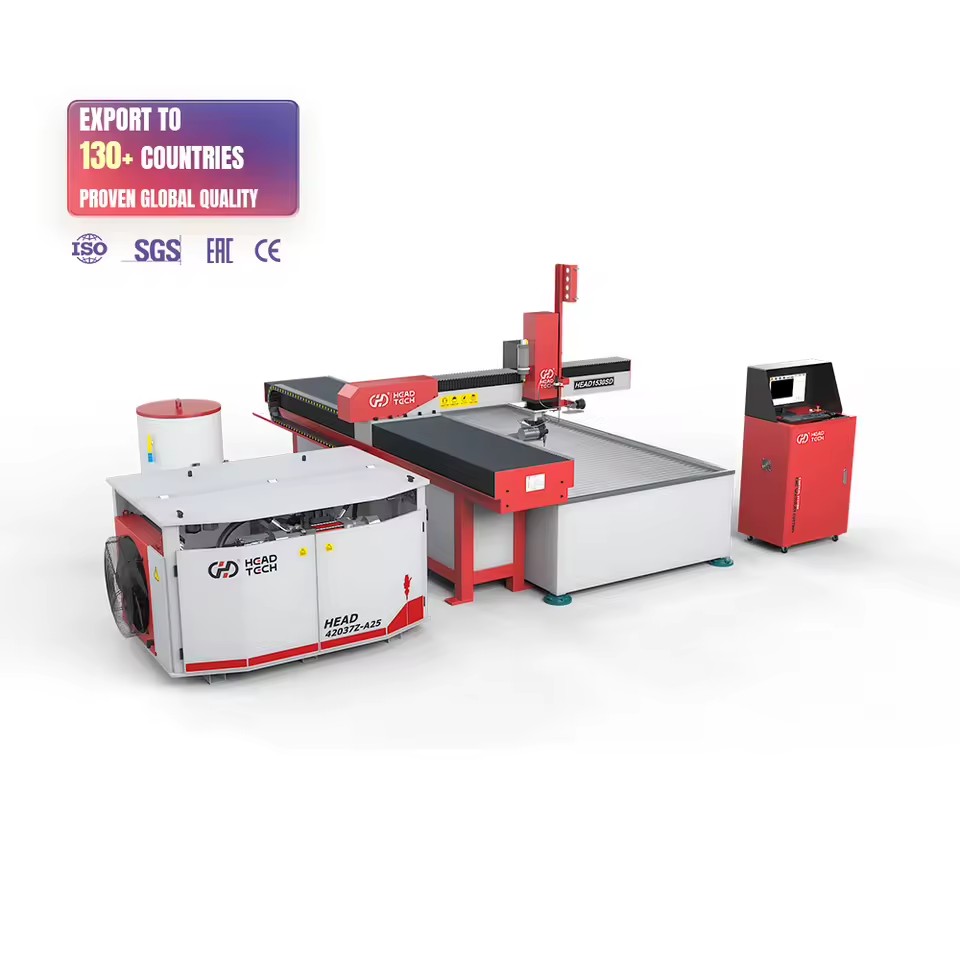

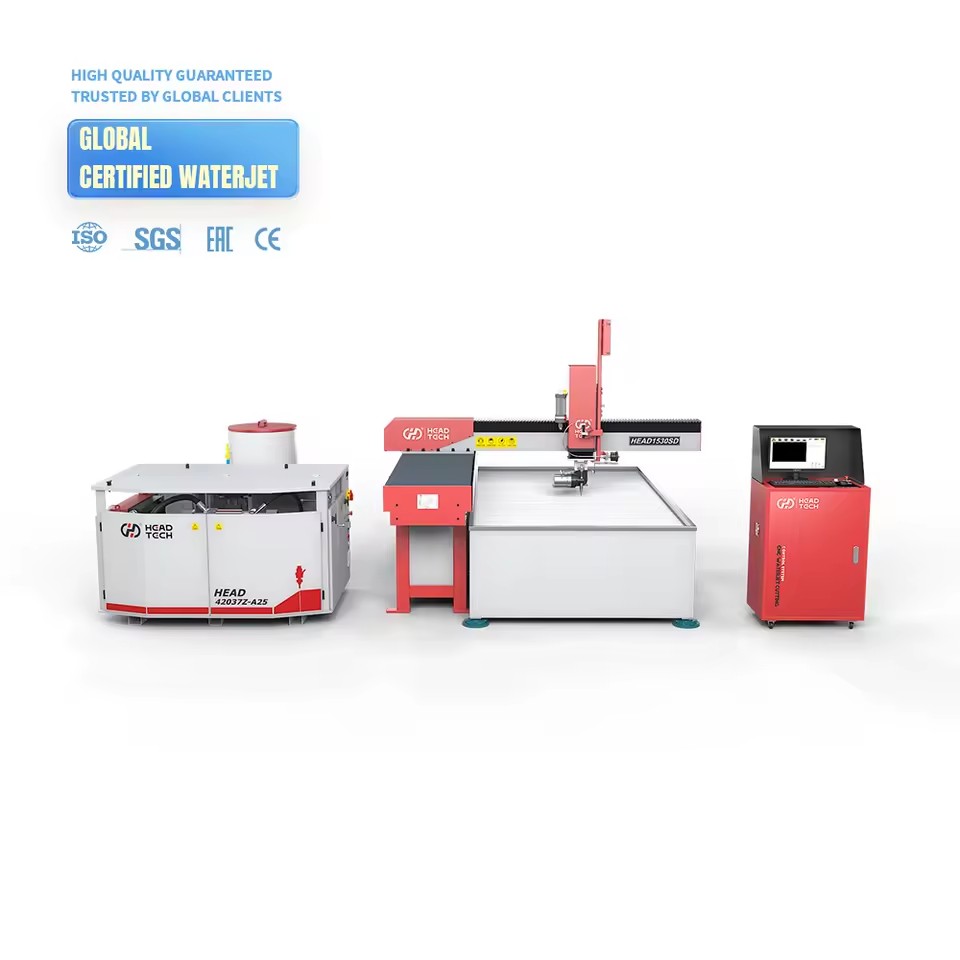

Name: HEAD1530SD MP-C-XX 5AB Series 420Mpa Split Cantilever Waterjet Cutting Machine
SKU: B2B-4145
Price: 52340.0 USD
Availability: PreOrder

Product description

Product highlights

Split-Type Machine Bed Structure Independent load-bearing design separates gantry movement and water tank load, preventing deformation caused by heavy materials and ensuring long-term cutting accuracy and machine stability.

High Stability Machine Bed Design Constructed with high-strength materials beyond industry standards, combined with sandblasting and painting treatment for improved durability, corrosion resistance, and vibration control.

Cantilever Structure for Efficient Operation Space-saving cantilever design supports three-sided loading, improving accessibility, workflow efficiency, and flexibility in industrial production environments.

Aircraft-Grade Aluminum Alloy Crossbeam Fourth-generation crossbeam with T6 heat treatment provides high strength, excellent deformation resistance, reduced weight, and faster movement speed for improved cutting efficiency.

Intelligent Control System Equipped with Ncstudio control software specially developed for waterjet cutting, offering easy operation, stable performance, and adaptability to various processing environments.

Five-Axis Dynamic Cutting Self-developed five-axis cutting system ensures high-precision cutting performance, suitable for complex shapes and advanced industrial applications.

Taper Compensation Technology Automatically compensates for waterjet taper, ensuring vertical cutting surfaces and consistent precision across different material thicknesses.

Wireless Remote Control (Optional) Optional wireless control handle allows flexible operation, real-time motion monitoring, and improved user convenience without cable limitations.

Cold Cutting Technology No heat affected zone, no thermal deformation, no material property change, ideal for precision cutting of sensitive materials.

Wide Material Compatibility Suitable for cutting metal, stone, glass, ceramics, rubber, foam, and composite materials, meeting diverse industrial needs.

Certifications & compliance

Complies with EU standards

Frequently asked questions

Waterjet cutting is a "Cold Cutting" process. Unlike laser or plasma, it creates no Heat Affected Zone (HAZ), meaning the structural integrity of your material remains intact. It is the only solution for cutting thick metals (over 50mm), laminated glass, and materials that may melt or crack under heat

Operating costs include electricity, water, nozzles, and garnet abrasive. WATERJET systems are engineered for efficiency; our high-pressure pumps optimize abrasive flow, typically reducing consumption by 15-20% compared to standard models, ensuring a faster ROI for your workshop.

Our machines can easily handle stainless steel and aluminum up to 150mm (5 inches) and even thicker for specialized applications. With our Pyramid-style weight distribution, the machine maintains stability even when cutting heavy, oversized slabs.

We use a modular design based on 20 years of field feedback. Most high-pressure seals and check valves are easily accessible. A routine seal change can be completed in under 2 hours, and we provide step-by-step video tutorials and AI-assisted remote diagnostics to minimize downtime.

Equipped with precision lead screw guides and 3D guides, WATERJET machines achieve a mechanical accuracy of ±0.1mm. This precision is sustained over years of use thanks to our 8mm honeycomb matrix X-axis structure, which prevents frame deformation.

You get European-standard performance at a more competitive price point. We offer CE-certified hardware, 20 years of manufacturing experience, and a global supply chain for spare parts. We bridge the distance gap with 24/7 technical support and a proven track record in the US and EU markets.

Our machines are built for durability. The watertank separation design protects the core motion system from thermal expansion and impact, while the robust 8mm framework ensures the machine remains calibrated for over 10+ years of heavy-duty operation.

If you require taper compensation (perfectly vertical edges on thick materials) or need to cut complex 3D shapes and bevels, our 5-axis is highly recommended. It eliminates the need for secondary finishing, saving you significant labor costs.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 27 fields

Voltage

380 V, 220 V, 110 V

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

1500*3000*150

Key selling points

Long Service Life

Rated power

37KW

Place of origin

China, Liaoning

Weight (kg)

3000

Table travel (x) (mm)

1500

Table travel (y) (mm)

3000

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Application

WATERJET CUTTING MACHINE

Type

Water Jet Cutters

Keyword

Cutting Waterjet Parts

Name

Water Jet Cutting Machine Cutter

Item

5axis Water Jet Cutting Machine

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

HEAD1530SD MP-C-XX 5AB 420Mpa

Effective cutting range (mm)

1000×1000, 1300x2500, 1200×1200, 1300×1300, 1500×1500, 1500×3000, 1300x1300, 1000×3000, 1500×2500

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
