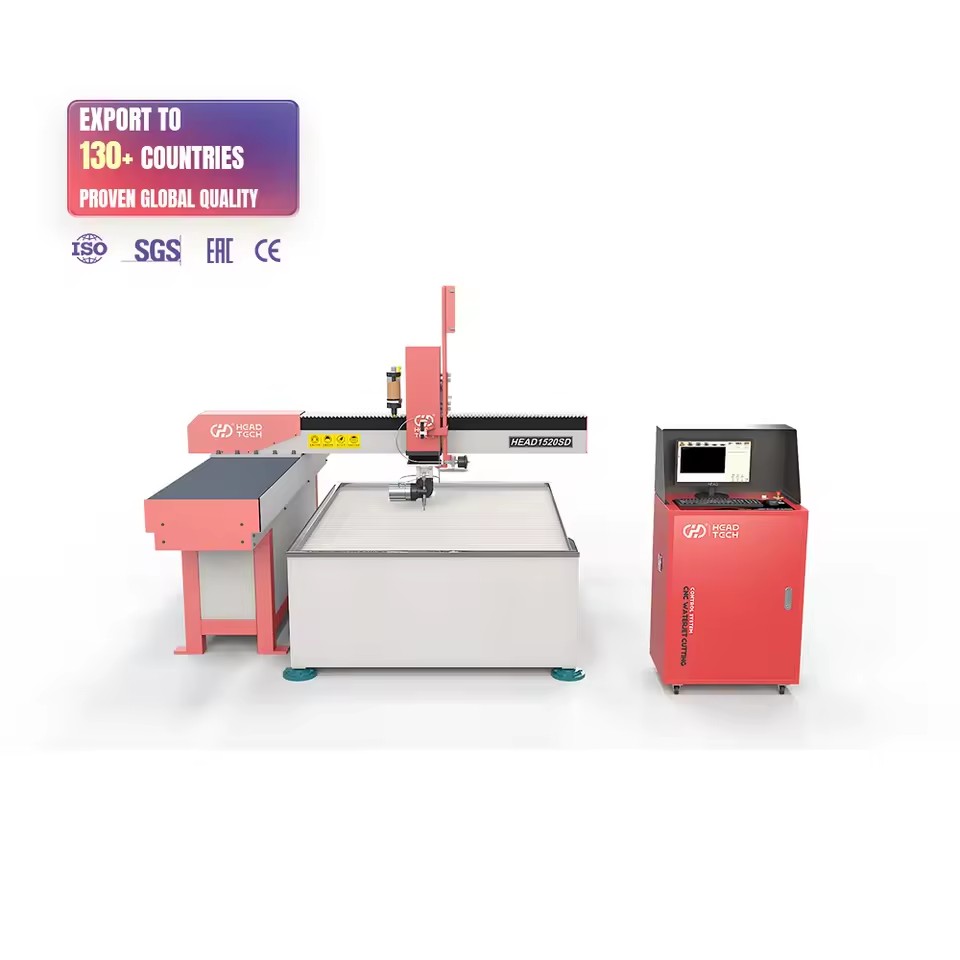

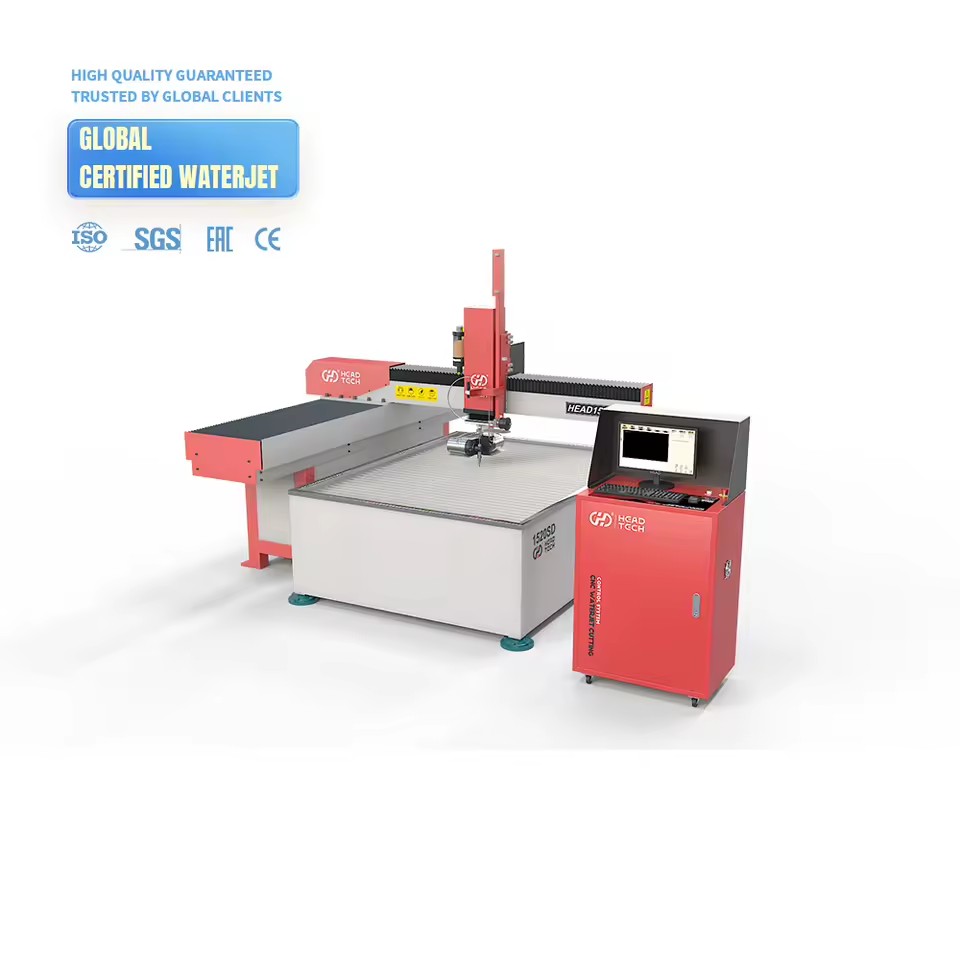

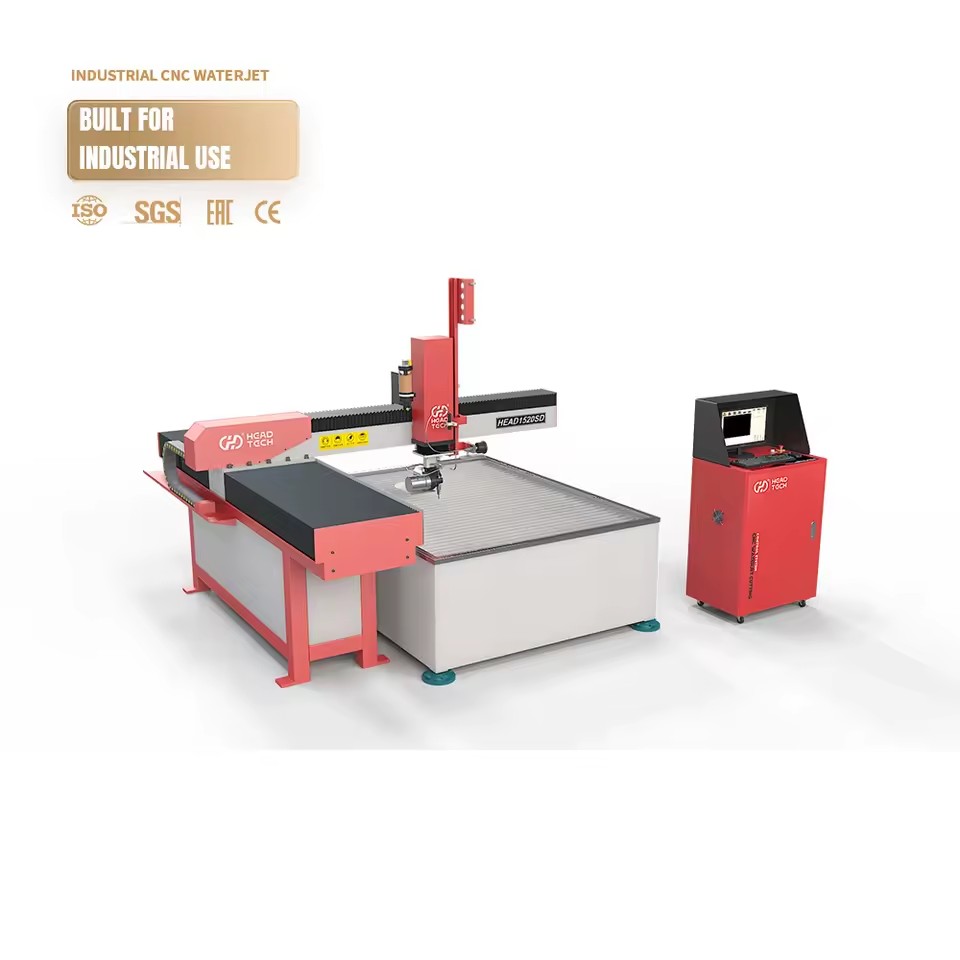

Name: HEAD1520SD MP-C-XX Series Split Cantilever 5AB-Type Waterjet Cutting Machine
SKU: B2B-1853
Price: 49350.0 USD
Availability: PreOrder

Product description

Highlights at a glance

High-performance cantilever structure with space-saving design and easy maintenance, delivering mid-range machine performance at an entry-level price
Mid-to-high-end core components including precision ball screw and guide rail transmission system, ensuring gantry-level stability
Three-side open worktable design enables convenient loading of large materials, reducing manual intervention by 50%
Quick assembly with high-strength screws and positioning pins (3-4 hours), vertical accuracy ≤0.02mm
Full-cycle service coverage including 24/7 remote diagnostics and premium accessory support at mid-range price

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

00:00

Ingenious Machine Bed Structure Crafted with superior materials beyond industry standards, the machine bed offers enhanced stability and higher cutting precision. Its surface is treated with sandblasting and painting for long-lasting durability. The balanced cantilever design saves floor space while allowing three-sided loading for easier and more efficient operation.

Split-Type Machine Bed Featuring an independent load-bearing design, the outer frame bed carries only the cover and gantry's dynamic load, while the inner water tank bed supports the worktable weight and cutting material load. This structural separation completely eliminates the risk of precision loss caused by heavy loads or water tank deformation, ensuring long-term cutting accuracy and machine stability.

Fourth-Generation Aircraft-Grade Aluminum Alloy Crossbeam Processed using T6 heat treatment technology, this crossbeam is highly resistant to deformation and has excellent strength. The solution treatment enhances the strength and plasticity, optimizing and reducing weight, which increases movement speed.

Intelligent Control Software Ncstudio software is a deeply customized cutting software specifically designed for the water cutting industry. It is simple to operate, easy to use, and suitable for various processing environments.

Wireless Control Handle Optional wireless remote control handle for a more flexible and free operation experience, eliminating the constraints of cables. It allows real-time display of movement values, providing greater control over the equipment.

Guaranteed Cutting Perpendicularity To ensure the vertical accuracy of cutting surfaces, 's self-developed five-axis dynamic cutting works in tandem with a taper compensation system to actively and precisely offset the divergence of the waterjet. This enables high-precision cutting while maintaining excellent perpendicularity of the cut surface. Additionally, the system supports angle cutting within 10', offering greater flexibility for diverse applications.

Customized Solutions - Infinite Combinations Based on your specific working conditions, we design tailor-made waterjet cutting solutions. Flexible configurations ensure the one solution that fits your needs perfectly.

Certifications & compliance

Complies with EU standards

Frequently asked questions

Yes, operating a waterjet cutting machine requires specialized knowledge and training. Most manufacturers offer training programs to help operators understand the machine's functions, software, and safety precautions. Proper training ensures that the machine operates efficiently and safely, minimizing errors and downtime.

Yes, you can

The lifespan of a waterjet cutting machine abrasive tubes is affected by several factors, including the abrasive material, installation accuracy, application method, the effect of the sapphire nozzle, and the quality of the nozzle itself. Generally, its continuous application time is between 60 and 180 hours.

If running a water jet machine is cheap, one of its most notable attributes. After considering everything, the cost of running a waterjet is only $14/hour. Then, once you add product material costs, hours, profit percentages, etc., you get the final price. If you need abrasives, you will need an additional price, which is usually between $0.20 and $0.35 per pound, up to $35.00/hour, depending on pump power and cutting time.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Voltage

380 V, 220 V, 110 V

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

1500*2000*150

Key selling points

Competitive Price

Rated power

37kw(49.62hp)

Place of origin

China, Liaoning

Weight (kg)

3000

Table travel (x) (mm)

1500

Table travel (y) (mm)

2000

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Application

WATERJET CUTTING MACHINE

Type

Water Jet Cutters

Name

Water Jet Cutting Table

Keyword

Cutting Waterjet Parts

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

HEAD1520SD MP-C-XX 5AB

Effective cutting range (mm)

1000×1000, 1200×1200, 1300×1300, 1500×1500, 1500*2000

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
