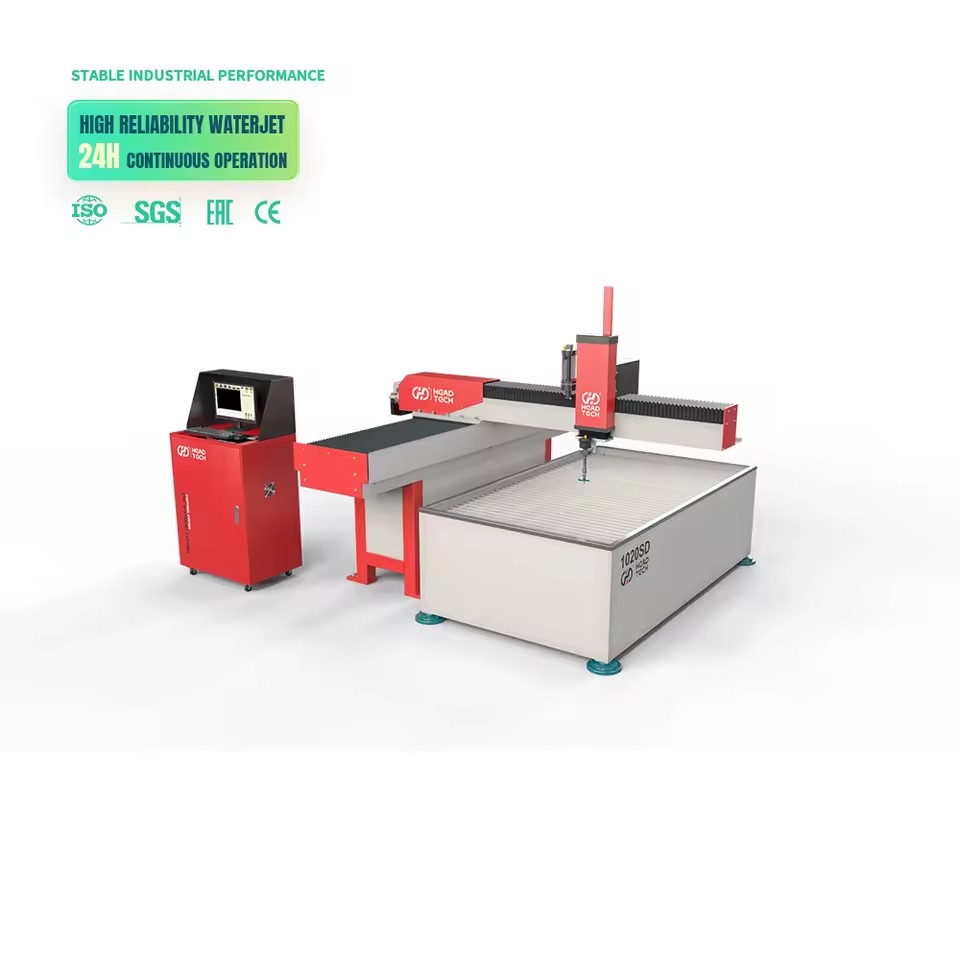

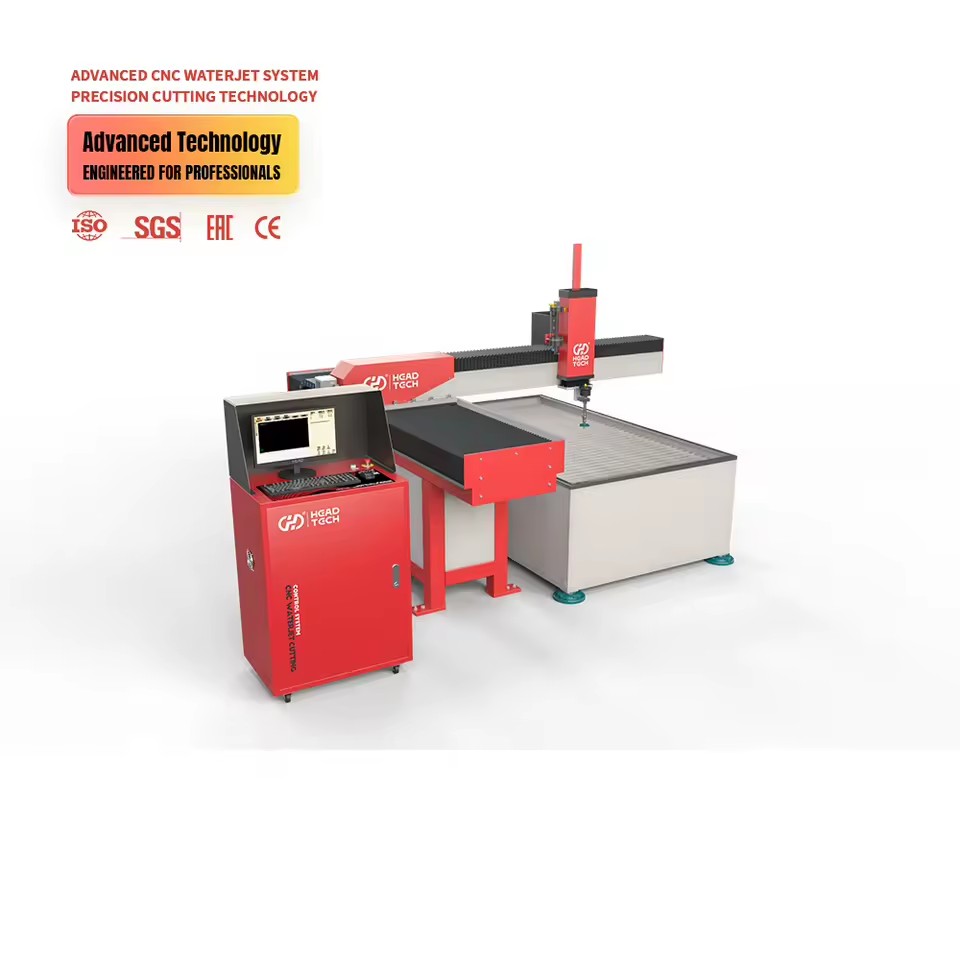

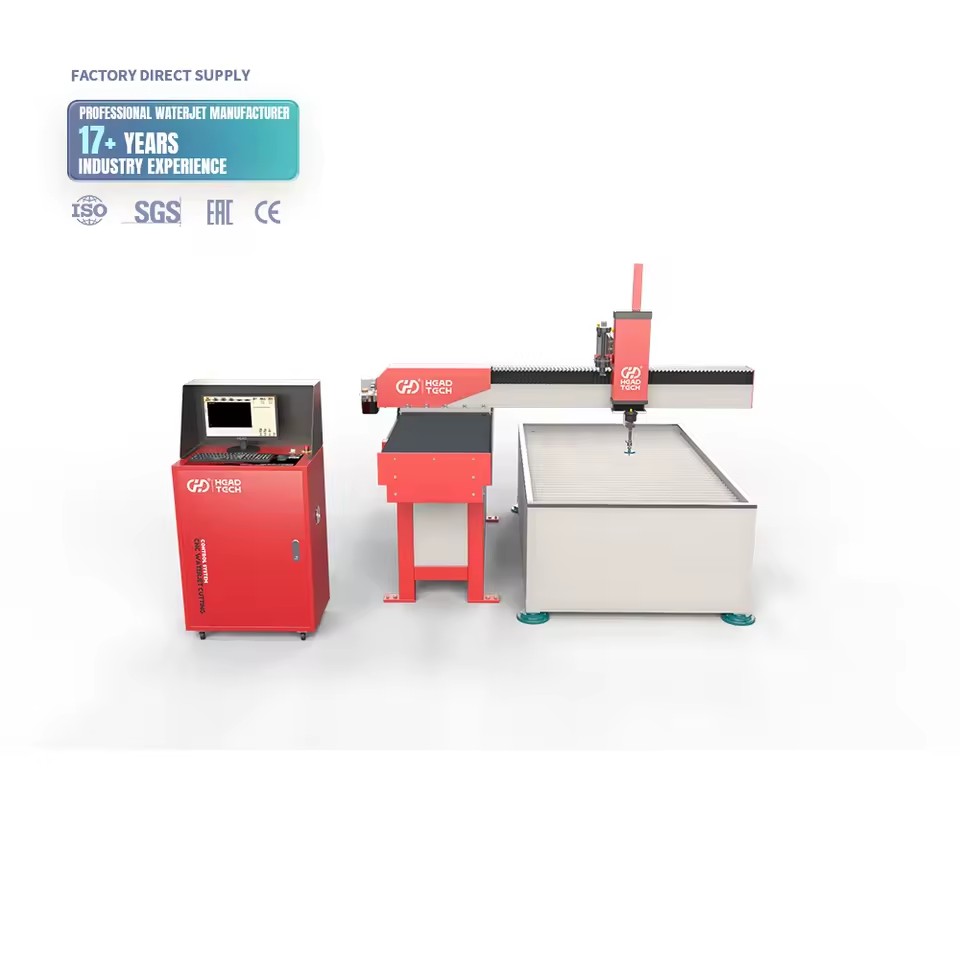

Name: HEAD1020SD MP-C-XX Series Split Cantilever Waterjet Cutting Machine
SKU: B2B-1989
Price: 41990.0 USD
Availability: PreOrder

Product description

Highlights at a glance

High-performance cantilever structure with space-saving design and easy maintenance, delivering mid-range machine performance at an entry-level price
Mid-to-high-end core components including precision ball screw and guide rail transmission system, ensuring gantry-level stability
Three-side open worktable design enables convenient loading of large materials, reducing manual intervention by 50%
Quick assembly with high-strength screws and positioning pins (3-4 hours), vertical accuracy ≤0.02mm
Full-cycle service coverage including 24/7 remote diagnostics and premium accessory support at mid-range price

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

EU Responsible Person

00:00

Split-Type Machine Bed Featuring an independent load-bearing design, the outer frame bed carries only the cover and gantry's dynamic load, while the inner water tank bed supports the worktable weight and cutting material load. This structural separation completely eliminates the risk of precision loss caused by heavy loads or water tank deformation, ensuring long-term cutting accuracy and machine stability.

Ingenious Machine Bed Structure Crafted with superior materials beyond industry standards, the machine bed offers enhanced stability and higher cutting precision. Its surface is treated with sandblasting and painting for long-lasting durability. The balanced cantilever design saves floor space while allowing three-sided loading for easier and more efficient operation.

Fourth-Generation Aircraft-Grade Aluminum Alloy Crossbeam Processed using T6 heat treatment technology, this crossbeam is highly resistant to deformation and has excellent strength. The solution treatment enhances the strength and plasticity, optimizing and reducing weight, which increases movement speed.

Intelligent Control Software Ncstudio software is a deeply customized cutting software specifically designed for the water cutting industry. It is simple to operate, easy to use, and suitable for various processing environments.

Wireless Control Handle Optional wireless remote control handle for a more flexible and free operation experience, eliminating the constraints of cables. It allows real-time display of movement values, providing greater control over the equipment.

Guaranteed Cutting Perpendicularity To ensure the vertical accuracy of cutting surfaces, 's self-developed five-axis dynamic cutting works in tandem with a taper compensation system to actively and precisely offset the divergence of the waterjet. This enables high-precision cutting while maintaining excellent perpendicularity of the cut surface. Additionally, the system supports angle cutting within 10', offering greater flexibility for diverse applications.

Customized Solutions - Infinite Combinations Based on your specific working conditions, we design tailor-made waterjet cutting solutions. Flexible configurations ensure the one solution that fits your needs perfectly.

Certifications & compliance

Complies with EU standards

Frequently asked questions

Waterjet cutting is a "Cold Cutting" process. Unlike laser or plasma, it creates no Heat Affected Zone (HAZ), meaning the structural integrity of your material remains intact. It is the only solution for cutting thick metals (over 50mm), laminated glass, and materials that may melt or crack under heat

Operating costs include electricity, water, nozzles, and garnet abrasive. WATERJET systems are engineered for efficiency; our high-pressure pumps optimize abrasive flow, typically reducing consumption by 15-20% compared to standard models, ensuring a faster ROI for your workshop.

Our machines can easily handle stainless steel and aluminum up to 150mm (5 inches) and even thicker for specialized applications. With our Pyramid-style weight distribution, the machine maintains stability even when cutting heavy, oversized slabs.

We use a modular design based on 20 years of field feedback. Most high-pressure seals and check valves are easily accessible. A routine seal change can be completed in under 2 hours, and we provide step-by-step video tutorials and AI-assisted remote diagnostics to minimize downtime.

Equipped with precision lead screw guides and 3D guides, WATERJET machines achieve a mechanical accuracy of ±0.1mm. This precision is sustained over years of use thanks to our 8mm honeycomb matrix X-axis structure, which prevents frame deformation.

You get European-standard performance at a more competitive price point. We offer CE-certified hardware, 20 years of manufacturing experience, and a global supply chain for spare parts. We bridge the distance gap with 24/7 technical support and a proven track record in the US and EU markets.

Our machines are built for durability. The watertank separation design protects the core motion system from thermal expansion and impact, while the robust 8mm framework ensures the machine remains calibrated for over 10+ years of heavy-duty operation.

If you require taper compensation (perfectly vertical edges on thick materials) or need to cut complex 3D shapes and bevels, our 5-axis is highly recommended. It eliminates the need for secondary finishing, saving you significant labor costs.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.70 for 1 unit · Transit time: Est. 24-31 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Repeatability (x/y/z) (mm)

±0.01

Number of axes

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Voltage

380 V, 220 V, 110 V

Warranty

1 Year

Key selling points

Easy To Operate

Machinery test report

Provided

Video outgoing-inspection

Provided

Dimension(L*W*H)

1000*2000*150

Rated power

37KW

Place of origin

China, Liaoning

Weight (kg)

3000

Table travel (x) (mm)

1000

Table travel (y) (mm)

2000

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Application

WATERJET CUTTING MACHINE

Type

Water Cutting

Keyword

3 Axis Waterjet Cutting Machine

Name

Water Jet Cutting Machine Cutter

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

HEAD1020SD MP-C-XX

Effective cutting range (mm)

1000×1000, 1000*2000

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
