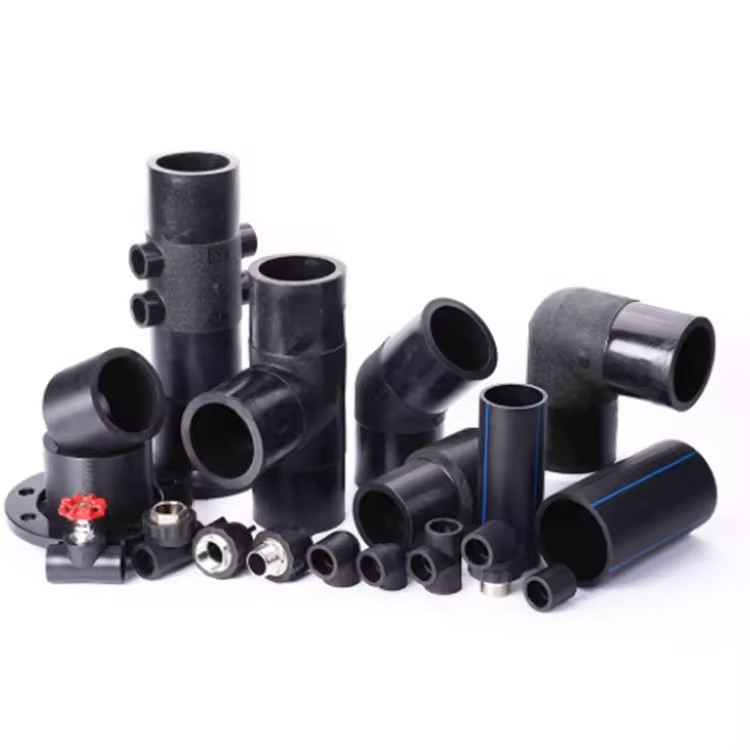

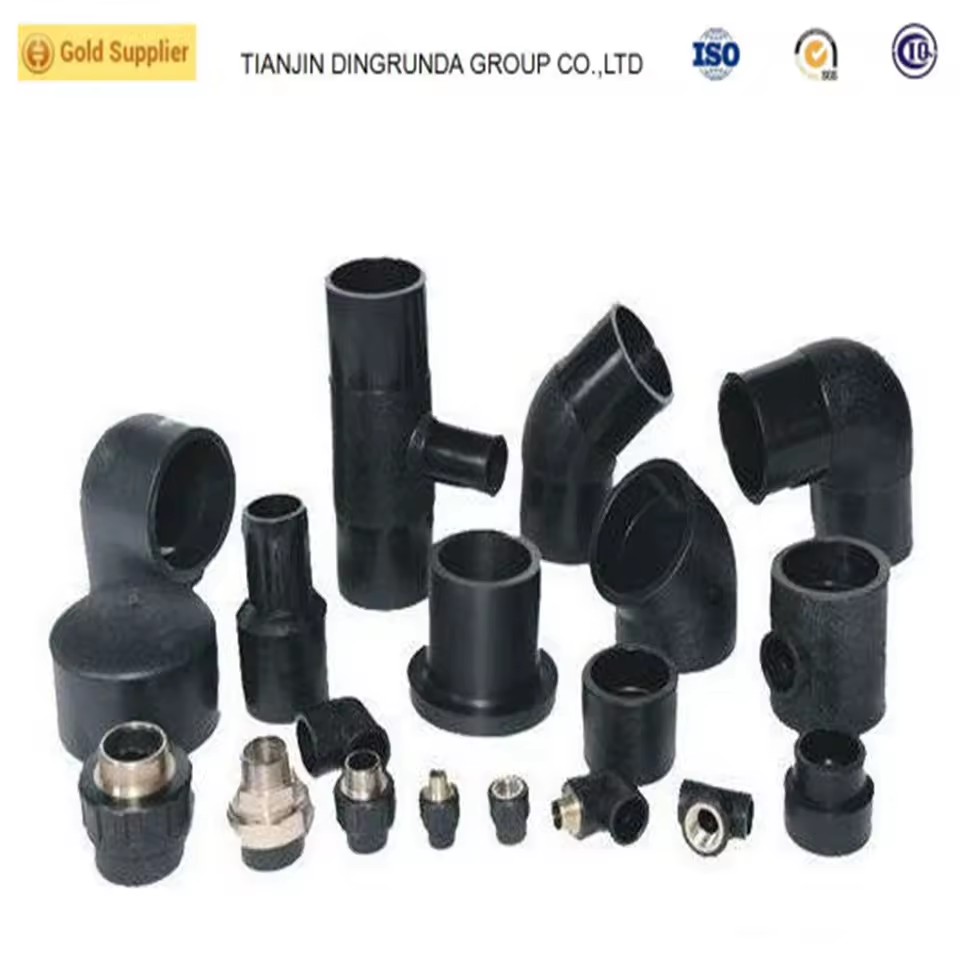

Name: HDPE Plastic Pipe Fittings Male / Female Elbow for Water Thermal Plastic HDPE Pipe Fittings Butt Fusion Long Spigot Hdpe Fitting
SKU: B2B-23255
Price: 20.0 USD
Availability: PreOrder

Product description

Specification

PE100	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
Outside Diameter	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
Wall Thickness (en)
20	2.0	2.3	3.0
25	2.0	2.3	3.0	3.5
32	2.0	2.4	3.0	3.6	4.4
40	2.0	2.4	3.0	3.7	4.5	5.5
50	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2
1200	29.4	36.7	45.9	57.2	67.9	88.2
1400	34.3	42.9	53.5	66.7	82.4	102.9
1600	39.2	49.0	61.2	76.2	94.1	117.6

Physical properties index

No.	Item	Requirements
1	Percentage of breaking-elongation,%	≥350
2	Longitudinal reversion(110℃),%	≤3
3	Oxidation induction time (200℃)min	≥20
4	Weather resistance 1. (After the pipe has accepted the aging energy which equal to or more than 3.5GJ/m2)	80℃ static hydraulic strength (165h)	No break, no leakage.
Percentage of breaking-elongation,%	≥350
Oxidation induction time (200℃)min	≥10
1. Only suitable for pipe in blue color.
Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber, food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field.

No	Items	HDPE Pipe
1	Molecular	≥300 000
2	Density	0.960 g/cm3
3	Tensile breaking strength	≥28 Mpa
4	Longitudinal contraction rate of return	≤3%
5	Breaking elongation	≥500%
6	Resistant to corrosion	good
7	Tensile strength	≥28Mpa
8	Static hydraulic strength	1)20℃,cycle stress 12.4Mpa,100h,no break,no leakage
2)80℃,cycle stress5.5Mpa,165h,no break,no leakage
3)80℃,cycle stress5.0Mpa,1000h,no break,no leakage
9	MFR(190℃,5kg,)g/10min	≤25%
10	Oxidation induction time (200℃)min	≥20

Certifications & compliance

Complies with EU standards

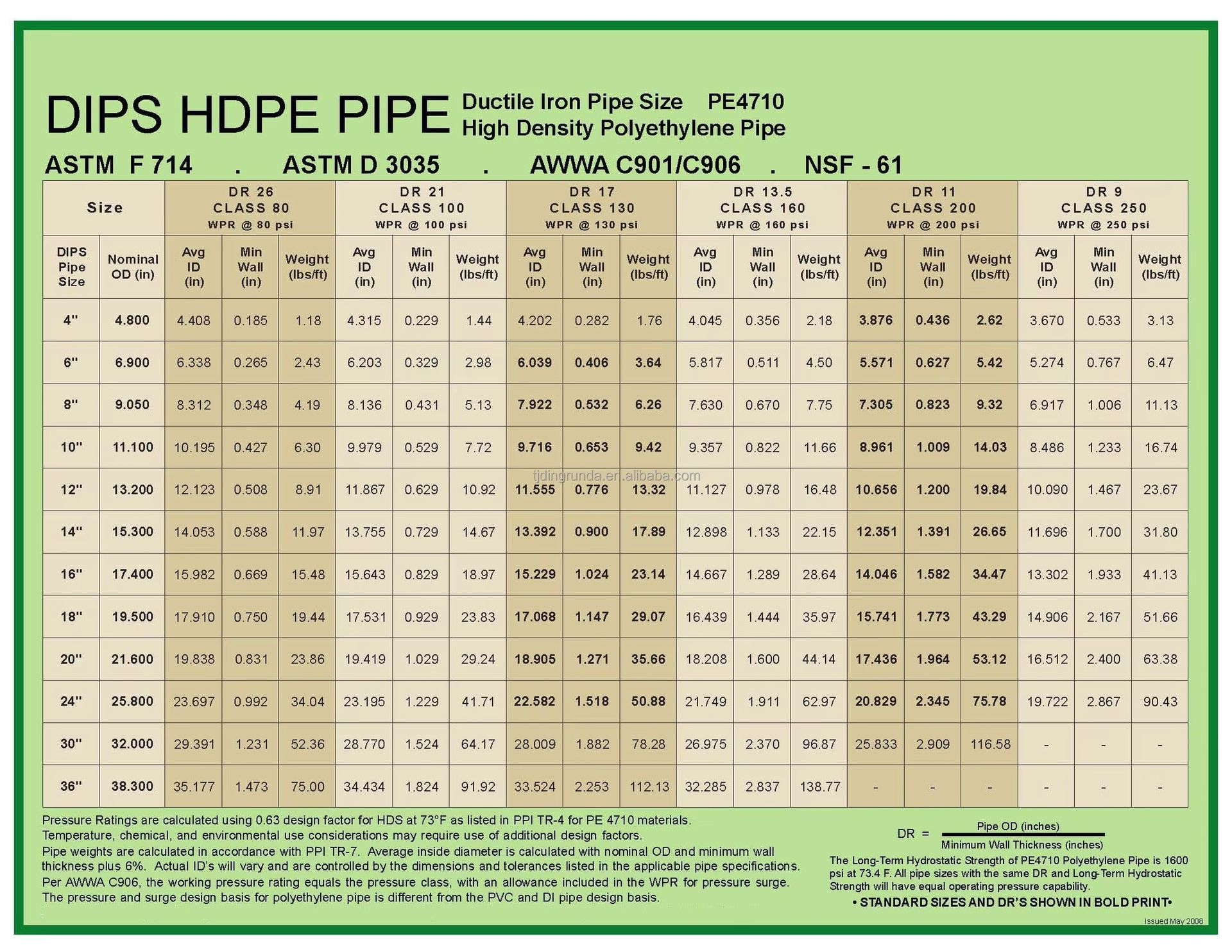

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 708.52 for 10 pieces · Estimated delivery: Sep 29–Oct 22 (22–45 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Connectivity

Thread

Technic

Casting

Shape

Round

Head code

Round

Customized support

OEM, ODM, OBM

Warranty

3 Years

Model number (Specification)

DN20 - DN110

Place of origin

China, Tianjin

Product name

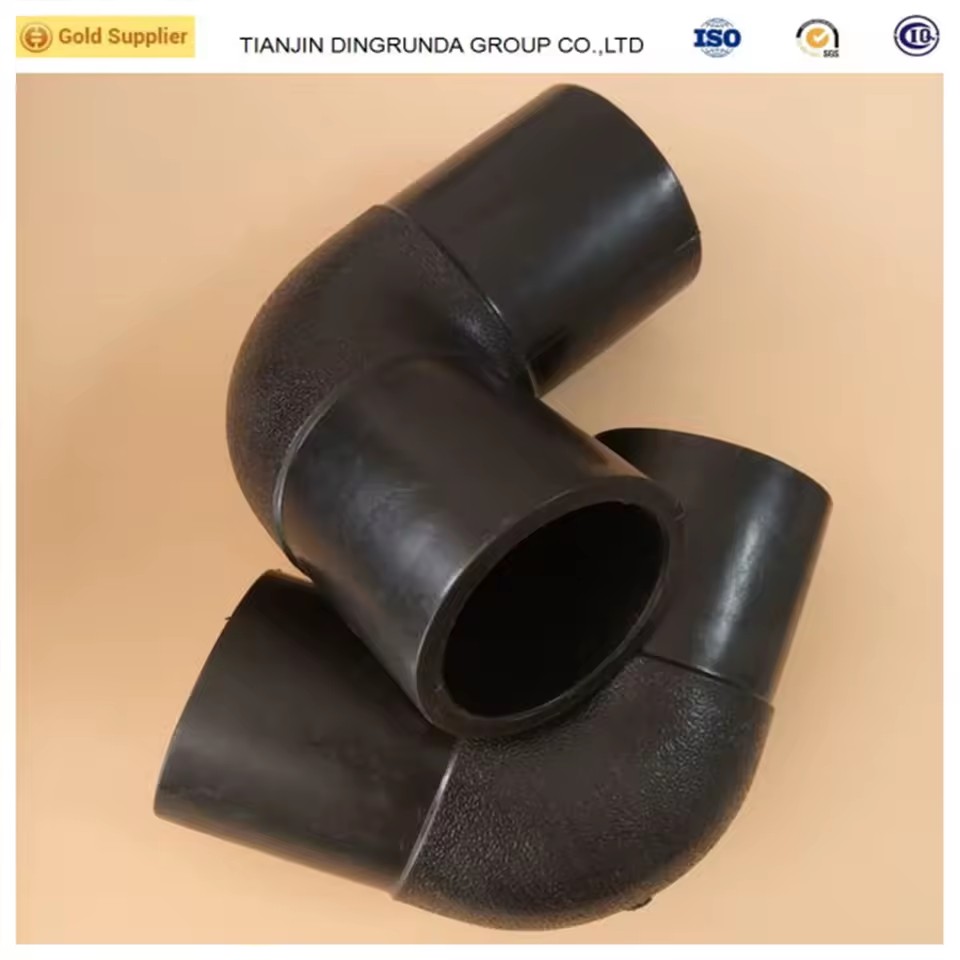

HDPE Plastic pipe fittings male / female elbow for water

Color

Black or as required

Connection method

Male or Female

Materials

polyethylene, HDPE

Application

For HDPE pipe joint

Standard

ISO4427, AS/NZS4130, DIN8074, GB/T13663-2000,ASTM

Working tempreture

40°C to 40°C

Working pressure

PN16, PN10, PN12.5

Type (Product option)

All, Injection

OEM

Available

Selling Units

Single item

Single package size

40X40X40 cm

Single gross weight

50.0 kg

Pipe size

DN20 - DN110

Material (Product option)

PE100

Certifications & Compliance

Lead time

7 days

Minimum order

10 Units
