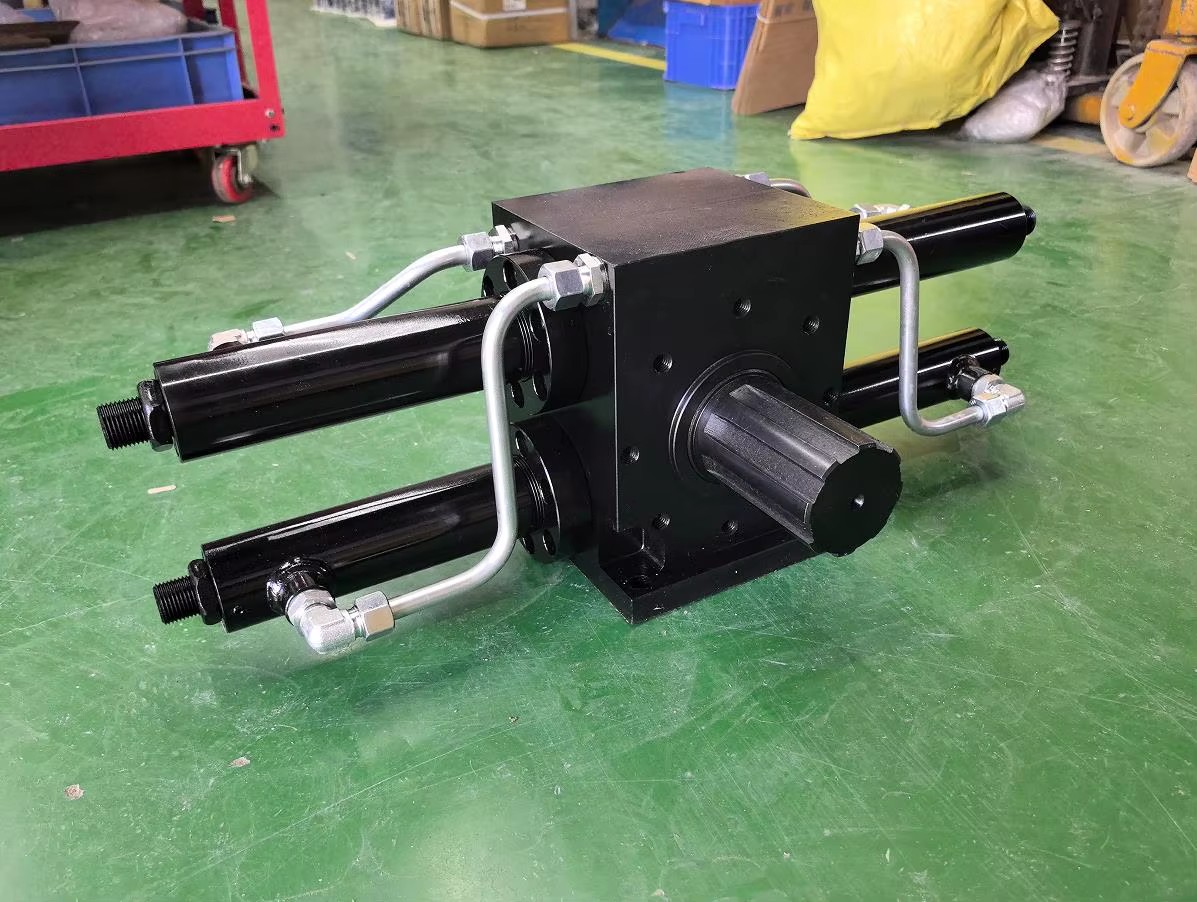

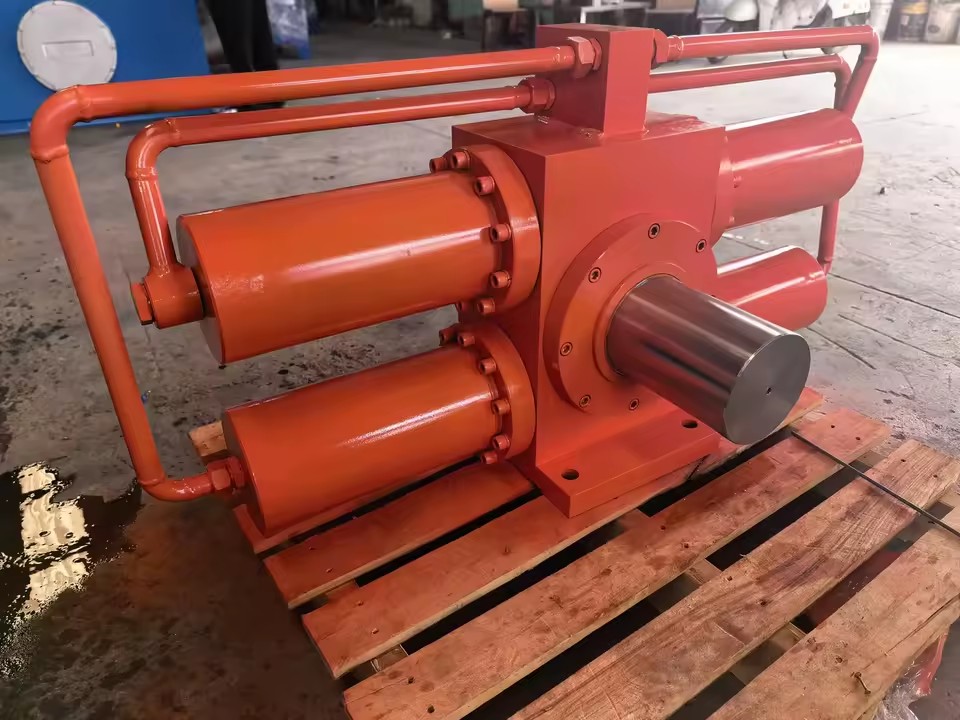

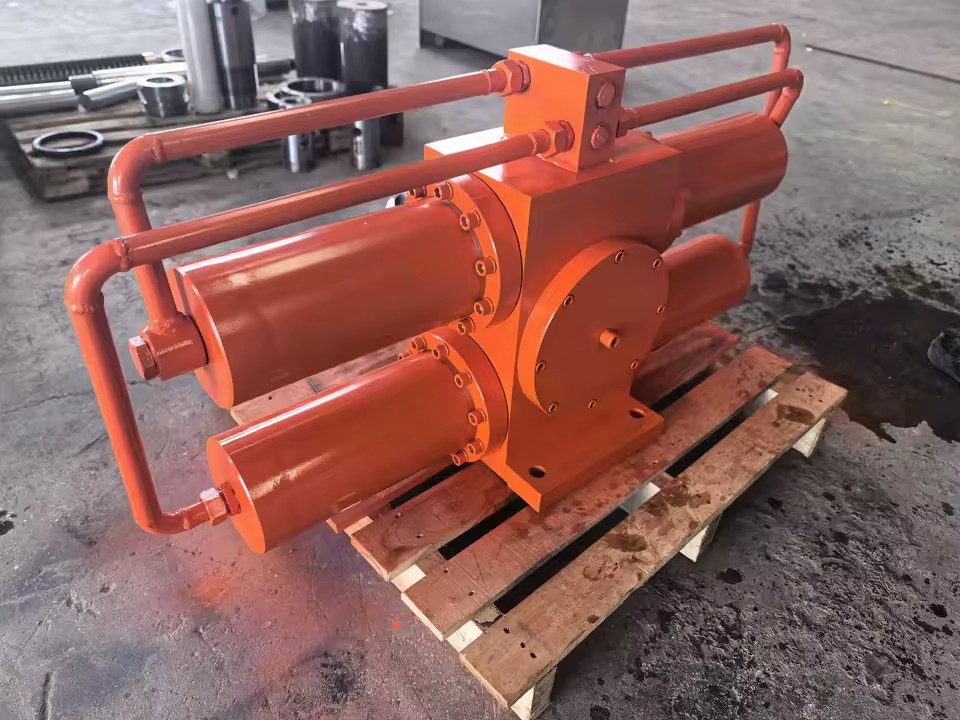

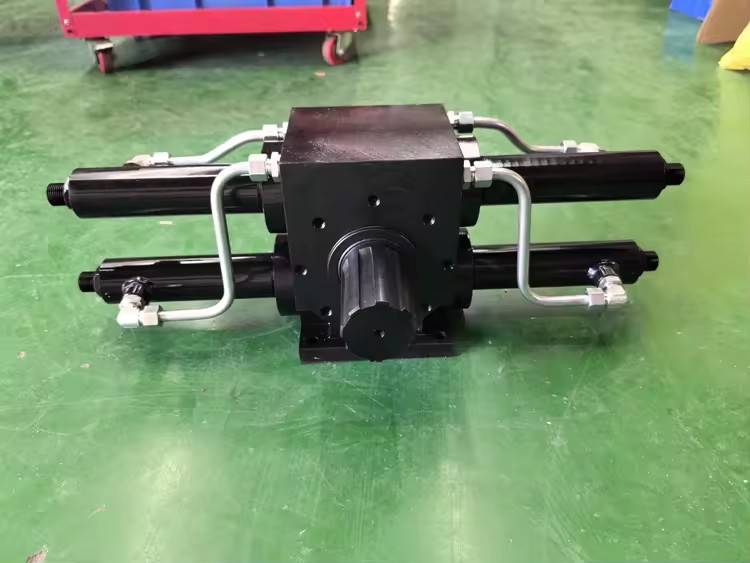

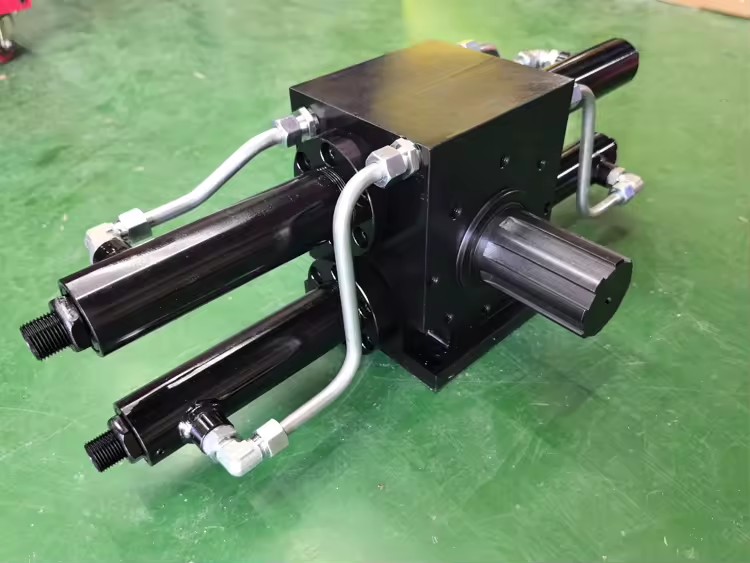

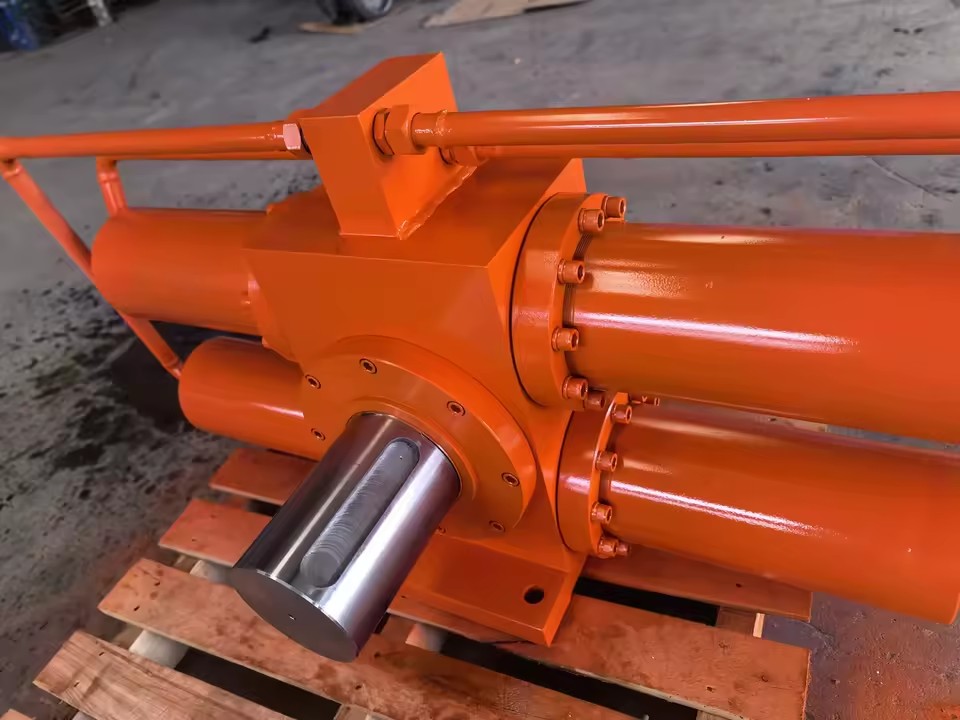

Customized Double Rack and Pinion Swing Hydraulic Cylinder Shaft Type Large Rotary Actuators Foot Mounting Hydraulic Cylinder

Available for enquiry 0.0 · 0 reviews
USD

$ 650.00 650.0 USD $ 650.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Power
Hydraulic
Structure
Rotary Cylinder
Standard or Nonstandard
Nonstandard
Body Material
45Steel
Machinery test report
Provided
Video outgoing-inspection
Provided
Product description

Product details

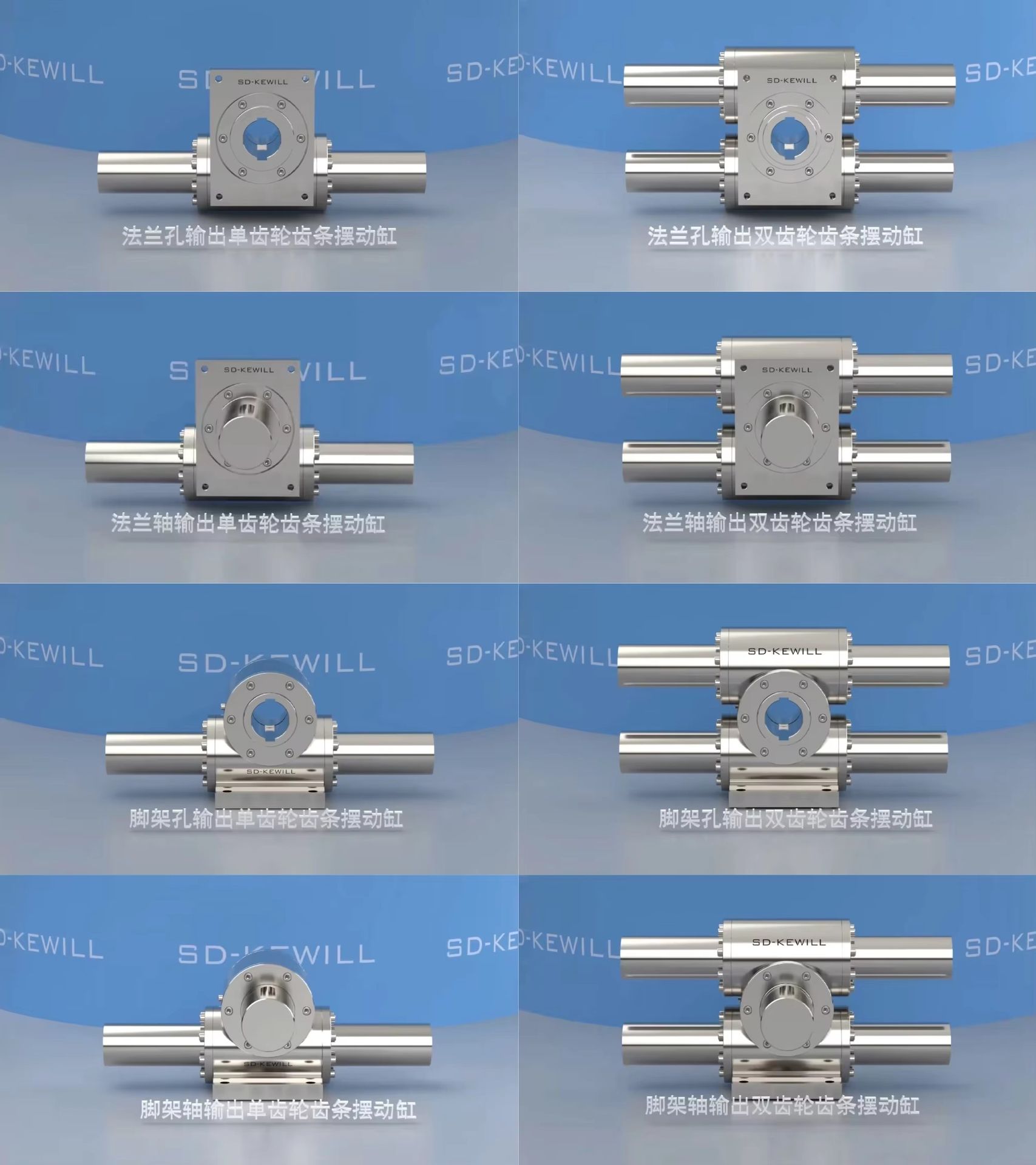

High-torque double rack and pinion rotary hydraulic cylinder is designed for heavy-duty industrial applications, especially suitable for excavators and other equipment in metallurgy, mining, and steelmaking fields. double/single acting, 180° swing angle (up to 720° optional), working pressure 16MPa, Cylinder bore 40/50/63/80/100/125/140/160/180/200/220mm, Swing angle 0-720 °, structural double gear/single gear; hole type/shaft type, delivering reliable and powerful rotational motion with an impressive torque output of 1596 Nm.

Wide Swing Angle: Flexible movement customization for precise control.

High Torque Output: Ensures powerful rotational force for heavy-load applications.

Customizable Design: Specially designed to meet specific customer requirements.

Reliable Transmission: Compact structure and high automation ensure smooth operation.

Sealing System: Leak-proof operation with polyurethane, nitrile, and PTFE seals.

Certifications & compliance
CE
Complies with EU standards
Frequently asked questions

SD-, a factory professional design and produce a variety of heavy-duty pneumatic cylinders and hydraulic cylinders,standard cylinders bore size max 450mm, stroke max 6000mm. Also can customize cylinder according to user details needs.

20 days depending on the product you choose and purchasing quantity. Standard cylinders deliver fast, special customized cylinders need around 20 working days. Also it depend on the quantity you ordered.

We offer 24hours free online services, if you met any problems about pneumatic and hydrualic cylinders, welcom your
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

    Packaging and dispatch

    Ocean + Express via FLY Logistics · Approx. shipping fee: $ 34.40 for 1 set · Transit time: Est. 16-23 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

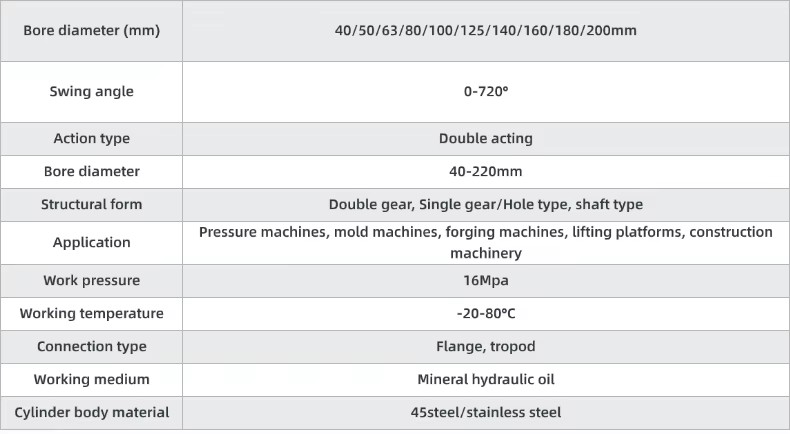

Technical specifications
Other details 27 fields
Power
Hydraulic
Structure
Rotary Cylinder
Standard or Nonstandard
Nonstandard
Body Material
45Steel
Machinery test report
Provided
Video outgoing-inspection
Provided
Warranty
1 Year
Core components
Gearbox
Weight (kg)
25
Place of origin
China, Shandong
Action type
Double acting
Bore Diameter
40-220mm
Swing angle
0-720°
Working pressure
16MPa
Working temperature
20 °C to+80 °C
Structural Form
Double gear shaft type
Working medium
Mineral hydraulic oil
Installation form
Flange, tropod
Seals
Polyurethane, nitrile, and polytetrafluoroethylene
Application
Mining, metallurgy, steelmaking and other fields
Selling Units
Single item
Single package size
56X26X27 cm
Single gross weight
20.0 kg
Maximum stroke (Product option)
180
Shaft diameter (Product option)
28
Model number
ZB40/180 °
Certifications & Compliance
CE
Lead time
20 days
Minimum order
1 Units
