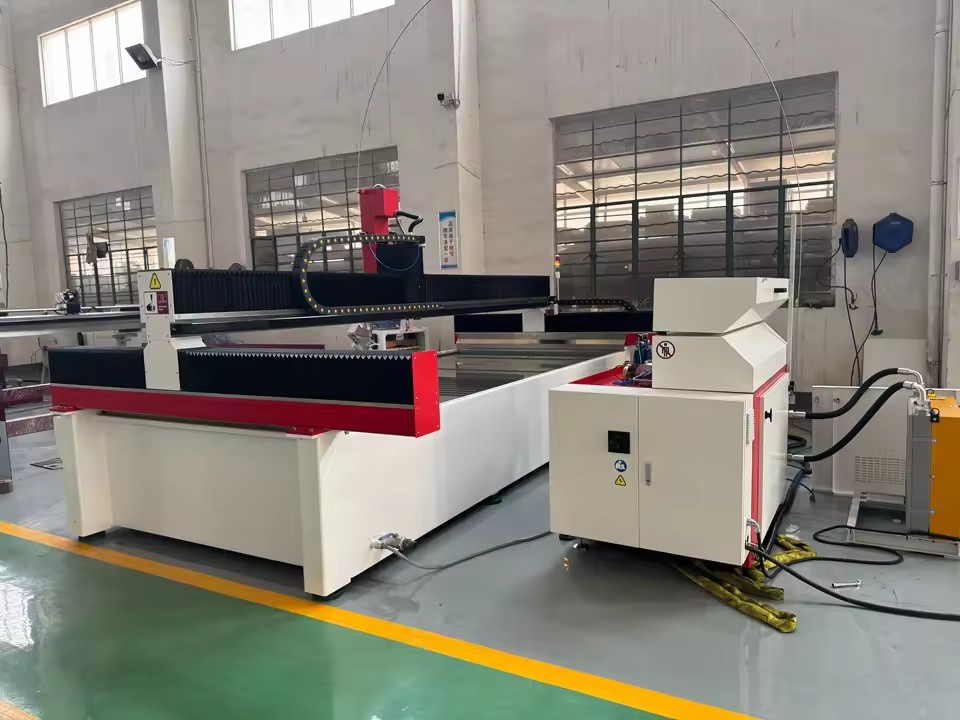

YCWJ Cost-Effective Water Jet Cutting Machine with On-Site Engineer Support for Southeast Asian Local Markets CE ISO Certified

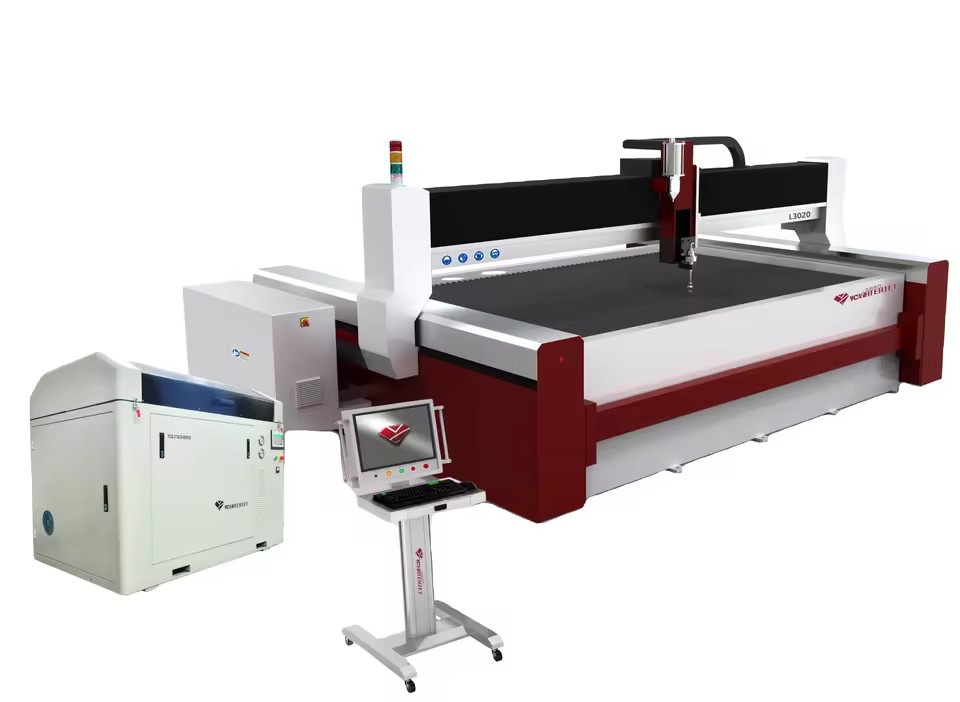

1. Waterjet cutting platform

CNC Water Jet Cutting Machine P arameter (L=Gantry type)

Parameters

Unit

YCWJ-L1010

YCWJ-L2015

YCWJ-L3015

YCWJ-L3020

YCWJ-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.025

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

High Pressure Pump

Model

YCG-3038

YCG-3742S

YCG-7542S

Max Pressure

3800Bar/55,000Psi

4137Bar/60,000Psi

Max Water Flow

3.7L/min

7.4L/min

Max Orifice/Nozzle

0.011/0.03

0.013/0.04

0.016/0.05

Power

30KW/40HP

37KW/50HP

75KW/100HP

Product Details

Dynamic 5axis waterjet cutting

This Dynamic 5 axis water jet cutting machine is specially used to cut marble and granite, it can compensate ±10° cutting angle. It is one kind of bevel cutting machine.

Due to the water jet cutting is a flexible cutting, therefore,there will be a certain degree of inclination on the product cross section after cutting by the traditional 3 axis water jet order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.

Dynamic 5 axis cutting head X、Y、Z axis for transmission A,B axis for compensation 0°-±10°

CNC Water Jet Cutting Machine P

arameter

(L=Gantry type)

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa

Main Feature

Control: PLC

Shifting: electro-hydraulic

Control Cooling: cooler/oil heat exchanger

Inlet water filter accuracy: ≤0.45μm

Oil-return filter accuracy: 20 μm

Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

1. 17 LCD liquid crystal display.

2. DNC on-line working function.

3. Functions of returningarbitrary point,bending and circular are working auto deceleration.

4. Function of cutting figure imitation display.

5. 80GB memory hard disk.

6. 6. MITSUBISHI AC servo driver and motor.

7. 1GB memory card.

8. Multilingual function(Chinese English etc.).

9. Drive-by-wire and hand-hold controller.

10. NAIKY PCIMC-6A special software is special for YC.

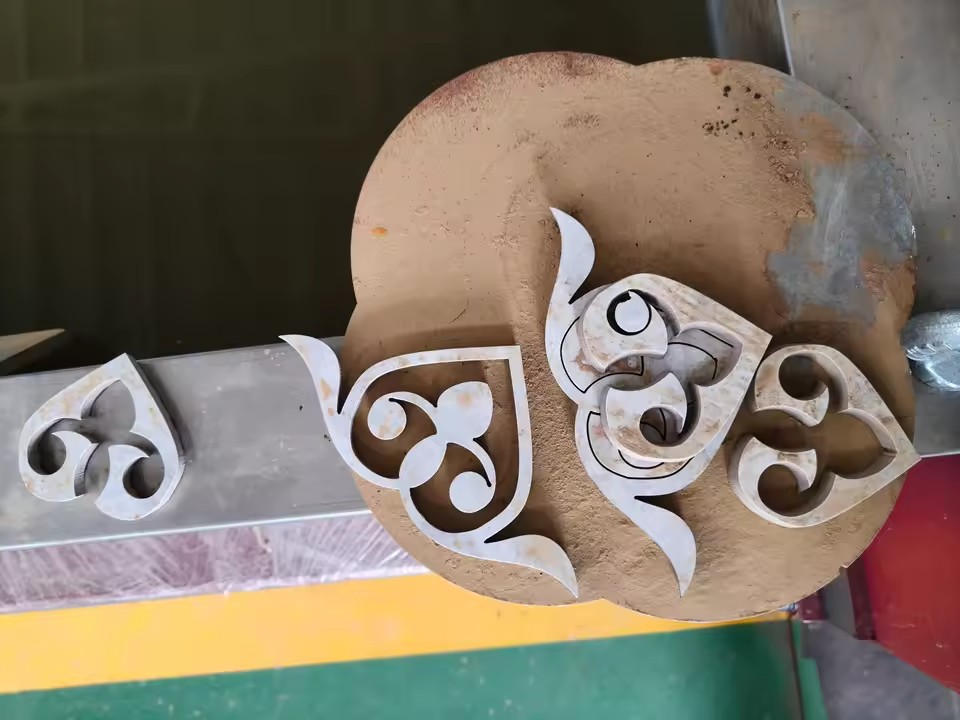

Cutting sample

Packaging & Delivery

Core compoenent options

Company Profile

WHY CHOOSE OUR WATERJET CUTTING MACHINE?

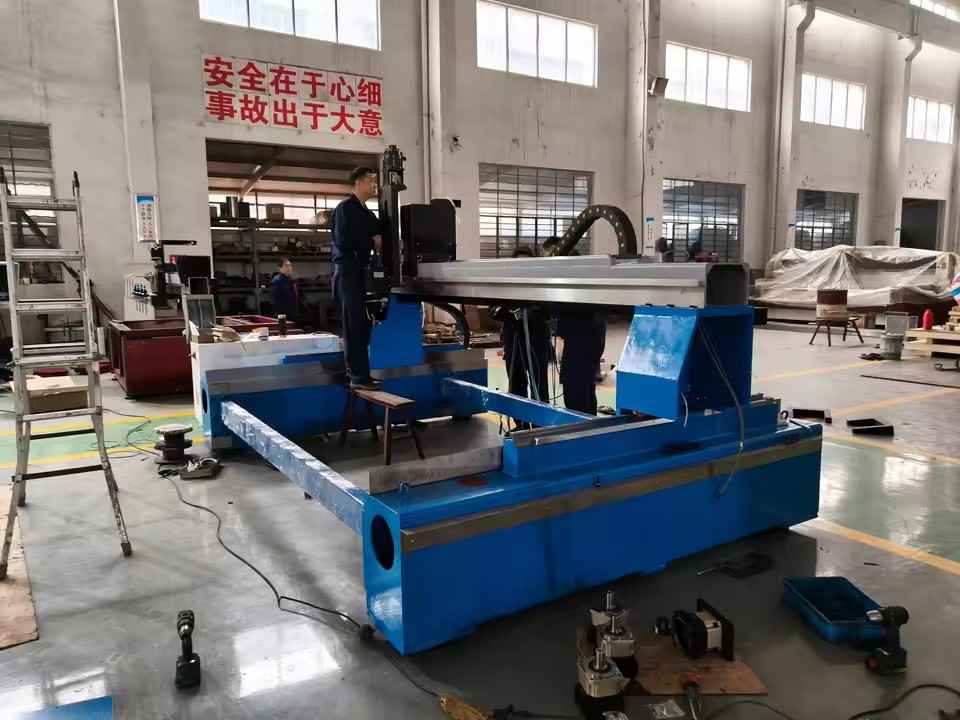

Production facilities

YC has more than enough in production facilities to ensure your order of waterjet cutting machine will never be held up waiting for production.

Since 1999

We are engaged in machinery manufacturing since the year 1999, There are two production managers have been working here since YC established, and there are more than 5 workers with more than 10 years experience in water jet cutting field.

Over 25 years experience

Our Chief engineer Mr. Tian has more than 25 years experience in water jet cutting field, he started his research of water jet cutting machine when he was a university student. There are two electrical engineers and one mechanical engineer who have 20 years experience in water jet cutting field. So our technical team can provide you professional support of waterjet machine.

YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers,Absorb advanced technology and ideas of water jet cutting industry

Customer reviews

FAQ

Q

Can you provide your

certifications

?

A

Yes, our products comply with CE, ISO,SGS and other standards. We ensure all certifications remain valid (the renewal process takes approximately one month).

How about the

delivery time

Standard Motors (380V, 50Hz, 3-Phase): 3-Axis Standard Models: Approximately 25-30 days. AC 5-Axis Models: Approximately 35 days. G-Series Large Gantry Models: Approximately 45 days. Non-Standard Motors (e.g., 220V/50Hz/3-Phase, 380V/60Hz/3-Phase, 400V/50-60Hz/3-Phase): Approximately 50 days, as custom motor procurement takes about 45 days.

Q: How to choose a standard cutting table?

A: You need to offer the size of the materials you want to process or the size of the cutting table.

Q: How to solve the incision bevel problem by 3 axis water cutting?

A: It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle compensation in the software.

Can I

customize products

Yes, we can customize the branding based on client requirements. For instance: If a client acts as a middleman, we can affix their company's logo instead. For domestic trading companies handling export, if they wish to prevent end-clients from directly identifying our factory, we can omit any YC-related logos entirely. In addition, you can customize the color, size, cutting range, etc. of the machine. Please send your detailed customized requirements to us.

What

logistics company

do you use?

For courier services, we offer options such as FedEx, DHL, and UPS for shipping the spare parts and wear parts of water jet cutting machines. We also have ocean freight forwarding companies available, and we support pricing based on Incoterms CIF and DAP, depending on your delivery location. Door-to-door service is also available.

What is your

payment terms

Option 1: 30% deposit by T/T after signing the contract, with 70% balance payable by T/T before shipment. Option 2 (Subject to approval): 30% deposit by T/T after signing the contract, with 70% balance payable by L/C upon presentation of shipping documents.

Do you offer

after-sales service

Yes, we provide comprehensive after-sales support: 1. A one-year warranty covers the machine (excluding consumable parts). Free replacement parts are shipped for non-manual defects. 2. Remote guidance (with manual and video support) is provided. On-site engineer assistance (e.g., for split type waterjets) is available, with costs (travel, visa, accommodation, fee) borne by the client. 3. Each unit undergoes rigorous pre-delivery testing. We provide prompt responses to ensure

reliable

technical support.
