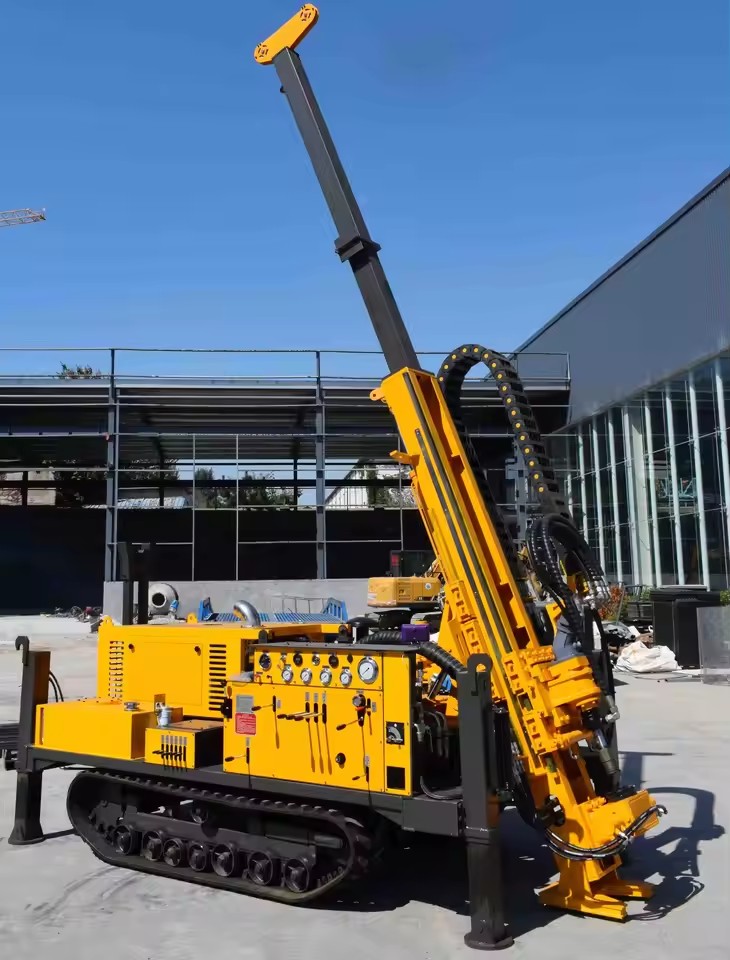

Product Importer Gallery 01 · 675794bf2e

Product Importer Gallery 02 · 911118d6db

Product Importer Gallery 03 · bb1ebf95bb

Product Importer Gallery 04 · aa0c5d1895

Product Importer Gallery 05 · 3e5ffd1fa1

Product video

Hard Rock Mine Diamond Core Drilling Rig Geo-technical Drill Rig Explore Drill Rig

Name: Hard Rock Mine Diamond Core Drilling Rig Geo-technical Drill Rig Explore Drill Rig
SKU: GZTN-RMS3-XB3C
Price: 35150.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 35,150.00 35150.0 USD $ 35,150.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

core sampling

Type

Rotary Drilling Rig

Drilling Depth

Max.500m

Drilling Diameter

NTW, HTW, BTW

Power Type

Diesel

Voltage

not available

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

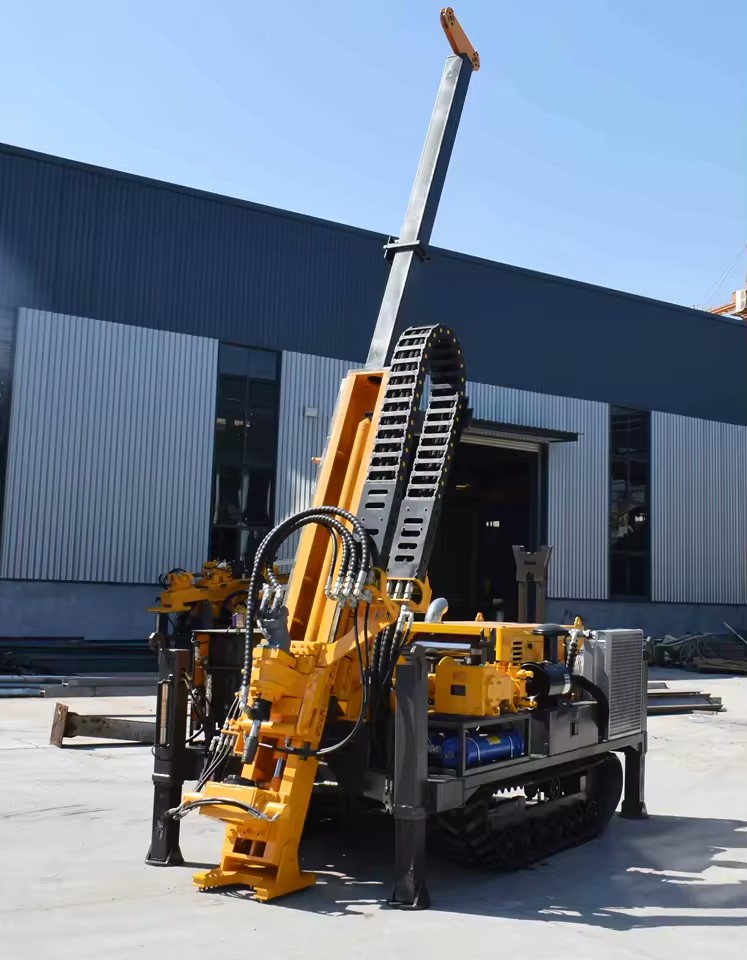

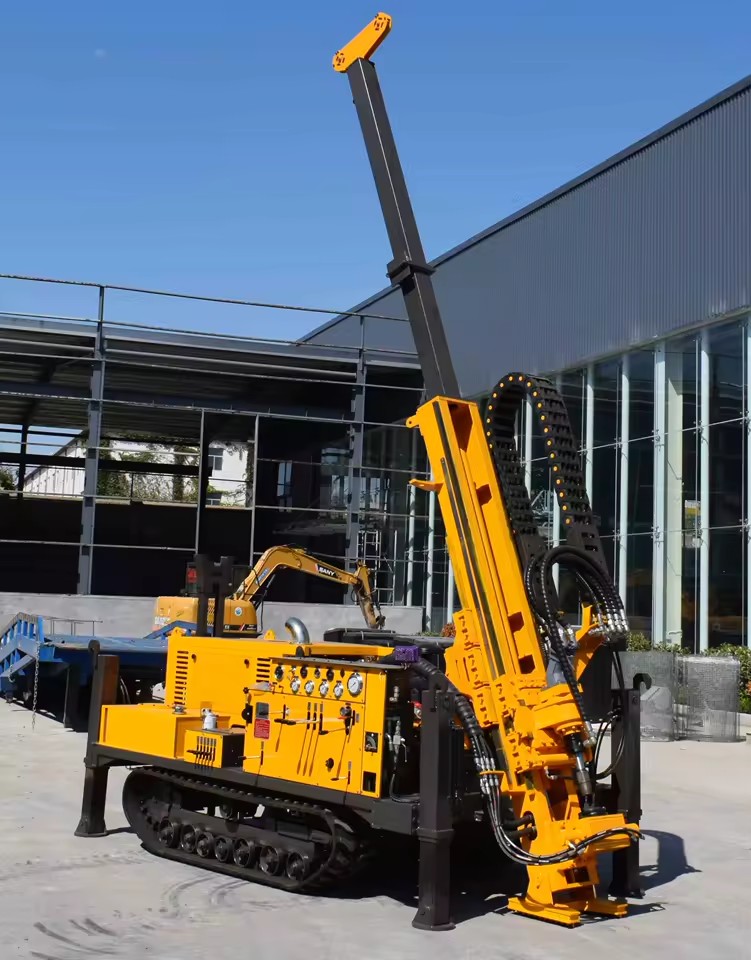

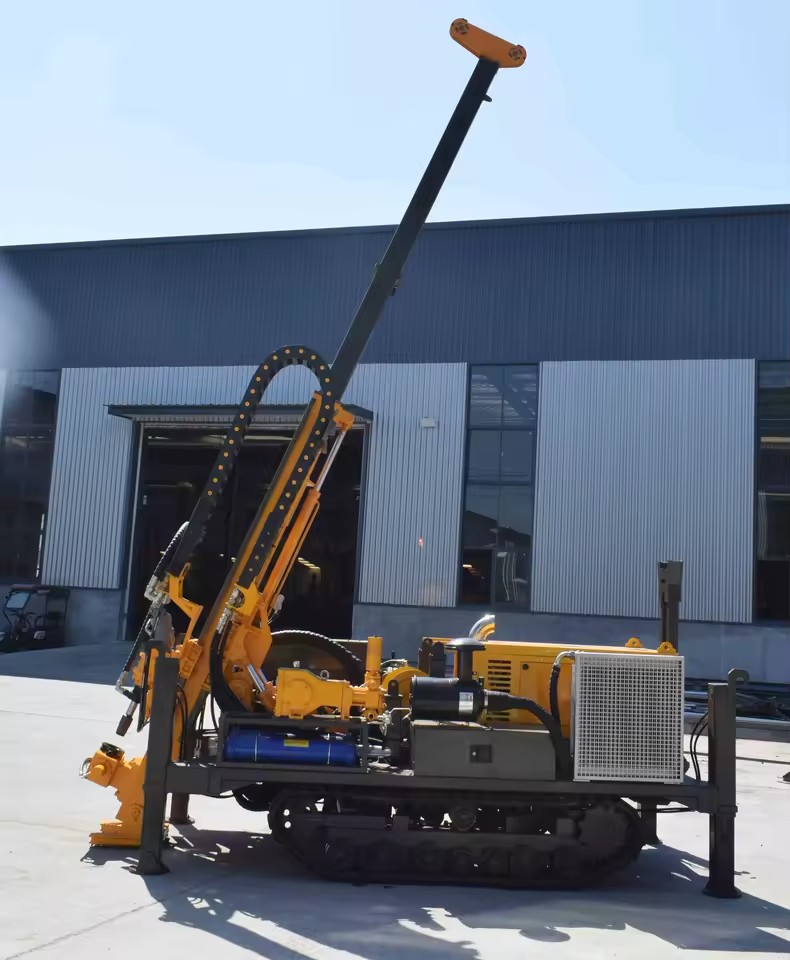

crawler core sampling drilling rig

No	Item	Data
1	Drilling hole diameter	HTW/NTW/BTW
2	Depth	180/400/500m
3	Rated pressure of hydraulic system	21Mpa
4	Rated flow capacity of hydraulic system	168L/min
5	Cooling system	both water and air cooling systems
6	Power	70kw
7	Max. Torque	300-500N.m
8	Max. rotary speed	1300RPM
9	Stroke	1900mm
10	Drilling angle	45-90 degree
11	Lifting force	12T
12	Feeding force	6T
13	Winch force	500kg
14	Travelling method	hand control and remote control
15	Travelling speed	2.5km/h

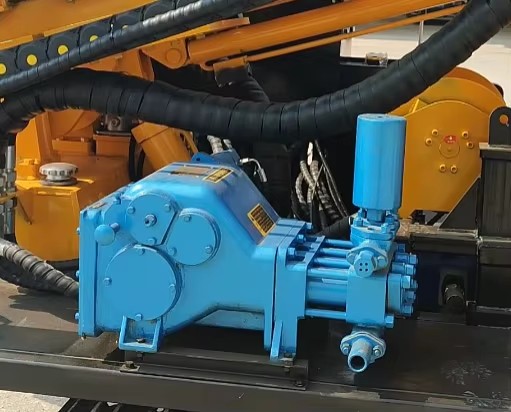

16	Hydraulic mud pump	30-90L/min 4-7Mpa
17	Dimension	400019001800mm
18	Weight	4.3T

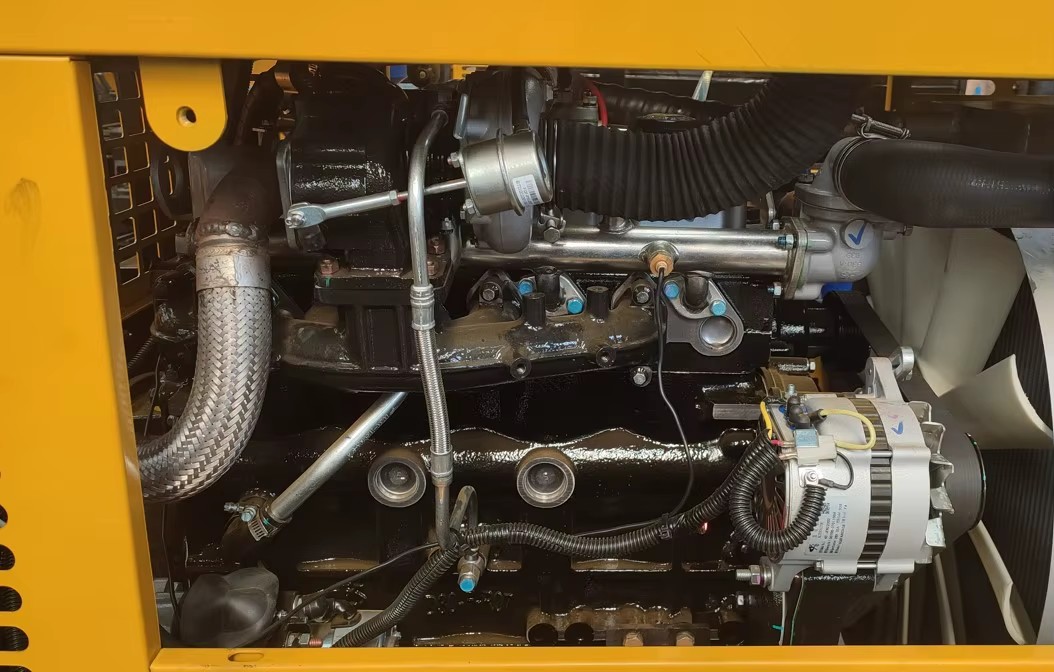

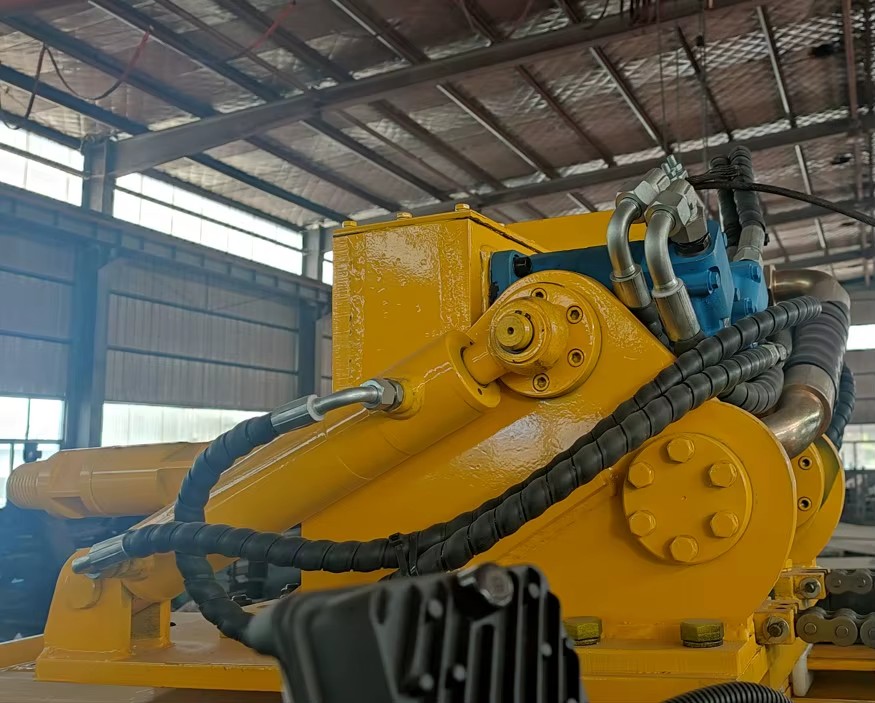

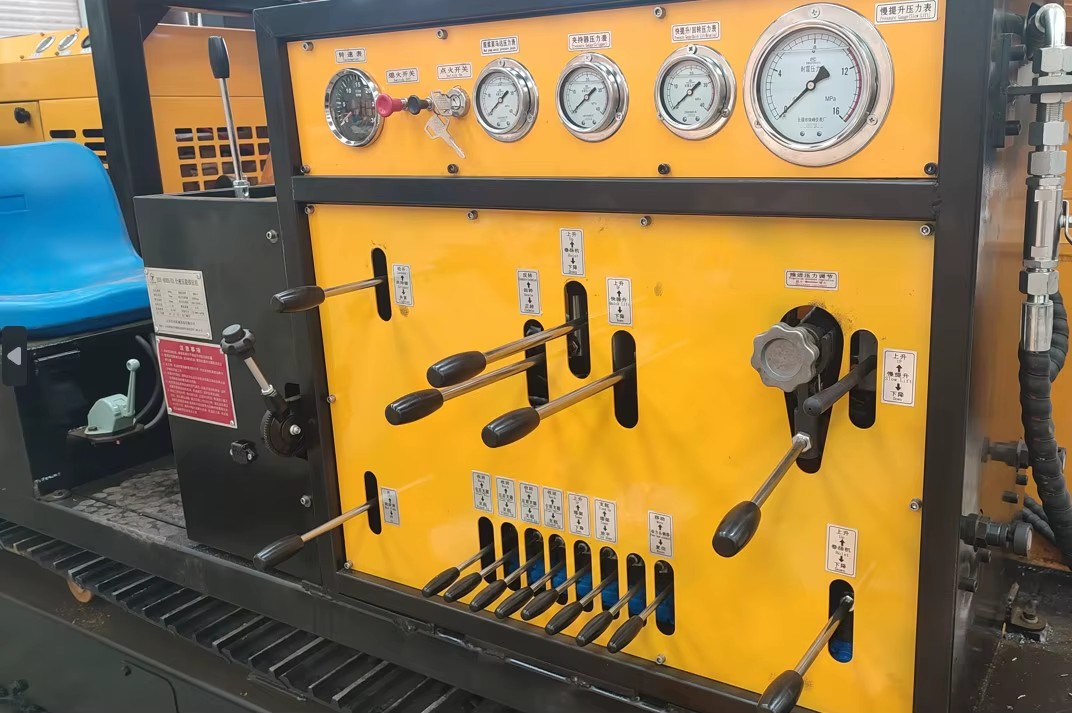

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Usage

core sampling

Type

Rotary Drilling Rig

Drilling Depth

Max.500m

Drilling Diameter

NTW, HTW, BTW

Power Type

Diesel

Voltage

not available

Core components

Engine

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

Zhejiang, China

Weight

4300 KG

Dimension (L*W*H)

4000*1900*1800mm

Mobility

Move by crawler

Drilling Hole Diameter

HTW/NTW/BTW

Depth

180-400-500m

Drilling Angle

45-90 degree

Rated pressure

21Mpa

Max. Torque

300-500N.m

Lifting Power

12T

Winch Lifting force

500kg

Moving method

hand control and remote control

Power

70kw

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

YDX-400XL

Power (W) (Product option)

70KW

Lead time

7 days

Minimum order

1 Units
