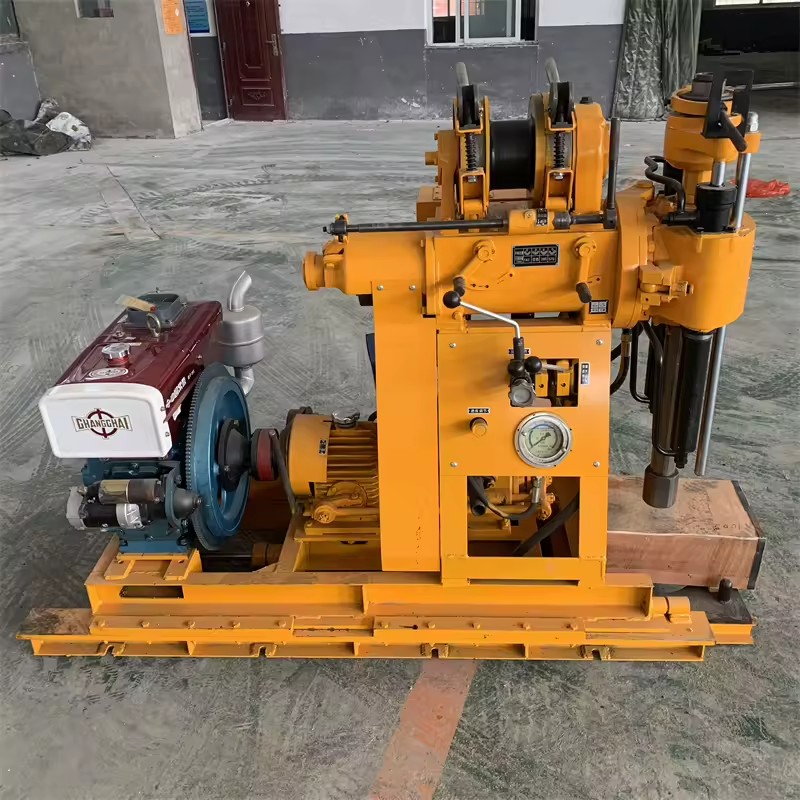

2025 Portable XY-1 Mine Drilling Rig for Geological Exploration

XY-1 geological exploration rig

XY-1 drilling rig is an improvement on the X Y-1 00-1 drilling rig, which is a portable drilling rig.

Scope of application

1. T his drill is suitable for geological survey exploration, geophysical exploration, road and building foundation exploration, blasting holes and grouting holes and other drilling projects.

Alloy bit, diamond bit and composite bit can be drilled according to different strata.

C an drill 2~9 grade sandy clay and weathered bedrock.

T he rated drilling depth of 1 00M, the deepest shall not exceed 1 20M; The rated opening diameter is 110mm, the maximum opening diameter is 325mm, the final hole diameter is 75mm; Borehole depth depends on the formation condition.

T he characteristics of the rig

1, with oil pressure automatic feed structure, mechanical transmission, improve drilling efficiency, reduce workers physical labor intensity.

2. using the ball card holding structure instead of chuck, can achieve non-stop rod, handle concentration, easy to operate, safe and reliable.

3. equipped with hole bottom pressure gauge to indicate the pressure, easy to grasp the situation in the hole.

4. can be used to move the hole, or open the rotary to open the hole.

5, the structure is tight, the drill, water pump and diesel engine are installed on the same base, occupying a small area.

6, light weight, strong decomposition, easy to move, suitable for plain and mountain construction.

T he working environment

1, the altitude does not exceed 1000M.

2, the ambient temperature does not exceed -10~45℃.

3, the ambient humidity is not more than 96% (+25℃)
