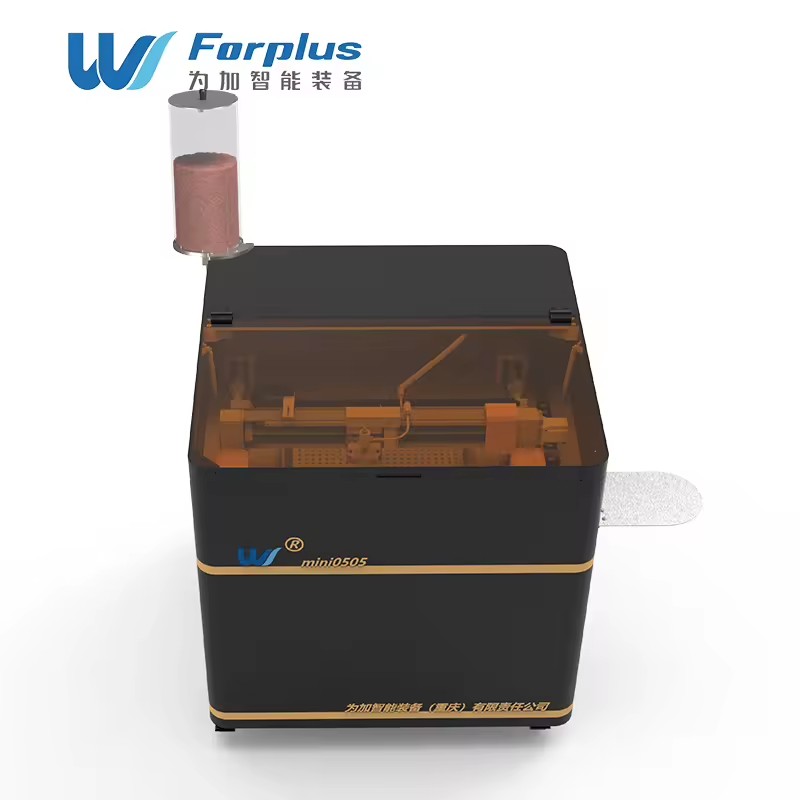

Forplus MINI 55000psi Cnc Waterjet Glass Cutting Machine Portable Waterjet Cutter Mini Waterjet Cutting Machine

Machine parameters

Machine size: Length (1100mm) × Width (1100 mm) × Height (1100 mm)

Model

Forplus-M0505-50k Plus

X、Y、Z axis travel

500mm、500mm、50mm

Rated pressure

55000psi(350MPa)

Rated power

11KW

Rated flow

1.84L/min

Max gem orifice

0.24mm

Max no-load velocity

3 m/min

Orientation accuracy

±0.05 mm

Re-orientation accuracy

Product description

1.

Compact size, easy to move.

220V AC power supply, easy to install and use.

2.

Low power, low energy consumption.

3.

Surface treatment using automobile chassis process

2000 hours + salt spray test, anti-corrosion, anti-rust, wear-resistant.

4.Equipped with a transparent window on the top flap, you can easily observe the cutting status. The whole machine runs

about 60

decibels

chanting, very quiet.

7.

Configuration of embedded passivation water treatment system

passivation of calcium and magnesium particles in water, lubrication of high-pressure sealing parts, extending the service life of seals more than double, without additional water purification equipment.

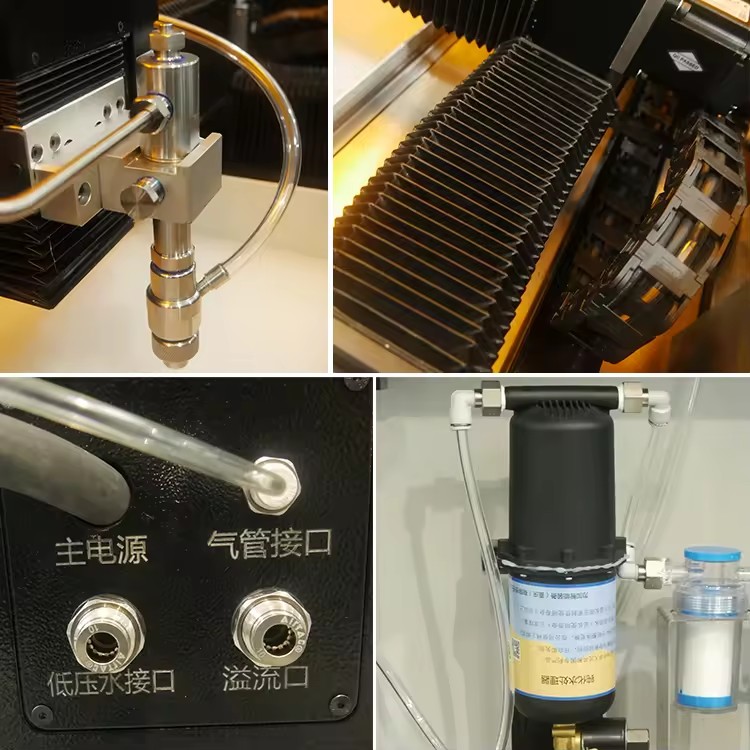

Configure standard 3-axis cutting head

Gem and nozzle can be flexibly changed, simultaneously pure water cuting and abrasive cuting.Well-known brand high quality electrical components are used for the whole machine to ensure system stability and reliability.

Adopt same automotive chassis electrophores process and spray-painting for the shell,wear resistance and corrosion resistance without rust.

High Quality Ball Screw

Absolute encoder servo motor with high quality ball screw, bus interface.Stable structure and high control precision.

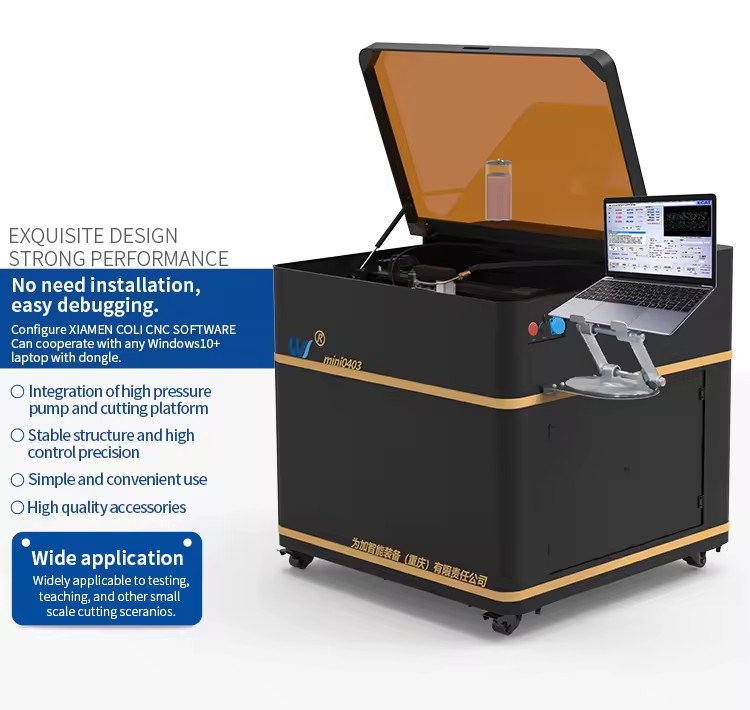

No need installation,easy commissioning.

Mini series adopts Xiamen XieLi professional waterjet cutting software as the operating CNC platform. The bus-type connection makes it easy to install, use and maintain. With Chinese and English interfaces, it can be operated by installing the software on any computer, plugging in the dongle and connecting the network cable.

Equipped with a transparent window on the top flap

you can easily observe the cutting status. The whole machine runs about 60

Simple Connection

Compact size, easy to move. 220V AC power supply, easy to install and use.

Configuration of embedded passivation water treatment system

passivation of calcium and magnesium particles in water, lubrication of high-pressure sealing parts, extending the service life of

seals more than double, without additional water purification equipment.

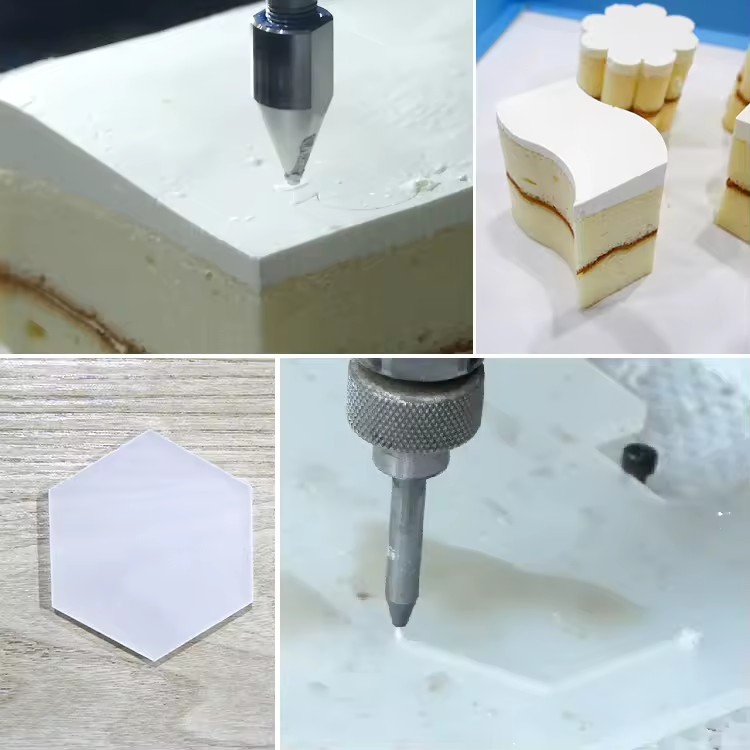

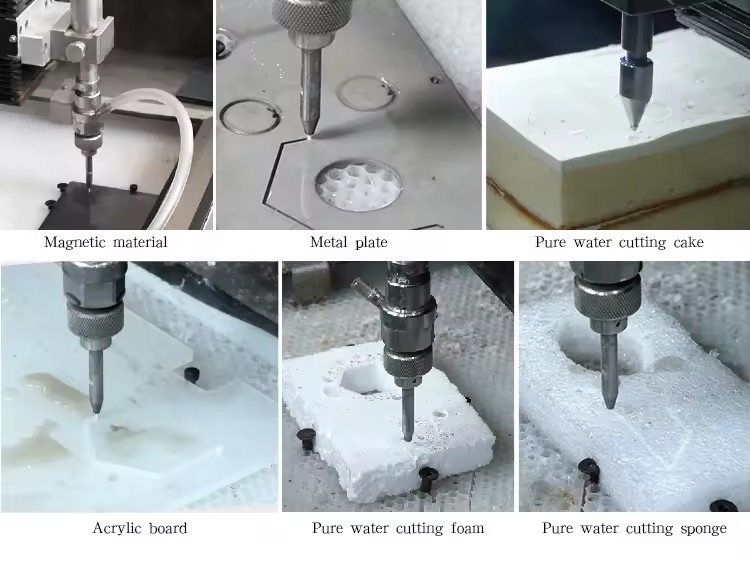

Cutting display

FAQ

1. How does a water jet cutting machine work?

2. How accurate is the water jet cutting platform?

3. In general, how fast is water jet cutting and how does it maintain its accuracy?

4. How long does it take to assemble the water jet machine?

5. How to determine whether need an abrasive for the application?

6. How much space does one water jet cutting machine need in my workshop?

7. What problems should be paid attention to when purchasing?
