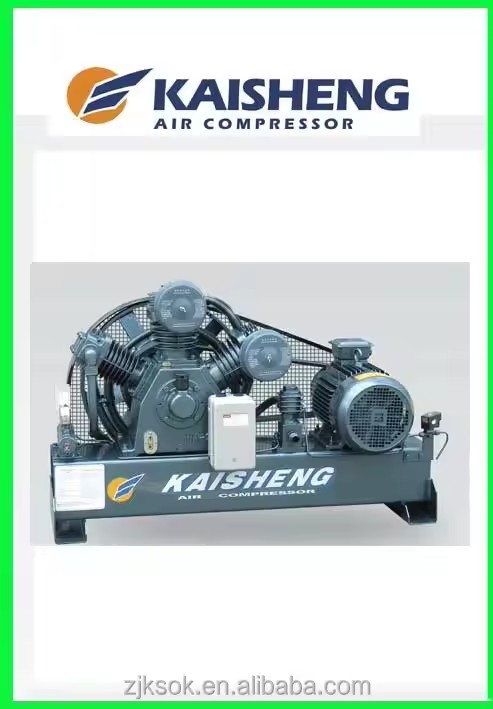

PET Bottle Blowing Machine 30 bar Piston Type air Compressor (HTA100XD-0.63/30)

piston compressor

Model HTA-100XD

Motor: 7.5kw/10hp Displacement: 0.63m3 Pressure:3.0Mpa

Size: 1250Lx590wx800H weight:280kg TANK:NO

AUTOMATIC UNLOAD DEVICE Elaborate & sensitive design whith guaranteed safety.

SUCKING AND DRAINING VALVES Stainless stell valve made of Sandvik 7C27M02 steel, critically lathe & grinder machined, stress eiminated, to assure excellent strength and anti-imoact under high temperaure.

AIR FILTER Made of imported materials, with perfect filtering and muffling result, and long service life.

CYLINDER COVER Streamlined aire tunnel with excellcet cooling result.

CYLINDE Cylinder body machined and grinded by precision CNC to assure durability.

PISTON RING Adopts liken Ring() made of fine material, preventive to scrape on cylinder body, low oil consumption, avoidance to carbon gathering.

TIE ROD Tierods machined and hored by special machning tool with guaranteed parallelity, leads to more smooth and stale running of air compressor, and lower consumption of lubricting oil.

CRANK Parts wear abrasion adopt wearing-resistant steel with their surface hardened, to assure best wearability.

CRAND BOX All the orifices and surfaces done in once by one integrated CNC machine to assure prarllelity and verticality.

BELT WHEEL Dynamically balanced belt wheel integrated with fan by iron castingleads to perfect flywheel result, low noise, stable running.

BEARING Bearing of high performance and long service life made by Sino-US joint-venture.

COOLING COPPER TUBE Cooling Copper Tube with technical design on high cooling effect, the tube is specially used for reducing temperature.
