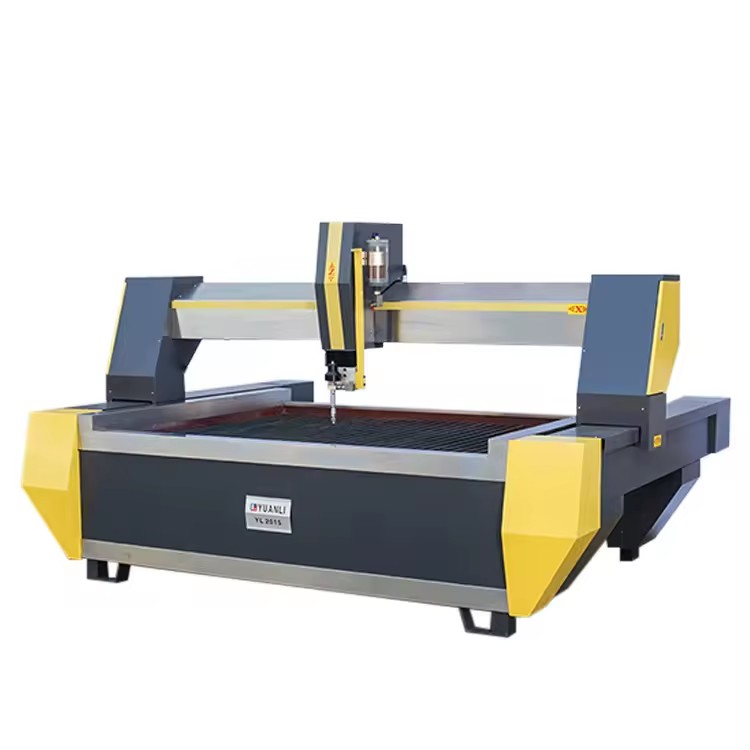

3 axis water jet tile cutter machine

3 axis water jet tile cutter machine

Why we choose a water jet cutting machine? 1) Cold Cutting without thermal influences. 2) Material saving production due to reduced cutting width. 3) Flexible processing of all virtually material with consistent high quality. 4) Tension-free processed parts due to minimal cutting force. 5) Environment friendly & clean production without poisonous gas. 6) Close linking with the CAD/CAM programming system. 7) High productivity through multi head cutting system & multi layer cutting. 8) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed

waterjet Features

1. YL-450 High pressure PUMP,Design and Made by,450Mpa (65000psi) pressure,working pressure 320Mpa-380Mpa depend on the materials. 2. Pump main parts "Intensifier" is "". 3. Servo motor YASKAWA servo motor (),Siemens servo motor;Plunger variable pump;meets all your requments. 4. Best suggestion in cooling system: water cooling,air cooling or oil cooling. 5. Practical design with certificate and CE certificate.

6. Lubrication system use Fully sealed oil bubble type,more use life and without trouble. 7. Heat Treatment of Machine:Low Temperature Annealing Heat Treatment of X and Y Beams

8. -Focus on waterjet production,Design Sixteen years.

products Parameters

Item

Waterjet cutting machine

Model

YL2515

Structure

Gantry

Cutting table size

2600*1600mm

Stroke

X-axis

2500mm

Y-axis

1500mm

Z-axis

150mm

CNC Controller

Step System / AC Servo System

Accuracy

±0.1mm

Cutting

Repeatability

±0.05mm

Traverse speed

6500/15000 mm/min

Power supply

220V/380V/415V AC,50Hz

Turbocharger parameters

Maximum pressure

450Mpa

Normal operating pressure

350-380Mpa

Main motor power

37KW /30KW

Variable

Cooling

Wind/Oil/Water

High-pressure cylinder

Imported

Inlet valve

Ceramic rod

Accumulator

Single taper

415/380/220V AC 3P

Waterjet cutting machine: cutting head

5 Axis cutting head, AC 0-76 degree cutting.

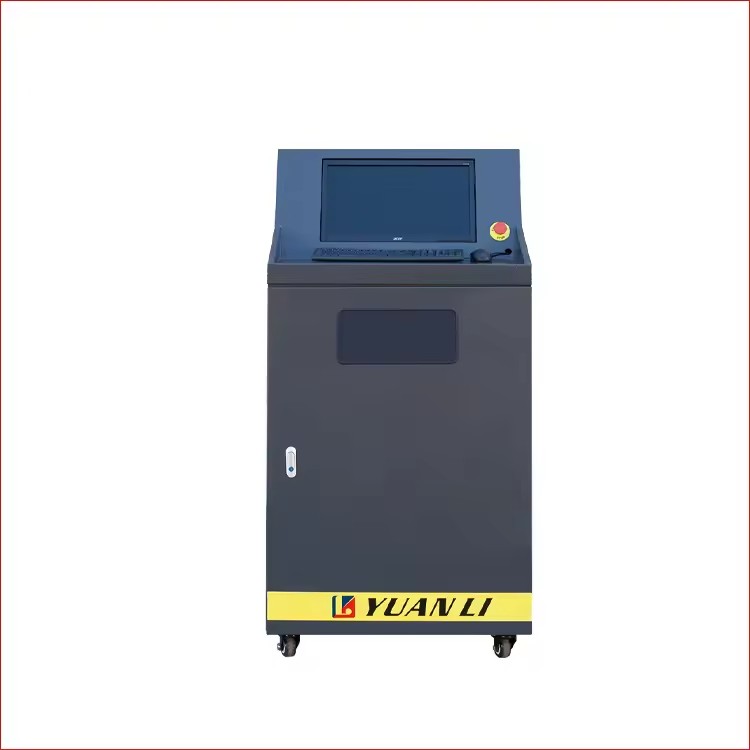

CNC controller

All of them adopt Siemens electronic components. The wiring is simple and practical.

X axis, Y axis using Fully sealed oil bubble type

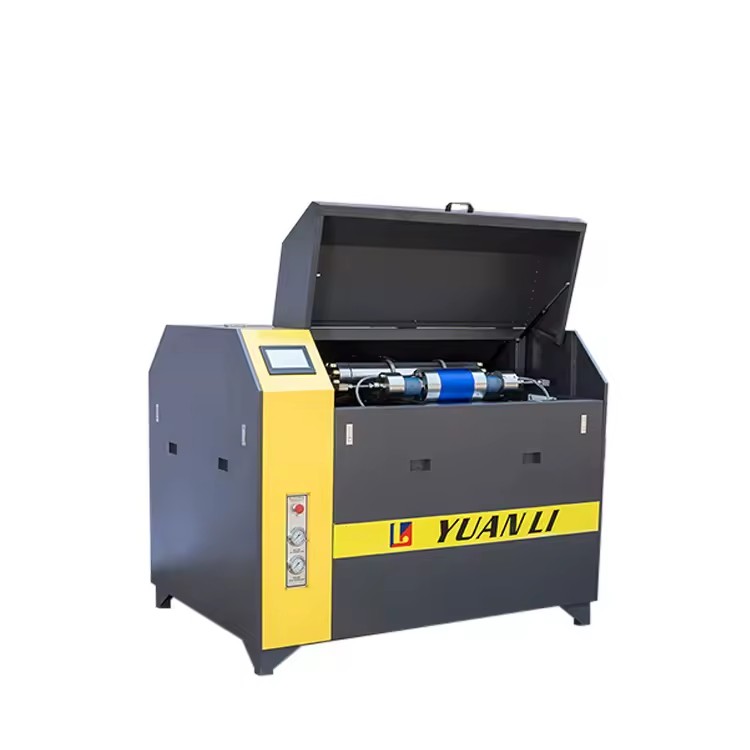

High pressre pump: Servo motor

1.For on site installition and training: the buyers take responsibility for technician’s air-ticket,hotel and food.

ee warranty for the machine is one year(except wearing parts and the replacement of wearing parts).

3. Training of personnel as requirement of customer.

4. To guarantee long term supply of spare parts.

5. lifetime service, maintenance.

6. the buyers have the special price when there are new products updating and ne technologies.

7.Quick response time: when the user’s machine any fails,response within 12 hours after receipt of written notice.by

is a comprehensive industrial Manufacturer Group. We are specialized in Waterjet cutting machine.

Q:What kind of package will use? A:Whole film packaging machine.Anti-collision package edge.

Q: How to get the exact quotation? A:We offer you suitable solutions and configurations according to your cutting workpieces.The best and exactly quotation.

Q:Could you give me a discount? A:Yes, we can have a negotiation.

Q:Do you have other support? A:Sure,we offer vulnerable accessories.

Q:How about your aftersale service? A:We offer training and lifetime after-sales system.
