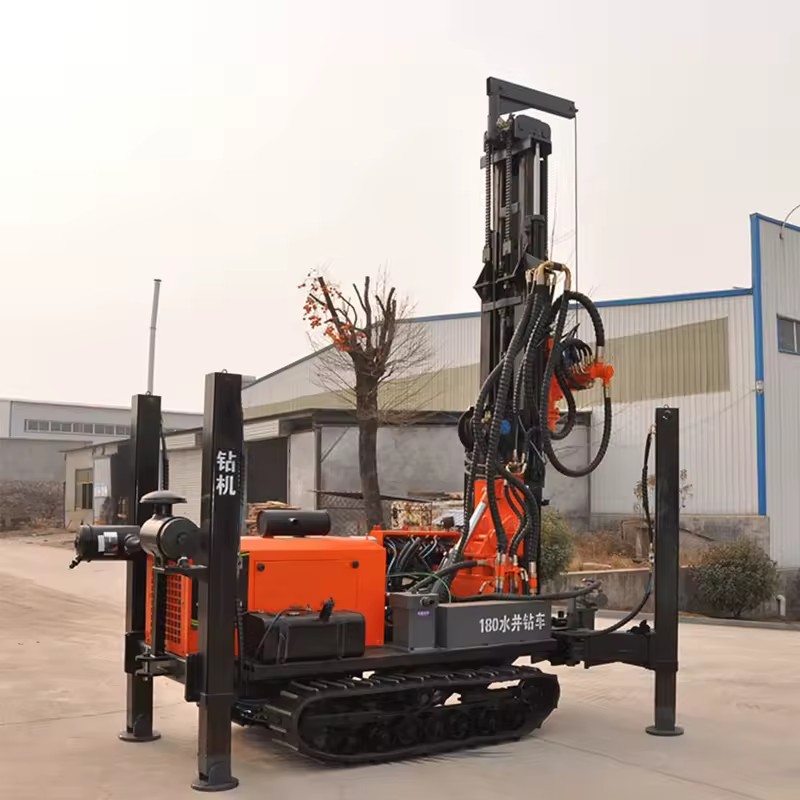

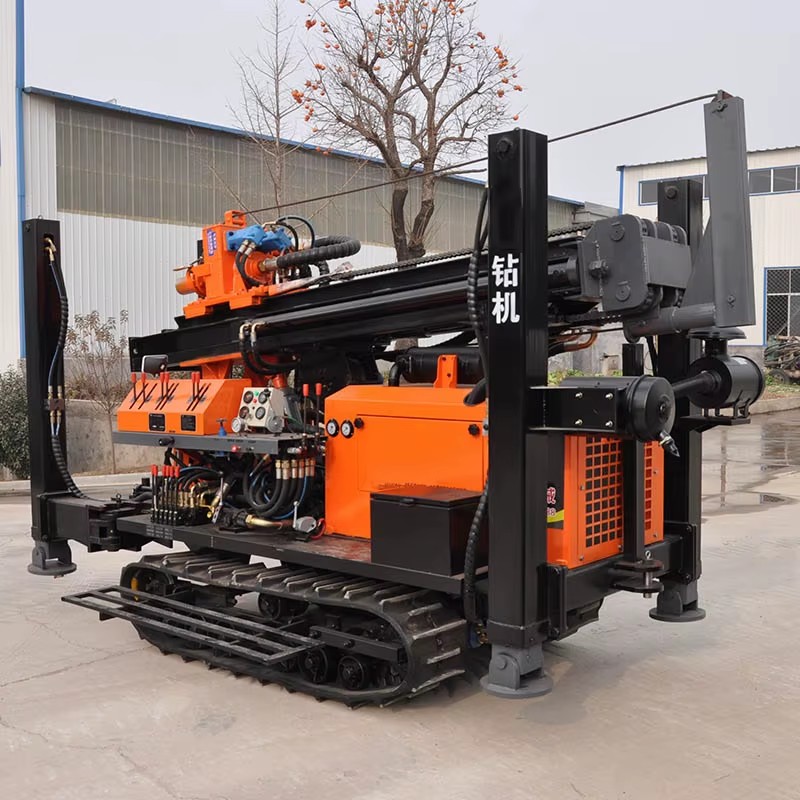

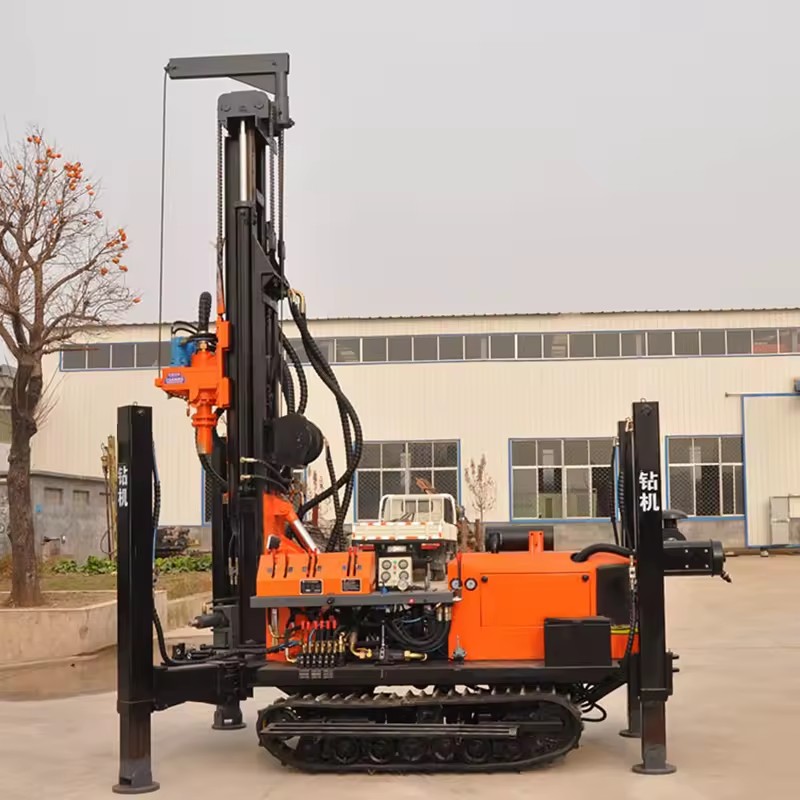

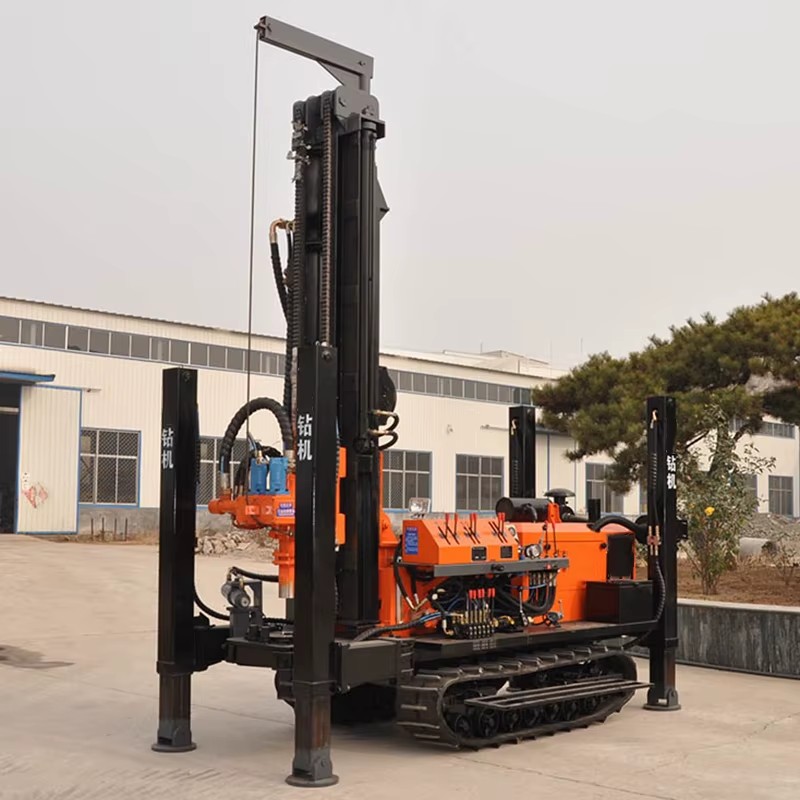

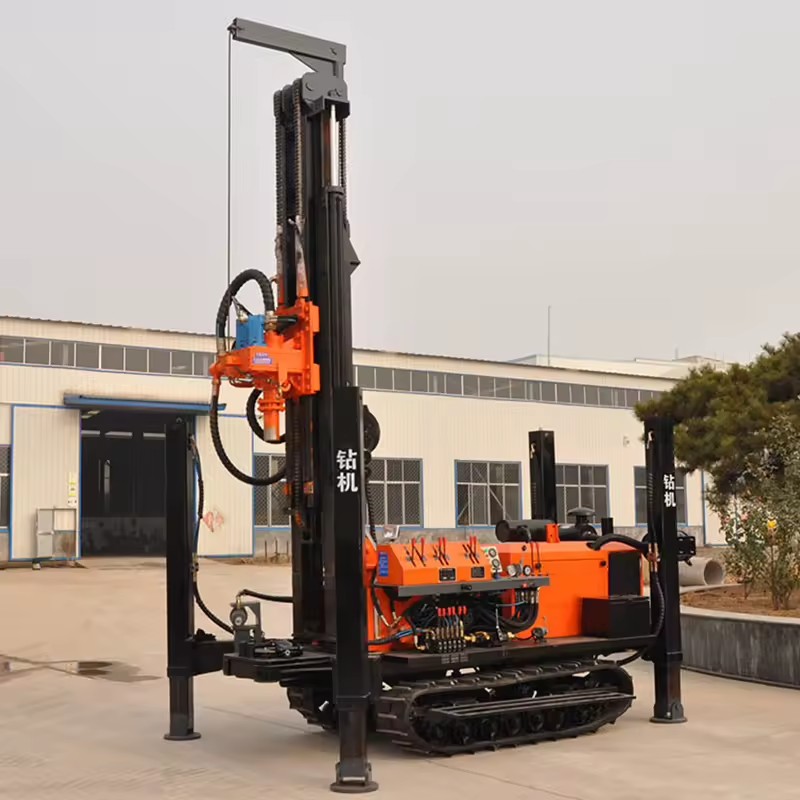

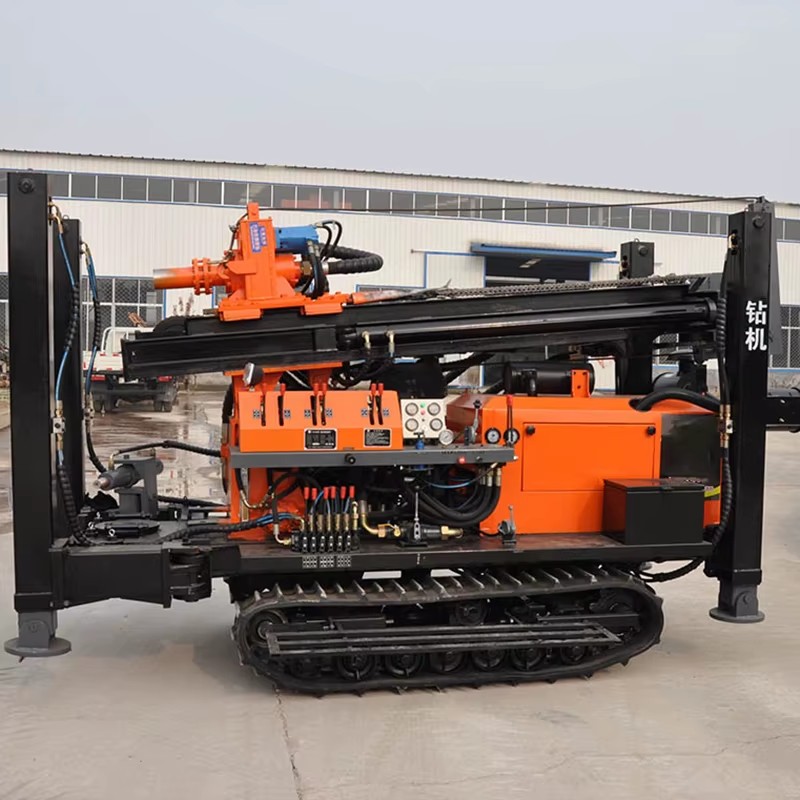

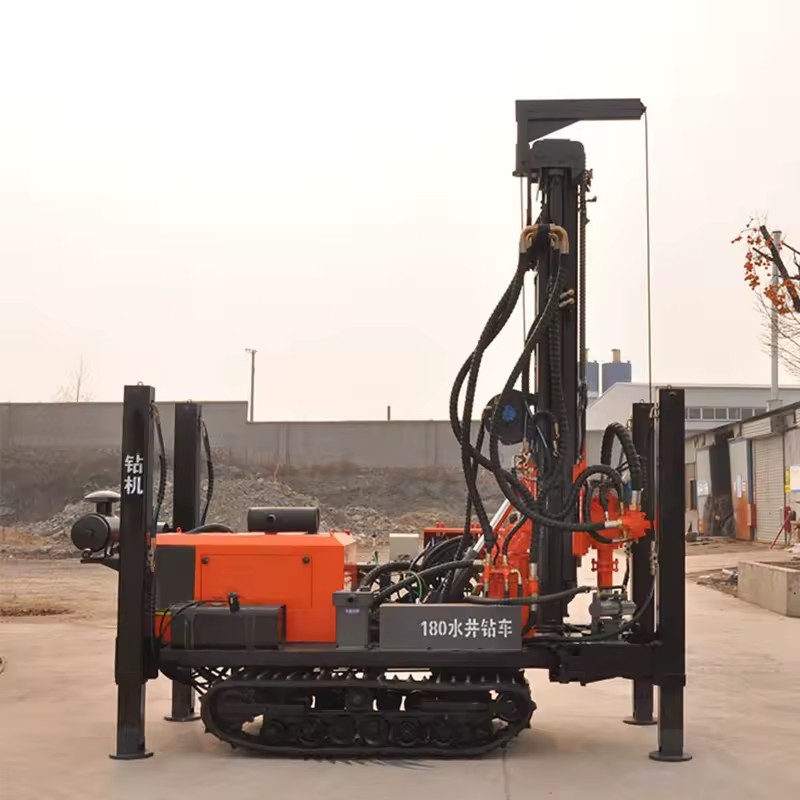

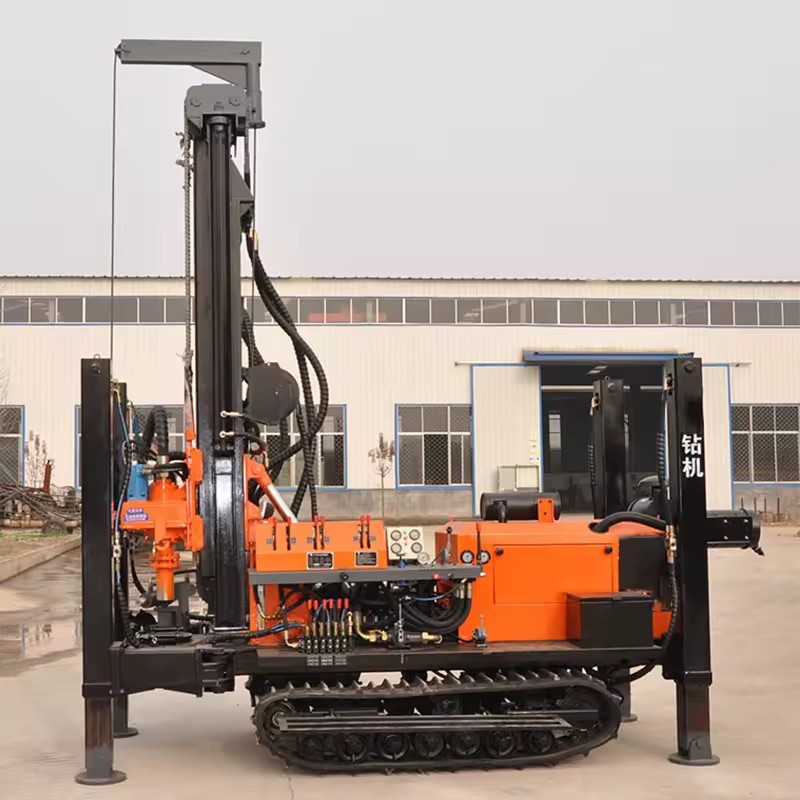

Manufacturer Crawler Mounted Mining Machine Portable Water Well Drilling Rig for Sale

Pneumatic drill Exploration Well drill rig,water drilling machine 180Model

Factory Supplying Directly, Best Price and Best Service.

Pneumatic drill Exploration Well drill rig,water drilling machine 180 Model

The Weight(T)4.5 Dimensions(mm)3800*1500*2200 The hole diameter(mm)140-254 Drilling Depth(m)180 Once-time advance length(mm)3400 Walking speed(Km/h)2.5 Climbing angles(Max.)30 Minimum clearance clearance(mm)250 Using air pressure(Mpa)1.7-2.5 Air consumption(m³/min)17-31 Swing speed(rpm)40-65 Swing torque(N.m)3200-4600 Drill pipe diameter(mm)Φ76 Φ89

Main Features

180m Crawler Mounted Well Drilling Rig is top driven and multi-functional, which is featured of high technology, easy operation, high efficiency and reliability. They are widely applied in well drilling, geotechnical drilling, geothermal drilling, mining exploration, offshore drilling, etc. This crawler drilling rig could work in any different conditions through pneumatic drill driven by air compressor, it has high drilling speed.

1. 180m Crawler Mounted Well Drilling Rig is compact, and its width is only 1.3m, suitable for narrow drilling condition, and the max drilling depth could reach 180m.

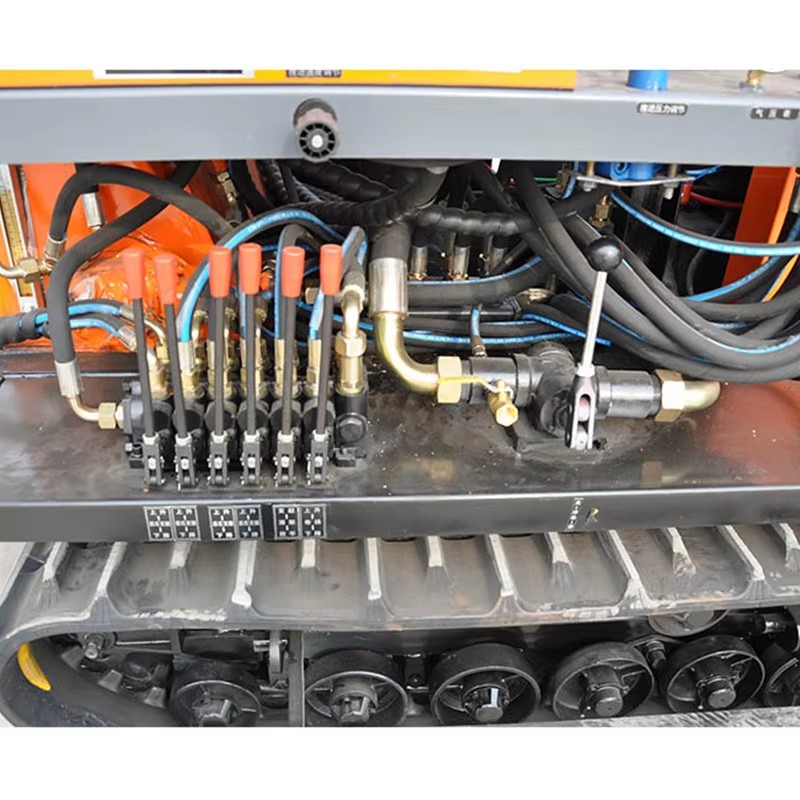

2.Perfect Maneuverability with hydraulic control.

In order to fulfill various application cases, the main parameters of drill can be adjusted, such as rotation speed, torque, feeding pressure anti-feeding pressure, feeding speed, lifting speed.

3.Rotation, feeding, lifting by Top driven.

Easier for rod changing, reducing rod changing time, better for follow – down drilling.

4. Multi-functional drilling

Multiple drilling ways could be worked on this rig, such as anti-air circulation drilling, anchor drilling, rotation drilling, and follow-down drilling, as well as core drilling.

There are optional parts added per customers'needs, such as mud pump, foam pump, generator as well as different types of winches.

5. Low operation cost

Down the hole drilling for rocks has the lowest drilling cost with highest level of working productivity.

6. Crawler chassis with long stroke jack cylinders

Long stroke jack cylinders are easy for truck self loading during transportation, and crawlers are of better mobility in mud working sites.

7.Adjustable feeding pressure to get the best feeding force at various drilling depths.

Related parts

Technical training for new machines.

On site service available for quality problem.

Timely reminding for machine maintenance.

Construction solutions will be provided for different geological conditions.

Remind you of the wearing parts.

7*24 hours reply to your questions.

Parts

Hardrock suggests

Warranty

Hardrock provides standard one year warranty to main machines, and customers are offered to an extended service of 3 or 5 years warranty coverage.

Training Service

Operator training

Market training

Service training

Safety

Only trained and qualified operators, directed under safety and knowledge supervision are eligible to operate the machines. Safety could only be guaranteed if the equipment users and operators run the machines

In compliance with the employer, job site and government rules.

Following safe work practices.

Following the operators manuals.

Service & Maintenance

Our highly trained service professionals are always ready to provide

1) Q

A

3)Q: How does your company and factory do regarding quality control?

A: Quality is priority. Hardrock always attach great importance to quality controlling from beginning to the end.

4) Q: What is your after-sale service?

A: We have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5)Q:What about the quality warranty?

A: We offer one-year quality warranty for machines' main body.

6) Q:How long can you deliver the machine?

A: Generally, we can deliver the machine within 10 days.
