Product video
Certifications CE

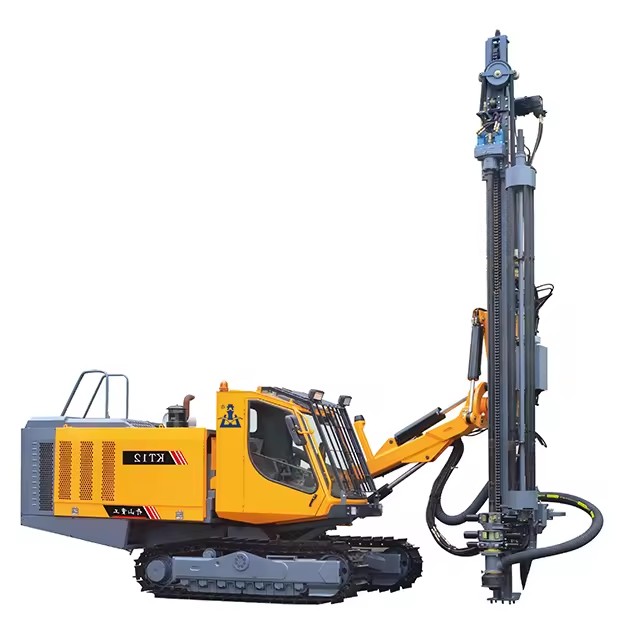

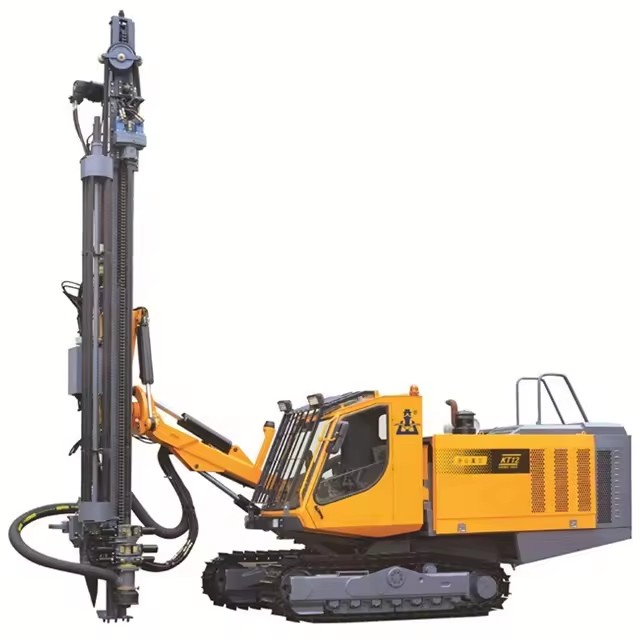

265KW Mine Blast Hole Drilling Rig Crawler Mounted DTH Drilling Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 179,190.00 179190.0 USD $ 179,190.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.28m
Drilling Diameter
115-152mm
Power Type
Diesel
Core components
Gear, Engine, Pump
Product description
Transport dimensions9830*2580*3320mm
Weight17500Kg
Rock hardnessf=6-20
Drilling diameter115-152mm
Ground clearance420mm
Leveling angle of track10°up, 10°down
Travelling speed0-3Km/h
Climbing capacity25°
Traction120KN
Torque3450Nm
Rotation speed0-100rpm
Lifting angle of drill boomUp 47°, down 20°
Swing angle of drill boomRight 50°, left 21°
Swing angle of carriageRight 95°, left 35°
Tilt angle of beam114°
Compensation stroke1353mm
Feed stroke4490mm
Maximum propelling force25KN
Method of propulsionRoller chain
Depth of economical drilling28m
Number of rods6+1
Specifications of drilling rodΦ89*4000 mm
DTH hammerK40、K50
EngineQSL8.9-C360-30
Number of cylinders6
Output power265KW/2200rpm
Hydraulic pump5* gear pump
Screw air compressorZhejiang
Air capacity20m³/min
Air pressure22Bar
Traveling control systemHydraulic pilot
Drilling control systemHydraulic pilot
Anti-JammingAutomatic electro-hydraulic anti-jamming
Voltage24V, DC
Safe cabMeet the requirements of FOPS & ROPS
Indoor noiseBelow 85dB (A)
SeatAdjustable
Air-conditioningStandard temperature
EntertainmentRadio +Mp3
Certifications & compliance
CE
Complies with EU standards
Description images

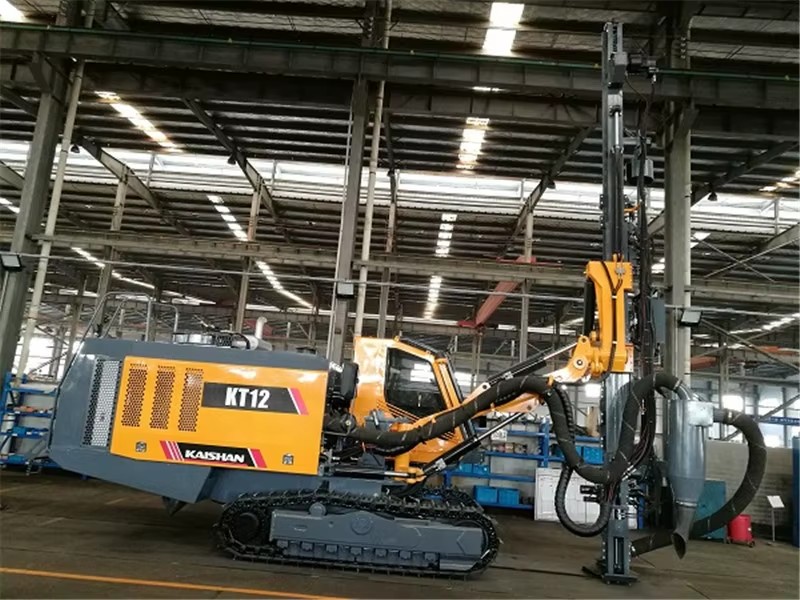

Product detail

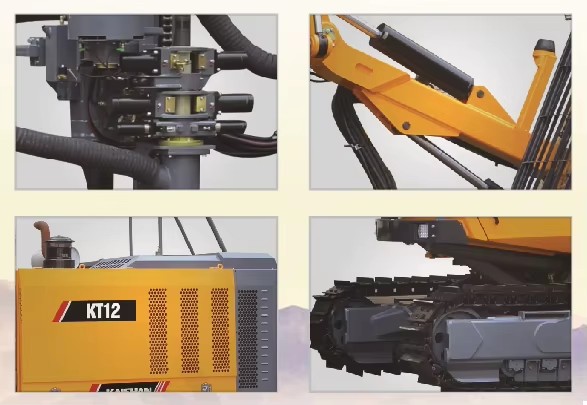

Product detail

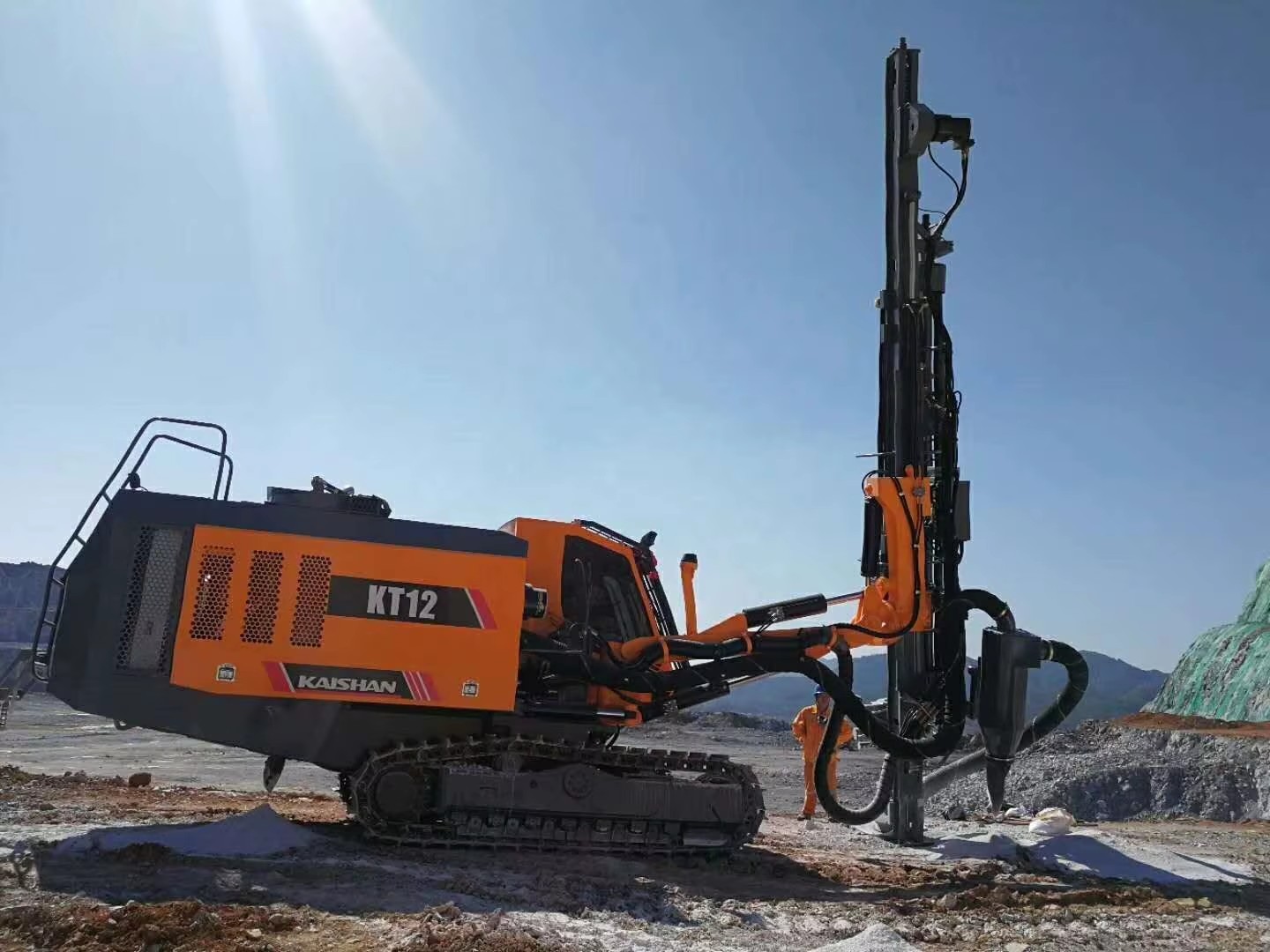

Product detail

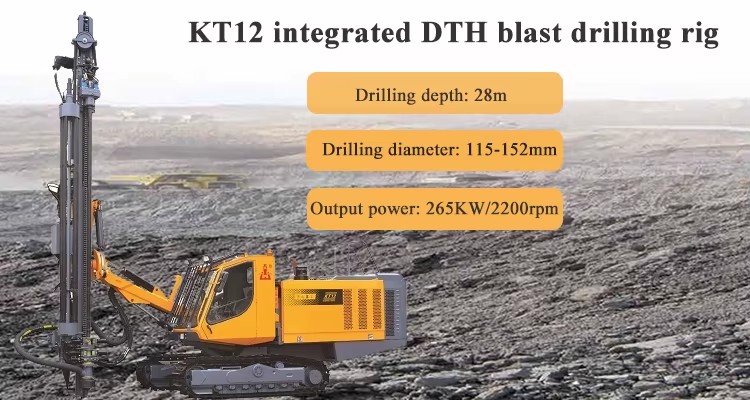

Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    65 days

  • Step 3

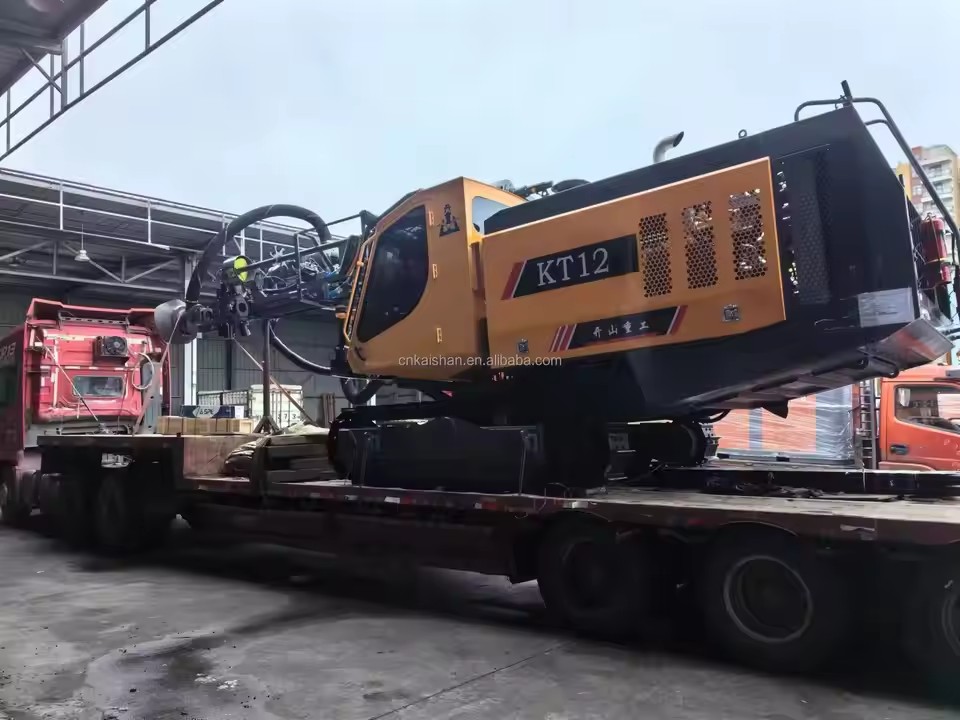

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.28m
Drilling Diameter
115-152mm
Power Type
Diesel
Core components
Gear, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Low Maintenance Cost
Place of origin
Zhejiang, China
Weight
15000 kg
Dimension (L*W*H)
9100*2450*3200mm
Mobility
Move by crawler
Rock Rigidity
f=6-20
Traveling speed
0-3km/h
ROTATION SPEED
0-100rmp
Rotation torque
3200N.m
Push Way
Cylinder-Chain
Feed stroke
4490mm
After-sales Service Provided
Video Technical Support, Field maintenance and repair service
Method of propulsion
Roller chain
Diesel engine
Cummins QSL8.9-C360-30
Air capacity
19m3/min
Selling Units
Single item
Single package size
14000X4000X5000 cm
Single gross weight
30000.0 kg
Model number
KT12
Power (W) (Product option)
265KW
Certifications & Compliance
CE
Lead time
65 days
Minimum order
1 Units
