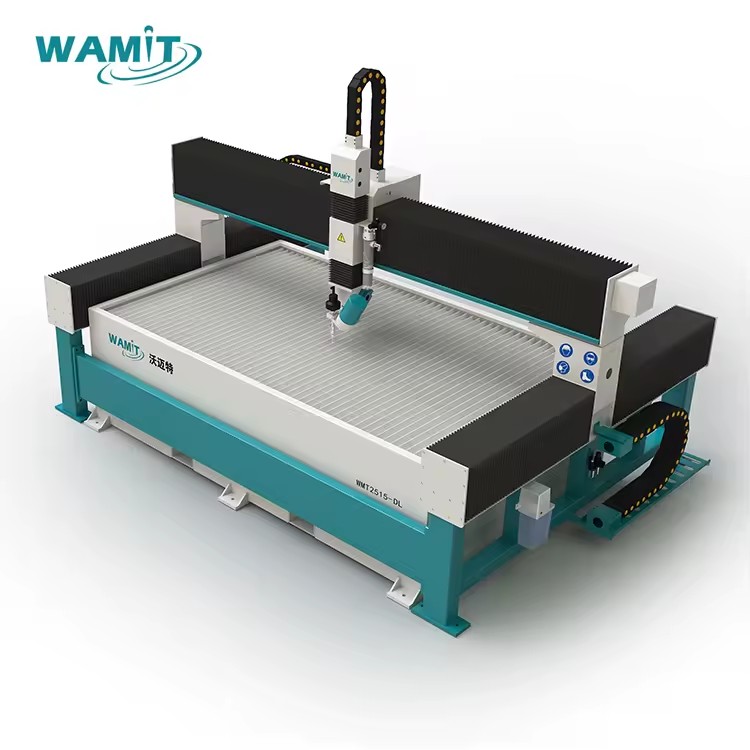

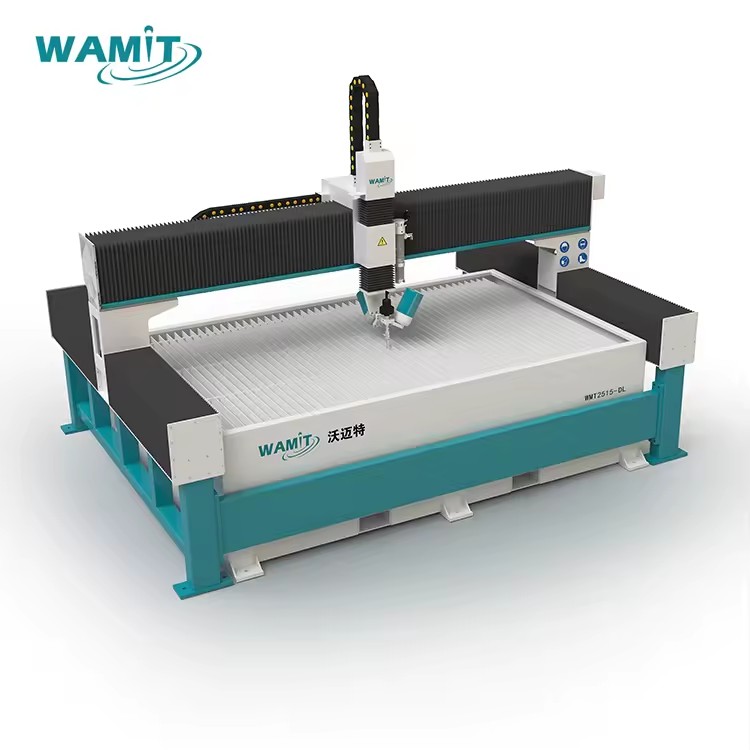

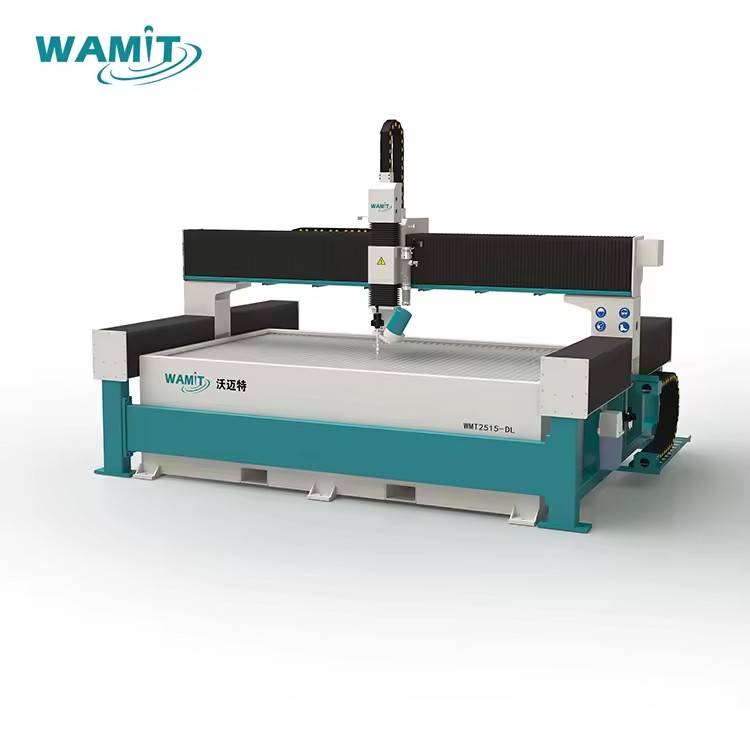

Advanced Technology 4020 Water Jet Cutter 3 Axis 5 Axis CNC Waterjet Cutting Machine for Marble Glass Tile

WMT300 SERIES

Model

WMT300 2030

WMT300 2040

WMT300 2060

WMT300 3015

WMT300 3020

WMT300 4020

Table Size

X axis(mm)

2200

3200

4200

Y axis(mm)

6200

1700

Cutting Size

2000

3000

4000

6000

1500

Z axis(mm)

150

Cutting Accuracy

±0.1mm

Repeated Positioning Accuracy

±0.05mm

Driving Mode

Alternating Current Servo

Maximum Operating Speed

50000mm/min

Products Description

✔

Support non-standard customization

Provide free sample trial cutting service for you

Advantages of WMT devices

1. Gantry machine design, high temperature forging, durable.

2. Ultra-high pressure cutting head, can be cut with pure water and sand.

3. With 3-axis and 5-axis tool heads, vertical and non-vertical cutting can be performed, and the maximum cutting Angle is 60 degrees.

4. River Valley automatic lubrication system

5. Internal components selected from Schneider international brand, reliable quality, durable

6. high quality guide rail and Swedish ball screw.

7. WEIHONG waterjet CNC cutting system is adopted.

8. Z-axis fully closed structure, no water and sand, higher cutting accuracy

9. The model can be customized, according to the need to develop and design exclusive styles.

10. The first generation of self-designed ultra-high pressure servo direct drive pump, more energy saving, ecological environmental protection, lightweight; Ultra-high pressure booster pumps are easier to operate and maintain.

11. Intimate after-sales: equipment maintenance and repair, support online video technical support, installation, commissioning and training and free spare parts support.

Product details

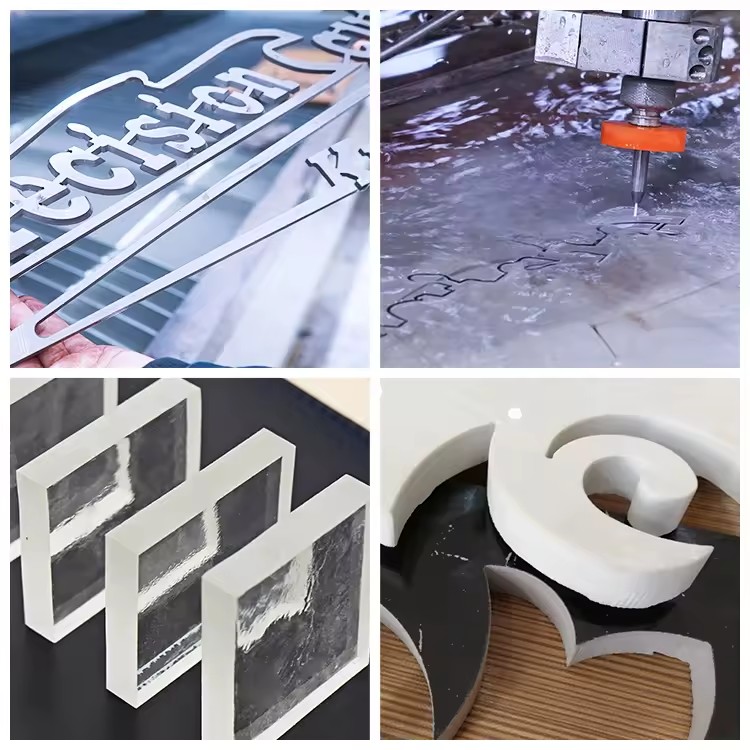

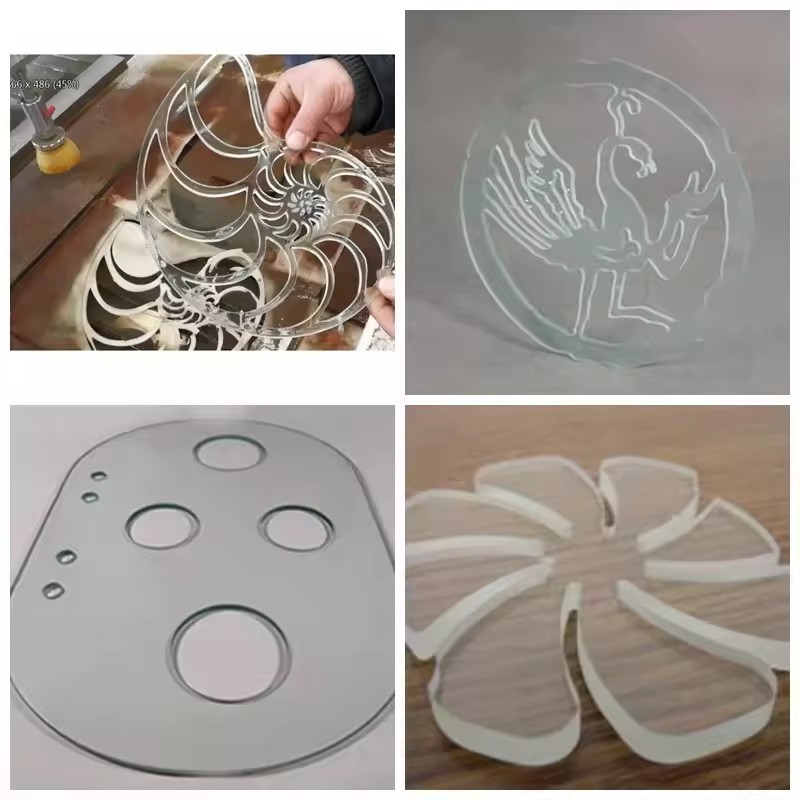

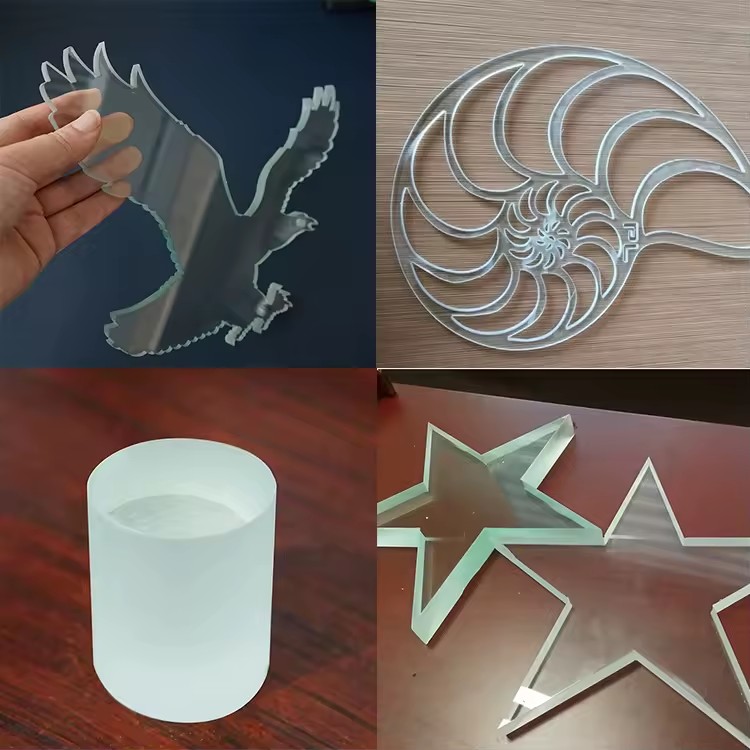

Cutting Samples

Recommend Products

view more >>

Recommended by seller

$34,000-36,000

set

$29,000-31,000

$16,999-26,666

Company Profile

is a high-tech enterprise specializing in the development, manufacturing, sales, and technical services of CNC ultra-high-pressure water jet technology products.

The company's independently developed new generation of ultra-high pressure generators - servo direct drive pumps, have been widely praised since their launch in 2016. Their advantages of energy saving, environmental protection, high efficiency, and flexibility have been fully utilized.

is dedicated to the innovation and application of ultra-high pressure water jet technology, creating a brand with high quality, high cost-performance, and excellent service.

focuses on developing ultra-high pressure water jet technology, establishing a water jet laboratory for in-depth research and promoting new water cutting equipment aimed at reducing customer costs. The goal is to expand the application of water cutting technology from metals, stone, glass, and rubber/plastics industries to the food and medical sectors.

Innovative R&D is the foundation for the company's long-term survival, and the application of technology ensures meeting customer needs and contributing to society.

Exhibition

Packing&Delivery

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
