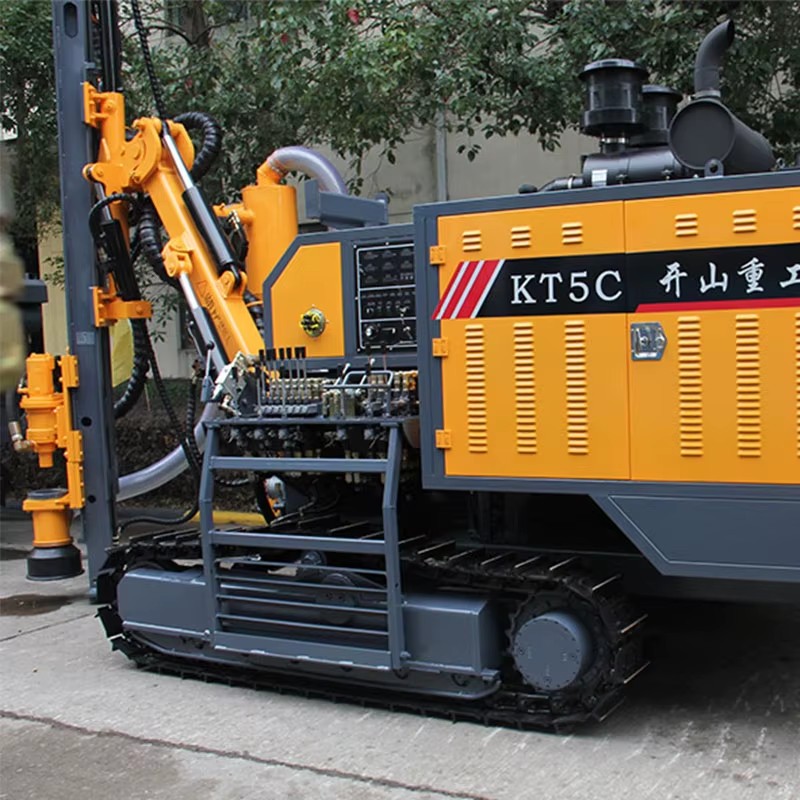

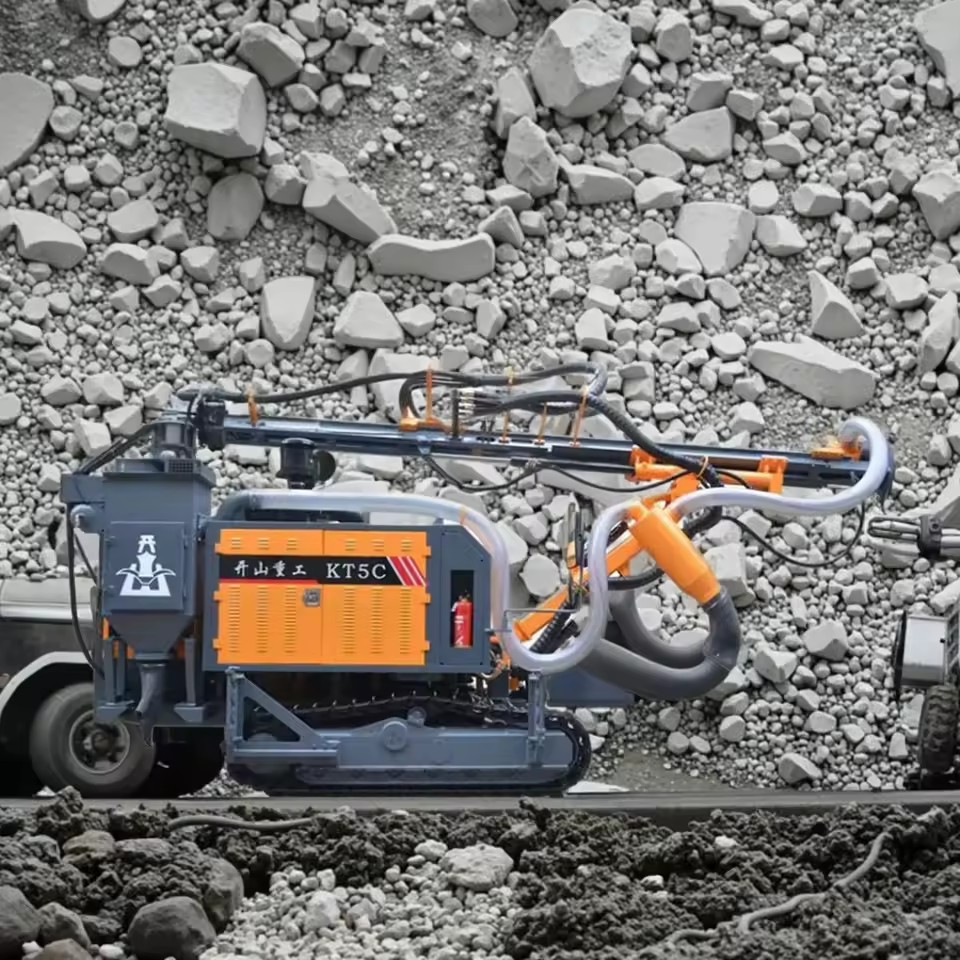

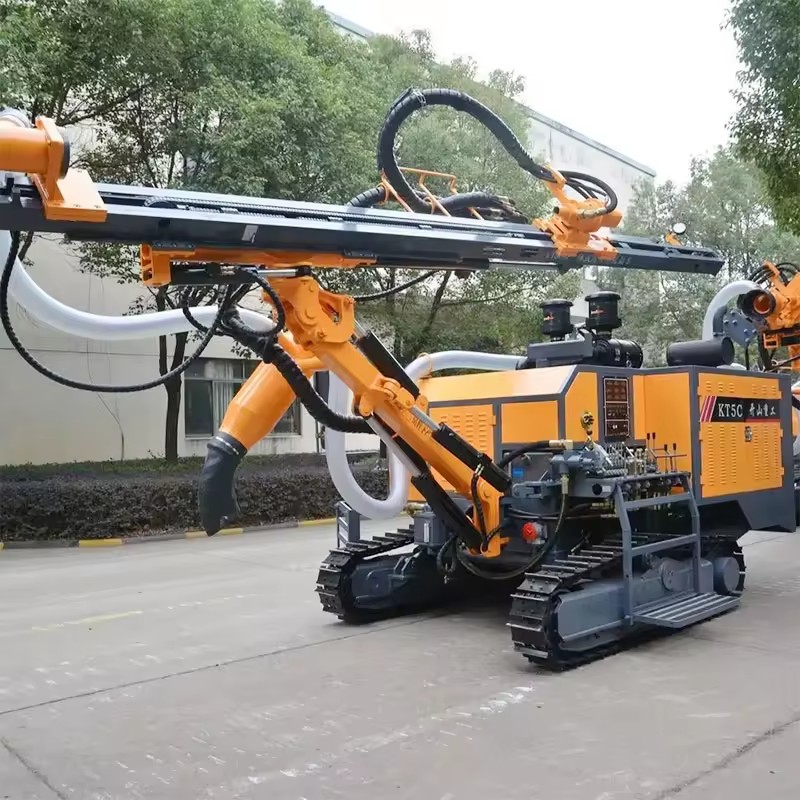

Kaishan KT5C Integrated Type Mining Drilling Rig Pneumatic Rotary Borehole Hard Rock Mine Drill Machine
Price
$
53420.00
Product information
Attributes
Usage
Ore
Type
dth drill rig
Drilling Depth
25m(82.02ft)
Drilling Diameter
80-105mm(3.15-4.13in)
Power Type
Diesel
Voltage
24 V
Core components
Engine, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
Zhejiang, China
Weight
8000 KG(17636.98lb)
Dimension (L*W*H)
7800*2300*2500mm(307.09*90.55*98.43in)
Color
yellow and black
Drilling hardness
f=6-20
Diesel engine
Yuchai brand
Supporting power
162KW/2200r.min
Rotation speed of gyrator
0-120 r/min
Rotary Torque
1680 N.m(Max)
Max push-pull force
25000 N
Dimension
7800*2300*2500mm
Selling Units
Single item
Single package size
780X230X250 cm
Single gross weight
8000.0 kg
Model number
KT5C
Power (W) (Product option)
162KW(217.25hp)
Fulfilment
Delivery
Lead time
25 days
Shipping and estimated delivery
Shipping fees and delivery dates are confirmed with your quotation.
