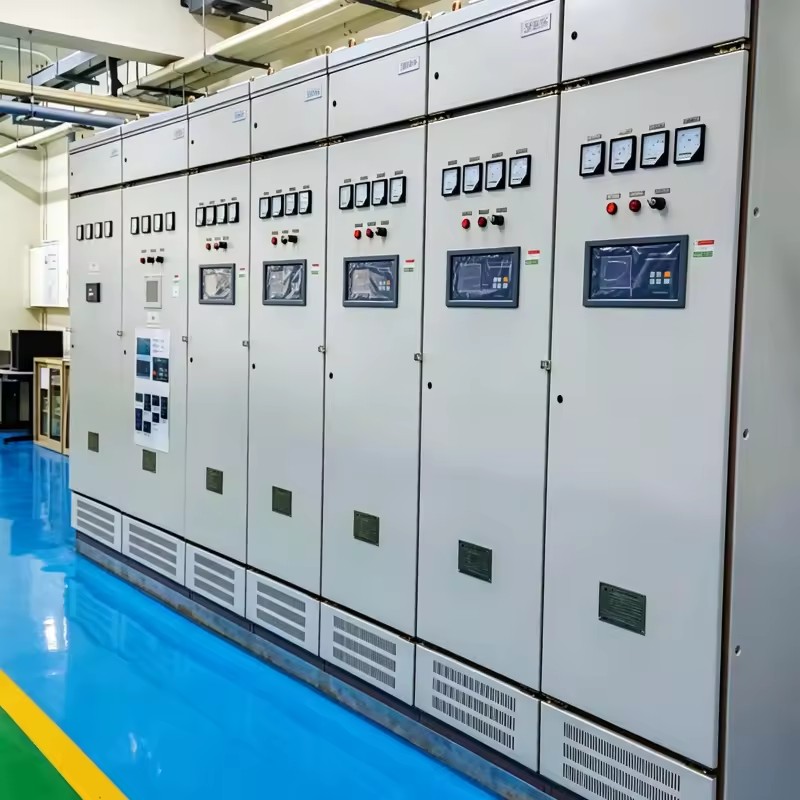

GGD Series Copper Heavy Duty IP54 High Capacity Switchgear for Oil & Gas Refinery Substation Turnkey Solutions

Available for enquiry 0.0 · 0 reviews
USD

$ 500.00 500.0 USD $ 500.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Rated voltage
  • Rated current
  • Application
  • IP level
  • Type
  • Number of Sockets
  • Lock Type
  • Place of origin
  • Model number (Specification)
  • Product model
  • Rated Insulation Voltage
  • Rated Operating Voltage
  • Rated frequency
  • Rated Current of Horizontal Busbar
  • Rated Current of Vertical Busbar
  • Installation type
  • Operation mode
  • Altitude
  • Warranty
  • Selling Units
  • Single volume
  • Single gross weight
  • Color (Product option)
  • Size (Product option)
  • Material (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Rated voltage
220 V, 380 V, 110 V, 120 V, 480V, 415V, 125 V, 690V
Rated current
100A, 300 A, 125 A, 630 A, 220 A
Application
Outdoor, Industrial, Indoor, Electric Power Transmission
IP level
IP54
Type
LV Switchgear Cabinet
Number of Sockets
6, 8, 16, 0
Product description
  • OEM/ODM One-Stop Service: We provide end-to-end "Design-to-Delivery" solutions. Tailored "Design-to-Delivery" service for hardware and software logic to meet your specific project needs.
  • High-Standard Components & Quality Assurance: We utilize only top-tier, industry-leading electronic components to ensure maximum stability. As a certified High-Tech Enterprise,our cabinets feature modular designs and advanced insulation, meeting rigorous international safety and durability standards.
  • Factory-Direct Pricing & Supply Chain: Direct manufacturing and integrated supply chain eliminate middleman costs, offering the best cost-performance ratio.
  • Decades of Engineering Expertise: Our R&D team possesses extensive field experience in diverse sectors likechemical, steel, metallurgical, hospital and other industries.We don't just sell equipment; we provide professional technical consultation, installation guidance, and system debugging.
  • 100% Pre-Shipment Testing & Support: Every system undergoes rigorous functional simulation and load testing before shipment. We provide lifetime technical support and a rapid-response team to handle any operational inquiries, ensuring your project’s long-term success.
    • Rated Operational VoltageAC 380V / 400V / 415V / 660V
    Rated Insulation Voltage660V / 1000V
    Rated Frequency50Hz / 60Hz
    Rated Operational Current400A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A, 3150A
    Rated Short-time Current15kA / 30kA / 50kA (1s)
    Rated Peak Withstand Current30kA / 63kA / 105kA
    Protection DegreeIP30, IP40, IP41, IP54
    Altitude≤ 2000m (Special design for high altitude)
    Ambient Temperature5℃ ~ +40℃
    StandardsIEC 61439-1/2, GB 7251.1/12, CE
    Cabinet Size600/800/1000 * 800/1000 * 2200 mm（Customizable）
    Certifications & compliance
    CE
    Complies with EU standards
    Description images

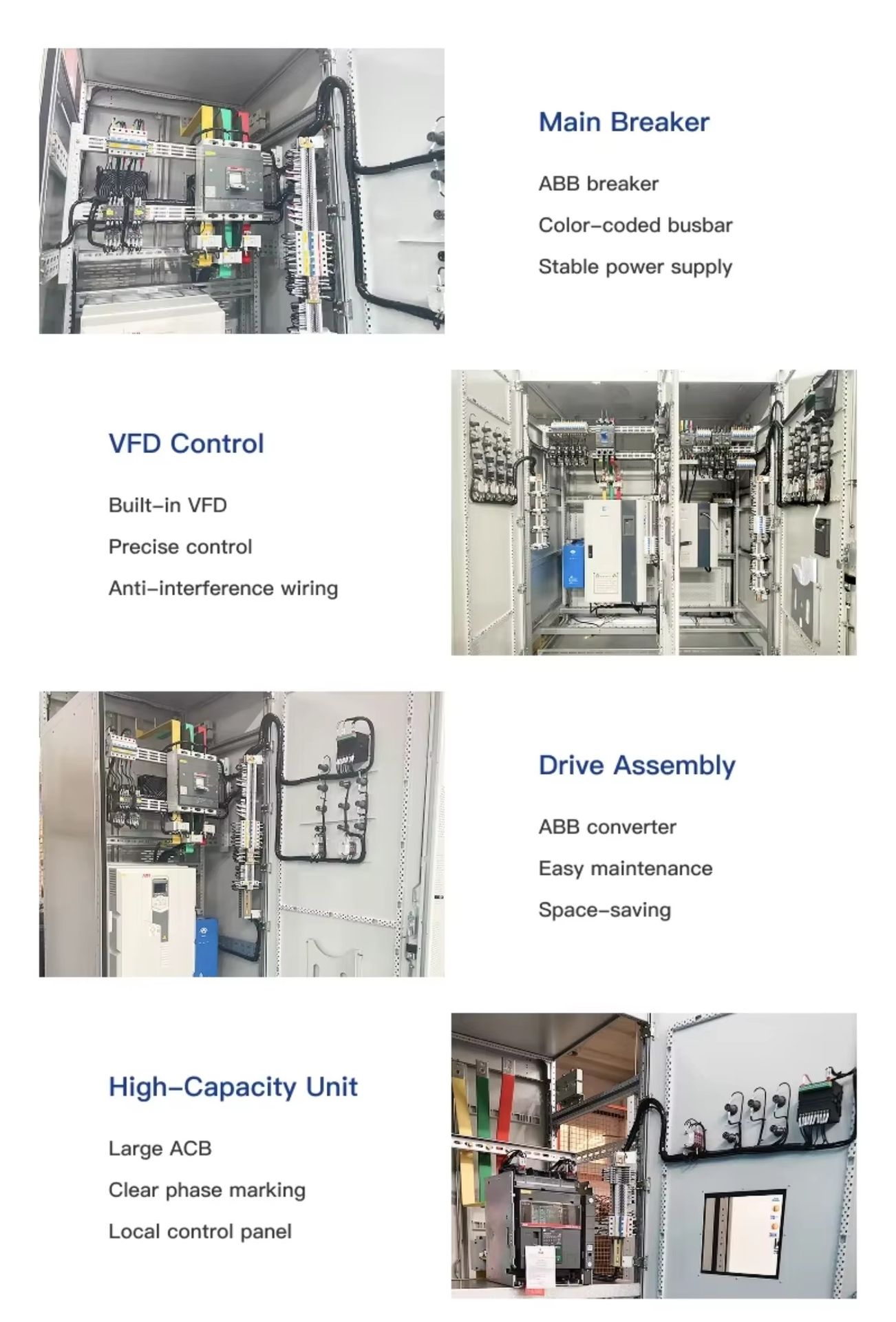

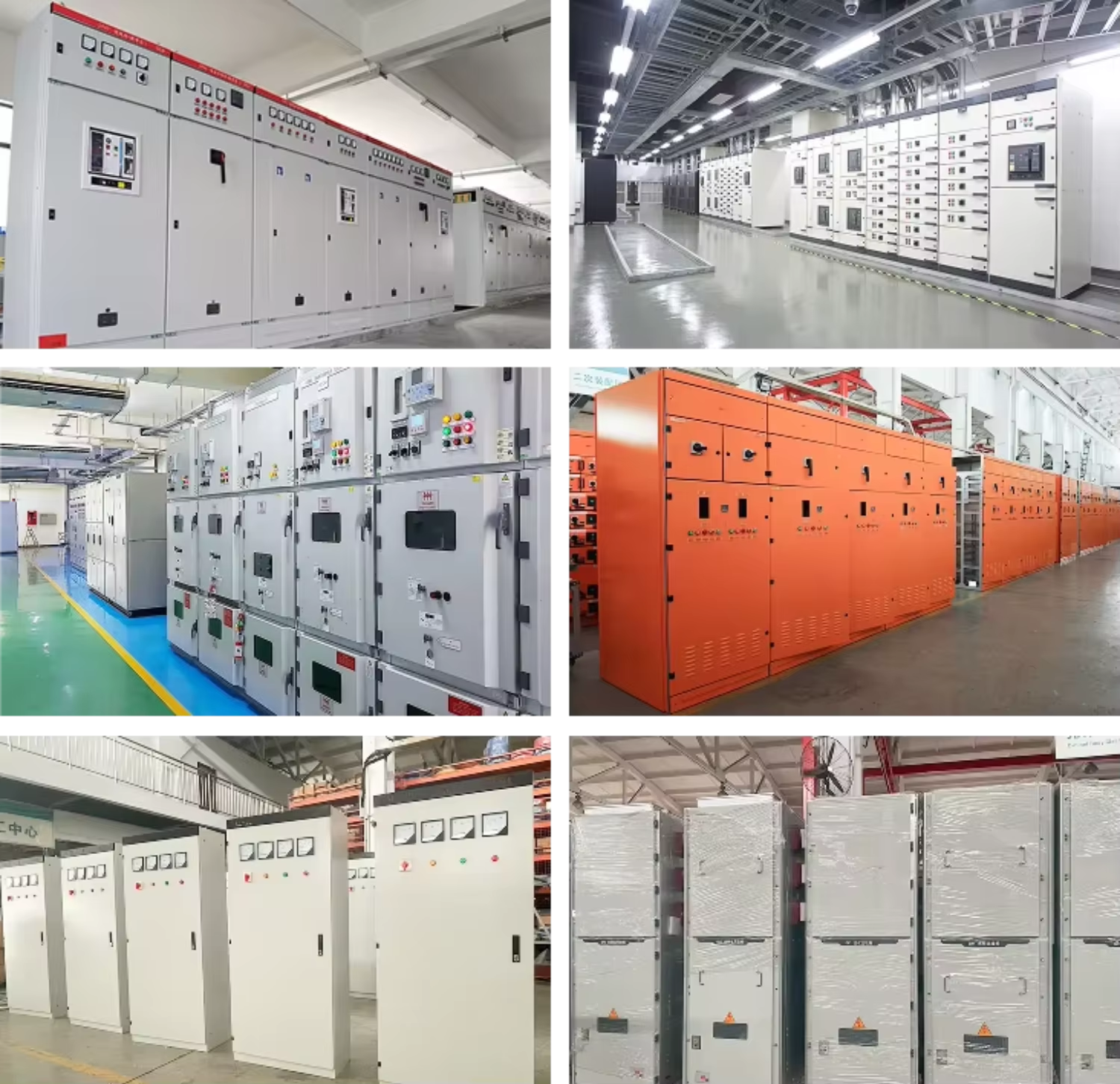

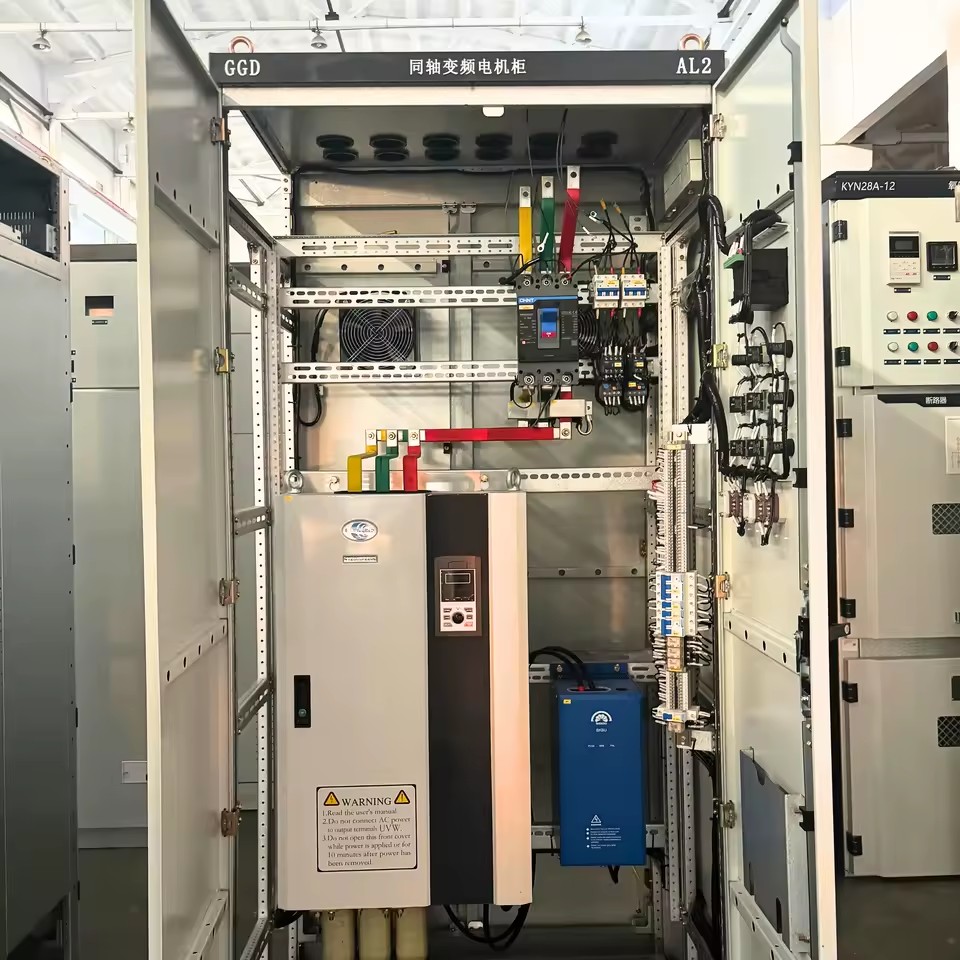

    GGD Series Copper Heavy Duty IP54 High Capacity Switchgear for Oil & Gas Refinery Substation Turnkey Solutions
    GGD Series Copper Heavy Duty IP54 High Capacity Switchgear for Oil & Gas Refinery Substation Turnkey Solutions
    GGD Series Copper Heavy Duty IP54 High Capacity Switchgear for Oil & Gas Refinery Substation Turnkey Solutions
    GGD Series Copper Heavy Duty IP54 High Capacity Switchgear for Oil & Gas Refinery Substation Turnkey Solutions
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      15 days

    • Step 3

      Packaging and dispatch

      Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 26 fields
    Rated voltage
    220 V, 380 V, 110 V, 120 V, 480V, 415V, 125 V, 690V
    Rated current
    100A, 300 A, 125 A, 630 A, 220 A
    Application
    Outdoor, Industrial, Indoor, Electric Power Transmission
    IP level
    IP54
    Type
    LV Switchgear Cabinet
    Number of Sockets
    6, 8, 16, 0
    Lock Type
    Hybrid Lock
    Place of origin
    China, Henan
    Model number (Specification)
    GGD
    Product model
    GGD Series Low-voltage Fixed Switchgear
    Rated Insulation Voltage
    660V
    Rated Operating Voltage
    380V / 400V
    Rated frequency
    50HZ/60HZ
    Rated Current of Horizontal Busbar
    ≤3150A
    Rated Current of Vertical Busbar
    ≤1600A
    Installation type
    Indoor fixed installation
    Operation mode
    Front operation, double-door maintenance
    Altitude
    ≤2000m
    Warranty
    3 Years
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Color (Product option)
    Gray
    Size (Product option)
    customized
    Material (Product option)
    Carbon Steel, Aluminium, Copper
    Certifications & Compliance
    CE
    Lead time
    15 days
    Minimum order
    1 Units
