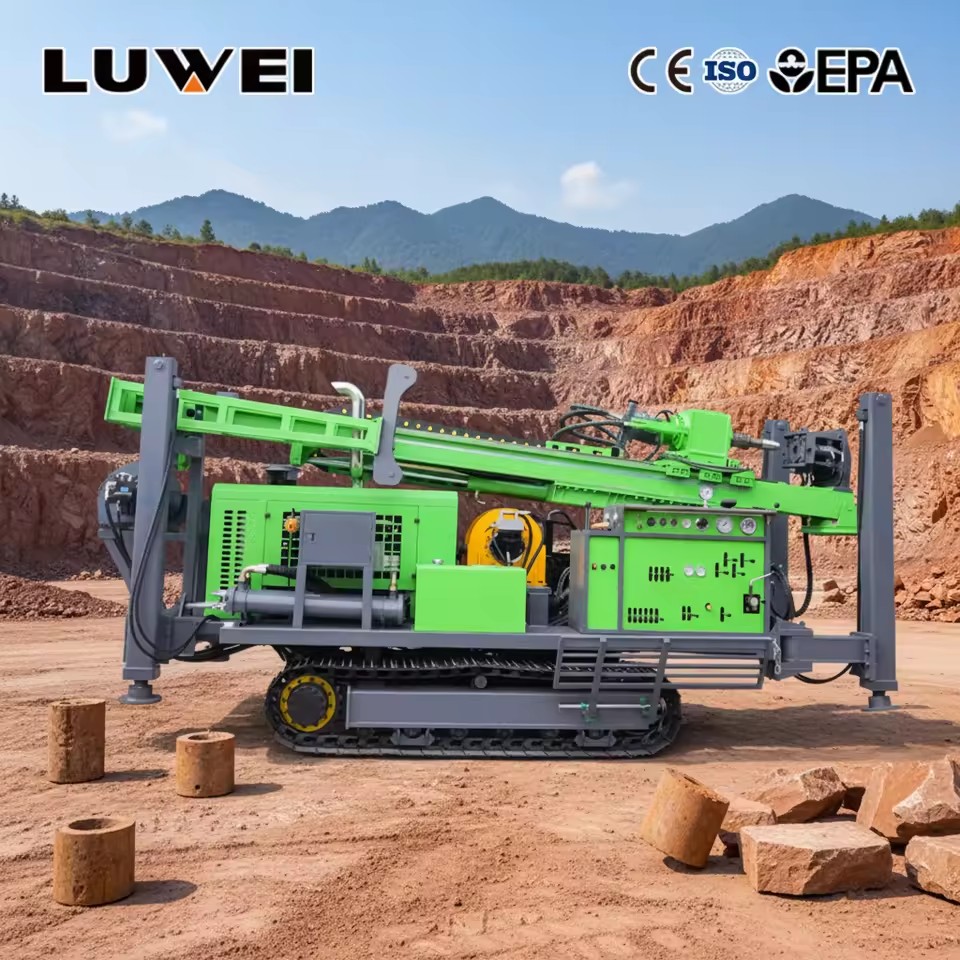

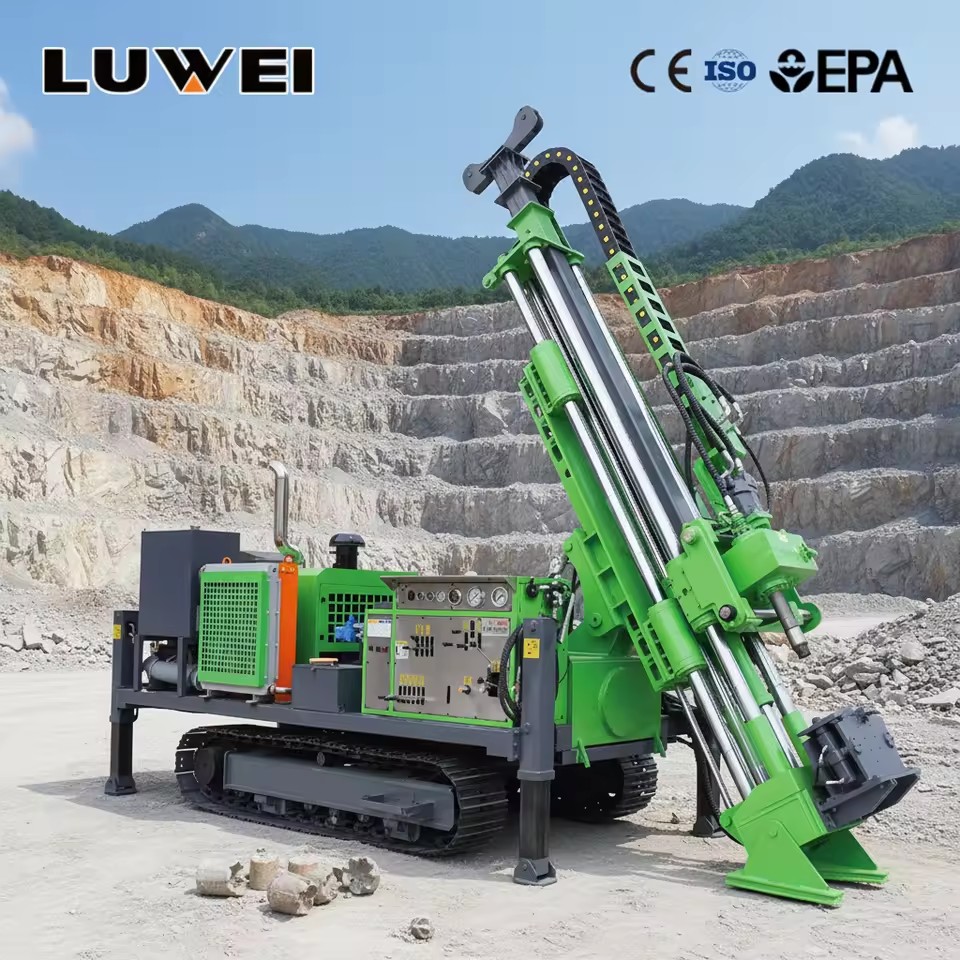

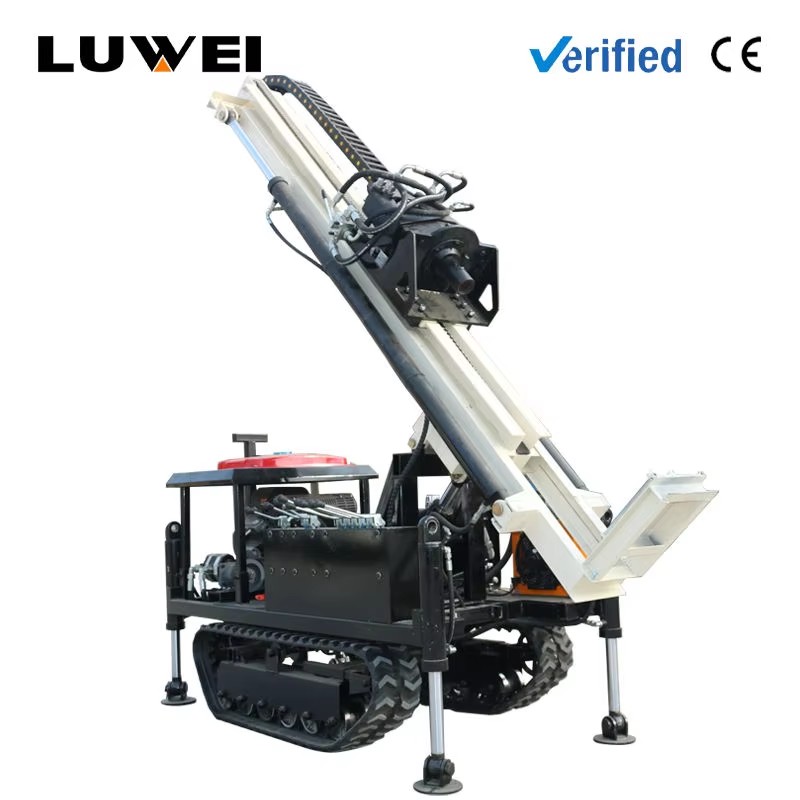

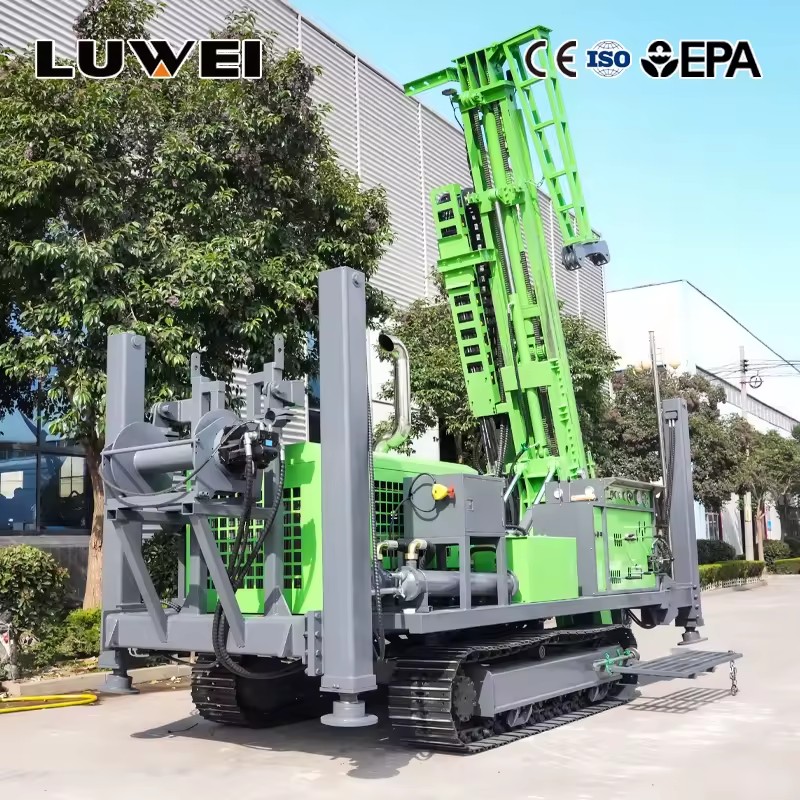

Name: Geological Exploration Drill Rig Fully Automatic Rope Steel Track Chassis Diesel Powered Crawler Track High Pump Motor
SKU: B2B-39841
Price: 3430.0 USD
Availability: PreOrder

Product description

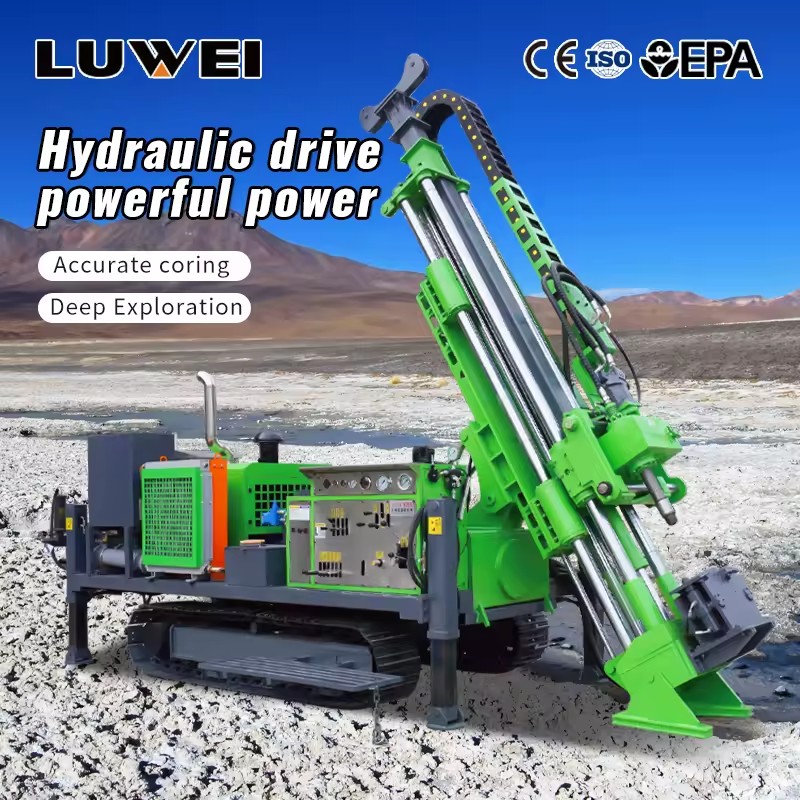

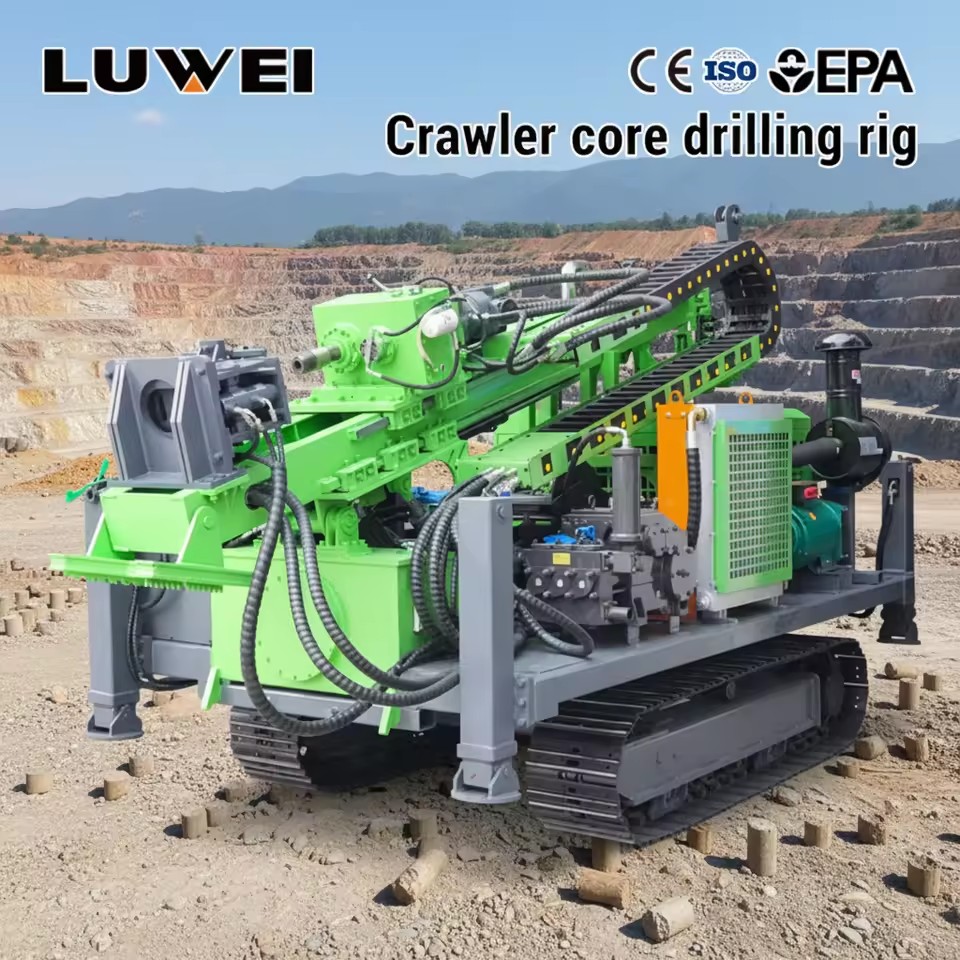

Hydraulic core drilling rig Rock drill

Wide range of applications

Rig type	LW-600	LW-800	LW-1000A/B
Weight	4500kg	6500kg	7000kg
Dimension (transport)	450019002650mm	440022002800mm	470021002600mm
Dimension (working)	450025006100mm	400027006500mm	420026506500mm
Driling angle	45-90°	45-90°	45-90°
Driling depth BTW/BQ	650m	1000m	1200m
Driling depth NTW/NQ	600m	800m	1000m
Driing depth HTW/HQ	400m	600m	800m
Drill head lift force	240kN	300kN	360kN
Dril head feed force	120kN	150kN	180kN
Rotary speed RPM	0-1400rpm	0-1400rpm	0-1400rpm
Max. Torque	1800N. m	2000N. m	2600N.m
Drill head feed stroke	1800mm	1800mm	1800mm/3500mm
Crawler climbing angle	25°	25°	25°
Crawler walking speed	2-3km/h	2-3km/h	2-3km/h
Winch lifting speed	110m/min	110m/min	110m/min
Mechanical winch capacity	15kN	20kN	24kN

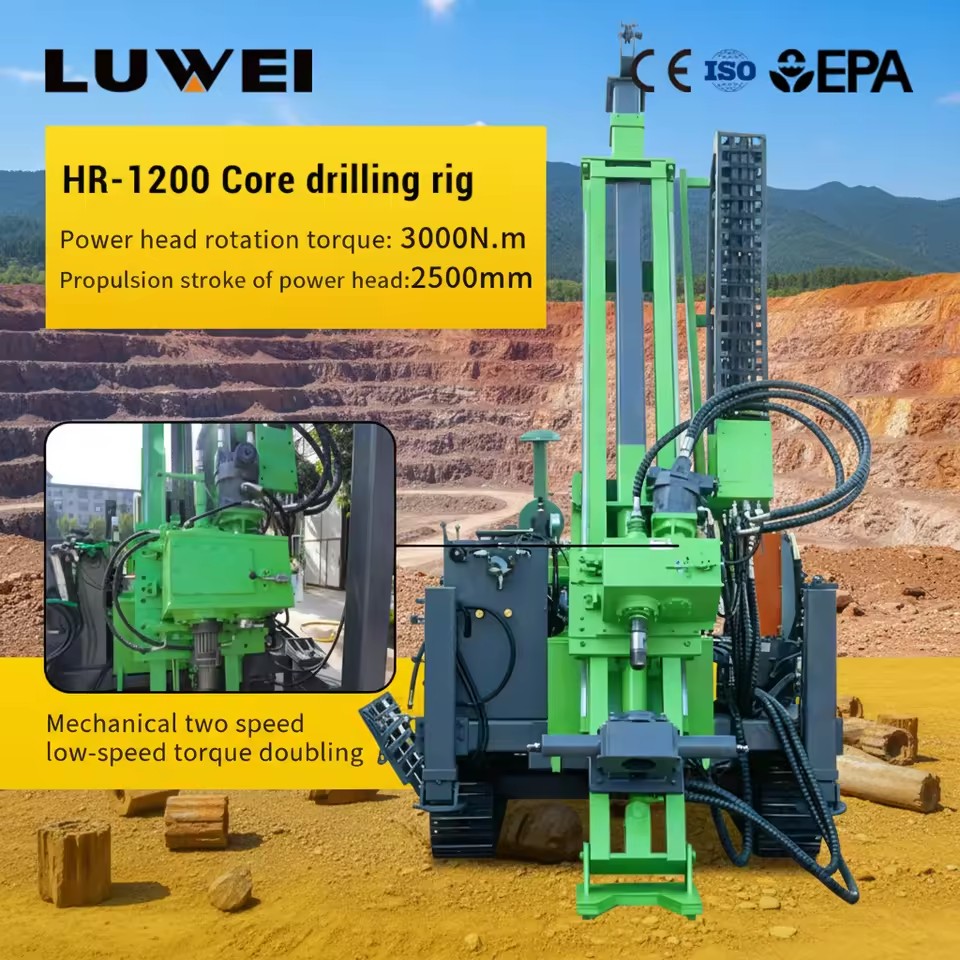

Rig type	LW-1000C	LW-1200
Weight	9000kg	10000kg
Dimension (transport)	550021002600mm	560021002800mm
Dimension (working)	460026508000mm	460026508000mm
Driling angle	45-90°	45-90°
Driling depth BTW/BQ	1200m	1400m
Driling depth NTW/NQ	1000m	1200m
Driing depth HTW/HQ	800m	1000m
Drill head lift force	360kN	400kN
Dril head feed force	180kN	200kN
Rotary speed RPM	0-1400rpm	0-1400rpm
Max. Torque	2600N.m	3000N.m
Drill head feed stroke	2500mm	2500mm
Hydraulic winch capacity	1000m	1200m
Mechanical winch capacity	24kN	30kN
Winch lifting speed	110m/min	110m/min
Crawler climbing angle	25°	25°
Crawler walking speed	2-3km/h	2-3km/h

Rig type	JY-1600	JY-2000
Weight	10000kg	12000kg
Dimension (transport)	590021002400mm	600022002500mm
Dimension (working)	590026508100mm	530036008100mm
Driling angle	45-90°	45-90°
Driling depth BTW/BQ	1800m	2200m
Driling depth NTW/NQ	1600m	2000m
Driing depth HTW/HQ	1400m	1800m
Drill head lift force	460kN	600kN
Dril head feed force	230kN	300kN
Rotary speed RPM	0-1400rpm	0-1400rpm
Max. Torque	4000N. m	5000N.m
Drill head feed stroke	3500mm	3500mm
Drill mast slide stroke	1200mm	1200mm
Hydraulic winch capacity	1600m	2000m
Mechanical winch capacity	30kN	45kN
Mud pump	110m/min	110m/min
Crawler climbing angle	25°	25°
Crawler walking speed	2-3km/h	2-3km/h

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Usage

Water Well

Type

Core Drilling Rig

Drilling Depth

Max.2200m

Drilling Diameter

500 mm(19.69in), 40 mm(1.57in), 400 mm(15.75in)

Power Type

Diesel

Voltage

Diesel engine

Core components

Motor, Engine, Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

High Productivity

Place of origin

China, Shandong

Weight

9000 kg(19841.60lb)

Dimension (L*W*H)

5350*1850*2600mm(210.63*72.83*102.36in)

Mobility

crawler track

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power (W) (Product option)

91kw(122.03hp)

Model number

Product Deposit deposit, LW-600

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
