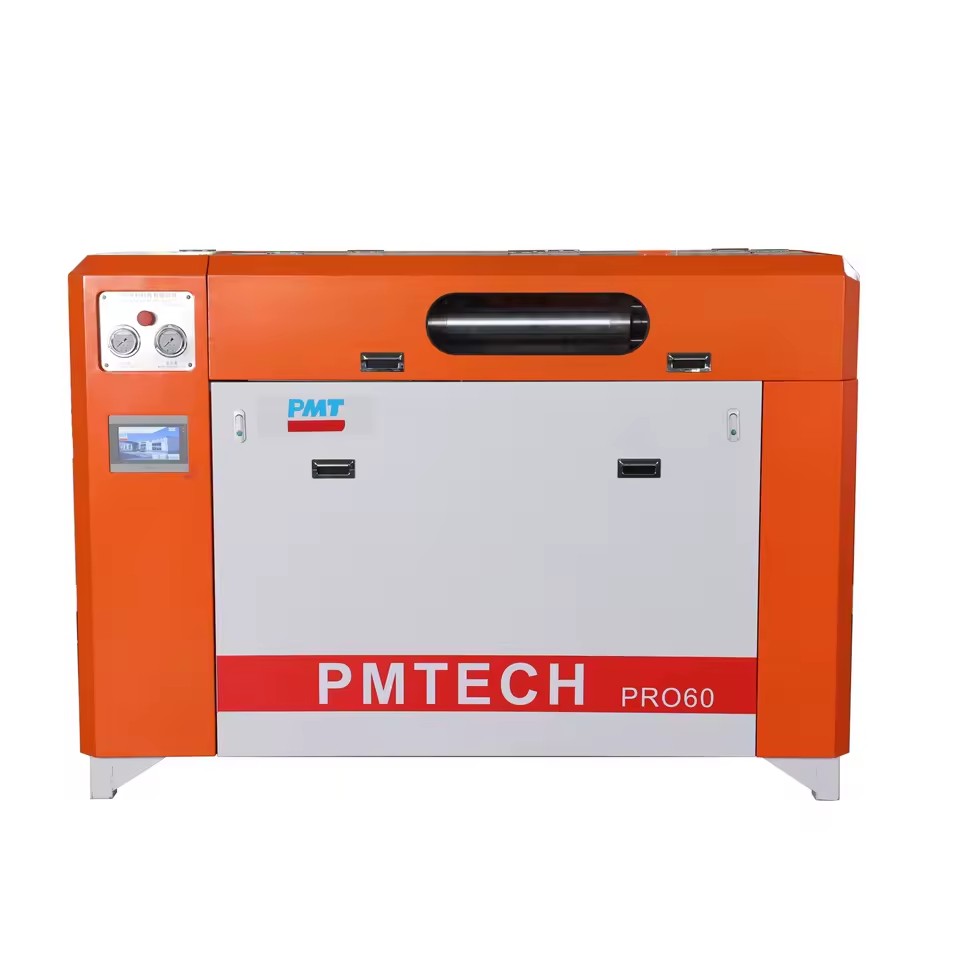

6000 Bar Water Jet Head Cutting Pump 90KSI Waterjet Cutter Machine for Aviation or Titanium Metal Cutting

Name: 6000bar 9 0KSI-PRO- water jet pump

外型尺寸Dimension(L*W*H)

1800*1300*1400mm

重量Weight

1300Kg

电机功率Power rate

45kw/60hp

最大压力Max. pressure

600Mpa /6000bar

工作压力Working pressure

450-600Mpa

最大排油量Max. oil discharge

135L/min

最大流量Max. Flow rate

3.5 L/min

电源设备Power supply

380 V 50hz

供水Water supply

≥15.1L/min

电机Main Motor

Siemens Brand

Product Description

00:00

00:43

This is FOB price for you.

The platform can only send

Ablibaba

so the freight need to quotation the sales. Our machine can only be installed in the cabinet, so please

Advantage of

90KSI-PRO

Waterjet Cutting Machine For

Metal or

HPP (High-Pressure Processing)

​signed base on CE, ISO9001 standard

​2. Motor is

Siemens

3. Pressure control by servo-proportional ​

4. Setting different pressure for cutting different materials. ​

5. Stable working pressure and easy maintenance.

Detailed Images

Product Paramenters

Name

6000bar

9

0KSI-PRO

water jet pump

1.

Siemens motor

2.valve ​ Stainless steel oil tank

3.Water-cooling system ​Stainless steel water supply and iltration system

​ 4.Alarm function of water supply

1. ​

90

000 psi

water jet intensifier,6000 bar

2. 45kw/60hp

S

i

emens

moter

3. slababe working pressure

4. flow high pressure water jet spare parts

CNC Control ​

1. Professional IPC offers excellent protection against electronic interference and high-reliability ​

2. Full Auto CAD DWG format support, automatically control code generation from DWG files. ​

3.Simulation runs can be used to double check for design flaws. ​

tomatically lead-in, lead out and corner compensation increase production efficiency and quality. ​Remote control can provide an easy operation.

Ralevant Products

Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on!!!

The cutting speed of mini waterjet cutting machine varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration, Generally for PMT waterjet, you could find the following speed just for your reference.

1, basic working principle of the super-high pressure water jet cutting machine2, working principle of the high-pressure system

and supercharge

3, replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts

4, maintenance of the high-pressure system and judgment and troubleshooting of common failures

5, CNC Programming&operation&operation of the NC cutting platform

6, daily maintenance of the NC cutting platform

7, equipment installation

8, abrasive control and transportation operation and CNC communication

9, operation of the CAD / CAM software and CNC communication

10, working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional parts, high-pressure water switches and abrasive cutting head

1, Free warranty for the whole machine for one year or 2000 high-pressure/hour 2, Training of two personnel for operation and

maintenance of equipment and one computer operator for the user

3, On-line installation and commissioning (the user is responsible for board and lodging)

4, Lifetime maintenance

5, To Guarantee long-term supply of spare parts

6, To enjoy upgrade of special prices when there are new products and technologies

7, Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after receipt notice. For a common failure, direct the user to resume production as soon as possible by way of

Product packaging

Wate jet cutting machine package

wooden package out side, inside soft packages or all of soft film and ensure safety. including hp pump,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm, 4000-6000kgs,whole one set waterjet machine equiment.

Water jet

spare parts

soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.

Delivery time for machines

15-30days Delivery time

waterjet spare parts

1-7days

Company Profile

Certifications

FAQ

Waterjet Cutting for Aviation RFQ (Q&A) 1. Q: What’s the main application of the waterjet cutting equipment? A: For precision cutting of aviation materials like aluminum alloy, titanium alloy, composite materials.

2. Q: What’s the required cutting precision? A: Tolerance within ±0.02mm, surface roughness Ra≤1.6μm.

3. Q: What max material thickness can be cut? A: Up to 50mm for metal materials, 30mm for composite materials.

4. Q: Is abrasive waterjet cutting supported? A: Yes, must be compatible with high-hardness abrasives (e.g., garnet).

5. Q: What’s the required pump pressure? A: Minimum 40000 psi (275.8 MPa) for efficient cutting.

6. Q: Does the equipment have auto-positioning function? A: Yes, with CNC system and auto-positioning accuracy ≤0.01mm.

7. Q: What aviation material certifications does the equipment meet? A: Meet AS9100 and ISO 9001 aviation industry standards.

8. Q: What’s the delivery time after order confirmation? A: Within 90 working days, including installation guide.

9. Q: Is after-sales service provided? A: Yes, 24-month warranty and on-site maintenance support.

10. Q: Please provide the equipment power consumption and dimension. A: Power consumption: ≤90kW; Dimension: 4500×3000×2200mm (L×W×H).
