DN10 R1 Flexible Black NBR Hydraulic Oil Hose 1-6 Layers Wire Reinforced EN853 1SN Custom Cutting Service

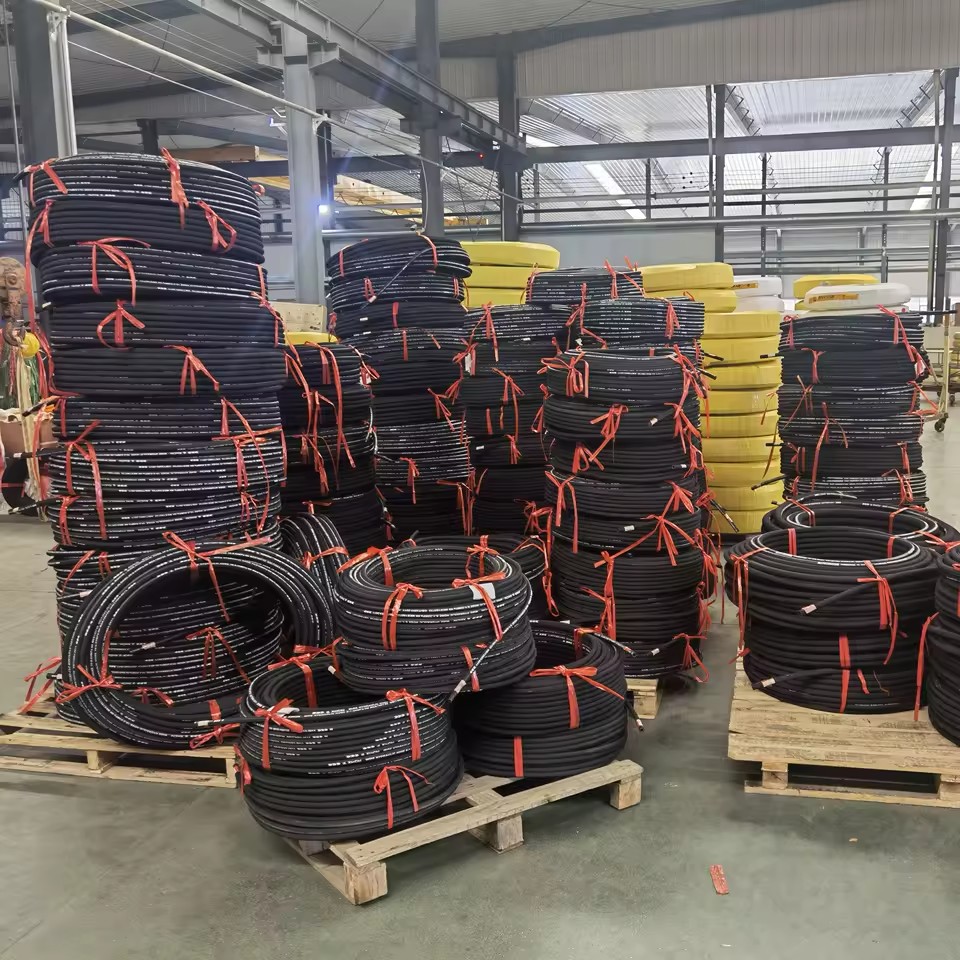

Product Importer Gallery 01 · 9deccf5776

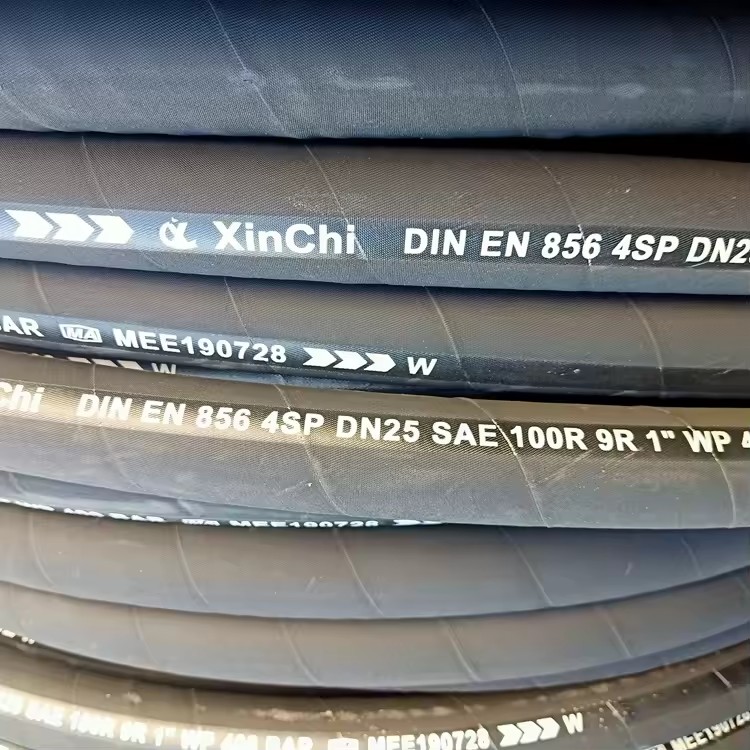

Product Importer Gallery 02 · acb4c2c7b7

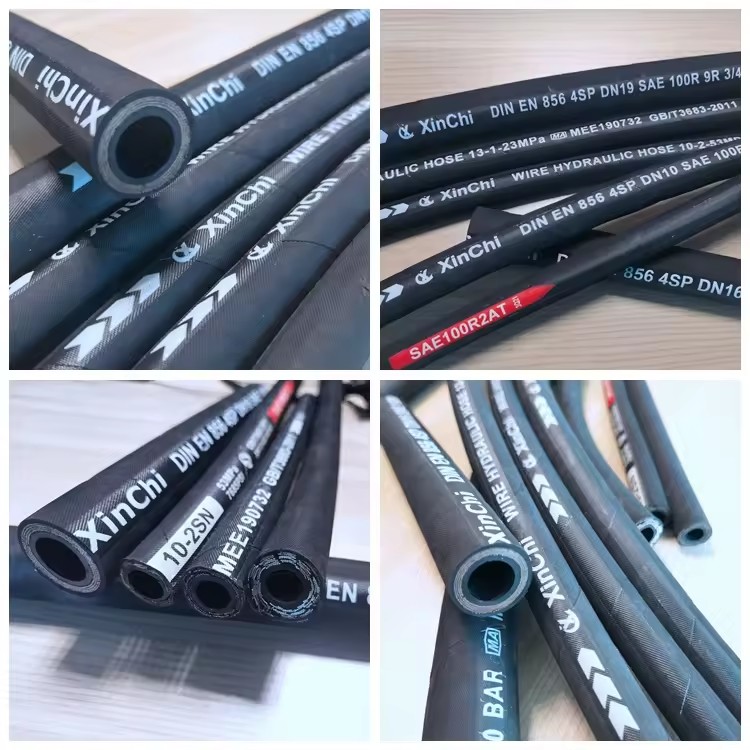

Product Importer Gallery 03 · 05a338f0c3

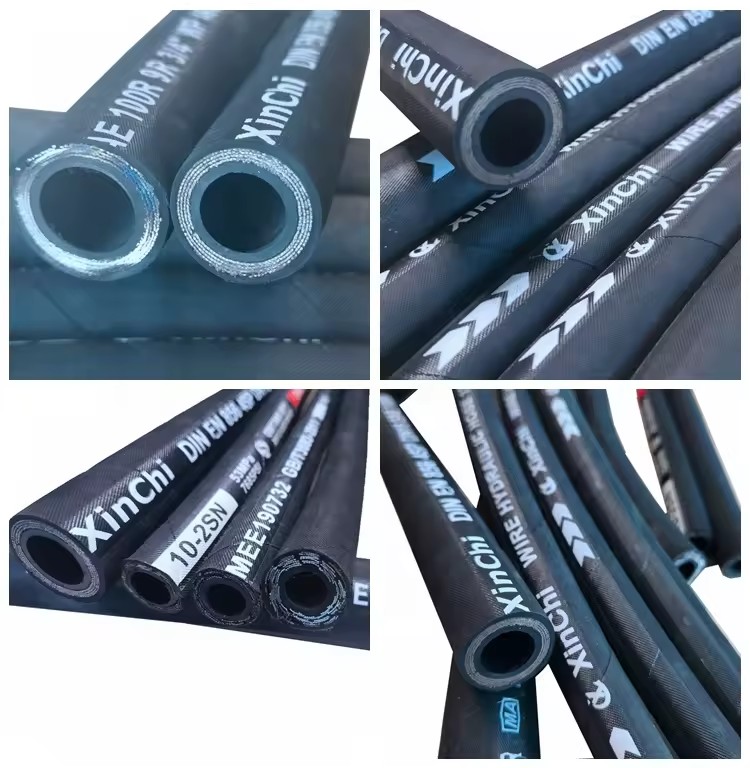

Product Importer Gallery 04 · 62e2f1e3da

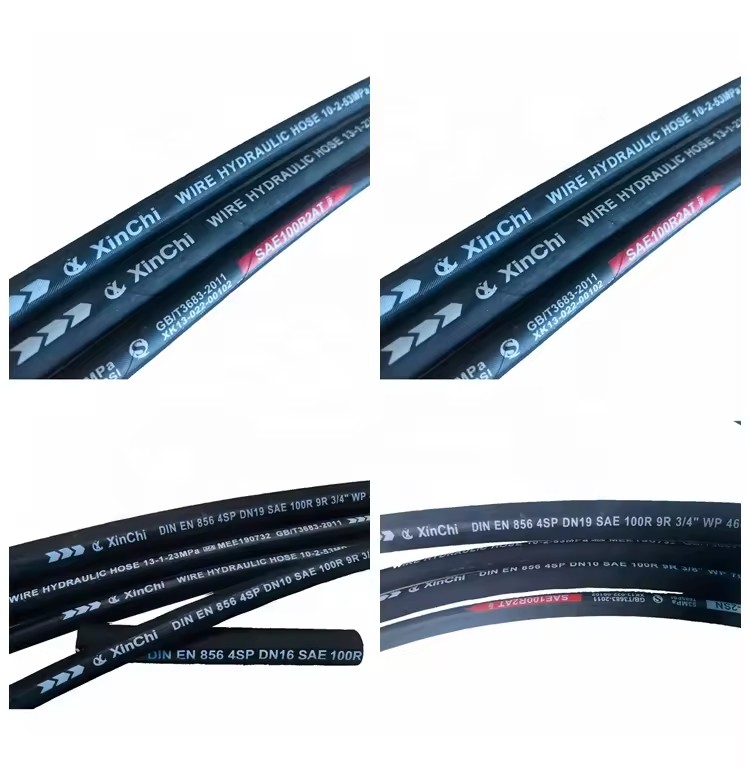

Product Importer Gallery 05 · b846a24b6d

Product video

Certifications CCC

DN10 R1 Flexible Black NBR Hydraulic Oil Hose 1-6 Layers Wire Reinforced EN853 1SN Custom Cutting Service

Name: DN10 R1 Flexible Black NBR Hydraulic Oil Hose 1-6 Layers Wire Reinforced EN853 1SN Custom Cutting Service
SKU: GBVW-ZPXS-KE8J
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews 214 sold

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 100 Units

Key attributes

View all

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Material

NBR

Cover

Weather Resistant Synthetic Rubber

Length

Customized Length

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Approx. shipping fee: $ 164.86 for 100 meters · Estimated delivery: Sep 29–Oct 16 (28–45 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

item	value
Place of Origin
Hebei
Brand Name	XINCHI
Model Number	DIN
Processing Service	Moulding, Cutting
Material	NBR
Cover	Weather Resistant Synthetic Rubber
Length	Customized Length
Size	Customized Size
Color	Black
Reinforcement	1-6 Layers Wire
MOQ	1pcs
Standard	SAE100RAT/DIN EN853
Quality	100% Product Testing
Sample	Free(Customer Pays Freight)

High Pressure Rubber Hose

Reinforcement	Number
One steel wire braided	SAE R1AT/DIN 1SN. SAE R1AT/DIN 1ST, DIN 1SNK DIN/EN 1SN WG, DIN 1SC, SAE R5, SAE 100R17
Two steel wire braided	SAE R2AT/DIN 2SN, SAE R2AT/DIN 2ST, DIN 2SNK, DIN 2SC
One/two wire braided	SAE R16
Four steel wire spiral	SAE R9AT, SAE R10, SAE R12, DIN 4SP, DIN 4SH
High flexibility nylon or thermoplastic	SAE R7, SAE R8

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	9	10	11.1	13	25	50	100	85
6.3	1/4	10.6	11.6	12.7	14	22.5	45	90	100
8	5/16	12.1	13.3	14.3	16	21.5	43	86	115
10	3/8	14.5	15.7	16.7	18	18	36	72	130
12.5	1/2	17.5	19.1	19.8	21	16	32	64	180
16	5/8	20.6	22.2	22.9	25	13	26	52	200
19	3/4	24.6	26.2	26.9	29	10.5	21	42	240
25	1	32.5	34.1	34.6	37	8.8	17.6	35.2	300
31.5	1-1/4	39.3	41.7	42.2	45	6.3	12.6	25.2	420
38	1-1/2	45.6	48	49.1	52	5	10	20	500
51	2	58.7	61.7	62.5	66	4	8	16	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	10.6	11.6	12.7	14	41.5	83	166	90
6.3	1/4	12.1	13.3	14.3	16	40	80	160	100
8	5/16	13.7	14.9	15.9	17	35	70	140	115
10	3/8	16.1	17.3	18.3	20	33	66	132	130
12.5	1/2	19	20.6	21.4	23	27.5	55	110	180
16	5/8	22.2	23.8	24.6	26	25	50	100	200
19	3/4	26.2	27.8	28.5	30	21.5	43	86	240
25	1	34.1	35.7	37.3	39	16.5	33	66	300
31.5	1-1/4	43.3	45.7	47.1	50	12.5	25	50	420
38	1-1/2	49.6	52	53.3	56	9	18	36	500
51	2	62.3	64.7	66	69	8	16	32	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
10	3/8	16.9	18.1	20.6	22.2	44.5	89	178	180
12.5	1/2	19.4	21	23.8	25.4	41.5	83	166	230
16	5/8	23	24.6	27.4	29	35	70	140	250
19	3/4	27.4	29	31.4	33	35	70	140	300
25	1	34.5	36.1	38.5	40.9	28	56	112	340
31.5	1-1/4	45	47	49.2	52.4	21	42	84	460
38	1-1/2	51.4	53.4	55.6	58.8	18.5	37	74	560
51	2	64.3	66.3	68.2	71.4	16.5	33	66	660
64	2-1/2	76	78	83.1	85.5	35	70	140	990
76	3	100	103	105.1	108	35	70	140	1200
89	3-1/2	114	115.5	118	122	35	70	140	1300
102	4	126	128	131	134.2	35	70	140	1400

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
19	3/4	27.6	29.2	31.4	33	42	84	168	280
25	1	34.4	36	37.5	39.9	38	76	152	340
31.5	1-1/4	40.9	42.9	43.9	47.1	32.5	65	130	460
38	1-1/2	47.8	49.8	51.9	55.1	29	58	116	560
51	2	62.2	64.2	66.5	69.7	25	50	100	700

Certifications & compliance

CCC

Flame Retardant Material

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 164.86 for 100 meters · Estimated delivery: Sep 29–Oct 16 (28–45 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 17 fields

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Material

NBR

Cover

Weather Resistant Synthetic Rubber

Length

Customized Length

Size

Customized Size

Color

Black

Reinforcement

1-6 Layers Wire

MOQ

1PCS

Standard

SAE100RAT/DIN EN853

Quality

100% Product Testing

Sample

Free(Customer Pays Freight)

Selling Units

Single item

Single package size

50X50X4 cm

Single gross weight

1.0 kg

Certifications & Compliance

CCC

Minimum order

100 Units
