AUTO SULLAGE REMOVAL SYSTEM 2.0
Technical specifications
The high-pressure pump is characterized by
Nominal power
37 kW / 50 HP
•Hydraulic pump of variable flow and compensated pressure
Maximum working pressure
4136 bar
•High / low pressure selection that allows piercing
Maximum flow
4.1 L/min
•Electrical inversion of the cutting head
Hydraulic tank capacity
211 L
•Noise level below 80dB
Pressure accumulator volume
1 L
•Leakage detection in de high-pressure circuit
Water inlet pressure
2.4 - 5.5 bar
•Long lasting high pressure seals
Nominal current
72 A
•System to uninstall de piston without uninstalling the cylinder
Protection at 400 V / 50 Hz
80 A
•Air / oil heat exchanger
Noise level
76 dB
•Cost-effective Cutting System
Length x Width Height
1689x1114x1508mm
•Maintenance-free Operation
Weight
1438 Kg
•The sensors, located before and after the booster pump
AUTONOMOUS ABRASIVE FEEDER-ABRALINE 3.0
Net weight
80 kg
Length
700 mm
Width
Height
1400 mm
Storage deposit capacity
200 l
Pressurized tank capacity
24 l
Minimum working pressure
5 bar
7 bar
Maximum compressed air consumption
500 l/min
Maximum abrasive flow rate
1.300 gr/min
Products Description
3015 SERIES WATERJET CUTTING MACHINE 50HP
The MAX-WJ CNC waterjet cutting series is an addition to MAX-WJ CNC waterjet cutting machine line. It provides a vigorous industrial design and rigid construction that combines precision and simplicity. The
MAX-WJ model is made to handle high production for versatile applications. The MAX-WJ waterjet cutting series provides a vigorous industrial design and rigid construction that combines precision and simplicity. The MAX-WJ model is made to handle high production for versatile applications. The MAX-WJ models come in two distinct sizes for the most common applications.
TECHNOLOGICAL ADVANTAGES
*
The most versatile cutting systems on the market today, covering the full range of materials and thicknesses, even painted surfaces.
* Low cutting temperatures to prevent thermal alteration and residual tension.
* Clean cut without harmful atmospheres
* The cut surface neither cracks nor bends.
* Optimal utilization of raw material with negligible material loss
* Eliminates subsequent finishing processes.
* Ability to perform different types of cutting simultaneously
* Very strict tolerances..
FULLY ANNEALED FRAME
®steel frames undergo annealingat over 600⁰ to relieve stress.they are built to last years of heavy use withoutdistortion.
* Very stiff and stable base frame
* Dual synchronized twin servo motor drive system.
* Stress points analysis
* Usage of high-tech boring machines for extreme precision parts.
CAST ALUMINIUM GANTRY
®s high tech Mn-steel crossbeam allows better rigidity at 50% of the weight of traditional iron gantries, allowing higher acceleration with reduced inertia.this creates less wear and tear on the machine.
YASKAWA SERVO MOTORS & DRIVES
* The Smartline is equipped with cutting edge designed
YASKAWA
servo motors and drives.
* High-speed EtherCAT communication
* Highly dynamic behaviour
* Brushless three-phase motors
* Flexible motor type selection
TRANSMISSION SYSTEM
® Waterjet are provided are equipped with constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
* X,Y-Axis with HIWIN linear guide and Ball Screw.
* Less noise, greater durability and greater precision.
* Unprecedented positioning repeatability of ±0.05 (optional ±0.01).
HIGH PRESSURE PUMP

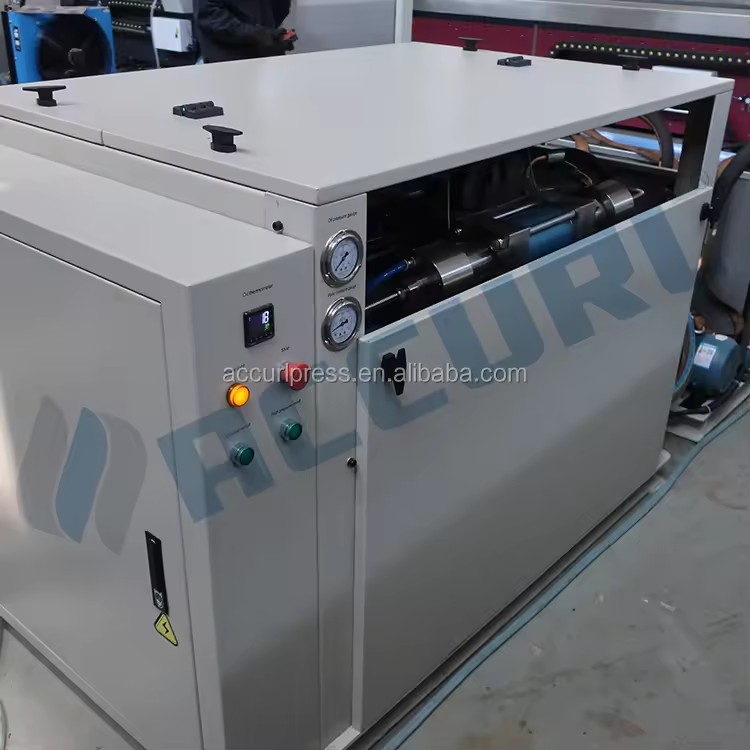

The high pressure is generated in the intensifier of the pump, actuated by an oil pump inside, and also the low water supply system. The latest generation of pumps offers the most advanced water jet technology with working pressures Up to 4200 bar.
The design with a single intensifier, which generates up to 4200 bar, reduces maintenance costs and offers a quieter operation and fewer spare parts.
Electronic height adjustment system for the cutting head, which guarantees the constant distance between the nozzle and the cutting material, offering the possibility of cutting materials with uneven surfaces.
This unit will condition the incoming water to the intensifier, removing lime from the water. It is highly recommended to install it to ensure filtration and decalcification of the water used for cutting, prolonging the life of all the high-pressure
components.
* The Masterline Fiber Laser is controlled with a ECS900 CNC control unit which provides unprecedented control of the cutting process.
* Real time graphics: the program is provided with a manual and/ or an automatic zoom to visualize the plate contour.
* Automatic restore after work stoppage. After repositioning on the profile, there is the option to return to tangential or
linear mode, with activation of cutting on or external to the profile.
* EtherCAT and eXtreme Fast Control (XFC) technology enable fast switching functions at high processing speeds.
* The CNC 900 series can control up to 16 interpolated axes (axis or spindle) and the TwinCAT NC I/CNC automation software is ideally suited for application-specific functions, including adaptive jet control, reverse travel or path resetting.
Libellula.CUT is the cutting edge of Libellula Universe andrepresents the highest expression of the technological know-how of Libellula.
* Thanks to its integrated CAD and the exclusive One-Clicktechnology, Libellula.CUT creates or imports in a moment the geometric details from any other platform of drawing, automatically optimizing profi les and arranging them in an optimum manner for subsequent processing.

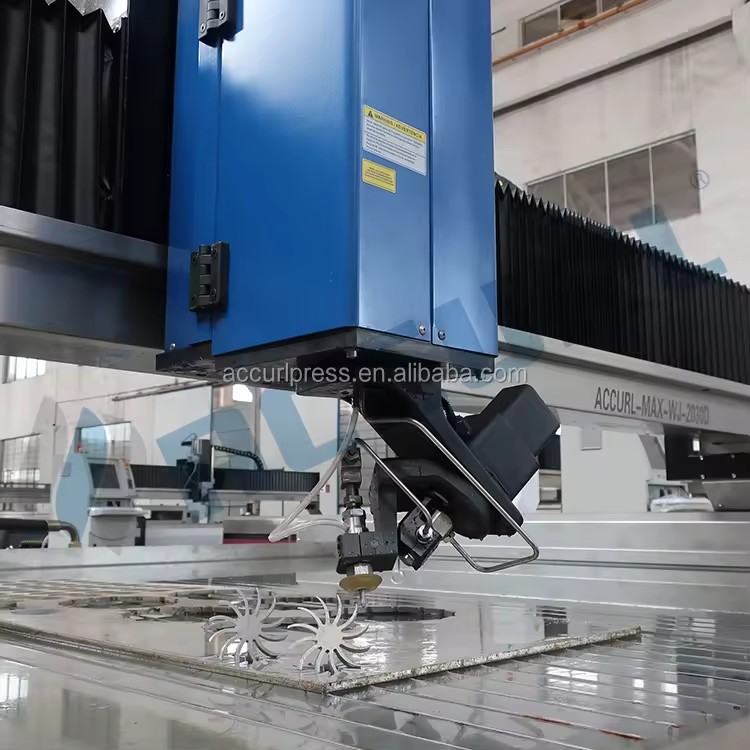

The 3D cutter head has five axes, 3 linear and 2 rotating. It has been designed for both pure 3D cut and 2D 1/2 cut (flat cut with bevel), without losing 2D (flat) cut functionality. Its design features offer great work possibilities. Especially its infinite rotation in the C axis, which avoids the need to rewind with a consequent reduction in working times and a lower risk of reducing the cut quality. On the rotating frame of the C-axis, it is possible to connect the height adjustment and anti-collision control module.
