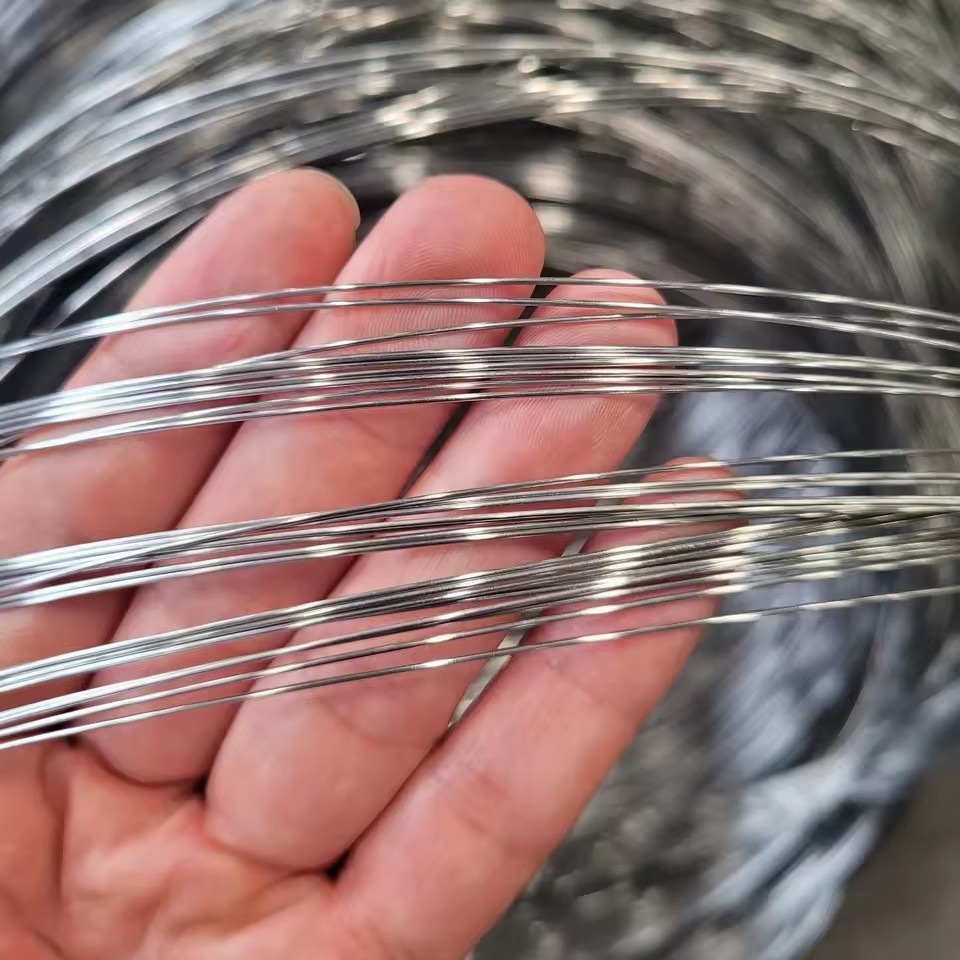

Name: Galvanized Steel Wire 24 Gauge High Carbon ASTM Standard JLCC Brand Hardened for Cutting & Bending Applications
SKU: B2B-15339
Price: 770.0 USD
Availability: PreOrder

Product description

Product	Hot Roll/Cold Drawn Galvanized Steel Wire
Material	A: 1006,1008,1018,Q195, Q235, 55#,60#,65#,70#,72A, 80#,77B,82B B: 99.995% Purity Zinc
Diameter	0.3mm-12.5mm
Length	As customer's actual reques
Standard	API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS 6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711
Grade	Q195 Q235 45# 60# 65# 70# 80# 82B carbon steel
Technique	Hot Dipped, Cold Rolled Galvanized Steel Wire

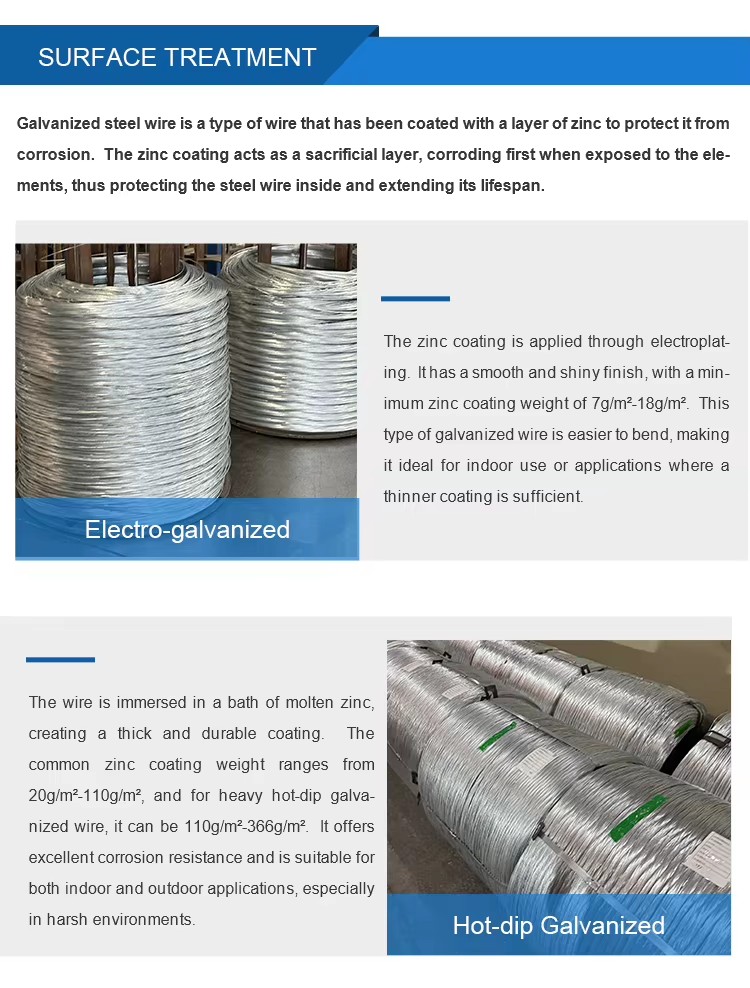

Surface Treatment	1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement
Certificates	API ISO9001-2008,SGS.BV
Application	The galvanized steel wire is widely used in construction,ACSR,armoring cable, handicrafts, Cotton packaging,screen preparation, production of galvanized hook mesh, wall network, highway protective fence, product packaging and daily civilian and other fields.

Galvanized steel wire
Diameter mm	Tensile Strebgth No Less Than (MPA)	Strength For 1% Elongation No Less Than	LD=250mm Elongation Noless Than%	Zinc Coating Mass (g/m2)
1.44-1.60	1450	1310	3	200
1.60-1.90	1450	1310	3	210
1.90-2.30	1450	1310	3	220
2.30-2.70	1410	1280	3.5	230
2.70-3.10	1410	1280	3.5	240
3.10.3.50	1410	1240	4	260
3.50-3.90	1380	1170	4	270
3.90-4.50	1380	1170	4	275
4.50-4.80	1380	1170	4.0	300

wire gauge size	SWG(mm)	BWG(mm)
8	4.05	4.19
9	3.66	3.76
10	3.25	3.4
11	2.95	3.05
12	2.64	2.77
13	2.34	2.41
14	2.03	2.11
15	1.83	1.83
16	1.63	1.65
17	1.42	1.47
18	1.22	1.25
19	1.02	1.07
20	0.91	0.84
21	0.81	0.81
22	0.71	0.71

Certifications & compliance

EN 62321

RoHS Verified

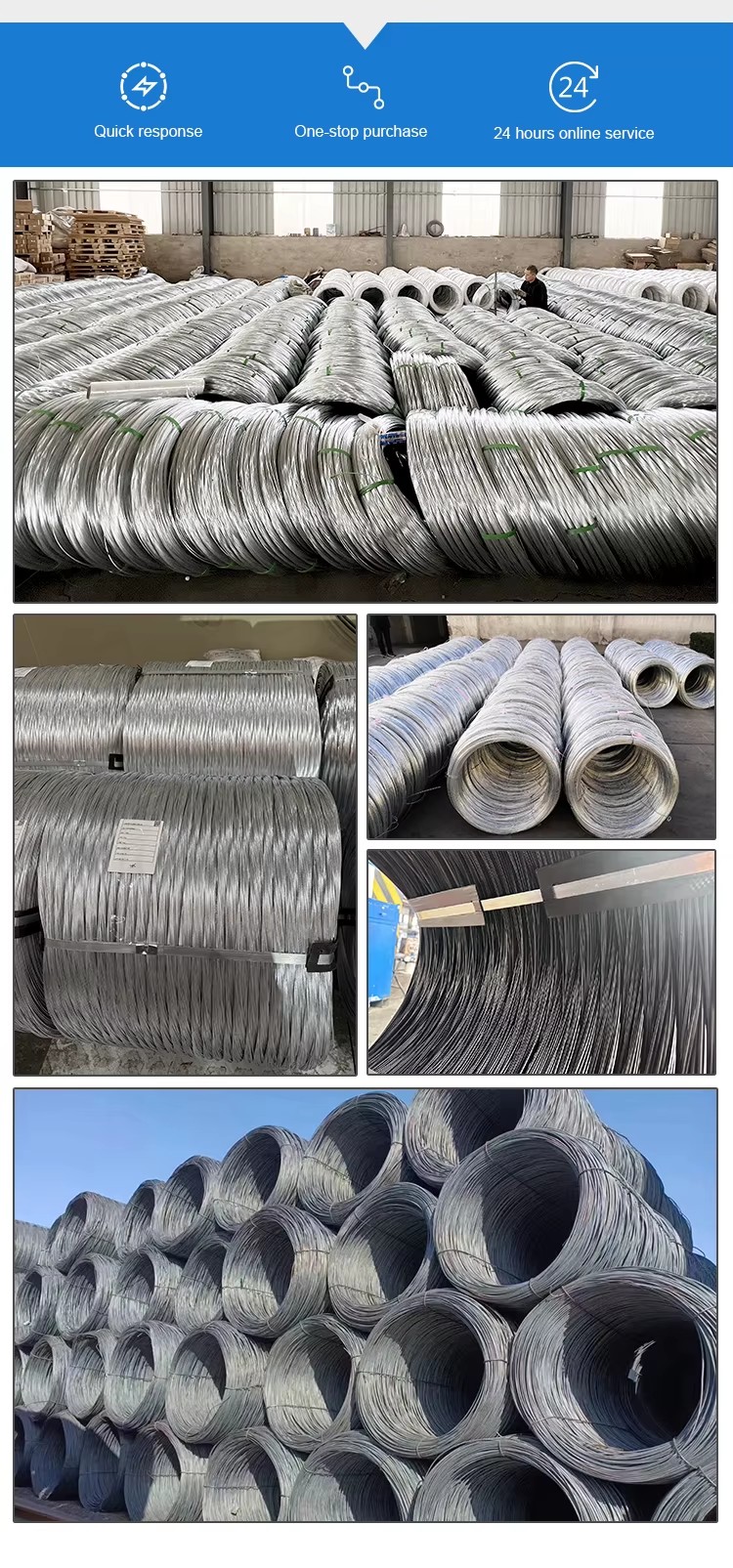

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Air + Express via FLY Logistics · Approx. shipping fee: $ 4.00 for 1 ton · Transit time: Est. 8-9 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 27 fields

Type

Drawn Wire, wire

Thickness (Specification)

0.21 mm ~ 0.50 mm

Coating

Z41 ~ Z60

Standard

ASTM, AISI, DIN, BS, JIS, GB

Hardness

Hard

Spangle Type

Zero Spangle

Skin Pass

Yes

Oiled or Non-oiled

Slightly Oiled

Tolerance

±1%, ±5%

Technique

Hot Rolled Based

Application

Making Pipes, Making Small Tools, Cutting Sheets, Making Corrugated Sheets, Making Container, Making Fences, stranded conductors/ACSR/cable/fencing gabion/guy wire/stay wire

Processing Service

Cutting, Bending, Welding, Decoiling, Punching

Certificate

ISO 9001

Delivery Time

8 ~ 14 days

Place of origin

China, Shaanxi

Grade

Galvanized

Length

6/12M/CUSTOMIZED

Steel Grade

Carbon Steel

Alloy Or Not

Non-Alloy

Special Use

Free Cutting Steel

Wire Gauge

1.0-12.0mm

Key word

galvanized steel wire

Selling Units

Multiple of 1 items

Package size per batch

1X1X1 cm

Gross weight per batch

1.0 kg

Width (Product option)

1 251 mm ~ 1 500 mm, 1 001 mm ~ 1 250 mm, 900 mm ~ 1000 mm, 1501-2000MM

Certifications & Compliance

EN 62321

Lead time

7 days

Minimum order

1 Units
