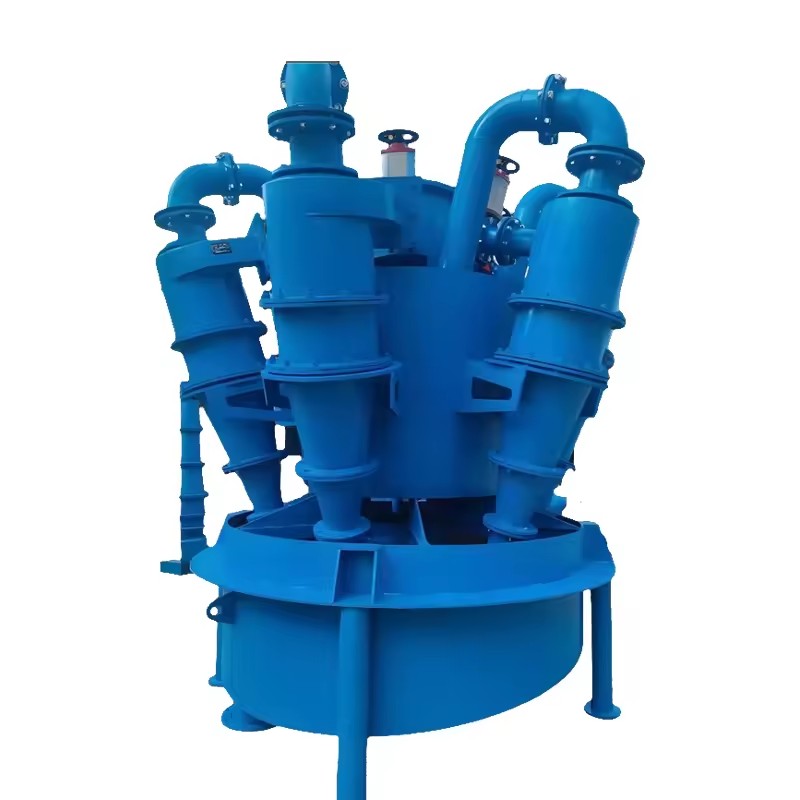

Industrial Mineral High Efficiency Cyclone Separator Micro Hydrocyclone Separator

Product Importer Gallery 01 · 29ce6aa019

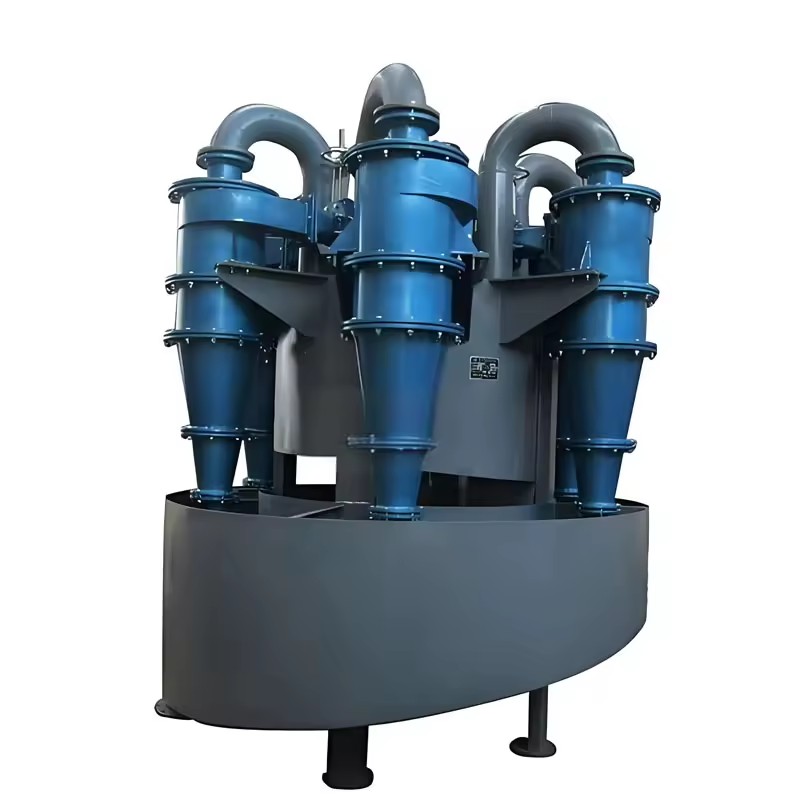

Product Importer Gallery 02 · abac92aefe

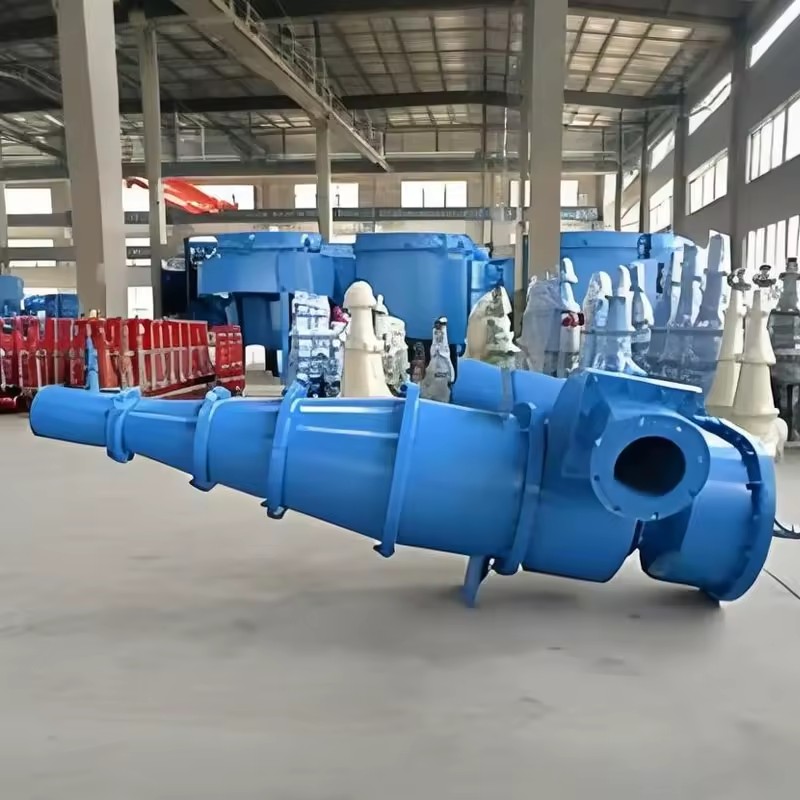

Product Importer Gallery 03 · d890bfd279

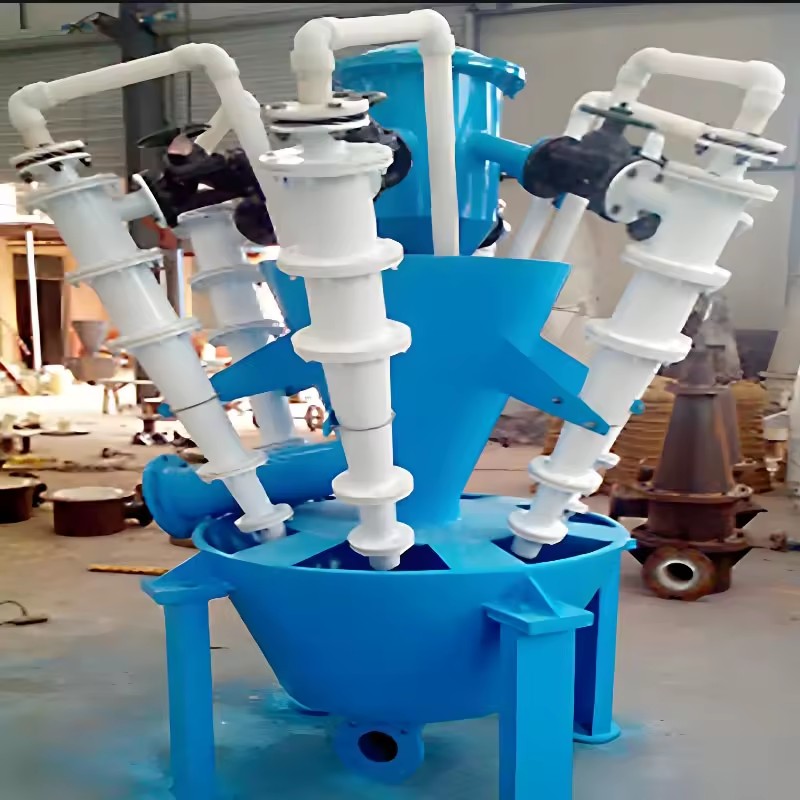

Product Importer Gallery 04 · 75fdd1c8ff

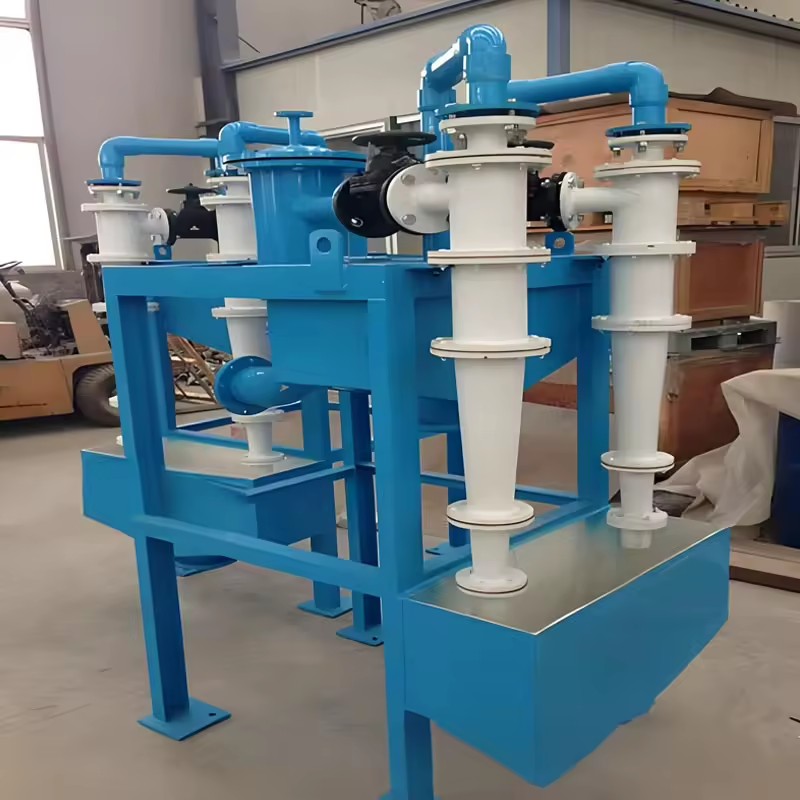

Product Importer Gallery 05 · 6c14302d21

Product video

Certifications CE

Industrial Mineral High Efficiency Cyclone Separator Micro Hydrocyclone Separator

Name: Industrial Mineral High Efficiency Cyclone Separator Micro Hydrocyclone Separator
SKU: G6AF-PDQA-CKF8
Price: 910.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 910.00 910.0 USD $ 910.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Gravity Separator

Voltage

380V or customized

Core components

None

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$189-799 / piece

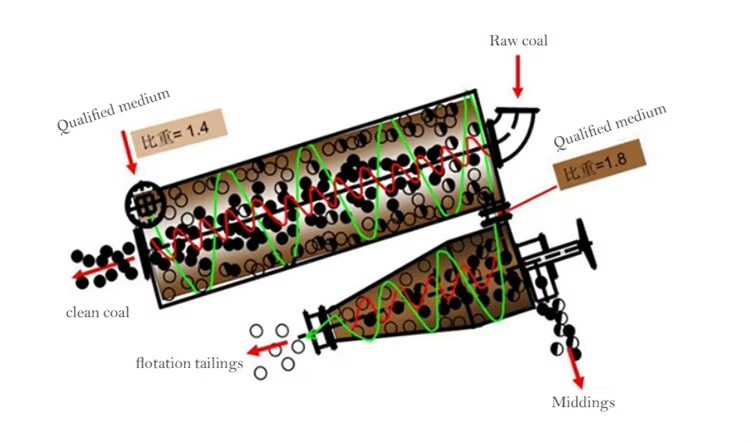

Unpressure three product heavy dielectric cyclone
Dimensions	File particle size/mm	Feed pressure/MPa	processing power/(t/h)	Medium cycle volume/(m3/h)
WTMC500/350	≤20	0.05～0.08	35～50	140～180
WTMC600/400	≤30	0.06～0.10	50～80	180～300
WTMC710/500	≤35	0.08～0.12	80～120	300～420
WTMC780/550	≤40	0.09～0.13	100～150	420～540
WTMC850/600	≤45	0.10～0.14	120～180	480～620
WTMC900/650	≤50	0.12～0.16	140～200	560～700
WTMC1000/710	≤55	0.15～0.18	180～230	700～800
WTMC1100/780	≤60	0.18～0.22	220～280	800～1100
WTMC1200/850	≤70	0.20～0.28	260～350	1100～1400
WTMC1300/920	≤80	0.22～0.30	320～400	1400～1600
WTMC1400/1000	≤90	0.28～0.38	400～500	1600～2000
WTMC1500/1100	≤100	0.30～0.40	500～600	2000～2400

Pressure has three product heavy medium hydrocyclone
Dimensions	File particle size/mm	Feed pressure/MPa	processing power/(t/h)	Medium cycle volume/(m3/h)
YTMC500/350	≤20	0.06～0.10	35～60	180～250
YTMC600/400	≤30	0.08～0.12	50～90	250～370
YTMC710/500	≤35	0.09～0.14	90～130	370～540
YTMC780/550	≤40	0.10～0.15	110～160	540～660
YTMC850/600	≤45	0.13～0.16	120～180	650～750
YTMC900/650	≤50	0.15～0.18	160～200	740～840
YTMC1000/710	≤55	0.18～0.22	200～250	840～1050
YTMC1100/780	≤60	0.20～0.24	240～280	1050～1250
YTMC1200/850	≤70	0.22～0.28	300～380	1250～1600
YTMC1300/920	≤80	0.26～0.32	350～450	1600～1900
YTMC1400/1000	≤90	0.30～0.40	450～550	1900～2300

Model	Specifications (liner/porcelain)
Alumina content	≥95%
Density	≥3.6 g/cm3
Rockwell hardness	≥85 HRA
Compressive strength	≥850 MPa
Fracture toughness KIC	≥4.8MPa m1/2
Bending strength	≥290MPa
Wear resistance	≤0.0002g (p=76N n=800 rpm t=30 minutes)
Ceramic sheet thickness	1.5-25mm

Certifications & compliance

Complies with EU standards

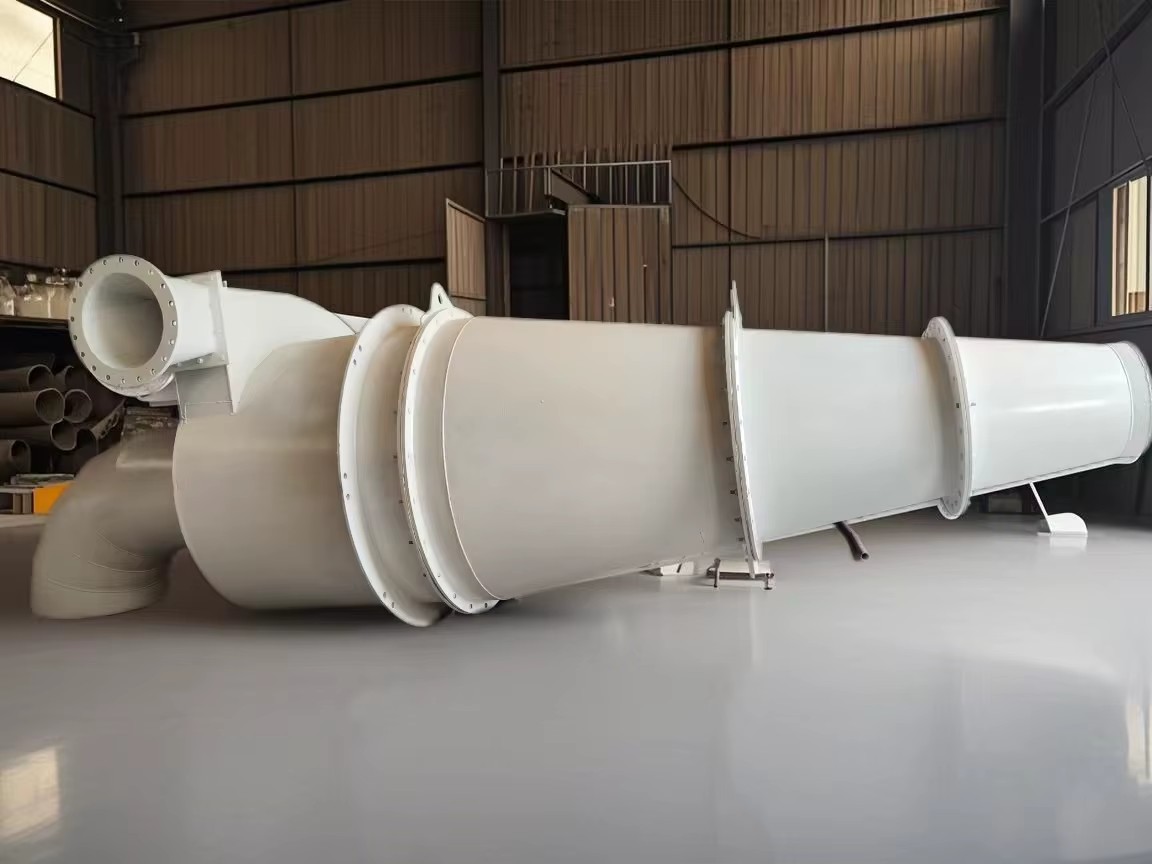

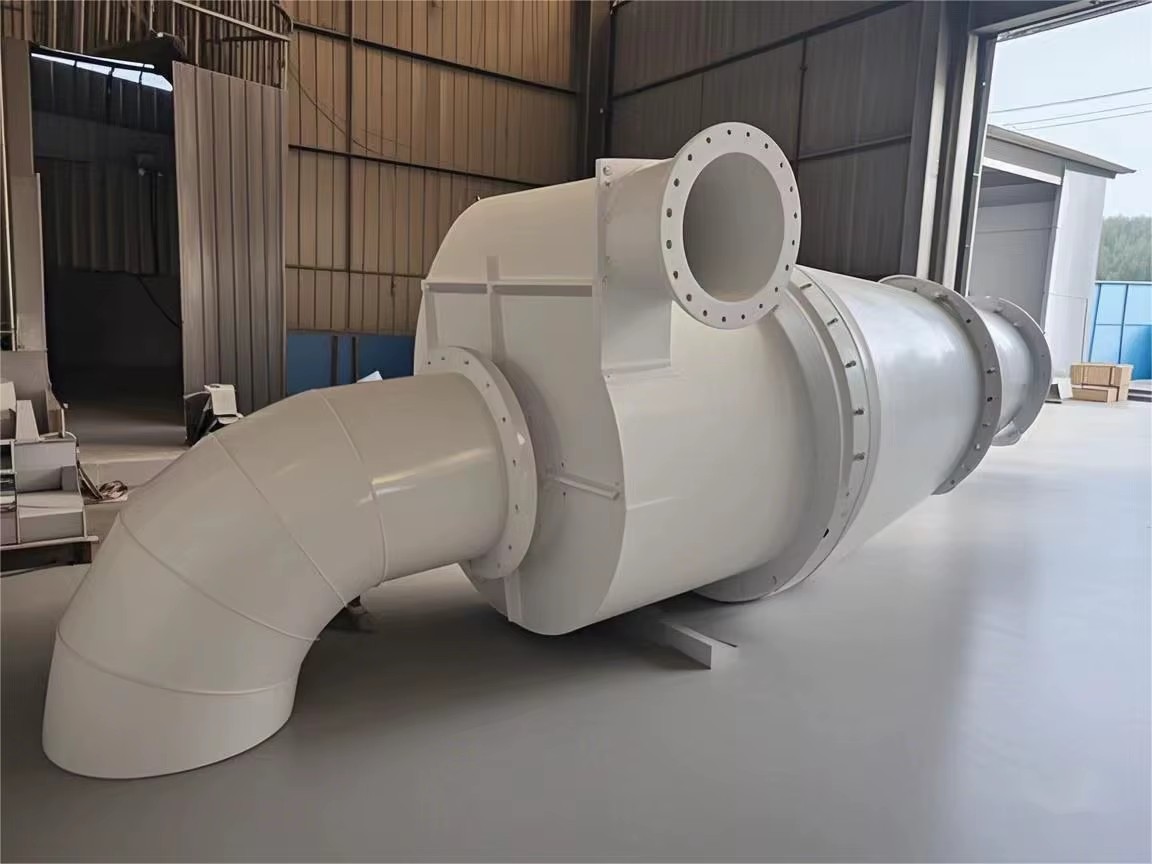

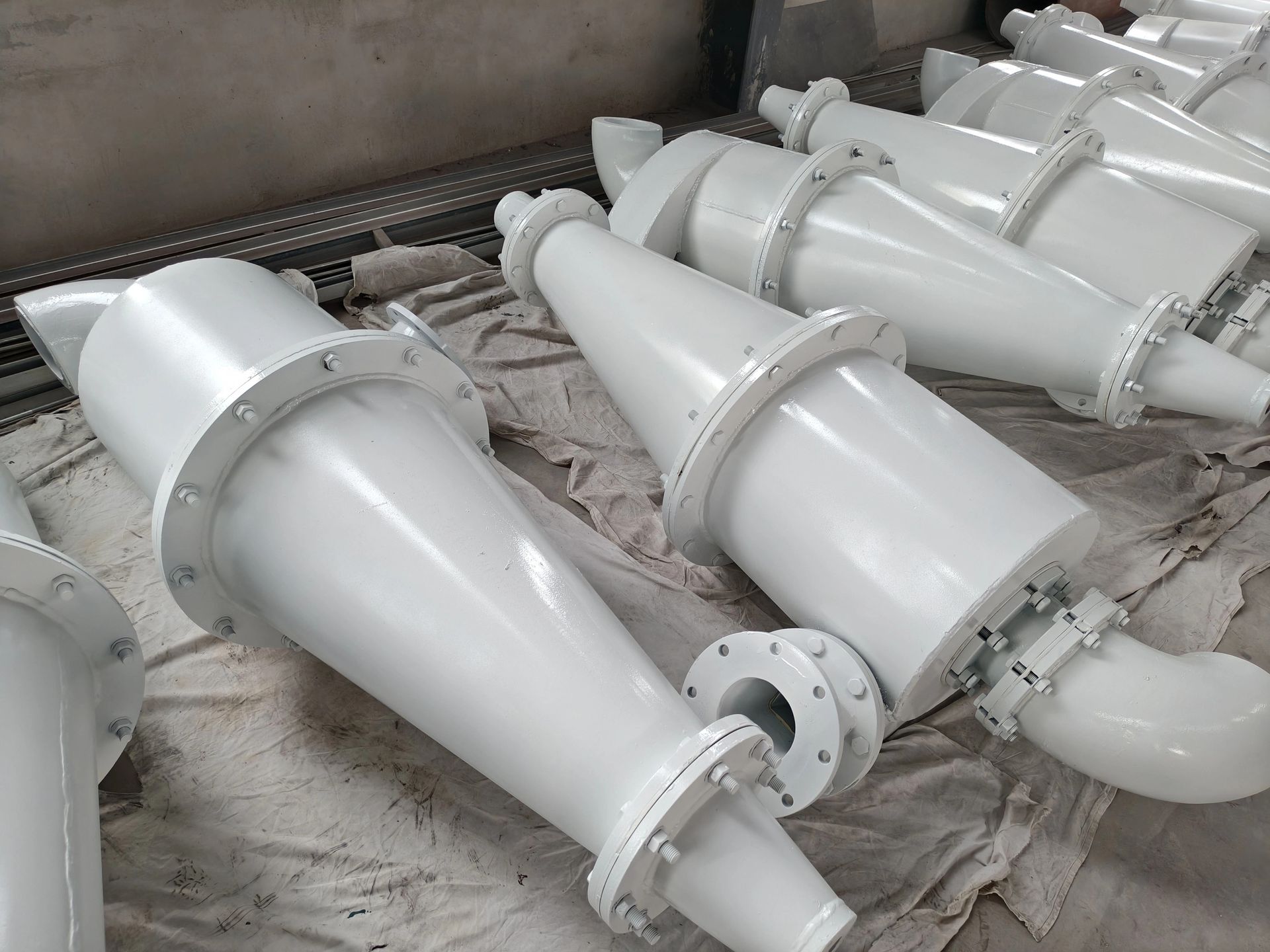

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 19 fields

Type

Gravity Separator

Voltage

380V or customized

Core components

None

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

High Wear-resistant

Place of origin

China, Shanxi

Weight

995 KG(2193.60lb)

Diameter

75-710mm

Feed pressure

0.04-0.4MPa

Processing power

5-500 m3/h)

Separation size

10-250μm

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

FX Series

Power (W) (Product option)

custom

Certifications & Compliance

Lead time

15 days

Minimum order

1 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

Industrial Mineral High Efficiency Cyclone Separator Micro Hydrocyclone Separator

Open URL

Price

$ 910.00

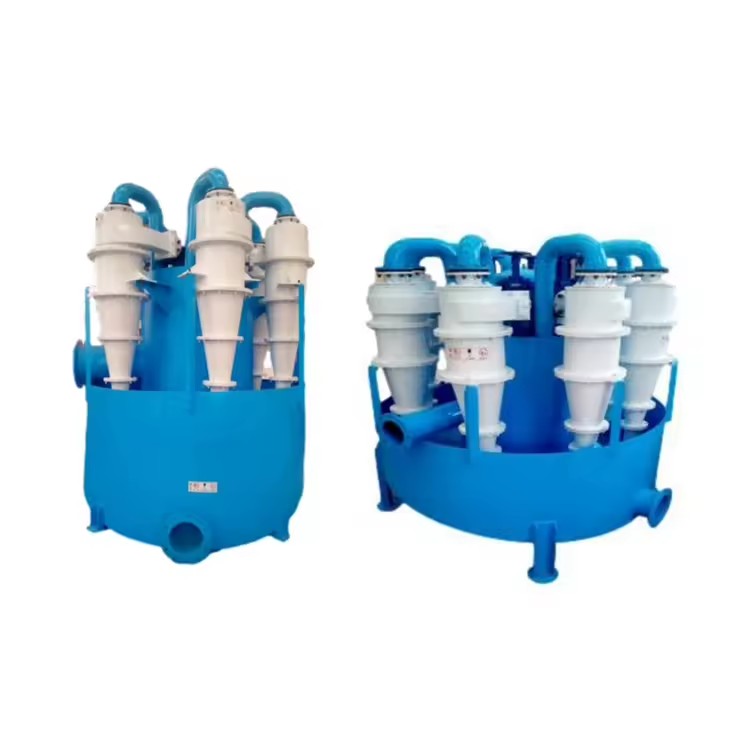

Industrial Mineral High Efficiency Cyclone Separator Micro Hydrocyclone Separator product image
