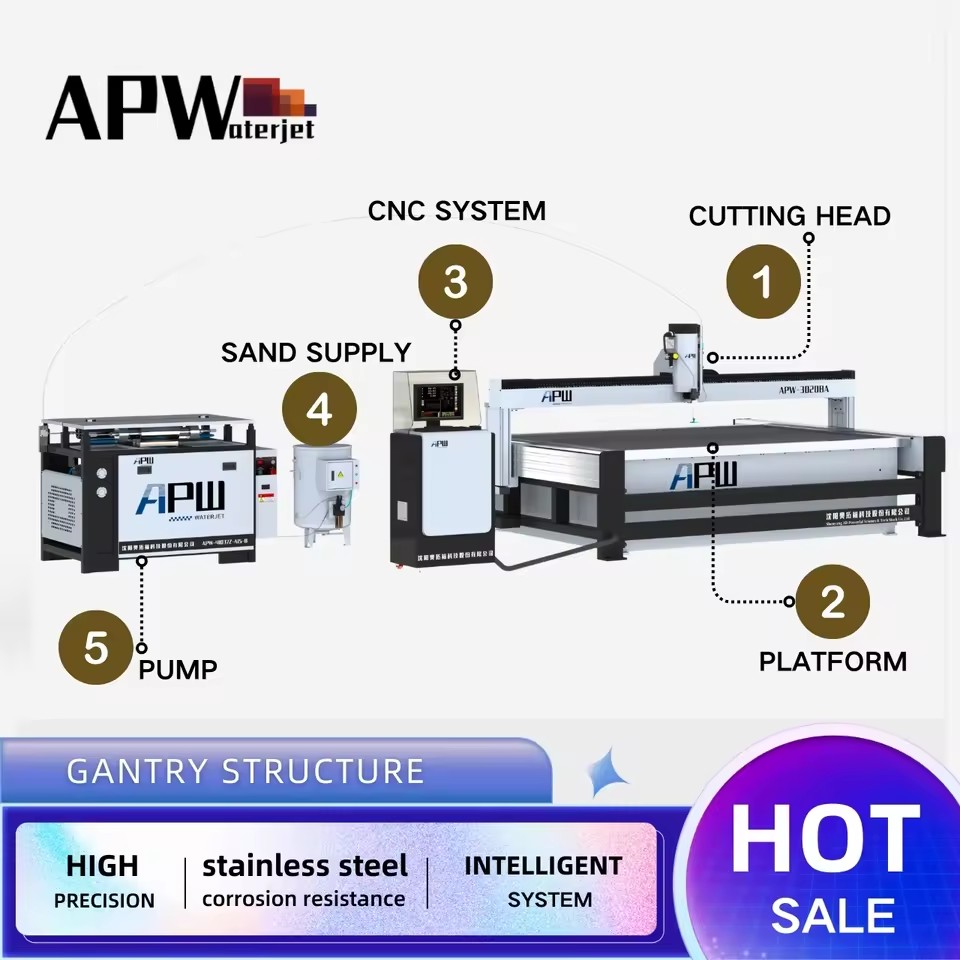

APW 5-Axis Water Jet Cutting Machine with Pump Engine & Bearing-415V 37KW Eco-Friendly

Available for enquiry 0.0 · 0 reviews
USD

$ 52,340.00 52340.0 USD $ 52,340.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
415V
Number of axes
5
Repeatability (x/y/z) (mm)
0.01mm(0in)
Core components
Bearing, Pressure Vessel, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Product description

Highlights at a glance

  • Professional Factory: Over 23 years of experience in waterjet technology.

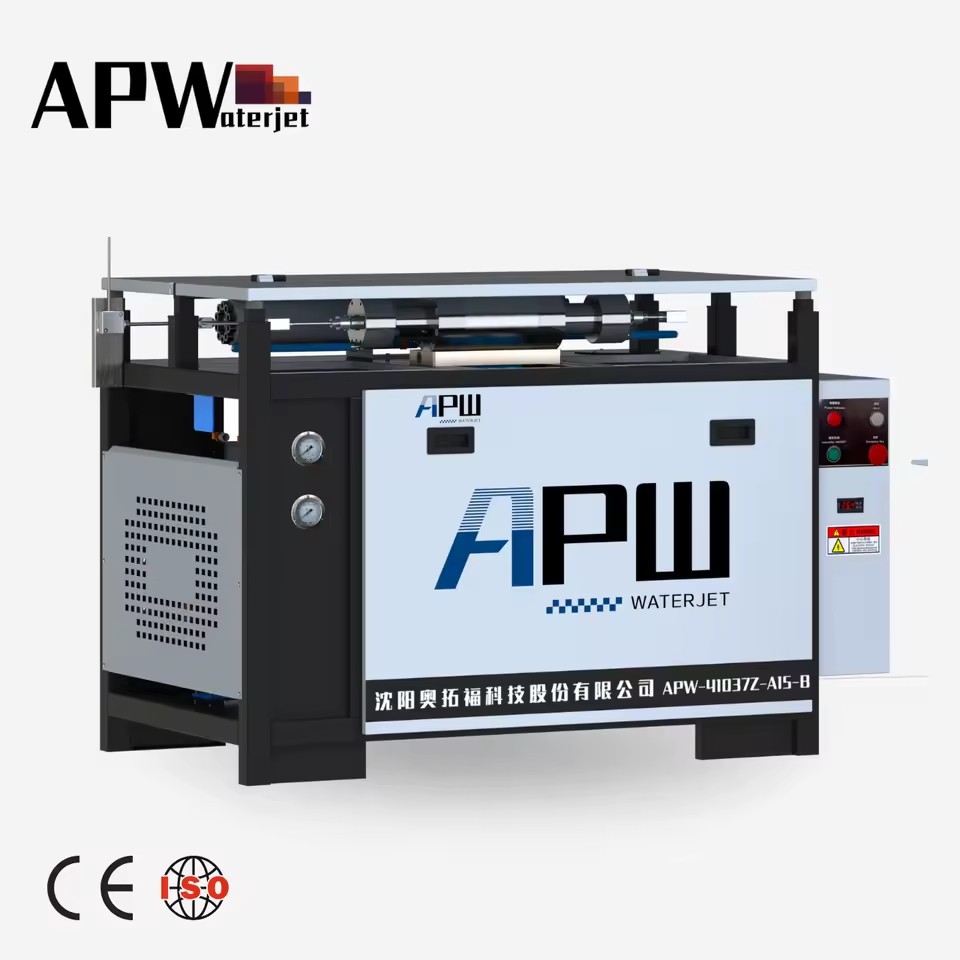

  • Powerful Pump: 37KW power rate ensures high cutting efficiency.
  • Precision Cutting: Cutting accuracy within 0.01mm for detailed work.
  • Versatile Applications: Suitable for cutting glass, quartz stone, marble, concrete, and more.
  • Reliable Warranty: 2-year warranty for peace of mind.
Frequently asked questions

Almost all materials, such as ordinary steel, titanium, glass, steel alloys, stone, or composites and laminates. If you spend more than 20% of your time handling multiple materials, waterjet cutting will bring you significant benefits. Otherwise, the cold cutting process can reduce secondary machining and offers high versatility and flexibility. These three key features are the reasons you should consider investing

The cutting size is usually determined by the size of the workbench. The most commonly used countertop size is 3 meters wide and 2 meters long, while countertops used for metal or stone cutting are 2 meters wide and 4 meters long, covering the size range of most boards. If you need to cut oversized materials, you need to choose oversized countertops. The performance of the high-pressure pump and the length of the Z-axis determine the thickness of the material that can be cut.

This is a consideration that must be made from the outset. Since 2D cutting and 3D cutting require different cutting heads, electrical controls, and software, and retrofitting them later is quite difficult. If you need to cut bevels or surfaces with angles greater than 12°, complex curves of 3D parts, you will need to choose an AC5-axis 3D cutting head. If you only need to make cuts, a 3-axis cutting head is the most economical.

Cutting tables come in various forms, such as the cantilever structure for three-side material loading, which typically does not exceed 3 meters in length. There are also the classic gantry structures for two-side material loading, and the improved bridge-type structures that are more stable and offer higher precision. There are fully enclosed outer structures that focus on protecting the working environment and increasing personnel safety.
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 31 fields
Voltage
415V
Number of axes
5
Repeatability (x/y/z) (mm)
0.01mm(0in)
Core components
Bearing, Pressure Vessel, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Dimension(L*W*H)
3000X2000MM
Key selling points
Eco-Friendly
Rated power
37kw(49.62hp)
Place of origin
China, Liaoning
Weight (kg)
4100
Table travel (x) (mm)
3000
Table travel (y) (mm)
2000
Table travel (z) (mm)
350
Cutting accuracy(mm)
0.1mm(0in)
After-sales Service Provided
Engineers available to service machinery overseas
Certification
CE
Name
Water Jet Cutting Machine Cutter
Max.working pressure
410Mpa/60000PSI
Main motor power
50Hp/37Kw
Max.orifice diameter
0.33mm
Cutting accuracy
0.1mm
The hydraulic pump brand
Rexroth
The brand of motor
Siemens
The brand of intensifier
Made in USA
Selling Units
Single item
Single package size
150X140X168 cm
Single gross weight
1500.0 kg
Model number
APW-3020BA
Effective cutting range (mm)
3000×2000
Lead time
20 days
Minimum order
1 Units
