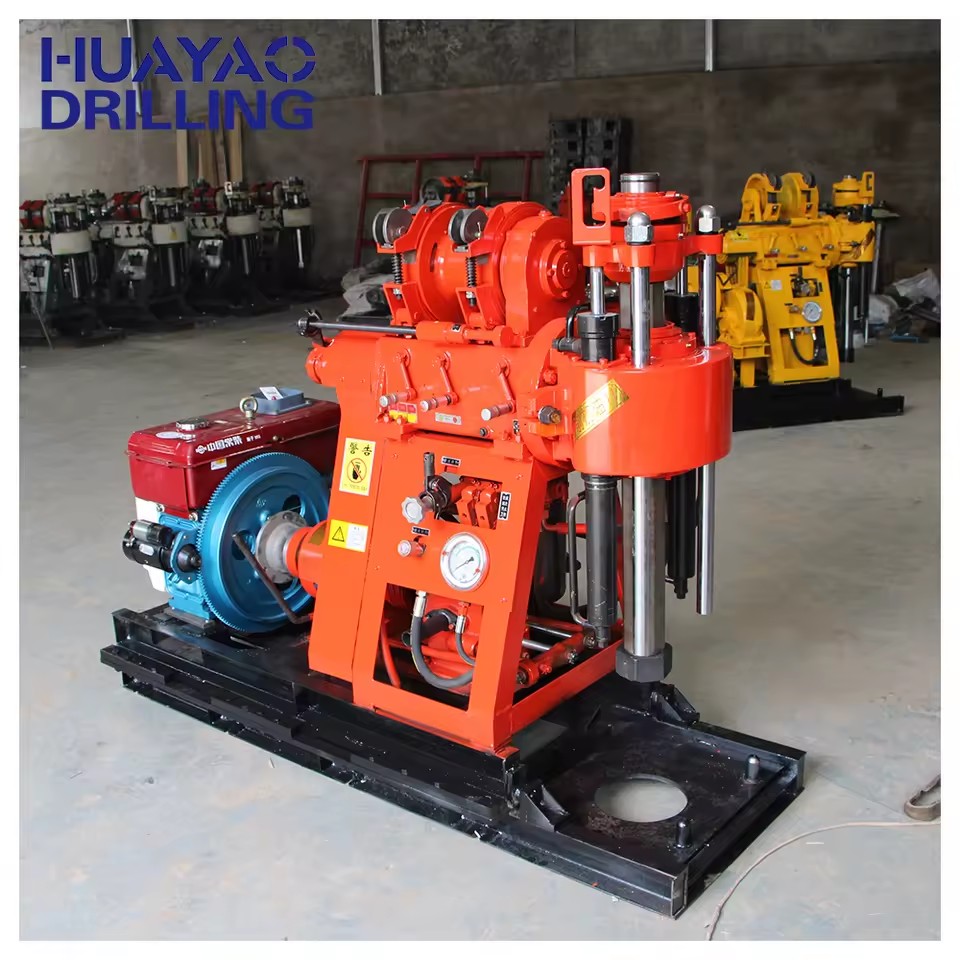

Hot Selling 180 Meter Multifunction Mine Drilling Rig Rotary Borehole Water Well Drilling Rig Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 2,620.00 2620.0 USD $ 2,620.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.180m
Drilling Diameter
150-200mm
Power Type
Diesel
Voltage
12V
Product description

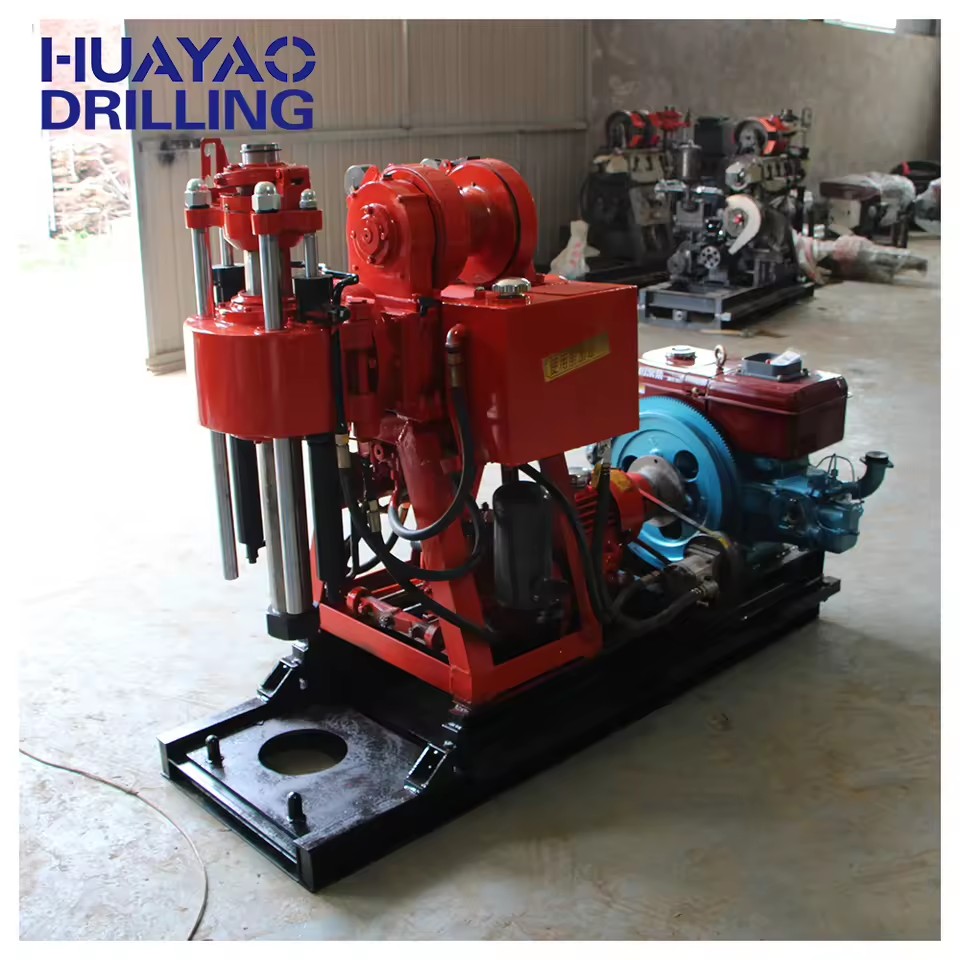

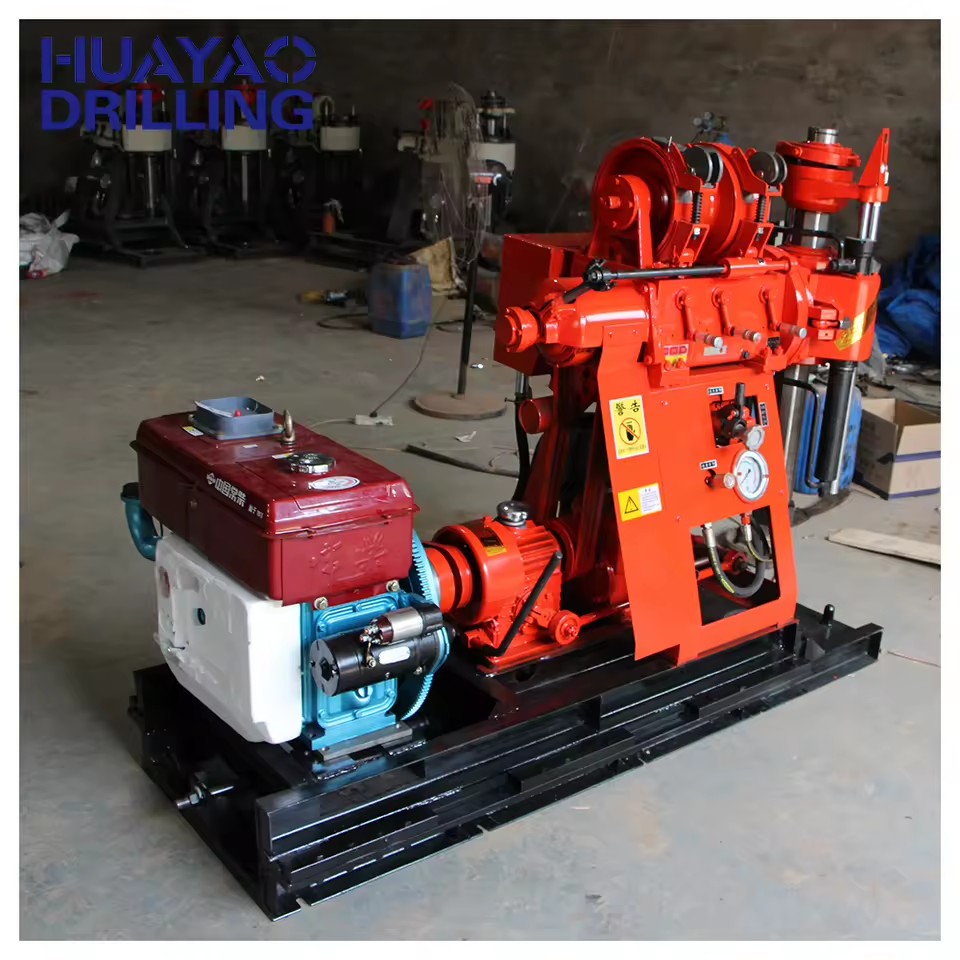

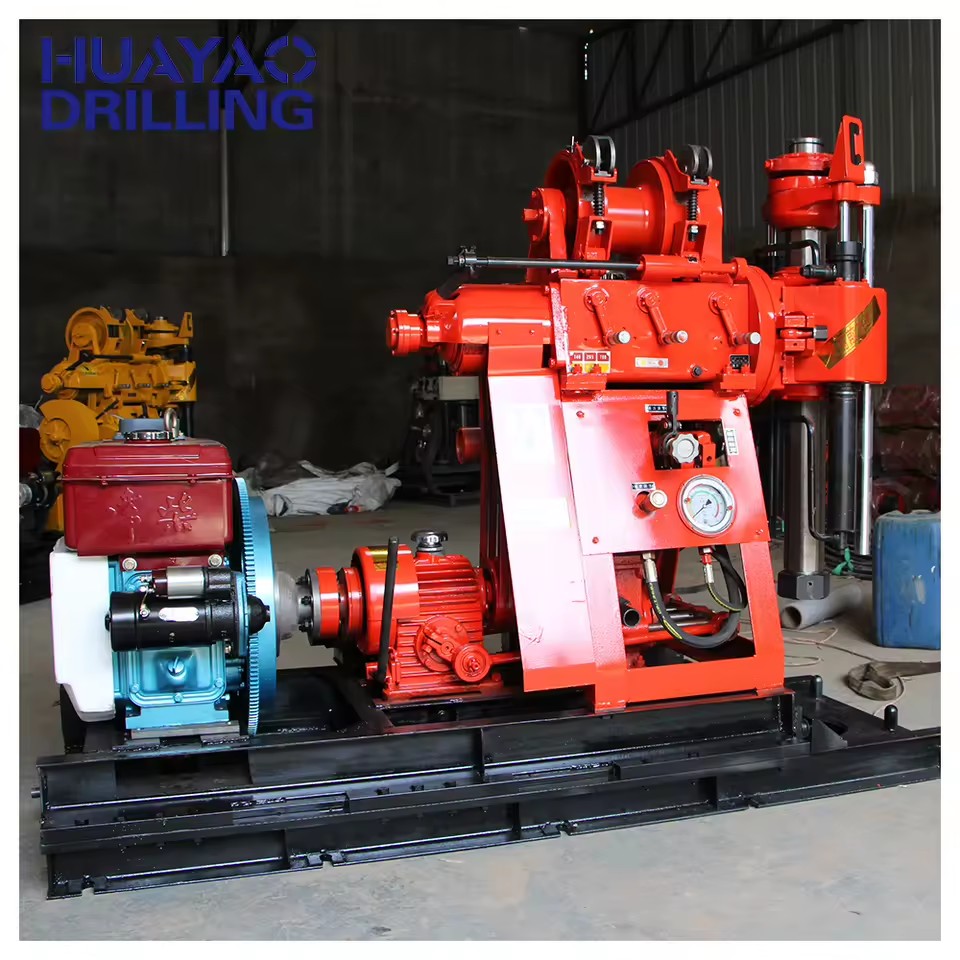

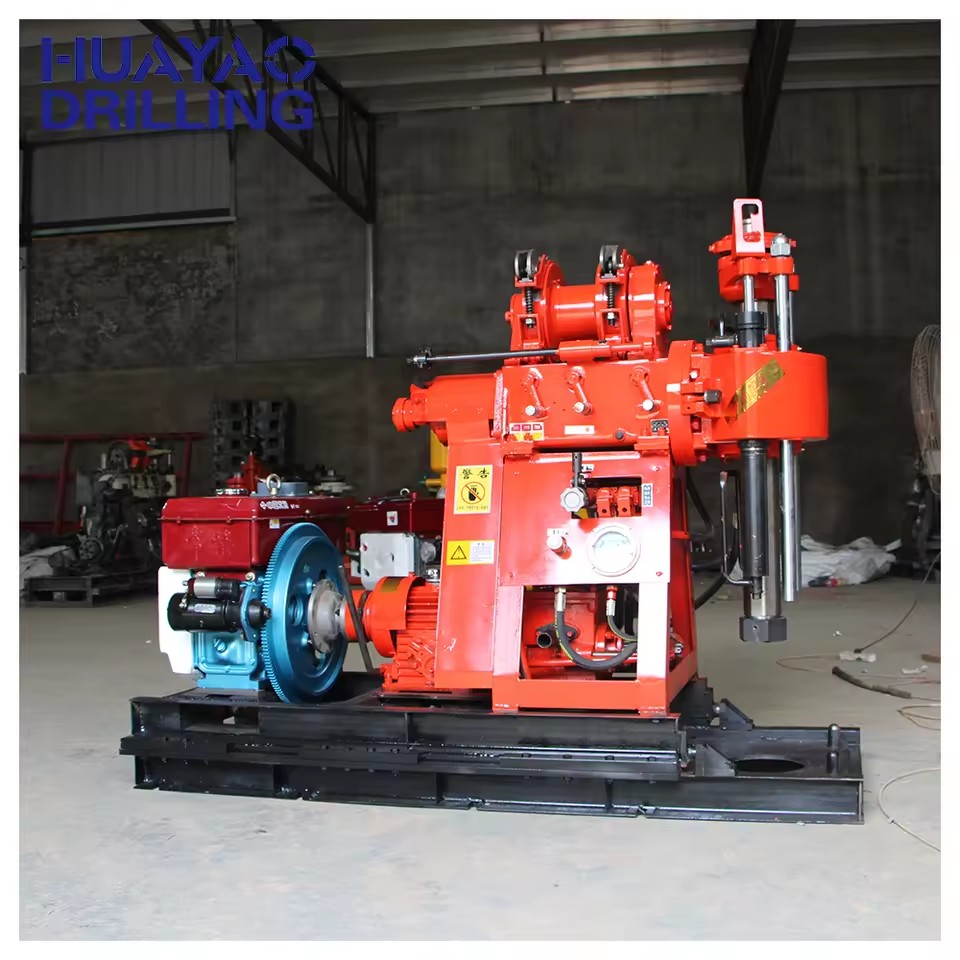

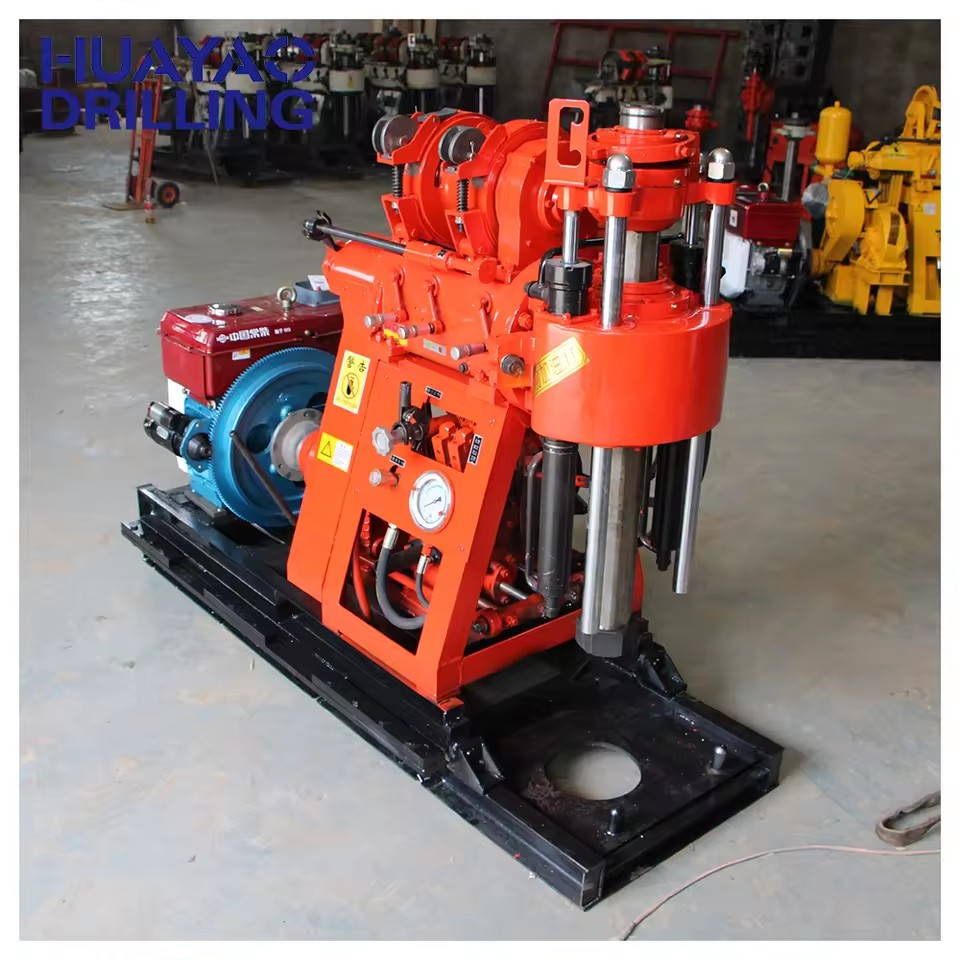

XY-1A core drilling rig is a light type machine at high speed with hydraulic feeding

XY-1A Core Drilling Rig Technical Specification
Machine
Drilling Depth100、180mm
Initial hole dia.42、50mm
Final hole dia.150mm(Rock) 300mm(Soil)
Drill rod dia.46、75mm
Angle range90°-75°
Dimensions (L×W×H）1710×850×1340mm
Weight（without power unit)500kg
Stroke350mm
Vertical shaft
Spindle speed(5-speed）1010、790、470、295、140r/min
Spindle stroke450mm
Upward displacement speed of idling vertical spindle0.05m/s
Downward displacement speed of idling vertical spindle0.067m/s
Spindle pull-down max.15KN
Spindle lifting capacity max.25KN
Winch
Max. lifting capacity(single rope)15KN
Lifting rotating speed121、76、36r/min
Hoisting drum linear velocity(two levels)0.166、0.331、0.733、1.465m/s
Drum dia.140mm
Wire rope dia.9.3mm
Wire rope capacity35mm
Brake dia.252mm
Brake belt width50mm
Hydraulic Pump
Pump modelYBC-20/125
Rated pressure12.5Mpa
Displacement20ml/r
Rated speed1500r/min
Power (Diesel engine or motor)
Model(diesel engine)ZS1105
Rated power13.3KW
Rated speed2200r/min
Model(motor)Y132M-4
Rated power7.5KW
Rated speed1440r/min
Certifications & compliance
CE(2)
Complies with EU standards
Description images

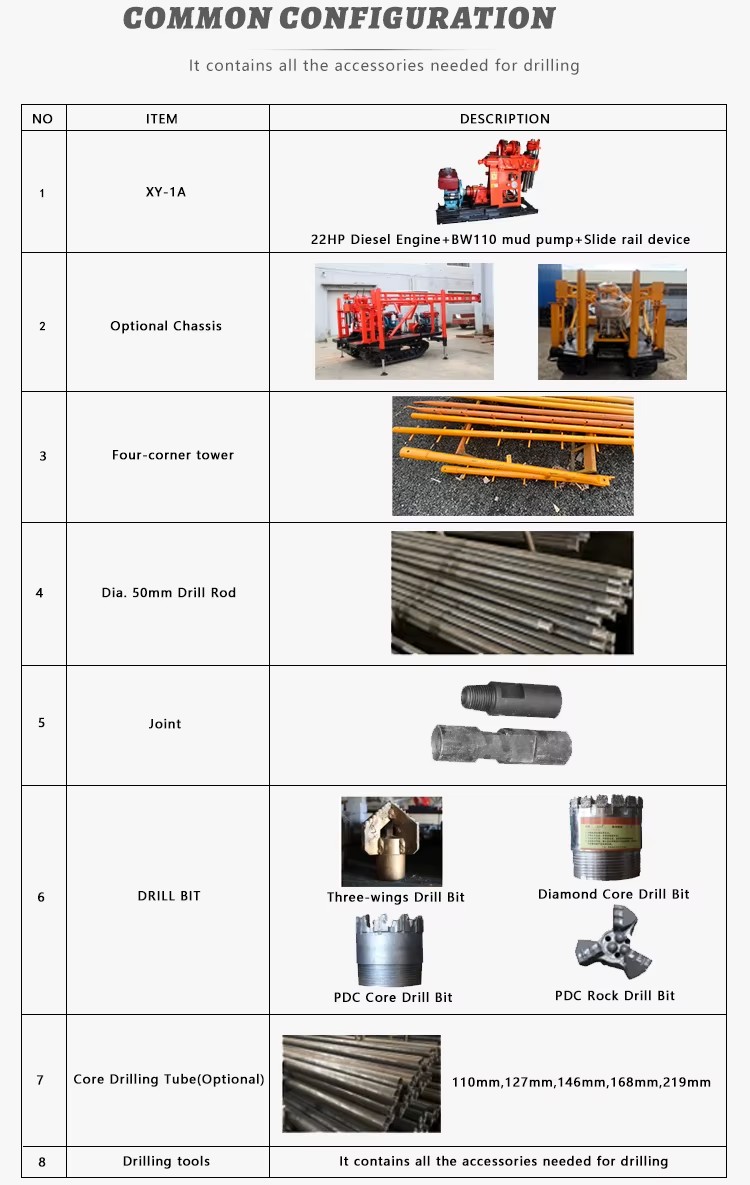

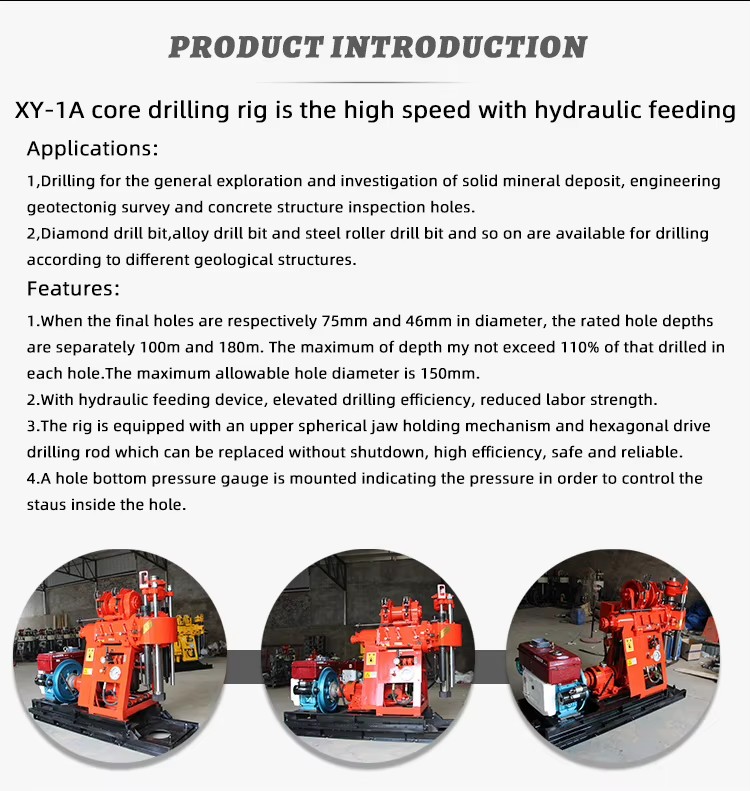

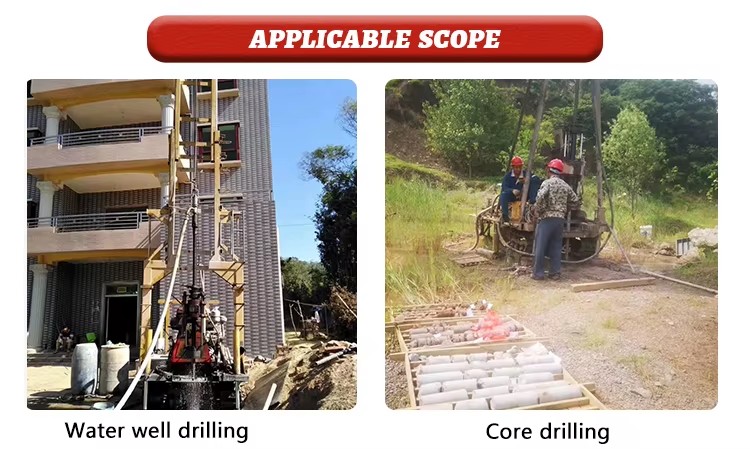

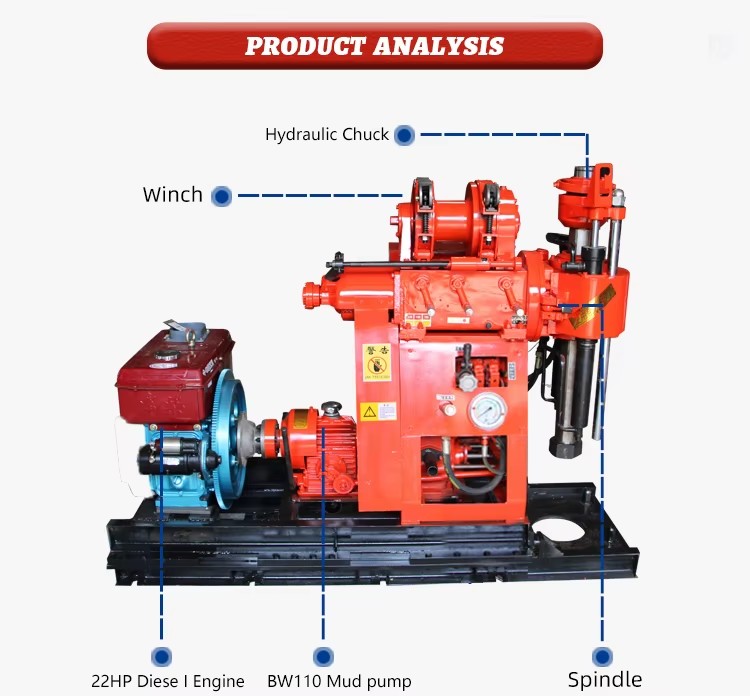

Product detail
Product detail
Product detail
Product detail
CE(2)
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    3 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.180m
Drilling Diameter
150-200mm
Power Type
Diesel
Voltage
12V
Core components
Engine
Warranty
3year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
500 KG
Dimension (L*W*H)
1710*850*1340mm
Mobility
No
Model
XY-1A
Open hole dia.
150,200mm
End hole dia.
45,75mm
Drill rod dia.
42, 50mm
Drill angle
90-75°
Matching engine power
13.3KW
Speed
142/285/570r/min
Stroke
450mm
Weight(without engine)
500KG
Selling Units
Single item
Single package size
172X870X137 cm
Single gross weight
550.0 kg
Model number
XY-1A
Certifications & Compliance
CE(2)
Lead time
3 days
Minimum order
1 Units
