SINRI Size LOGO Customized LED High Bay Light Protective Vent Valve IP67 Waterproof M5 Vent Plug

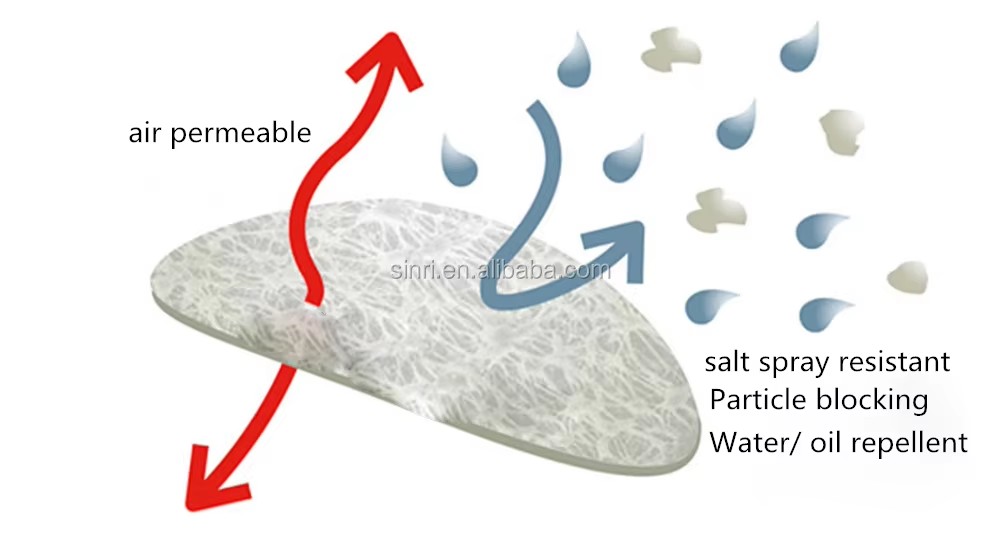

1. Weled with e-PTFE membrane, have good features like water/oil repellent,air permeable,pressure balance,moisture- and vapor-permeable, chemically inert,,UV-resistant,and temperature-resistant.
2. Sinri M5 vent plug has been widely used in protective led lighting, portable electronics or other sealed enclosure. IP67 M5 vent plug can rapidly exchange of air in response to pressure changes - in other words, they allow the enclosure to breathe. By keeping the pressure differentials low, seal fatigue and housing stresses are minimized. The result - improved reliability and extended product life.
| Product Name | SINRI Size LOGO Customized LED High Bay Light Protective Vent Valve IP67 Waterproof M5 Vent Plug |
| Body Material | PC |
| Inner Material | e-PTFE membrane |
| Airflow | ≥160ml/min p=10Kpa |
| Spec. | M5x0.8 vent plug |
| Water Resistance | 12Kpa(>1m) |
| Temperature range | 40℃ ~ +125℃ |
| Waterproof Rate | IP67 /( IP68 can be customized) |

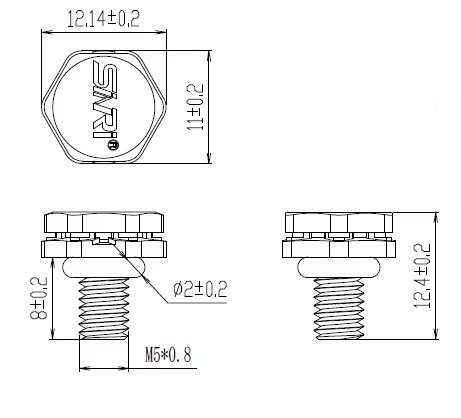

M5 vent plug Detail Spec.
Sinri IP67 waterproof M5 vent plug Benefits
Equalize Pressure Prevent Contamination
Reduce Condensation Extend service life
Typical application
• LED light • Sensors • Auto components • Electronic control unit (ECU) • Electronics & Electrical Appliances • Telecommunication equipment • Solar equipment • Protective cases • All kinds of outdoor enclosures need to be release pressure and pressure control
Packing Details: 1)1000pcs ip67 m5 vent plug packing in PE bags and cartons for the outer packing.
2)Cartons size:Customized or based on actual weight and volume.
Shipping Details: 1)By express (3-5 working days)Within 3-7 days upon receipt of the payment. 2)Tell us your requirement about the Shipping b y CLICKING HERE, so that we can provide solution to save your budget and meet your need!
About Sinri
Development history
( grew out of the factory named "De Xiang", which has more than 10 years experience in producing molds and protective vent) is manufacturer focused on protective vent development, production and sales.
Products: With professional e-PTFE technology, we have designed and manufactured a large number of products which are waterproof, air permeable, oil-resistant and anti-explosion.
Equipment and qualification: Since founded in 2015, Sinri continuously introducing advanced production technology, realize the automatic production, testing assembly line.And through the ISO90001/ TS16949 system certification. Now,we have our own test equipments (including Salt spray testing equipment, IP Rating testing equipment, Flow testing equipment,High-low temperature test equipment and Explosion-proof testing equipment)and Automatic production equipment( including injection molding machine, fuse machine, ultrasonic and other automated production equipment).
Product Applications: Sinri protective vents have been widely used in LED lighting, automotive components, portable electronics, solar photovoltaic, outdoor cabinets, heavy machinery, Chemical packaging, new energy battery pack and other kinds of outdoor enclosures that need to be waterproof and venting.
Sinri
Our main products
| ePTFE membrane>>> | Plastic screw vent plug>>> | Metal vent valves>>> | Explosion-proof valve>>> |
