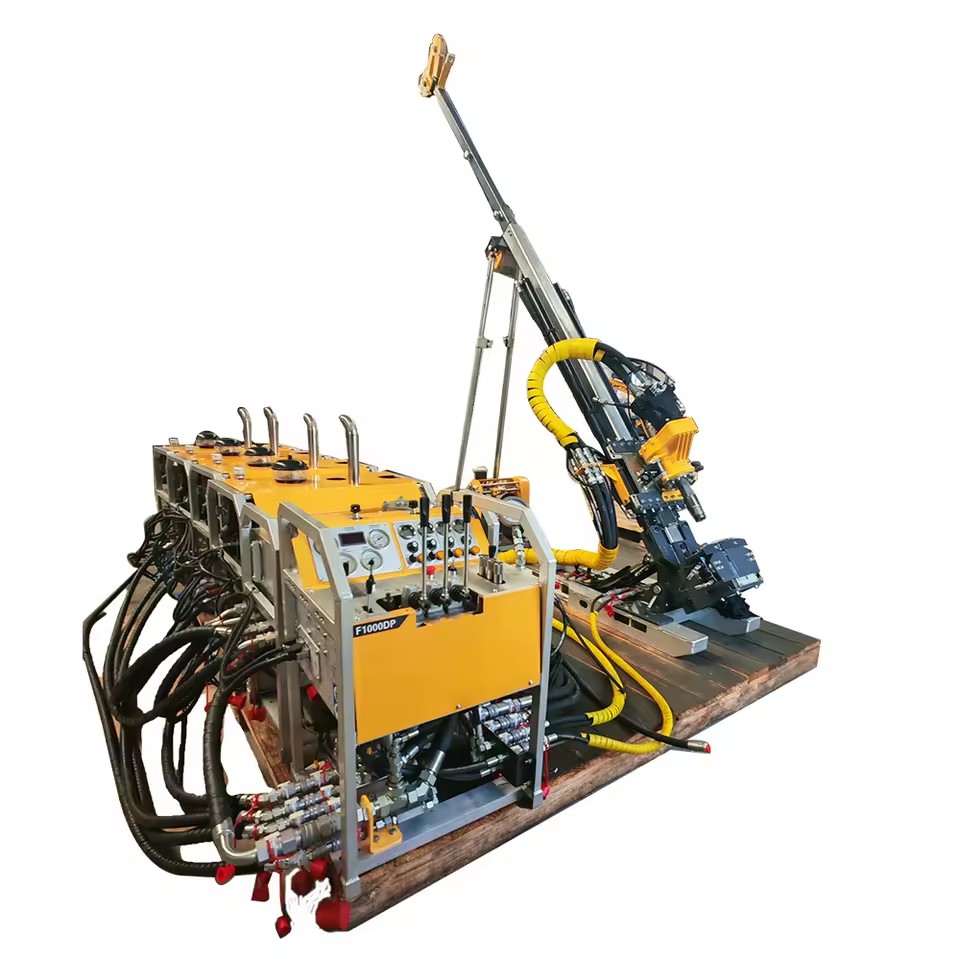

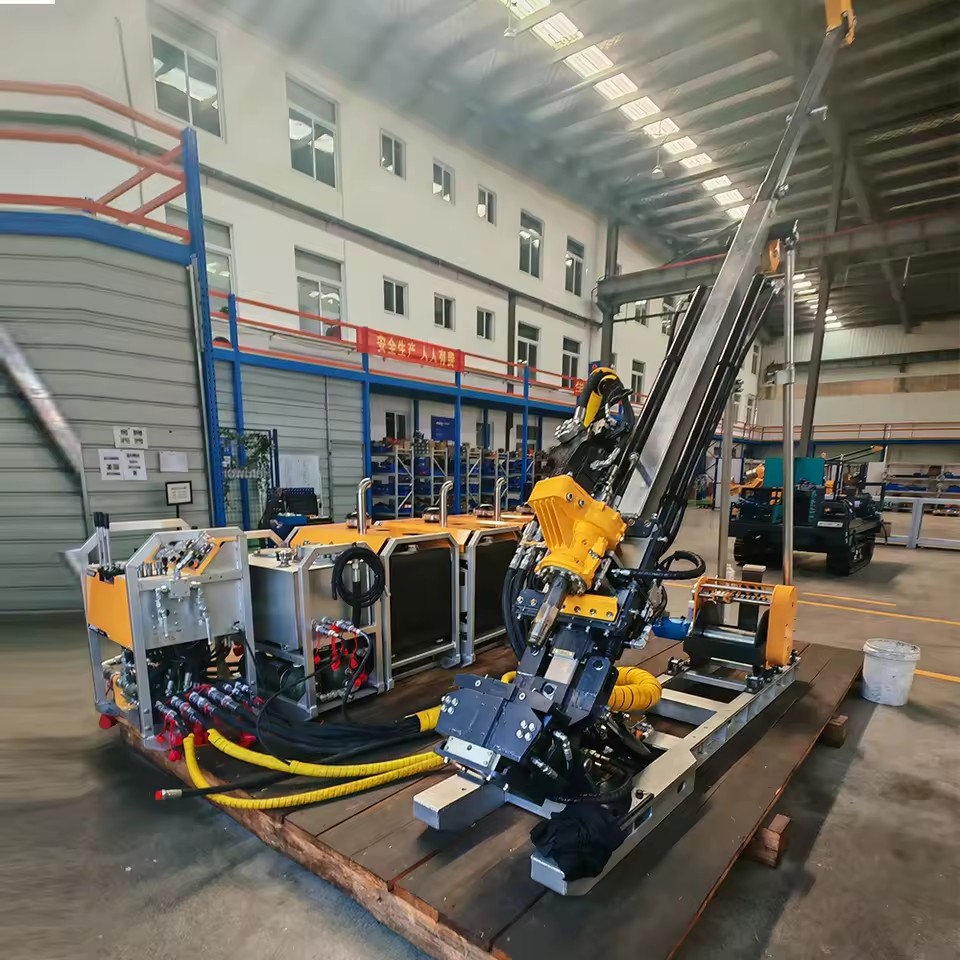

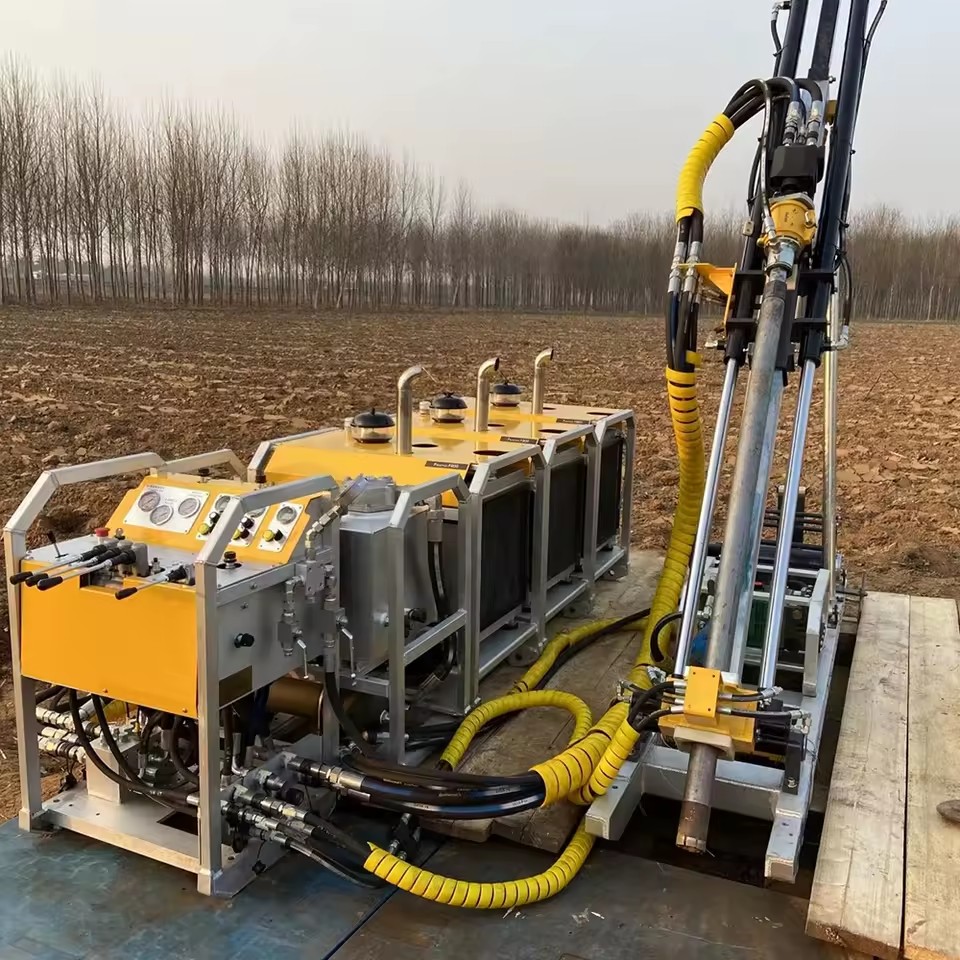

Fully Hydraulic 24V Diesel-Powered Lightweight -Portable Drilling Rig 120-1200m Depth 300-1600Nm Torque for Metal Mine

Available for enquiry 0.0 · 0 reviews
USD

$ 60,450.00 60450.0 USD $ 60,450.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Mobility
  • Drilling rig type
  • Drilling depth capability(B/N/H)
  • Maximum Engine power
  • Feed stroke
  • Maximum torque (normal speed)
  • Maximum Lifting Force
  • Maximum drill pipe diameter
  • Suitable drill rod length
  • Maximum module weight
  • Transportation form
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
coal
Type
Drilling Rig
Drilling Depth
120m-1200m
Drilling Diameter
75mm, 60 mm, 95mm, 122mm
Power Type
Diesel
Voltage
24 V
Product description

$56.08 / piece

F300F600F800F1000F1100
Diesel engineKubotaKubotaKubotaKubotaKubota
Diesel engine power33kw2x33kw3x33kw4x33kw4x33kw
Type of rotation headTop driveTop driveTop driveTop driveTop drive
Maximum Torque1200 Nm1200 Nm1200Nm1200Nm2400Nm
Max rotation speed1200 RPM1200 RPM1200 RPM1200 RPM2000 RPM
Max feeding force56KN56KN56KN56KN56KN x 2
Rod holderHydraulic-driven, safety lockHydraulic-driven, safety lockHydraulic-driven, safety lockHydraulic-driven, safety lock
Description images

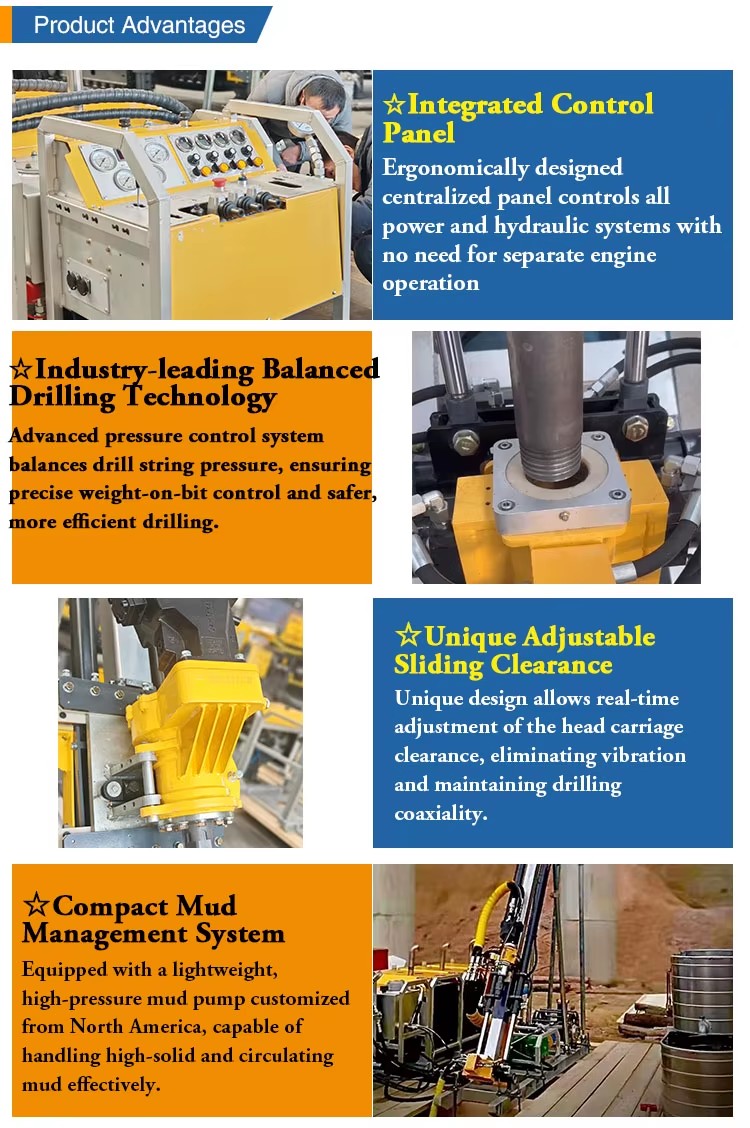

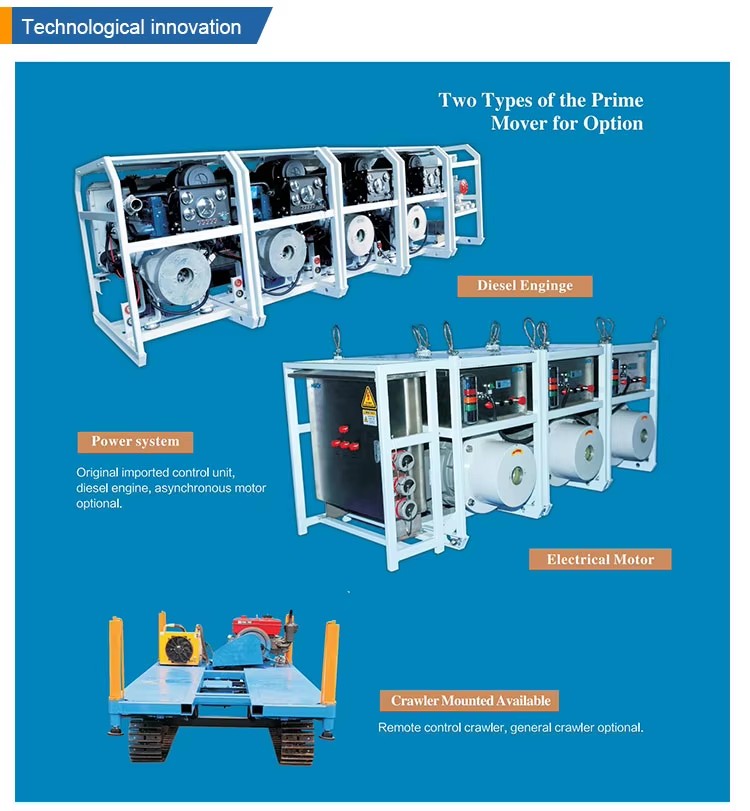

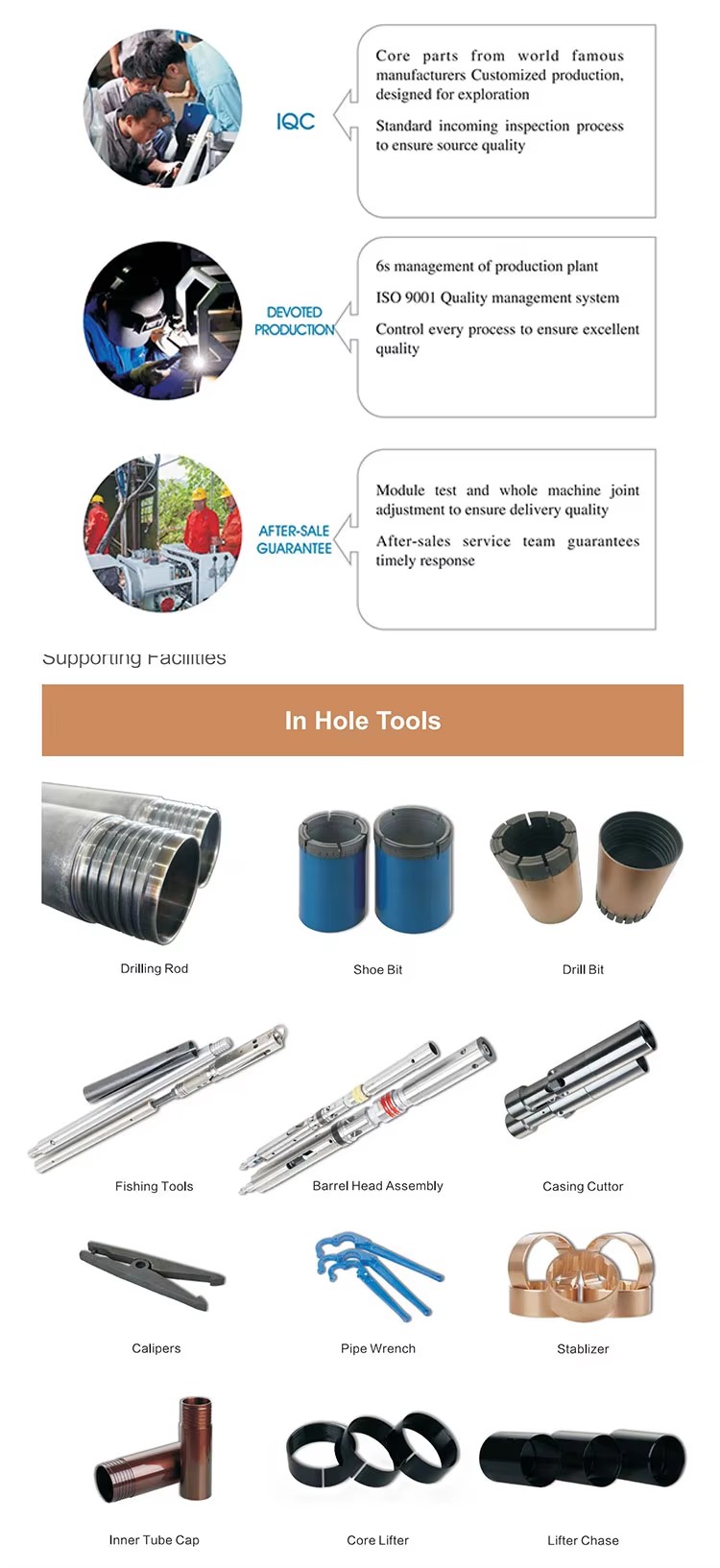

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
coal
Type
Drilling Rig
Drilling Depth
120m-1200m
Drilling Diameter
75mm, 60 mm, 95mm, 122mm
Power Type
Diesel
Voltage
24 V
Core components
Motor, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Henan
Weight
200 kg
Mobility
YES
Drilling rig type
Fully hydraulic lightweight drilling rig
Drilling depth capability(B/N/H)
120-1200m
Maximum Engine power
4*33KW
Feed stroke
1.2/1.8m
Maximum torque (normal speed)
300-1600Nm
Maximum Lifting Force
56-138KN
Maximum drill pipe diameter
114mm
Suitable drill rod length
1.0/1.5m
Maximum module weight
160/180Kg
Transportation form
Human Resources/Small machinery
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
F1000, F600, F800, F300, F1100
Power (W) (Product option)
1*33KW, 2*33KW, 3*33KW, 4*33KW
Lead time
30 days
Minimum order
1 Units
