Name: Fully Enclosed Mini Desktop Waterjet Cutter Cnc Small Water Jet Cutter Price
SKU: B2B-2271
Price: 44870.0 USD
Availability: PreOrder

Product description

Application and advantages of waterjet cutting

High pressure system specifications

Model

WL30018Z

WL38030Z

WL42037Z

Max. Pressure

300Mpa

380Mpa

420Mpa

Continuous working pressure

260Mpa

340Mpa

Power

18KW

30KW

37KW

Maximum water flow

3.7L/min

Maximum nozzle diameter

0.33mm

Working power supply

380V/50HZ

Delivery Time

30days

Payment Term

T/T,30% in advance,70% before shipment(negotiable)

Packaging details

Normal packaging is container. We can also according to the special requirements of customers for packaging

port

Dalian

Validity

45 days from the date we offered validity

Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.

Product Description

Fully Enclosed Mini Cnc

Water Jet Cutting Machine

✔Support non-standard customization

✔

Provide free sample trial cutting service for you

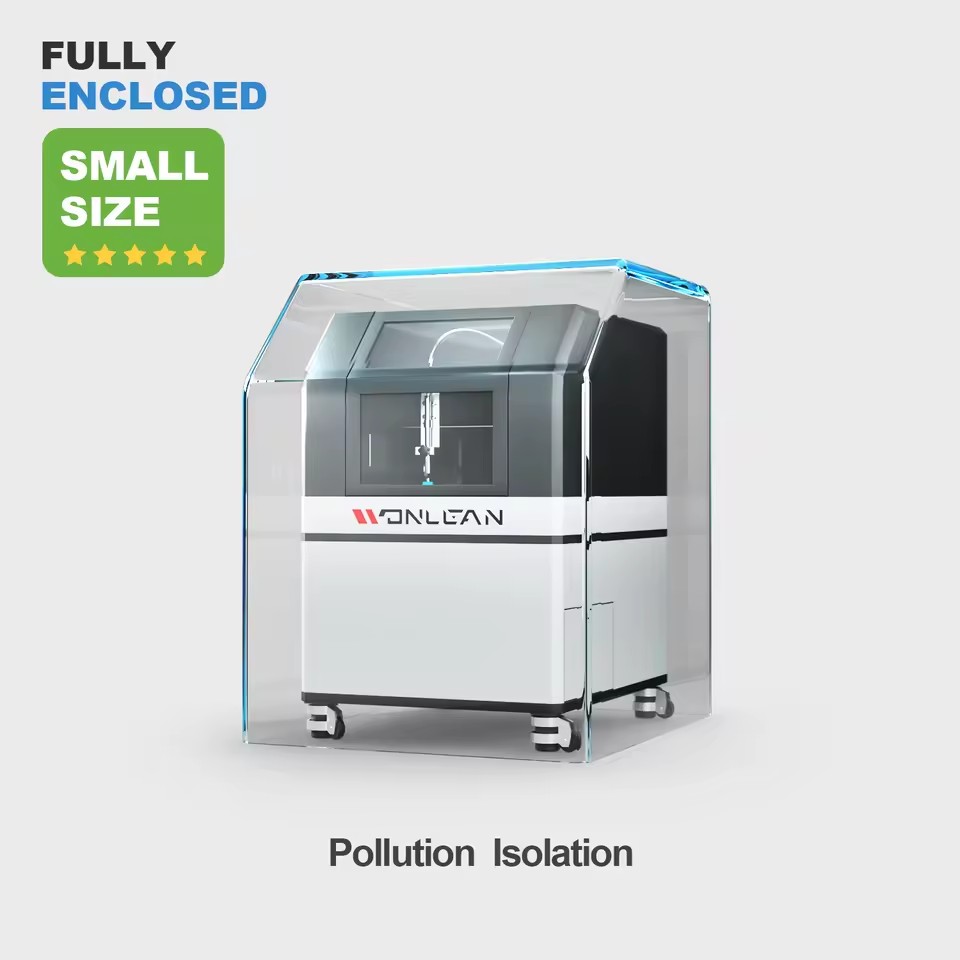

new product fully enclosed CNC waterjet cutting machine

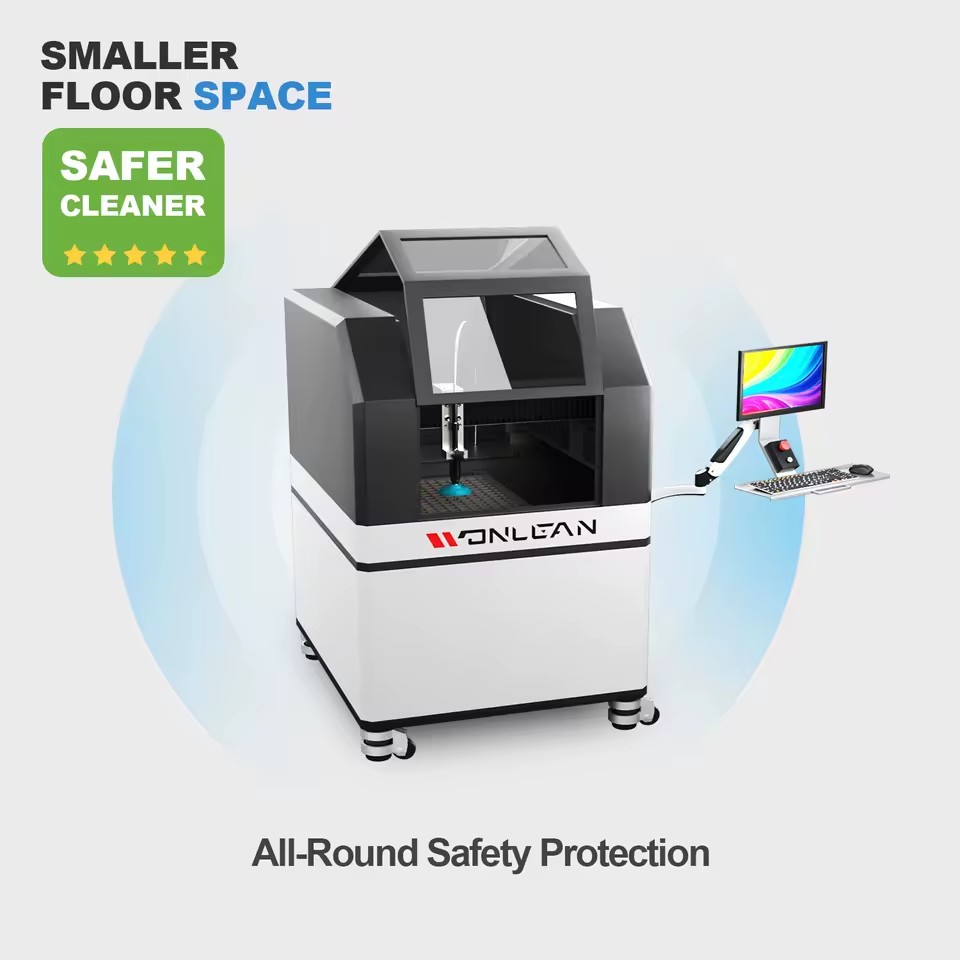

It integrates CNC Controller and Sand Feeder as one of the fully enclosed cutting table, which is of compact structure design and makes the floor space smaller.

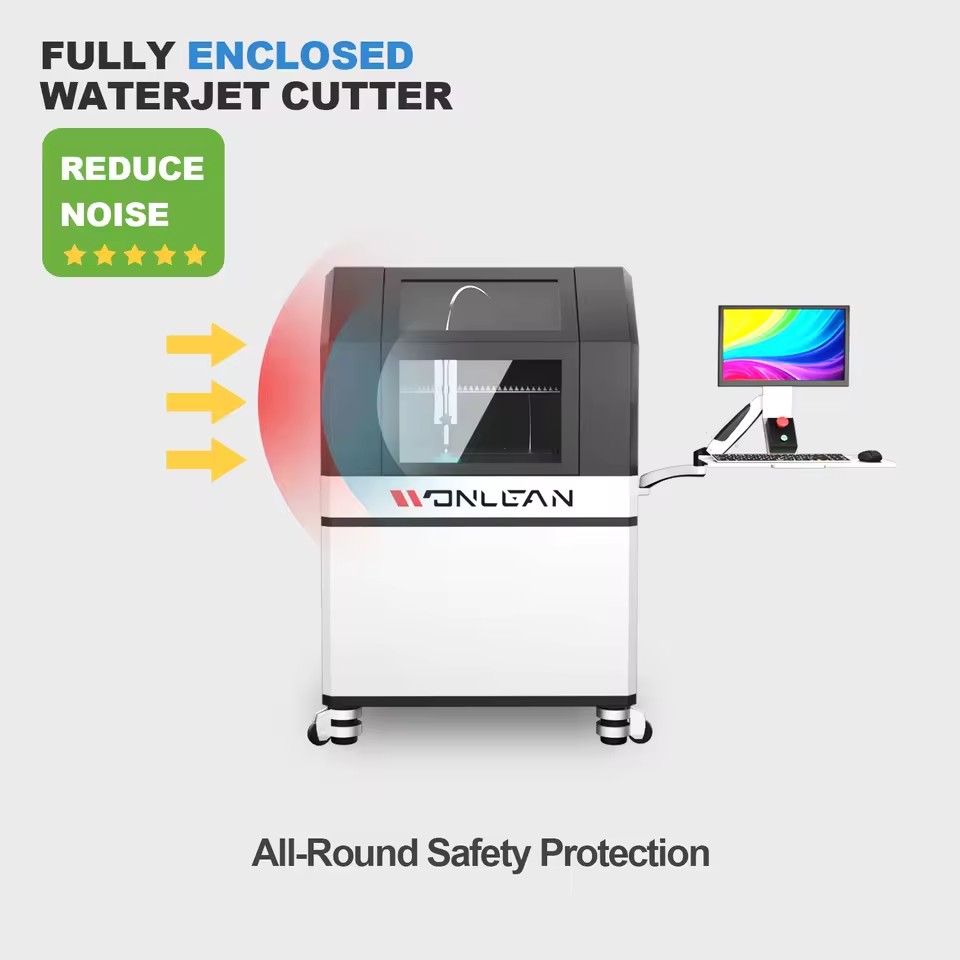

The fully sealed structure can completely prevent the splashing of abrasive and water and reduce the impact of noise on the

environment during cutting.

ancel the external start-up of

sand supply tank and integrate the built-in sand supply drawer, which is convenient to add

abrasive.

Equipped with large size observation window can observe the cutting state in time.

Intelligent lubrication system

It is equipped with intelligent lubricating oil pump to deliver lubricating oil to every corner of the transmission system, with intermittent control up to 0.01 seconds. Greatly avoid the wear of waste sand on the transmission system while lubricating.

Intelligent variable pressurization system

Equipped with a variable oil pump and an intelligent variable high pressure system composed of four imported valve bodies, which can intelligently adjust the amount of oil according to the pressure requirements and has high cutting efficiency, better oil temperature control and more energy-saving, so that each pressurization is just right.

Intelligent identification and one-touch processing

Identify CAD E-drawings, automatically generate cutting path and access parameters, reduce manual coding and repeated operations, simple operation, improve production capacity.

Support customization

We can design the bed according to your workpiece size, and only the most suitable one is the best.

Tilting compensation system

Through the dynamic compensation of the intelligent five axis software and two Japanese Yaskawa servo motors, the "V"shaped incision of the waterjet is accurately compensated to make the cutting incision vertical up and down or achieve bevel cutting

within 8 degrees.

The main components adopt internationally renowned brands

World-leading quality accomplishes the classic

Why Choose Us

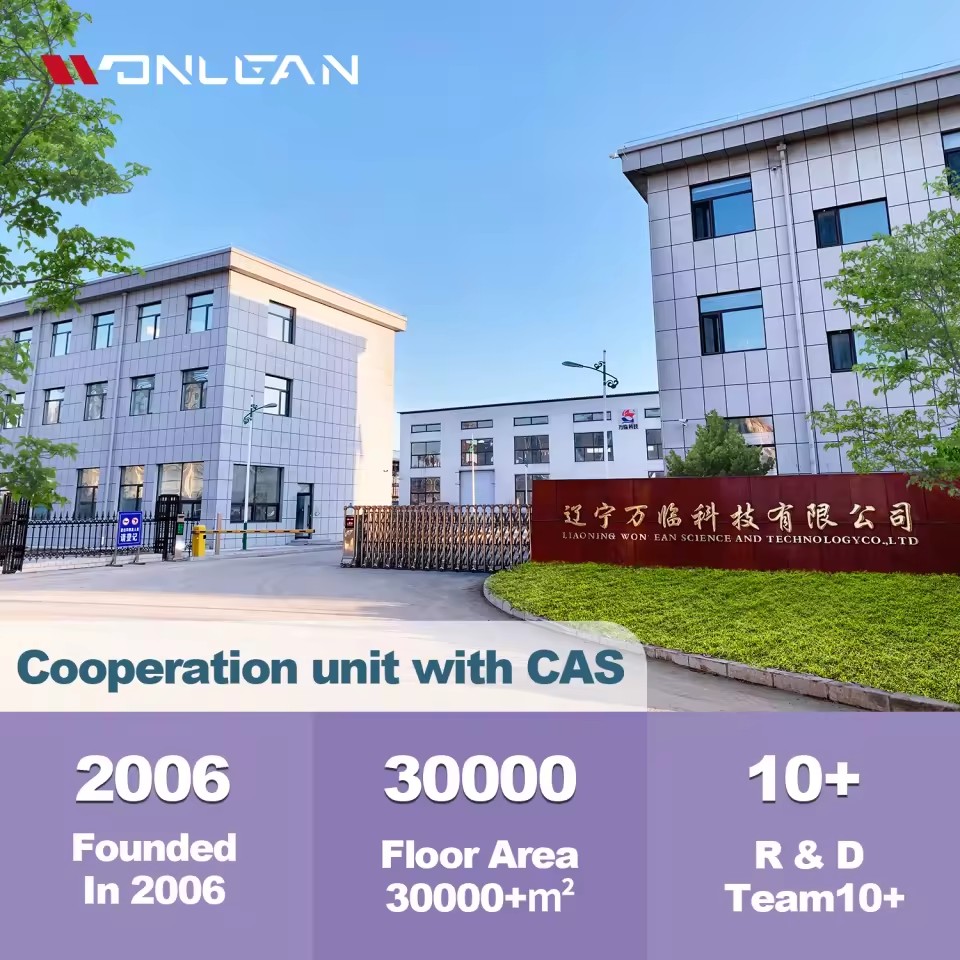

Company Profile

ABOUT US

Service

Packing and Delivery

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A: intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Waterjet Cutting Machine

is an effective tool for any shape of artistic creation. The traditional cutting method is saw cutting only in a row. When cutting the curves, the model should be made according to the size and then polished.

can cut any shape of models under the control of the CNC program. 1. Smooth cutting quality is perfect. 2.The cutting accuracy of

waterjet cutter

is up to 0.1mm. Edge joints are regular, and

water jet cutting

can also make very complex puzzles and murals. 3. Cutting speed is fast, and product consistency and interchangeability are very good. 4. Drilling, cutting and forming can be done at once. 5. Improve the working environment and reduce the impact of dust and noise on the operator. 6.

Waterjet cutting

is a cold cutting that does not damage the internal structure of the material. 7. It is the only machine for processing composite materials and fragile porcelain. 8.

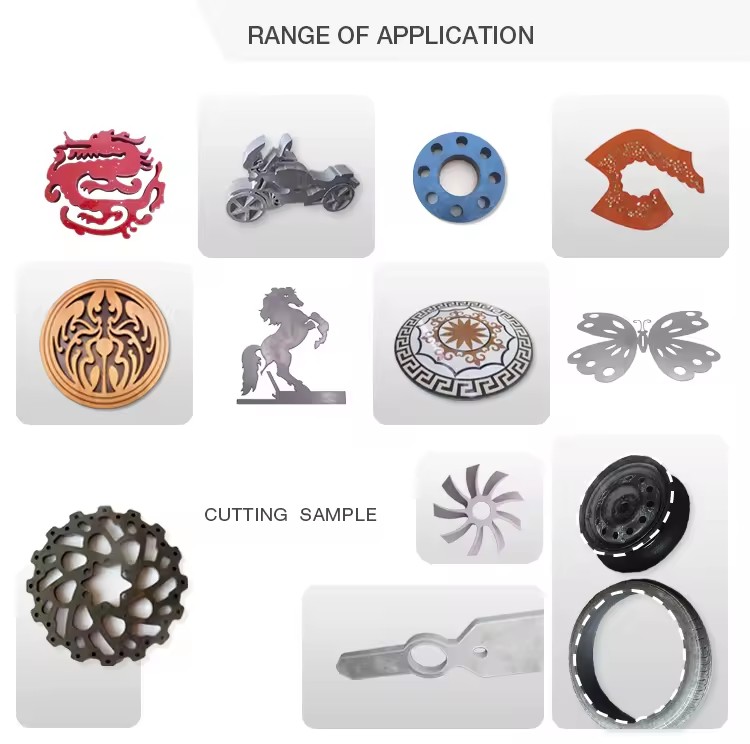

can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble, glass, etc.

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Voltage

420MPA

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

2 Years

Video outgoing-inspection

Provided

Dimension(L*W*H)

400MM*400MM

Key selling points

Easy To Operate

Rated power

37KW

Place of origin

China

Weight (kg)

1500

Table travel (x) (mm)

400

Table travel (y) (mm)

600

Table travel (z) (mm)

Cutting accuracy(mm)

0.1

Type

Water Jet Cutters

Cutting accuracy

±0.1mm

Structure

Oil immersion

Machine Cover

Stainless Steel

Control system

CNC Controller

Application

School, laboratory, small workpiece cutting

Name

Mini Water Jet Cutting Machine

Keyword

Small Waterjet Cutting Machine

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

WL0406

Effective cutting range (mm)

400*600, Size can becustomized

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
