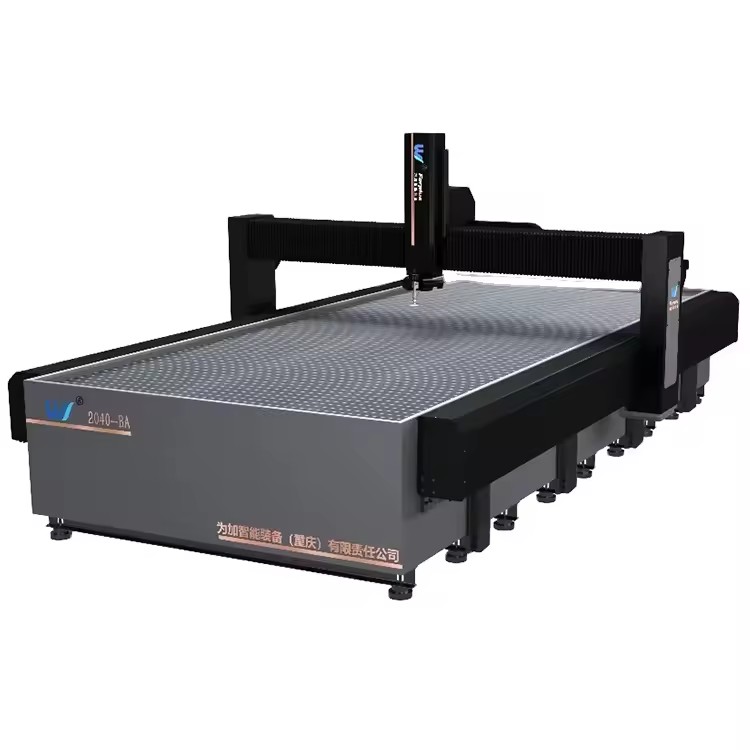

High Quality Stone Waterjet Cutter CNC Water Jet Cutting Machines Prices

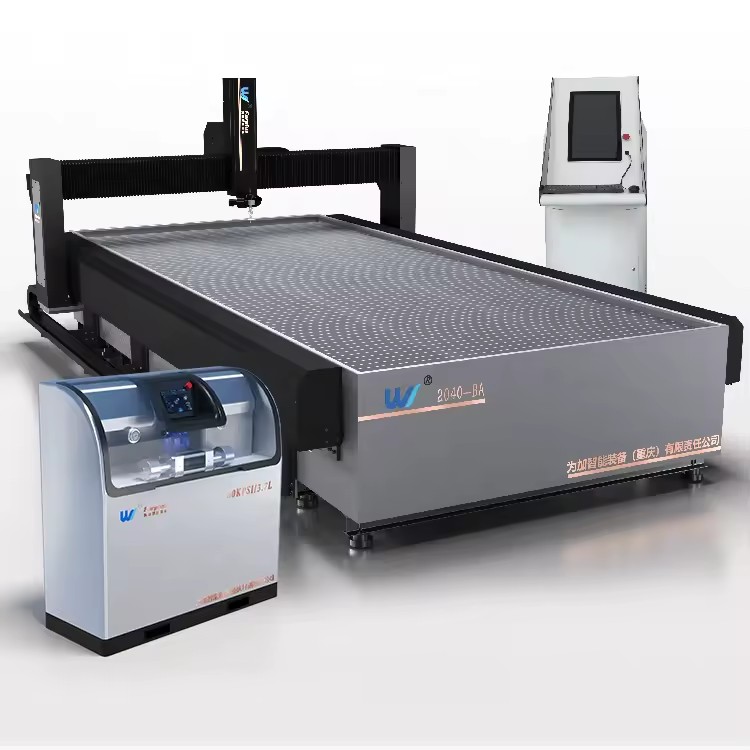

Forplus standard waterjet cutting platform

Model

Forplus-U1520-Z150

X、Y、Z travel

1500mm、2000mm、150mm

Machine structure

gantry structure

Transmission mode

ball screw,linear guide rail

Positioning accuracy

±0.05mm

Re-positioning accuracy

Max no-load speed

10M/min

Abrasive feeding system

continuous abrasive feeding module

Abrasive removal system

spiral-flow type auto abrasive removal system

Cutting head assembly

standard 3-axis,AC centring 5-axis,AC standard 5 axis (optional)

Water tank platform

linear grid,corrugated grid,honeycomb (optional)

Height measurement

laser-measurement

Power requirement of electric cabinet

single phase 220V 50HZ

Compressed air pressure

≥5bar

Compressed air caliber

φ12mm

Products Description

1.Standard double gantry structure

Ceramic Tile

Waterjet

Cutting Machine

2.

Water jet cutters are also capable of producing intricate cuts in material. With specialized software and 3-D machining heads, complex shapes can be produced.

3.Servo motor drive for the whole machine 4.

All of our forplus

Water Jet Marble Cutting Machine

s come equipped with the latest advancements and features to ensure maximum accuracy and cutting performance.

5.

The Perfect Sales Service System,o

ur products being exported to Europe, North America, Southeast Asia, the Middle East and other international regions.

Stone Waterjet Cutting Machine

Forplus Water Jet Marble Block Cutting Machine 3 Axis

Water Jet Marble Stone Cutting Machine

Transmission structure is double-layer protection

X, Y, Z axis is designed with double sealing, external steel shell and high quality dust folding cloth are adopted, which can provide effective hard protection and full sealing for the machine, and it is the current effective sealing form of waterjet cutting machine.

CNC control system

Standard Italian ECS Professional waterjet cuting CNC control system.Servo-motor drive for the whole machine,Absolute value encoder closed-loop control.High precision, reliable control, and simple connection.

Products Parameters
